Pulse counter streaming using AXI interface

Interfacing the custom fast pulse counter with the outside world: streaming, writing control registers, dealing with metastability

IntermediateWork in progress2 hours329

Pulse counter streaming using AXI interface

Things used in this project

Hardware components

Z-turn board (Zynq-7010)

Z-turn cape

Software apps and online services

AMD Vivado Design Suite

Story

1. Introduction

This is part 2 from a series of tutorials (full list is given at the bottom) describing a fast inter-arrival time pulse counter implemented in FPGA. Today our goal is to take the hardware design we've made in part 1 and allow it to easily interface with the outside world. For that, we'll be using the AXI interface which is the standard used by AMD (Xilinx) FPGA hardware designs for interacting with each other.

2. Prerequisites

basic knowledge of VHDL (you should be familiar with VHDL syntax)
installed Vivado 2022.2 (an earlier version is also fine)

3. Streaming fast counter

Now that we have a working FPGA pulse counter, we'll want to preserve the data generated by our device. Our component is implemented in the programmable logic (PL) part of the Zynq chip, and we'll need to transfer the data to the processing (PS) part to analyze it or transfer to a personal computer for processing. AMD designs use AXI interface for this purpose which can be rather complicated. Fortunately for us, we are dealing with the simplest possible scenario which is illustrated in this figure (described in detail here):

During the transfer, the source of DATA (our counter) raises the Tvalid flag when it is ready to transmit data, and the transaction is successful as long as the destination is ready to receive the data (Tready is high). You'll notice that our counter (described in detail in part 1) already basically fits into this protocol. All we need to do is create a wrapper around it and name the input and output ports according to the convention followed by Vivado so that the software can automatically recognize our interface as the AXI stream interface.

But what happens if the destination is not ready (Tvalid is high but Tready is low)? Well, our counter is not equipped to deal with this situation so it's going to have to push forward as if nothing happened. But it should at least inform the user that a data entry has been dropped, and therefore we are going to add an overflow flag to our design that will be used later to trigger an interrupt in the processor.

It is time to write the wrapper we've just talked about that I call iatcollector2ch_axis. Here is the diagram; the code and the testbench can be found below among the attachments.

We have 5 ports with the m_axis prefix which stands for Master AXIStream. This prefix guarantees that our design will be recognized by Vivado's IP integrator as having the AXI stream interface.

Here is the portion of the simulation result that illustrates overflow generation:

You can see that while the ports have been renamed, the principles remain the same. m_axis_tvalid reports when our data (m_axis_tdata) is ready to be passed down. The overflow signal is generated when the destination is not ready to receive the data (m_axis_tready is low). You may also notice that the output of the counter is delayed by two clock cycles now. The reason for this is the implementation of the reset as required by the AXI protocol. However, the performance of the counter is still unaffected since it accurately reports inter-arrival time between two pulses.

4. Smart streaming fast counter

Our next task is to simplify reusing the counter in a block design. If you have some experience with IPs included with Vivado, you know that many of them have a Slave AXI-Lite interface (S_AXI_Lite). This allows the software to dynamically control the behavior of your design. We have two parameters that are good candidates for such control, enable_cnt and max_count. Adding S_AXI interface will allow us simple access to writing a new value of max_count or enabling the counter, and for that reason I'm calling this design iatcollector2chSmart_axis.

Slave AXI Lite interface is rather complicated, even in its most basic form. For that reason, I'm not going to discuss it any further (you can find the working code among the attachments). Instead, here are some useful resources in case you want to dive deeper. You can skip the next section if you are not interested.

5. Useful resources for understanding AXI protocols.

5.1 One quick way to get your feet wet with AXI Lite is to let Vivado generate an example component for you. This is exactly what I did while designing my custom IP, and most of the code for iatcollector2chSmart was auto-generated by Vivado.

You need to:

go to Tools -> Create and Package New IP...,
click Next
select the Createa new AXI peripheral option at the bottom
name your IP in the next screen

which will get you to the following screen

where you can define which interfaces you want to include. If you select the Edit IP option on the next screen, another instance of Vivado will open a project where you can edit the VHDL code and define your own components while staying within the framework of the AXI protocol. A tutorial that describes creating a custom AXI streaming IP is available here, and more tutorials on the subject can be found online.

5.2. If you are struggling with understanding or defining your custom IP but want to move forward and test other components of your project (the subject of the rest of the tutorials in this series), I suggest using XADC Wizard, an IP block available with Vivado. Here is a picture of the block after I disabled all alarms and enabled AXI streaming.

As you can see, the two interfaces we've been working on are available here out of the box. This IP is useful for many things, but for our purposes it can stream the readings of the chip temperature. There is an excellent tutorial that fully describes both hardware and software aspects of using XADC.

5.3. Finally, if you really want to understand the protocol, there is no substitute for reading the manual (AMBA AXI Protocol Specifications).

6. Packaging the smart streaming fast counter

At the end of the previous tutorial (part 1) I left you with three VHDL files that describe our hardware: detector, iatcounter, and iatcollector2ch. Since the start of this tutorial we've added two more VHDL files: iatcollector2ch_axis and iatcollector2chSmart_axis. At this point, you should have the following Design Sources (I've disabled all testbench files)

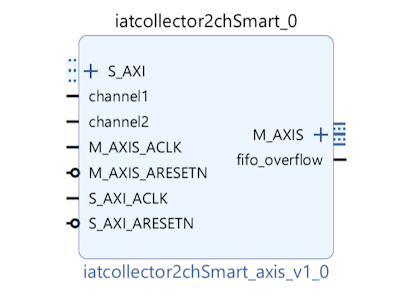

It is now time to package our IP so that we can easily reuse it as a standalone block.

First, decide where you are going to keep your custom IPs and create a folder named ip_repo and another folder named iatcollector2chSmart_axis inside it.

Then, select Tools > Create and Package New IPs... in Vivado; click Next.

We are going to package our current project:

Select the folder you created in the previous step, confirm your choice, then click Finish.

A new instance of Vivado will open with a window that controls various aspects of your IP. We are going to accept all these autogenerated settings, click on Review and Package, and then the "Re-Package IP" button; confirm that you want to close the project.

Finally, we need to make sure that Vivado is going to be able to find our IP in the future. Go to Tools > Settings... and under Tool Settings > IP Defaults category add the path to your ip_repo folder

If you now restart Vivado and create a new blank project, you'll be able to add our IP to the block design. Using this design will be the subject of our next tutorial.

This IP is the crowning achievement of this tutorial but unfortunately we are not quite done yet. There are two more (much simpler) IPs that we are going to design and package next. Both are going to make our life much simpler in the later stages of the project.

8. Dealing with metastability

Our ultimate goal is to detect external pulses which are not synchronized to the FPGA clock. In such cases metastability can cause our device to malfunction and drop (fail to detect) a legitimate pulse. Fortunately, this failure is easily preventable by placing a cascade of 2 or 3 flip-flops before feeding the signal to the counter. So we are going to define and package a component with 3 flip-flops (as usual, the code can be found below). You can follow the workflow established earlier in this tutorial by creating a new project and packaging it into your own IP:

Once again, this component will delay an input pulse but will not have any effect on the performance of our inter-arrival counter.

9. Event simulator

While developing this project, I found it extremely useful to have a source of high quality 100% predictable pulses. Although not mimicking every aspect of real life signals, events can be easily generated by another IP implemented in the FPGA. I called my event simulator eventSimSmart, it can be controlled by writing to registers via S_AXI_Lite protocol. The simulator produces a series of output pulses separated by time intervals starting at 2 and incremented by 1 up to max_value. For example, if max_value = 6, the simulator will produce the following series of time delays: 2, 3, 4, 5, 6, 2, 3, 4, 5, 6, 2, 3,... where each number is the number of clock periods between simulated pulses. Here is a section of the testbench result and the final IP block.

10. Conclusion

In this tutorial we have created three IPs for future incorporation into a block design. One is a streaming IP for recording inter-arrival times between events, the other two are auxiliary and will make our final design more robust and easier to test.

11. Full list of tutorials in this series

1. Pulse counter implemented in FPGA: hardware (VHDL) design

2. Pulse counter streaming using AXI interface and packaging the counter as a custom IP.

3. Full hardware design of the streaming pulse counter on Zynq.

4. Setting up DMA transfers to receive data from the streaming pulse counter.

5. USB2 bulk transfers and interrupts for high data transfer rates.

6. Working event counter with USB2 transfers and communications.

7. External (PC) testing software for receiving data from the counter.

library ieee;
use ieee.std_logic_1164.all;
use ieee.numeric_std.all;

entity eventSim is  generic(
    DATA_WIDTH : integer := 16
  );
  port(
    clk         : in std_logic;
    enable      : in std_logic;
    max_value   : in std_logic_vector(DATA_WIDTH-1 downto 0);
    eventOut    : out std_logic
  );
end eventSim;

architecture behavior of eventSim is
    signal count : unsigned(DATA_WIDTH-1 downto 0);
    signal current_max_count : unsigned(DATA_WIDTH-1 downto 0);
    signal ready_flag : std_logic;
begin

    prCount : process (clk,enable)
    begin
      if rising_edge(clk) then
        if (enable = '1') then
          count <= to_unsigned(0,DATA_WIDTH);
          current_max_count <= to_unsigned(0,DATA_WIDTH);
          eventOut <= '0';
        else
          count <= count + 1;                       -- increment count
          if (count>=current_max_count) then        -- produce output
            eventOut <= '1';
            count <= to_unsigned(0,DATA_WIDTH);
            if (current_max_count<unsigned(max_value)-1) then  -- increment current_max_count
              current_max_count <= current_max_count + 1;
            else
              current_max_count <= to_unsigned(1,DATA_WIDTH);
            end if;
          else
            eventOut <= '0';
          end if;
        end if;
      end if;
    end process;

end behavior;

library ieee;
use ieee.std_logic_1164.all;
use ieee.numeric_std.all;

entity iatcollector2ch_axis is
	generic (
		C_M_AXIS_TDATA_WIDTH	: integer	:= 16
	);
	port (
        enable_cnt : in std_logic;
        channel1   : in std_logic;
        channel2   : in std_logic;
        max_count  : in std_logic_vector(C_M_AXIS_TDATA_WIDTH-1 downto 0);
        overflow   : out std_logic;

		m_axis_aclk	     : in std_logic;
		m_axis_aresetn   : in std_logic;
		m_axis_tvalid	 : out std_logic;
		m_axis_tdata	 : out std_logic_vector(C_M_AXIS_TDATA_WIDTH-1 downto 0);
		m_axis_tready	 : in std_logic
	);
end iatcollector2ch_axis;

architecture behavior of iatcollector2ch_axis is

    -- inter-arrival time collector
    component iatcollector2ch is
    generic(
      DATA_WIDTH : integer
    );
	port (
      clk        : in std_logic;
      enable     : in std_logic;
      channel1   : in std_logic;
      channel2   : in std_logic;
      max_count  : in std_logic_vector(DATA_WIDTH - 1 downto 0);
      ready      : out std_logic;
      data       : out std_logic_vector(DATA_WIDTH - 1 downto 0)
    );
    end component;

    -- intermediate signals
    signal data_ready_i : std_logic;
    signal data_i       : std_logic_vector(C_M_AXIS_TDATA_WIDTH - 1 downto 0);
    signal overflow_i   : std_logic;

begin

	overflow_i <= '1' when (data_ready_i='1' and m_axis_tready='0') else
	              '0';

    prDelayOverflow : process(m_axis_aclk)
    begin
      if (rising_edge(m_axis_aclk)) then
        overflow <= overflow_i; -- delay overflow signal to synchronize with m_axis_tvalid
      end if;
    end process;

	process( m_axis_aclk ) is
	begin
	  if (rising_edge(m_axis_aclk)) then
	    if (m_axis_aresetn = '0') then
	      m_axis_tvalid <= '0';
	      m_axis_tdata <= (others => '0');
	    else
	      m_axis_tvalid <= data_ready_i;
	      m_axis_tdata <= data_i;
	    end if;
	  end if;
	end process;

    -- instantiate the counter
   iatcollector2ch1 : iatcollector2ch
     generic map (
      C_M_AXIS_TDATA_WIDTH
     )
     port map (
       clk => m_axis_aclk,
       enable => enable_cnt,
       channel1 => channel1,
       channel2 => channel2,
       max_count => max_count,
       ready => data_ready_i,
       data => data_i
     );

end behavior;

library ieee;
use ieee.std_logic_1164.all;
use ieee.numeric_std.all;

entity tb_iatcollector2ch_axis is
end tb_iatcollector2ch_axis;

architecture behavior of tb_iatcollector2ch_axis is

component iatcollector2ch_axis is
    generic(
      C_M_AXIS_TDATA_WIDTH : integer
    );
	port (
        enable_cnt : in std_logic;
        channel1   : in std_logic;
        channel2   : in std_logic;
        max_count  : in std_logic_vector(C_M_AXIS_TDATA_WIDTH - 1 downto 0);
        overflow   : out std_logic;
		m_axis_aclk	: in std_logic;
		m_axis_aresetn	: in std_logic;
		m_axis_tvalid	: out std_logic;
		m_axis_tdata	: out std_logic_vector(C_M_AXIS_TDATA_WIDTH-1 downto 0);
		m_axis_tready	: in std_logic
	);
end component;

constant C_M_AXIS_TDATA_WIDTH_TB : integer := 8;
constant MAX_COUNT_TB  : integer := 5;
constant CLK_PERIOD : time := 10 ns;
constant SIGNAL_DURATION : time := 3*CLK_PERIOD;
constant ENABLE_DELAY : time := 2 ns;

--declare inputs and initialize
signal m_axis_aclk      : std_logic := '0';
signal enable_cnt       : std_logic := '1';
signal channel1         : std_logic := '0';
signal channel2         : std_logic := '0';
signal max_count        : std_logic_vector(C_M_AXIS_TDATA_WIDTH_TB - 1 downto 0) := std_logic_vector(to_unsigned(MAX_COUNT_TB,C_M_AXIS_TDATA_WIDTH_TB));
signal m_axis_aresetn	: std_logic := '1';
signal m_axis_tready	: std_logic := '1';

--declare outputs
signal overflow         : std_logic;
signal m_axis_tvalid	: std_logic;
signal m_axis_tdata	    : std_logic_vector(C_M_AXIS_TDATA_WIDTH_TB-1 downto 0);

begin

    -- instantiate the unit under test (uut)
   uut : iatcollector2ch_axis generic map (C_M_AXIS_TDATA_WIDTH_TB) port map (
            enable_cnt => enable_cnt,
            channel1 => channel1,
            channel2 => channel2,
            max_count => max_count,
            overflow => overflow,
            m_axis_aclk => m_axis_aclk,
            m_axis_aresetn => m_axis_aresetn,
            m_axis_tvalid => m_axis_tvalid,
            m_axis_tdata => m_axis_tdata,
            m_axis_tready => m_axis_tready
        );

   -- Clock process definitions
   Clk_process :process
   begin
        m_axis_aclk <= '0';
        wait for CLK_PERIOD/2;
        m_axis_aclk <= '1';
        wait for CLK_PERIOD/2;
   end process;

   -- Stimulus process, Apply inputs here.
  stim_proc: process
   begin
        wait for CLK_PERIOD*5 + ENABLE_DELAY; -- wait for 5 clock cycles
                                              -- +2 ns for starting while clk is low
                                              -- +7 ns for starting while clk is high

        enable_cnt <='0';                  --enable the counter

        -- event generation upon reaching max count
        wait for CLK_PERIOD*(MAX_COUNT_TB+1);--ENABLE_DELAY+CLK_PERIOD/2;


        channel1 <= '1';
        wait for SIGNAL_DURATION;
        channel1 <= '0';

        wait for CLK_PERIOD*8;
        channel1 <= '1';
        wait for SIGNAL_DURATION;
        channel1 <= '0';

        wait for CLK_PERIOD*4;
        channel1 <= '1';
        wait for CLK_PERIOD;
        channel2 <= '1';
        wait for 2*CLK_PERIOD;
        channel1 <= '0';
        wait for CLK_PERIOD;
        channel2 <= '0';

        -- simulate overflow
        wait for CLK_PERIOD*4 - ENABLE_DELAY;
        m_axis_tready <= '0';

        wait;

  end process;

end;

library ieee;
use ieee.std_logic_1164.all;
use ieee.numeric_std.all;

entity iatcollector2chSmart_axis is
	generic (
		-- Users to add parameters here
		C_M_AXIS_TDATA_WIDTH	: integer	:= 32;
		-- User parameters ends
		-- Do not modify the parameters beyond this line

		-- Width of S_AXI data bus
		C_S_AXI_DATA_WIDTH	: integer	:= 32;
		-- Width of S_AXI address bus
		C_S_AXI_ADDR_WIDTH	: integer	:= 4
	);
	port (
		-- Users to add ports here
        channel1   : in std_logic;
        channel2   : in std_logic;
        fifo_overflow   : out std_logic;
		M_AXIS_ACLK	 : in std_logic;
		M_AXIS_ARESETN : in std_logic;
		M_AXIS_TVALID	 : out std_logic;
		M_AXIS_TDATA	 : out std_logic_vector(C_M_AXIS_TDATA_WIDTH-1 downto 0);
		M_AXIS_TREADY	 : in std_logic;
		-- User ports ends
		-- Do not modify the ports beyond this line

		-- Global Clock Signal
		S_AXI_ACLK	: in std_logic;
		-- Global Reset Signal. This Signal is Active LOW
		S_AXI_ARESETN	: in std_logic;
		-- Write address (issued by master, acceped by Slave)
		S_AXI_AWADDR	: in std_logic_vector(C_S_AXI_ADDR_WIDTH-1 downto 0);
		-- Write channel Protection type. This signal indicates the
    		-- privilege and security level of the transaction, and whether
    		-- the transaction is a data access or an instruction access.
		S_AXI_AWPROT	: in std_logic_vector(2 downto 0);
		-- Write address valid. This signal indicates that the master signaling
    		-- valid write address and control information.
		S_AXI_AWVALID	: in std_logic;
		-- Write address ready. This signal indicates that the slave is ready
    		-- to accept an address and associated control signals.
		S_AXI_AWREADY	: out std_logic;
		-- Write data (issued by master, acceped by Slave)
		S_AXI_WDATA	: in std_logic_vector(C_S_AXI_DATA_WIDTH-1 downto 0);
		-- Write strobes. This signal indicates which byte lanes hold
    		-- valid data. There is one write strobe bit for each eight
    		-- bits of the write data bus.
		S_AXI_WSTRB	: in std_logic_vector((C_S_AXI_DATA_WIDTH/8)-1 downto 0);
		-- Write valid. This signal indicates that valid write
    		-- data and strobes are available.
		S_AXI_WVALID	: in std_logic;
		-- Write ready. This signal indicates that the slave
    		-- can accept the write data.
		S_AXI_WREADY	: out std_logic;
		-- Write response. This signal indicates the status
    		-- of the write transaction.
		S_AXI_BRESP	: out std_logic_vector(1 downto 0);
		-- Write response valid. This signal indicates that the channel
    		-- is signaling a valid write response.
		S_AXI_BVALID	: out std_logic;
		-- Response ready. This signal indicates that the master
    		-- can accept a write response.
		S_AXI_BREADY	: in std_logic;
		-- Read address (issued by master, acceped by Slave)
		S_AXI_ARADDR	: in std_logic_vector(C_S_AXI_ADDR_WIDTH-1 downto 0);
		-- Protection type. This signal indicates the privilege
    		-- and security level of the transaction, and whether the
    		-- transaction is a data access or an instruction access.
		S_AXI_ARPROT	: in std_logic_vector(2 downto 0);
		-- Read address valid. This signal indicates that the channel
    		-- is signaling valid read address and control information.
		S_AXI_ARVALID	: in std_logic;
		-- Read address ready. This signal indicates that the slave is
    		-- ready to accept an address and associated control signals.
		S_AXI_ARREADY	: out std_logic;
		-- Read data (issued by slave)
		S_AXI_RDATA	: out std_logic_vector(C_S_AXI_DATA_WIDTH-1 downto 0);
		-- Read response. This signal indicates the status of the
    		-- read transfer.
		S_AXI_RRESP	: out std_logic_vector(1 downto 0);
		-- Read valid. This signal indicates that the channel is
    		-- signaling the required read data.
		S_AXI_RVALID	: out std_logic;
		-- Read ready. This signal indicates that the master can
    		-- accept the read data and response information.
		S_AXI_RREADY	: in std_logic
	);
end iatcollector2chSmart_axis;

architecture behavior of iatcollector2chSmart_axis is

    -- code iatcllrstreamer component
    component iatcollector2ch_axis is
	generic (
		C_M_AXIS_TDATA_WIDTH	: integer	:= 16
	);
	port (
        enable_cnt : in std_logic;
        channel1   : in std_logic;
        channel2   : in std_logic;
        max_count  : in std_logic_vector(C_M_AXIS_TDATA_WIDTH-1 downto 0);
        overflow   : out std_logic;
		M_AXIS_ACLK	 : in std_logic;
		M_AXIS_ARESETN : in std_logic;
		M_AXIS_TVALID	 : out std_logic;
		M_AXIS_TDATA	 : out std_logic_vector(C_M_AXIS_TDATA_WIDTH-1 downto 0);
		M_AXIS_TREADY	 : in std_logic
	);
    end component;
    -- iatcllrstreamer signals
    signal enable_i    : std_logic;
    signal max_count_i : std_logic_vector(C_M_AXIS_TDATA_WIDTH-1 downto 0);

	-- AXI4LITE signals
	signal axi_awaddr	: std_logic_vector(C_S_AXI_ADDR_WIDTH-1 downto 0);
	signal axi_awready	: std_logic;
	signal axi_wready	: std_logic;
	signal axi_bresp	: std_logic_vector(1 downto 0);
	signal axi_bvalid	: std_logic;
	signal axi_araddr	: std_logic_vector(C_S_AXI_ADDR_WIDTH-1 downto 0);
	signal axi_arready	: std_logic;
	signal axi_rdata	: std_logic_vector(C_S_AXI_DATA_WIDTH-1 downto 0);
	signal axi_rresp	: std_logic_vector(1 downto 0);
	signal axi_rvalid	: std_logic;

	-- Example-specific design signals
	-- local parameter for addressing 32 bit / 64 bit C_S_AXI_DATA_WIDTH
	-- ADDR_LSB is used for addressing 32/64 bit registers/memories
	-- ADDR_LSB = 2 for 32 bits (n downto 2)
	-- ADDR_LSB = 3 for 64 bits (n downto 3)
	constant ADDR_LSB  : integer := (C_S_AXI_DATA_WIDTH/32)+ 1;
	constant OPT_MEM_ADDR_BITS : integer := 1;
	------------------------------------------------
	---- Signals for user logic register space example
	--------------------------------------------------
	---- Number of Slave Registers 4
	signal slv_reg0	:std_logic_vector(C_S_AXI_DATA_WIDTH-1 downto 0);
	signal slv_reg1	:std_logic_vector(C_S_AXI_DATA_WIDTH-1 downto 0);
	signal slv_reg2	:std_logic_vector(C_S_AXI_DATA_WIDTH-1 downto 0);
	signal slv_reg3	:std_logic_vector(C_S_AXI_DATA_WIDTH-1 downto 0);
	signal slv_reg_rden	: std_logic;
	signal slv_reg_wren	: std_logic;
	signal reg_data_out	:std_logic_vector(C_S_AXI_DATA_WIDTH-1 downto 0);
	signal byte_index	: integer;
	signal aw_en	: std_logic;

begin
	-- I/O Connections assignments

	S_AXI_AWREADY	<= axi_awready;
	S_AXI_WREADY	<= axi_wready;
	S_AXI_BRESP	<= axi_bresp;
	S_AXI_BVALID	<= axi_bvalid;
	S_AXI_ARREADY	<= axi_arready;
	S_AXI_RDATA	<= axi_rdata;
	S_AXI_RRESP	<= axi_rresp;
	S_AXI_RVALID	<= axi_rvalid;
	-- Implement axi_awready generation
	-- axi_awready is asserted for one S_AXI_ACLK clock cycle when both
	-- S_AXI_AWVALID and S_AXI_WVALID are asserted. axi_awready is
	-- de-asserted when reset is low.

	process (S_AXI_ACLK)
	begin
	  if rising_edge(S_AXI_ACLK) then
	    if S_AXI_ARESETN = '0' then
	      axi_awready <= '0';
	      aw_en <= '1';
	    else
	      if (axi_awready = '0' and S_AXI_AWVALID = '1' and S_AXI_WVALID = '1' and aw_en = '1') then
	        -- slave is ready to accept write address when
	        -- there is a valid write address and write data
	        -- on the write address and data bus. This design
	        -- expects no outstanding transactions.
	           axi_awready <= '1';
	           aw_en <= '0';
	        elsif (S_AXI_BREADY = '1' and axi_bvalid = '1') then
	           aw_en <= '1';
	           axi_awready <= '0';
	      else
	        axi_awready <= '0';
	      end if;
	    end if;
	  end if;
	end process;

	-- Implement axi_awaddr latching
	-- This process is used to latch the address when both
	-- S_AXI_AWVALID and S_AXI_WVALID are valid.

	process (S_AXI_ACLK)
	begin
	  if rising_edge(S_AXI_ACLK) then
	    if S_AXI_ARESETN = '0' then
	      axi_awaddr <= (others => '0');
	    else
	      if (axi_awready = '0' and S_AXI_AWVALID = '1' and S_AXI_WVALID = '1' and aw_en = '1') then
	        -- Write Address latching
	        axi_awaddr <= S_AXI_AWADDR;
	      end if;
	    end if;
	  end if;
	end process;

	-- Implement axi_wready generation
	-- axi_wready is asserted for one S_AXI_ACLK clock cycle when both
	-- S_AXI_AWVALID and S_AXI_WVALID are asserted. axi_wready is
	-- de-asserted when reset is low.

	process (S_AXI_ACLK)
	begin
	  if rising_edge(S_AXI_ACLK) then
	    if S_AXI_ARESETN = '0' then
	      axi_wready <= '0';
	    else
	      if (axi_wready = '0' and S_AXI_WVALID = '1' and S_AXI_AWVALID = '1' and aw_en = '1') then
	          -- slave is ready to accept write data when
	          -- there is a valid write address and write data
	          -- on the write address and data bus. This design
	          -- expects no outstanding transactions.
	          axi_wready <= '1';
	      else
	        axi_wready <= '0';
	      end if;
	    end if;
	  end if;
	end process;

	-- Implement memory mapped register select and write logic generation
	-- The write data is accepted and written to memory mapped registers when
	-- axi_awready, S_AXI_WVALID, axi_wready and S_AXI_WVALID are asserted. Write strobes are used to
	-- select byte enables of slave registers while writing.
	-- These registers are cleared when reset (active low) is applied.
	-- Slave register write enable is asserted when valid address and data are available
	-- and the slave is ready to accept the write address and write data.
	slv_reg_wren <= axi_wready and S_AXI_WVALID and axi_awready and S_AXI_AWVALID ;

	process (S_AXI_ACLK)
	variable loc_addr :std_logic_vector(OPT_MEM_ADDR_BITS downto 0);
	begin
	  if rising_edge(S_AXI_ACLK) then
	    if S_AXI_ARESETN = '0' then
	      slv_reg0 <= (others => '0');
	      slv_reg1 <= (others => '0');
	      slv_reg2 <= (others => '0');
	      slv_reg3 <= (others => '0');
	    else
	      loc_addr := axi_awaddr(ADDR_LSB + OPT_MEM_ADDR_BITS downto ADDR_LSB);
	      if (slv_reg_wren = '1') then
	        case loc_addr is
	          when b"00" =>
	            for byte_index in 0 to (C_S_AXI_DATA_WIDTH/8-1) loop
	              if ( S_AXI_WSTRB(byte_index) = '1' ) then
	                -- Respective byte enables are asserted as per write strobes
	                -- slave registor 0
	                slv_reg0(byte_index*8+7 downto byte_index*8) <= S_AXI_WDATA(byte_index*8+7 downto byte_index*8);
	              end if;
	            end loop;
	          when b"01" =>
	            for byte_index in 0 to (C_S_AXI_DATA_WIDTH/8-1) loop
	              if ( S_AXI_WSTRB(byte_index) = '1' ) then
	                -- Respective byte enables are asserted as per write strobes
	                -- slave registor 1
	                slv_reg1(byte_index*8+7 downto byte_index*8) <= S_AXI_WDATA(byte_index*8+7 downto byte_index*8);
	              end if;
	            end loop;
	          when b"10" =>
	            for byte_index in 0 to (C_S_AXI_DATA_WIDTH/8-1) loop
	              if ( S_AXI_WSTRB(byte_index) = '1' ) then
	                -- Respective byte enables are asserted as per write strobes
	                -- slave registor 2
	                slv_reg2(byte_index*8+7 downto byte_index*8) <= S_AXI_WDATA(byte_index*8+7 downto byte_index*8);
	              end if;
	            end loop;
	          when b"11" =>
	            for byte_index in 0 to (C_S_AXI_DATA_WIDTH/8-1) loop
	              if ( S_AXI_WSTRB(byte_index) = '1' ) then
	                -- Respective byte enables are asserted as per write strobes
	                -- slave registor 3
	                slv_reg3(byte_index*8+7 downto byte_index*8) <= S_AXI_WDATA(byte_index*8+7 downto byte_index*8);
	              end if;
	            end loop;
	          when others =>
	            slv_reg0 <= slv_reg0;
	            slv_reg1 <= slv_reg1;
	            slv_reg2 <= slv_reg2;
	            slv_reg3 <= slv_reg3;
	        end case;
	      end if;
	    end if;
	  end if;
	end process;

	-- Implement write response logic generation
	-- The write response and response valid signals are asserted by the slave
	-- when axi_wready, S_AXI_WVALID, axi_wready and S_AXI_WVALID are asserted.
	-- This marks the acceptance of address and indicates the status of
	-- write transaction.

	process (S_AXI_ACLK)
	begin
	  if rising_edge(S_AXI_ACLK) then
	    if S_AXI_ARESETN = '0' then
	      axi_bvalid  <= '0';
	      axi_bresp   <= "00"; --need to work more on the responses
	    else
	      if (axi_awready = '1' and S_AXI_AWVALID = '1' and axi_wready = '1' and S_AXI_WVALID = '1' and axi_bvalid = '0'  ) then
	        axi_bvalid <= '1';
	        axi_bresp  <= "00";
	      elsif (S_AXI_BREADY = '1' and axi_bvalid = '1') then   --check if bready is asserted while bvalid is high)
	        axi_bvalid <= '0';                                 -- (there is a possibility that bready is always asserted high)
	      end if;
	    end if;
	  end if;
	end process;

	-- Implement axi_arready generation
	-- axi_arready is asserted for one S_AXI_ACLK clock cycle when
	-- S_AXI_ARVALID is asserted. axi_awready is
	-- de-asserted when reset (active low) is asserted.
	-- The read address is also latched when S_AXI_ARVALID is
	-- asserted. axi_araddr is reset to zero on reset assertion.

	process (S_AXI_ACLK)
	begin
	  if rising_edge(S_AXI_ACLK) then
	    if S_AXI_ARESETN = '0' then
	      axi_arready <= '0';
	      axi_araddr  <= (others => '1');
	    else
	      if (axi_arready = '0' and S_AXI_ARVALID = '1') then
	        -- indicates that the slave has acceped the valid read address
	        axi_arready <= '1';
	        -- Read Address latching
	        axi_araddr  <= S_AXI_ARADDR;
	      else
	        axi_arready <= '0';
	      end if;
	    end if;
	  end if;
	end process;

	-- Implement axi_arvalid generation
	-- axi_rvalid is asserted for one S_AXI_ACLK clock cycle when both
	-- S_AXI_ARVALID and axi_arready are asserted. The slave registers
	-- data are available on the axi_rdata bus at this instance. The
	-- assertion of axi_rvalid marks the validity of read data on the
	-- bus and axi_rresp indicates the status of read transaction.axi_rvalid
	-- is deasserted on reset (active low). axi_rresp and axi_rdata are
	-- cleared to zero on reset (active low).
	process (S_AXI_ACLK)
	begin
	  if rising_edge(S_AXI_ACLK) then
	    if S_AXI_ARESETN = '0' then
	      axi_rvalid <= '0';
	      axi_rresp  <= "00";
	    else
	      if (axi_arready = '1' and S_AXI_ARVALID = '1' and axi_rvalid = '0') then
	        -- Valid read data is available at the read data bus
	        axi_rvalid <= '1';
	        axi_rresp  <= "00"; -- 'OKAY' response
	      elsif (axi_rvalid = '1' and S_AXI_RREADY = '1') then
	        -- Read data is accepted by the master
	        axi_rvalid <= '0';
	      end if;
	    end if;
	  end if;
	end process;

	-- Implement memory mapped register select and read logic generation
	-- Slave register read enable is asserted when valid address is available
	-- and the slave is ready to accept the read address.
	slv_reg_rden <= axi_arready and S_AXI_ARVALID and (not axi_rvalid) ;

	process (slv_reg0, slv_reg1, slv_reg2, slv_reg3, axi_araddr, S_AXI_ARESETN, slv_reg_rden)
	variable loc_addr :std_logic_vector(OPT_MEM_ADDR_BITS downto 0);
	begin
	    -- Address decoding for reading registers
	    loc_addr := axi_araddr(ADDR_LSB + OPT_MEM_ADDR_BITS downto ADDR_LSB);
	    case loc_addr is
	      when b"00" =>
	        reg_data_out <= slv_reg0;
	      when b"01" =>
	        reg_data_out <= slv_reg1;
	      when b"10" =>
	        reg_data_out <= slv_reg2;
	      when b"11" =>
	        reg_data_out <= slv_reg3;
	      when others =>
	        reg_data_out  <= (others => '0');
	    end case;
	end process;

	-- Output register or memory read data
	process( S_AXI_ACLK ) is
	begin
	  if (rising_edge (S_AXI_ACLK)) then
	    if ( S_AXI_ARESETN = '0' ) then
	      axi_rdata  <= (others => '0');
	    else
	      if (slv_reg_rden = '1') then
	        -- When there is a valid read address (S_AXI_ARVALID) with
	        -- acceptance of read address by the slave (axi_arready),
	        -- output the read dada
	        -- Read address mux
	          axi_rdata <= reg_data_out;     -- register read data
	      end if;
	    end if;
	  end if;
	end process;


	-- Add user logic here
    iatcollector2ch_axis1 : iatcollector2ch_axis
	  generic map (
	    C_M_AXIS_TDATA_WIDTH
	  )
	  port map (
        enable_cnt => enable_i,
        channel1 => channel1,
        channel2 => channel2,
        max_count => max_count_i,
        overflow => fifo_overflow,
        M_AXIS_ACLK => M_AXIS_ACLK,
		M_AXIS_ARESETN => M_AXIS_ARESETN,
		M_AXIS_TVALID => M_AXIS_TVALID,
		M_AXIS_TDATA => M_AXIS_TDATA,
		M_AXIS_TREADY => M_AXIS_TREADY
	);

	enable_i <= not slv_reg0(0);
	max_count_i <= slv_reg1(C_M_AXIS_TDATA_WIDTH-1 downto 0);

	-- User logic ends

end behavior;

library ieee;
use ieee.std_logic_1164.all;
use ieee.numeric_std.all;

-- entity declaration for your testbench.
entity tb_iatcollector2chSmart_axis is
end tb_iatcollector2chSmart_axis;

architecture behavior of tb_iatcollector2chSmart_axis is

-- component declaration for the unit under test (uut)
component iatcollector2chSmart_axis is
    generic(
		C_M_AXIS_TDATA_WIDTH	: integer;
		C_S_AXI_DATA_WIDTH	    : integer;
		C_S_AXI_ADDR_WIDTH	    : integer
	);
	port (
        channel1   : in std_logic;
        channel2   : in std_logic;
        fifo_overflow   : out std_logic;
		M_AXIS_ACLK	: in std_logic;
		M_AXIS_ARESETN	: in std_logic;
		M_AXIS_TVALID	: out std_logic;
		M_AXIS_TDATA	: out std_logic_vector(C_M_AXIS_TDATA_WIDTH-1 downto 0);
		M_AXIS_TREADY	: in std_logic;
		S_AXI_ACLK	: in std_logic;
		S_AXI_ARESETN	: in std_logic;
		S_AXI_AWADDR	: in std_logic_vector(C_S_AXI_ADDR_WIDTH-1 downto 0);
		S_AXI_AWPROT	: in std_logic_vector(2 downto 0);
		S_AXI_AWVALID	: in std_logic;
		S_AXI_AWREADY	: out std_logic;
		S_AXI_WDATA	: in std_logic_vector(C_S_AXI_DATA_WIDTH-1 downto 0);
		S_AXI_WSTRB	: in std_logic_vector((C_S_AXI_DATA_WIDTH/8)-1 downto 0);
		S_AXI_WVALID	: in std_logic;
		S_AXI_WREADY	: out std_logic;
		S_AXI_BRESP	: out std_logic_vector(1 downto 0);
		S_AXI_BVALID	: out std_logic;
		S_AXI_BREADY	: in std_logic;
		S_AXI_ARADDR	: in std_logic_vector(C_S_AXI_ADDR_WIDTH-1 downto 0);
		S_AXI_ARPROT	: in std_logic_vector(2 downto 0);
		S_AXI_ARVALID	: in std_logic;
		S_AXI_ARREADY	: out std_logic;
		S_AXI_RDATA	: out std_logic_vector(C_S_AXI_DATA_WIDTH-1 downto 0);
		S_AXI_RRESP	: out std_logic_vector(1 downto 0);
		S_AXI_RVALID	: out std_logic;
		S_AXI_RREADY	: in std_logic
	);
end component;

constant C_M_AXIS_TDATA_WIDTH_TB : integer := 16;
constant C_S_AXI_DATA_WIDTH_TB : integer := 32;
constant C_S_AXI_ADDR_WIDTH_TB : integer := 4;
constant MAX_COUNT_TB  : integer := 6;
constant CLK_PERIOD : time := 10 ns;
constant SIGNAL_DURATION : time := 3*CLK_PERIOD;
constant ENABLE_DELAY : time := 2 ns;

--declare inputs and initialize
signal channel1         : std_logic := '0';
signal channel2         : std_logic := '0';
signal M_AXIS_ACLK      : std_logic := '0';
signal M_AXIS_ARESETN	: std_logic := '0';
signal M_AXIS_TREADY	: std_logic := '1';
signal S_AXI_ACLK       : std_logic := '0';
signal S_AXI_ARESETN    : std_logic := '0';
signal S_AXI_AWADDR     : std_logic_vector(C_S_AXI_ADDR_WIDTH_TB-1 downto 0) := (others => '0');
signal S_AXI_AWPROT     : std_logic_vector(2 downto 0) := "000"; -- not used in this component
signal S_AXI_AWVALID	: std_logic := '0';
signal S_AXI_WDATA      : std_logic_vector(C_S_AXI_DATA_WIDTH_TB-1 downto 0) := (others => '0');
signal S_AXI_WSTRB      : std_logic_vector((C_S_AXI_DATA_WIDTH_TB/8)-1 downto 0) := (others => '1'); -- keep all bytes
signal S_AXI_WVALID     : std_logic := '0';
signal S_AXI_BREADY     : std_logic := '1';
signal S_AXI_ARADDR     : std_logic_vector(C_S_AXI_ADDR_WIDTH_TB-1 downto 0) := (others => '1');
signal S_AXI_ARPROT     : std_logic_vector(2 downto 0) := "000"; -- not used in this component
signal S_AXI_ARVALID	: std_logic := '0';
signal S_AXI_RREADY     : std_logic := '0';

--declare outputs
signal fifo_overflow    : std_logic;
signal M_AXIS_TVALID	: std_logic;
signal M_AXIS_TDATA	    : std_logic_vector(C_M_AXIS_TDATA_WIDTH_TB-1 downto 0);
signal S_AXI_AWREADY	: std_logic;
signal S_AXI_WREADY	    : std_logic;
signal S_AXI_BRESP      : std_logic_vector(1 downto 0);
signal S_AXI_BVALID     : std_logic;
signal S_AXI_ARREADY	: std_logic;
signal S_AXI_RDATA      : std_logic_vector(C_S_AXI_DATA_WIDTH_TB-1 downto 0);
signal S_AXI_RRESP      : std_logic_vector(1 downto 0);
signal S_AXI_RVALID     : std_logic;

begin

    -- instantiate the unit under test (uut)
   uut : iatcollector2chSmart_axis
     generic map (
        C_M_AXIS_TDATA_WIDTH_TB,
        C_S_AXI_DATA_WIDTH_TB,
		C_S_AXI_ADDR_WIDTH_TB
     ) port map (
        channel1 => channel1,
        channel2 => channel2,
        fifo_overflow => fifo_overflow,
		M_AXIS_ACLK => M_AXIS_ACLK,
		M_AXIS_ARESETN => M_AXIS_ARESETN,
		M_AXIS_TVALID => M_AXIS_TVALID,
		M_AXIS_TDATA => M_AXIS_TDATA,
		M_AXIS_TREADY => M_AXIS_TREADY,
		S_AXI_ACLK => S_AXI_ACLK,
		S_AXI_ARESETN => S_AXI_ARESETN,
		S_AXI_AWADDR => S_AXI_AWADDR,
		S_AXI_AWPROT => S_AXI_AWPROT,
		S_AXI_AWVALID => S_AXI_AWVALID,
		S_AXI_AWREADY => S_AXI_AWREADY,
		S_AXI_WDATA => S_AXI_WDATA,
		S_AXI_WSTRB => S_AXI_WSTRB,
		S_AXI_WVALID => S_AXI_WVALID,
		S_AXI_WREADY => S_AXI_WREADY,
		S_AXI_BRESP => S_AXI_BRESP,
		S_AXI_BVALID => S_AXI_BVALID,
		S_AXI_BREADY => S_AXI_BREADY,
		S_AXI_ARADDR => S_AXI_ARADDR,
		S_AXI_ARPROT => S_AXI_ARPROT,
		S_AXI_ARVALID => S_AXI_ARVALID,
		S_AXI_ARREADY => S_AXI_ARREADY,
		S_AXI_RDATA => S_AXI_RDATA,
		S_AXI_RRESP => S_AXI_RRESP,
		S_AXI_RVALID => S_AXI_RVALID,
		S_AXI_RREADY => S_AXI_RREADY
      );

   -- Clock process definitions
   Clk_process_M :process
   begin
        M_AXIS_ACLK <= '0';
        wait for CLK_PERIOD/2;
        M_AXIS_ACLK <= '1';
        wait for CLK_PERIOD/2;
   end process;

   Clk_process_S :process
   begin
        S_AXI_ACLK <= '0';
        wait for CLK_PERIOD/2;
        S_AXI_ACLK <= '1';
        wait for CLK_PERIOD/2;
   end process;

   -- Stimulus process
  stim_proc: process
   begin
        wait for CLK_PERIOD*5 + ENABLE_DELAY; -- wait for 5 clock cycles
                                              -- +2 ns for starting while clk is low
                                              -- +7 ns for starting while clk is high

        M_AXIS_ARESETN <= '1';
        S_AXI_ARESETN <= '1';

        -- set enable register to disable the counter
        S_AXI_AWVALID <= '1';
        S_AXI_AWADDR <= "0000";
        S_AXI_WVALID <= '1';
        S_AXI_WDATA <= std_logic_vector(to_unsigned(0,C_S_AXI_DATA_WIDTH_TB));
        wait for CLK_PERIOD*6;
        S_AXI_AWVALID <= '0';
        S_AXI_WVALID <= '0';
        wait for CLK_PERIOD*4;

        -- set max_count register to MAX_COUNT_TB
        S_AXI_AWVALID <= '1';
        S_AXI_AWADDR <= "0100";
        S_AXI_WVALID <= '1';
        S_AXI_WDATA <= std_logic_vector(to_unsigned(MAX_COUNT_TB,C_S_AXI_DATA_WIDTH_TB));
        wait for CLK_PERIOD*6;
        S_AXI_AWVALID <= '0';
        S_AXI_WVALID <= '0';
        wait for CLK_PERIOD*4;

        -- set enable register to enable the counter
        S_AXI_AWVALID <= '1';
        S_AXI_AWADDR <= "0000";
        S_AXI_WVALID <= '1';
        S_AXI_WDATA <= std_logic_vector(to_unsigned(1,C_S_AXI_DATA_WIDTH_TB));
        wait for CLK_PERIOD*6;
        S_AXI_AWVALID <= '0';
        S_AXI_WVALID <= '0';
        wait for CLK_PERIOD*4;

        -- read register 1
        S_AXI_ARVALID <= '1';
        S_AXI_ARADDR <= "0100";
        S_AXI_RREADY <= '1';
        wait for CLK_PERIOD*6;
        S_AXI_ARVALID <= '0';
        S_AXI_RREADY <= '0';
        wait for CLK_PERIOD*4;

        -- event generation upon reaching max count
        wait for CLK_PERIOD*(MAX_COUNT_TB+1);--ENABLE_DELAY+CLK_PERIOD/2;

        channel1 <= '1';
        wait for SIGNAL_DURATION;
        channel1 <= '0';

        wait for CLK_PERIOD*8;
        channel1 <= '1';
        wait for SIGNAL_DURATION;
        channel1 <= '0';

        wait for CLK_PERIOD*4;
        channel1 <= '1';
        wait for CLK_PERIOD;
        channel2 <= '1';
        wait for 2*CLK_PERIOD;
        channel1 <= '0';
        wait for CLK_PERIOD;
        channel2 <= '0';

        -- simulate ocerflow of FIFO
        wait for CLK_PERIOD*4;
        M_AXIS_TREADY <= '0';

        wait;

  end process;

end;

library ieee;
use ieee.std_logic_1164.all;

entity cascade3 is
  port(
    clk             : in std_logic;
    input_casc      : in std_logic;
    output_casc     : out std_logic
  );
end cascade3;

architecture behavior of cascade3 is
    signal output_csc1 : std_logic;
    signal output_csc2 : std_logic;
    signal output_csc3 : std_logic;

begin

    prCascade1 : process(clk)
    begin
      if (rising_edge(clk)) then
        output_csc1 <= input_casc;
      end if;
    end process;

    prCascade2 : process(clk)
    begin
      if (rising_edge(clk)) then
        output_csc2 <= output_csc1;
      end if;
    end process;

    prCascade3 : process(clk)
    begin
      if (rising_edge(clk)) then
        output_csc3 <= output_csc2;
      end if;
    end process;

    output_casc <= output_csc3;

end behavior;

library ieee;
use ieee.std_logic_1164.all;
use ieee.numeric_std.all;

entity tb_eventSim is
end tb_eventSim;

architecture behavior of tb_eventSim is

-- component declaration for the unit under test (uut)
component eventSim is
  generic(
    DATA_WIDTH : integer
  );
  port(
    clk         : in std_logic;
    enable      : in std_logic;
    max_value   : in std_logic_vector(DATA_WIDTH-1 downto 0);
    eventOut    : out std_logic
  );
end component;

-- define the period of clock here.
-- It's recommended to use CAPITAL letters to define constants.
constant DATA_WIDTH_TB : integer := 8;
constant MAX_VALUE_TB  : integer := 6;
constant CLK_PERIOD_TB : time := 10 ns;

--declare inputs and initialize them to zero.
signal clk              : std_logic := '0';
signal enable           : std_logic := '1';
signal max_value        : std_logic_vector(DATA_WIDTH_TB - 1 downto 0) := std_logic_vector(to_unsigned(MAX_VALUE_TB,DATA_WIDTH_TB));

--declare outputs
signal eventOut         : std_logic;

begin

    -- instantiate the unit under test (uut)
   uut : eventSim generic map (DATA_WIDTH_TB) port map (
            clk => clk,
            enable => enable,
            max_value => max_value,
            eventOut => eventOut
        );

   -- Clock process definitions
   Clk_process :process
   begin
        clk <= '0';
        wait for CLK_PERIOD_TB/2;
        clk <= '1';
        wait for CLK_PERIOD_TB/2;
   end process;

   -- Stimulus process, Apply inputs here.
  stim_proc: process
   begin
        wait for CLK_PERIOD_TB*5;

        enable <='0';                  --enable the simulator

        -- event generation upon reaching max count
        wait for CLK_PERIOD_TB * MAX_VALUE_TB * 3;

        wait;

  end process;

end;

library ieee;
use ieee.std_logic_1164.all;
use ieee.numeric_std.all;

entity eventSimSmart is
	generic (
		-- Users to add parameters here
		-- User parameters ends
		-- Do not modify the parameters beyond this line

		-- Width of S_AXI data bus
		C_S_AXI_DATA_WIDTH	: integer	:= 32;
		-- Width of S_AXI address bus
		C_S_AXI_ADDR_WIDTH	: integer	:= 4
	);
	port (
		-- Users to add ports here
        eventOut   : out std_logic;
		-- User ports ends
		-- Do not modify the ports beyond this line

		-- Global Clock Signal
		S_AXI_ACLK	: in std_logic;
		-- Global Reset Signal. This Signal is Active LOW
		S_AXI_ARESETN	: in std_logic;
		-- Write address (issued by master, acceped by Slave)
		S_AXI_AWADDR	: in std_logic_vector(C_S_AXI_ADDR_WIDTH-1 downto 0);
		-- Write channel Protection type. This signal indicates the
    		-- privilege and security level of the transaction, and whether
    		-- the transaction is a data access or an instruction access.
		S_AXI_AWPROT	: in std_logic_vector(2 downto 0);
		-- Write address valid. This signal indicates that the master signaling
    		-- valid write address and control information.
		S_AXI_AWVALID	: in std_logic;
		-- Write address ready. This signal indicates that the slave is ready
    		-- to accept an address and associated control signals.
		S_AXI_AWREADY	: out std_logic;
		-- Write data (issued by master, acceped by Slave)
		S_AXI_WDATA	: in std_logic_vector(C_S_AXI_DATA_WIDTH-1 downto 0);
		-- Write strobes. This signal indicates which byte lanes hold
    		-- valid data. There is one write strobe bit for each eight
    		-- bits of the write data bus.
		S_AXI_WSTRB	: in std_logic_vector((C_S_AXI_DATA_WIDTH/8)-1 downto 0);
		-- Write valid. This signal indicates that valid write
    		-- data and strobes are available.
		S_AXI_WVALID	: in std_logic;
		-- Write ready. This signal indicates that the slave
    		-- can accept the write data.
		S_AXI_WREADY	: out std_logic;
		-- Write response. This signal indicates the status
    		-- of the write transaction.
		S_AXI_BRESP	: out std_logic_vector(1 downto 0);
		-- Write response valid. This signal indicates that the channel
    		-- is signaling a valid write response.
		S_AXI_BVALID	: out std_logic;
		-- Response ready. This signal indicates that the master
    		-- can accept a write response.
		S_AXI_BREADY	: in std_logic;
		-- Read address (issued by master, acceped by Slave)
		S_AXI_ARADDR	: in std_logic_vector(C_S_AXI_ADDR_WIDTH-1 downto 0);
		-- Protection type. This signal indicates the privilege
    		-- and security level of the transaction, and whether the
    		-- transaction is a data access or an instruction access.
		S_AXI_ARPROT	: in std_logic_vector(2 downto 0);
		-- Read address valid. This signal indicates that the channel
    		-- is signaling valid read address and control information.
		S_AXI_ARVALID	: in std_logic;
		-- Read address ready. This signal indicates that the slave is
    		-- ready to accept an address and associated control signals.
		S_AXI_ARREADY	: out std_logic;
		-- Read data (issued by slave)
		S_AXI_RDATA	: out std_logic_vector(C_S_AXI_DATA_WIDTH-1 downto 0);
		-- Read response. This signal indicates the status of the
    		-- read transfer.
		S_AXI_RRESP	: out std_logic_vector(1 downto 0);
		-- Read valid. This signal indicates that the channel is
    		-- signaling the required read data.
		S_AXI_RVALID	: out std_logic;
		-- Read ready. This signal indicates that the master can
    		-- accept the read data and response information.
		S_AXI_RREADY	: in std_logic
	);
end eventSimSmart;

architecture behavior of eventSimSmart is

    -- code eventSimSmart component
    component eventSim is
	generic (
      DATA_WIDTH : integer := 16
    );
    port(
      clk         : in std_logic;
      enable      : in std_logic;
      max_value   : in std_logic_vector(DATA_WIDTH-1 downto 0);
      eventOut    : out std_logic
    );
    end component;

    -- iatcllrstreamer signals
    signal enable_i    : std_logic;
    signal max_value_i : std_logic_vector(C_S_AXI_DATA_WIDTH-1 downto 0);

	-- AXI4LITE signals
	signal axi_awaddr	: std_logic_vector(C_S_AXI_ADDR_WIDTH-1 downto 0);
	signal axi_awready	: std_logic;
	signal axi_wready	: std_logic;
	signal axi_bresp	: std_logic_vector(1 downto 0);
	signal axi_bvalid	: std_logic;
	signal axi_araddr	: std_logic_vector(C_S_AXI_ADDR_WIDTH-1 downto 0);
	signal axi_arready	: std_logic;
	signal axi_rdata	: std_logic_vector(C_S_AXI_DATA_WIDTH-1 downto 0);
	signal axi_rresp	: std_logic_vector(1 downto 0);
	signal axi_rvalid	: std_logic;

	-- Example-specific design signals
	-- local parameter for addressing 32 bit / 64 bit C_S_AXI_DATA_WIDTH
	-- ADDR_LSB is used for addressing 32/64 bit registers/memories
	-- ADDR_LSB = 2 for 32 bits (n downto 2)
	-- ADDR_LSB = 3 for 64 bits (n downto 3)
	constant ADDR_LSB  : integer := (C_S_AXI_DATA_WIDTH/32)+ 1;
	constant OPT_MEM_ADDR_BITS : integer := 1;
	------------------------------------------------
	---- Signals for user logic register space example
	--------------------------------------------------
	---- Number of Slave Registers 4
	signal slv_reg0	:std_logic_vector(C_S_AXI_DATA_WIDTH-1 downto 0);
	signal slv_reg1	:std_logic_vector(C_S_AXI_DATA_WIDTH-1 downto 0);
	signal slv_reg2	:std_logic_vector(C_S_AXI_DATA_WIDTH-1 downto 0);
	signal slv_reg3	:std_logic_vector(C_S_AXI_DATA_WIDTH-1 downto 0);
	signal slv_reg_rden	: std_logic;
	signal slv_reg_wren	: std_logic;
	signal reg_data_out	:std_logic_vector(C_S_AXI_DATA_WIDTH-1 downto 0);
	signal byte_index	: integer;
	signal aw_en	: std_logic;

begin
	-- I/O Connections assignments

	S_AXI_AWREADY	<= axi_awready;
	S_AXI_WREADY	<= axi_wready;
	S_AXI_BRESP	<= axi_bresp;
	S_AXI_BVALID	<= axi_bvalid;
	S_AXI_ARREADY	<= axi_arready;
	S_AXI_RDATA	<= axi_rdata;
	S_AXI_RRESP	<= axi_rresp;
	S_AXI_RVALID	<= axi_rvalid;
	-- Implement axi_awready generation
	-- axi_awready is asserted for one S_AXI_ACLK clock cycle when both
	-- S_AXI_AWVALID and S_AXI_WVALID are asserted. axi_awready is
	-- de-asserted when reset is low.

	process (S_AXI_ACLK)
	begin
	  if rising_edge(S_AXI_ACLK) then
	    if S_AXI_ARESETN = '0' then
	      axi_awready <= '0';
	      aw_en <= '1';
	    else
	      if (axi_awready = '0' and S_AXI_AWVALID = '1' and S_AXI_WVALID = '1' and aw_en = '1') then
	        -- slave is ready to accept write address when
	        -- there is a valid write address and write data
	        -- on the write address and data bus. This design
	        -- expects no outstanding transactions.
	           axi_awready <= '1';
	           aw_en <= '0';
	        elsif (S_AXI_BREADY = '1' and axi_bvalid = '1') then
	           aw_en <= '1';
	           axi_awready <= '0';
	      else
	        axi_awready <= '0';
	      end if;
	    end if;
	  end if;
	end process;

	-- Implement axi_awaddr latching
	-- This process is used to latch the address when both
	-- S_AXI_AWVALID and S_AXI_WVALID are valid.

	process (S_AXI_ACLK)
	begin
	  if rising_edge(S_AXI_ACLK) then
	    if S_AXI_ARESETN = '0' then
	      axi_awaddr <= (others => '0');
	    else
	      if (axi_awready = '0' and S_AXI_AWVALID = '1' and S_AXI_WVALID = '1' and aw_en = '1') then
	        -- Write Address latching
	        axi_awaddr <= S_AXI_AWADDR;
	      end if;
	    end if;
	  end if;
	end process;

	-- Implement axi_wready generation
	-- axi_wready is asserted for one S_AXI_ACLK clock cycle when both
	-- S_AXI_AWVALID and S_AXI_WVALID are asserted. axi_wready is
	-- de-asserted when reset is low.

	process (S_AXI_ACLK)
	begin
	  if rising_edge(S_AXI_ACLK) then
	    if S_AXI_ARESETN = '0' then
	      axi_wready <= '0';
	    else
	      if (axi_wready = '0' and S_AXI_WVALID = '1' and S_AXI_AWVALID = '1' and aw_en = '1') then
	          -- slave is ready to accept write data when
	          -- there is a valid write address and write data
	          -- on the write address and data bus. This design
	          -- expects no outstanding transactions.
	          axi_wready <= '1';
	      else
	        axi_wready <= '0';
	      end if;
	    end if;
	  end if;
	end process;

	-- Implement memory mapped register select and write logic generation
	-- The write data is accepted and written to memory mapped registers when
	-- axi_awready, S_AXI_WVALID, axi_wready and S_AXI_WVALID are asserted. Write strobes are used to
	-- select byte enables of slave registers while writing.
	-- These registers are cleared when reset (active low) is applied.
	-- Slave register write enable is asserted when valid address and data are available
	-- and the slave is ready to accept the write address and write data.
	slv_reg_wren <= axi_wready and S_AXI_WVALID and axi_awready and S_AXI_AWVALID ;

	process (S_AXI_ACLK)
	variable loc_addr :std_logic_vector(OPT_MEM_ADDR_BITS downto 0);
	begin
	  if rising_edge(S_AXI_ACLK) then
	    if S_AXI_ARESETN = '0' then
	      slv_reg0 <= (others => '0');
	      slv_reg1 <= (others => '0');
	      slv_reg2 <= (others => '0');
	      slv_reg3 <= (others => '0');
	    else
	      loc_addr := axi_awaddr(ADDR_LSB + OPT_MEM_ADDR_BITS downto ADDR_LSB);
	      if (slv_reg_wren = '1') then
	        case loc_addr is
	          when b"00" =>
	            for byte_index in 0 to (C_S_AXI_DATA_WIDTH/8-1) loop
	              if ( S_AXI_WSTRB(byte_index) = '1' ) then
	                -- Respective byte enables are asserted as per write strobes
	                -- slave registor 0
	                slv_reg0(byte_index*8+7 downto byte_index*8) <= S_AXI_WDATA(byte_index*8+7 downto byte_index*8);
	              end if;
	            end loop;
	          when b"01" =>
	            for byte_index in 0 to (C_S_AXI_DATA_WIDTH/8-1) loop
	              if ( S_AXI_WSTRB(byte_index) = '1' ) then
	                -- Respective byte enables are asserted as per write strobes
	                -- slave registor 1
	                slv_reg1(byte_index*8+7 downto byte_index*8) <= S_AXI_WDATA(byte_index*8+7 downto byte_index*8);
	              end if;
	            end loop;
	          when b"10" =>
	            for byte_index in 0 to (C_S_AXI_DATA_WIDTH/8-1) loop
	              if ( S_AXI_WSTRB(byte_index) = '1' ) then
	                -- Respective byte enables are asserted as per write strobes
	                -- slave registor 2
	                slv_reg2(byte_index*8+7 downto byte_index*8) <= S_AXI_WDATA(byte_index*8+7 downto byte_index*8);
	              end if;
	            end loop;
	          when b"11" =>
	            for byte_index in 0 to (C_S_AXI_DATA_WIDTH/8-1) loop
	              if ( S_AXI_WSTRB(byte_index) = '1' ) then
	                -- Respective byte enables are asserted as per write strobes
	                -- slave registor 3
	                slv_reg3(byte_index*8+7 downto byte_index*8) <= S_AXI_WDATA(byte_index*8+7 downto byte_index*8);
	              end if;
	            end loop;
	          when others =>
	            slv_reg0 <= slv_reg0;
	            slv_reg1 <= slv_reg1;
	            slv_reg2 <= slv_reg2;
	            slv_reg3 <= slv_reg3;
	        end case;
	      end if;
	    end if;
	  end if;
	end process;

	-- Implement write response logic generation
	-- The write response and response valid signals are asserted by the slave
	-- when axi_wready, S_AXI_WVALID, axi_wready and S_AXI_WVALID are asserted.
	-- This marks the acceptance of address and indicates the status of
	-- write transaction.

	process (S_AXI_ACLK)
	begin
	  if rising_edge(S_AXI_ACLK) then
	    if S_AXI_ARESETN = '0' then
	      axi_bvalid  <= '0';
	      axi_bresp   <= "00"; --need to work more on the responses
	    else
	      if (axi_awready = '1' and S_AXI_AWVALID = '1' and axi_wready = '1' and S_AXI_WVALID = '1' and axi_bvalid = '0'  ) then
	        axi_bvalid <= '1';
	        axi_bresp  <= "00";
	      elsif (S_AXI_BREADY = '1' and axi_bvalid = '1') then   --check if bready is asserted while bvalid is high)
	        axi_bvalid <= '0';                                 -- (there is a possibility that bready is always asserted high)
	      end if;
	    end if;
	  end if;
	end process;

	-- Implement axi_arready generation
	-- axi_arready is asserted for one S_AXI_ACLK clock cycle when
	-- S_AXI_ARVALID is asserted. axi_awready is
	-- de-asserted when reset (active low) is asserted.
	-- The read address is also latched when S_AXI_ARVALID is
	-- asserted. axi_araddr is reset to zero on reset assertion.

	process (S_AXI_ACLK)
	begin
	  if rising_edge(S_AXI_ACLK) then
	    if S_AXI_ARESETN = '0' then
	      axi_arready <= '0';
	      axi_araddr  <= (others => '1');
	    else
	      if (axi_arready = '0' and S_AXI_ARVALID = '1') then
	        -- indicates that the slave has acceped the valid read address
	        axi_arready <= '1';
	        -- Read Address latching
	        axi_araddr  <= S_AXI_ARADDR;
	      else
	        axi_arready <= '0';
	      end if;
	    end if;
	  end if;
	end process;

	-- Implement axi_arvalid generation
	-- axi_rvalid is asserted for one S_AXI_ACLK clock cycle when both
	-- S_AXI_ARVALID and axi_arready are asserted. The slave registers
	-- data are available on the axi_rdata bus at this instance. The
	-- assertion of axi_rvalid marks the validity of read data on the
	-- bus and axi_rresp indicates the status of read transaction.axi_rvalid
	-- is deasserted on reset (active low). axi_rresp and axi_rdata are
	-- cleared to zero on reset (active low).
	process (S_AXI_ACLK)
	begin
	  if rising_edge(S_AXI_ACLK) then
	    if S_AXI_ARESETN = '0' then
	      axi_rvalid <= '0';
	      axi_rresp  <= "00";
	    else
	      if (axi_arready = '1' and S_AXI_ARVALID = '1' and axi_rvalid = '0') then
	        -- Valid read data is available at the read data bus
	        axi_rvalid <= '1';
	        axi_rresp  <= "00"; -- 'OKAY' response
	      elsif (axi_rvalid = '1' and S_AXI_RREADY = '1') then
	        -- Read data is accepted by the master
	        axi_rvalid <= '0';
	      end if;
	    end if;
	  end if;
	end process;

	-- Implement memory mapped register select and read logic generation
	-- Slave register read enable is asserted when valid address is available
	-- and the slave is ready to accept the read address.
	slv_reg_rden <= axi_arready and S_AXI_ARVALID and (not axi_rvalid) ;

	process (slv_reg0, slv_reg1, slv_reg2, slv_reg3, axi_araddr, S_AXI_ARESETN, slv_reg_rden)
	variable loc_addr :std_logic_vector(OPT_MEM_ADDR_BITS downto 0);
	begin
	    -- Address decoding for reading registers
	    loc_addr := axi_araddr(ADDR_LSB + OPT_MEM_ADDR_BITS downto ADDR_LSB);
	    case loc_addr is
	      when b"00" =>
	        reg_data_out <= slv_reg0;
	      when b"01" =>
	        reg_data_out <= slv_reg1;
	      when b"10" =>
	        reg_data_out <= slv_reg2;
	      when b"11" =>
	        reg_data_out <= slv_reg3;
	      when others =>
	        reg_data_out  <= (others => '0');
	    end case;
	end process;

	-- Output register or memory read data
	process( S_AXI_ACLK ) is
	begin
	  if (rising_edge (S_AXI_ACLK)) then
	    if ( S_AXI_ARESETN = '0' ) then
	      axi_rdata  <= (others => '0');
	    else
	      if (slv_reg_rden = '1') then
	        -- When there is a valid read address (S_AXI_ARVALID) with
	        -- acceptance of read address by the slave (axi_arready),
	        -- output the read dada
	        -- Read address mux
	          axi_rdata <= reg_data_out;     -- register read data
	      end if;
	    end if;
	  end if;
	end process;


	-- Add user logic here
    eventSim1 : eventSim
	  generic map (
	    C_S_AXI_DATA_WIDTH
	  )
	  port map (
	    clk => S_AXI_ACLK,
        enable => enable_i,
        max_value => max_value_i,
        eventOut => eventOut
	);

	enable_i <= not slv_reg0(0);
	max_value_i <= slv_reg1(C_S_AXI_DATA_WIDTH-1 downto 0);

	-- User logic ends

end behavior;

Pulse counter streaming using AXI interface

Things used in this project

Hardware components

Software apps and online services

Story

1. Introduction

2. Prerequisites

3. Streaming fast counter

4. Smart streaming fast counter

5. Useful resources for understanding AXI protocols.

6. Packaging the smart streaming fast counter

8. Dealing with metastability

9. Event simulator

10. Conclusion

11. Full list of tutorials in this series

Code

eventSim

iatcollector2ch_axis.vhd

tb_iatcollector2ch_axis.vhd

iatcollector2chSmart_axis.vhd

tb_iatcollector2chSmart_axis.vhd

cascade3

tb_eventSim

eventSimSmart

Credits

Artem Melnykov

Comments

Embed the widget on your own site

Pulse counter streaming using AXI interface

Pulse counter streaming using AXI interface

Things used in this project

Hardware components

Software apps and online services

Story

1. Introduction

2. Prerequisites

3. Streaming fast counter

4. Smart streaming fast counter

5. Useful resources for understanding AXI protocols.

6. Packaging the smart streaming fast counter

8. Dealing with metastability

9. Event simulator

10. Conclusion

11. Full list of tutorials in this series

Code

eventSim

iatcollector2ch_axis.vhd

tb_iatcollector2ch_axis.vhd

iatcollector2chSmart_axis.vhd

tb_iatcollector2chSmart_axis.vhd

cascade3

tb_eventSim

eventSimSmart

Credits

Artem Melnykov

Comments

Related channels and tags
