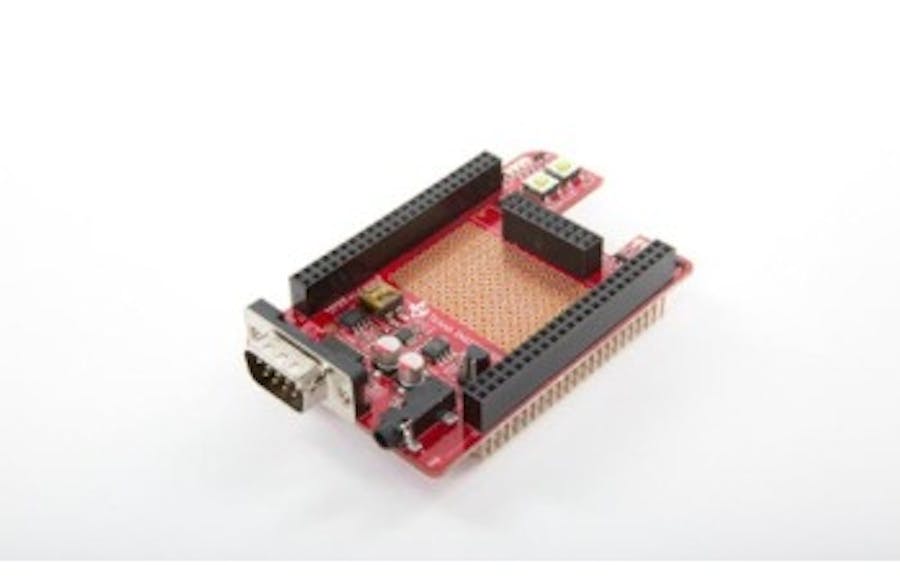

PRU Cape

Description

The TI PRU Cape is a BeagleBone Black add-on board that allows users get to know TI’s powerful Programmable Real-Time Unit (PRU) core and basic functionality.  The PRU is a low-latency microcontroller subsystem integrated in the Sitara AM335x and AM437x family of devices.  The PRU core is optimized for deterministic, real-time processing, direct access to I/Os and ultra-low-latency requirements.  It includes LEDs and push buttons for GPIO, audio, and a temp sensor.  Together the BeagleBone Black and PRUCAPE are an ideal EVM solution to begin PRU development on the Sitara platform.

Features

• BeagleBone and BeagleBone Black compatible plug-in board (“cape”)
• Quick development and evaluation of the PRU integrated in Sitara processors
• Leverages sample code included in the TI Linux Software Development Kit
• The PRU core is optimized for deterministic, real-time processing, direct access to I/Os and ultra-low-latency requirements

PRUCAPE Expansion Connector Connection to BeagleBone / BeagleBone Black UART Hardware UART to PRU Subsystem Sensors Temperature sensor monitoring using 1-wire interface LCD LCD Connector for optional character display (not included). Compatible with Newhaven NHD-0208AZ-RN-YBW-33V Audio Audio jack connection output GPIO Dual GPIO push button switch LEDs Bank of PRU0 & PRU1 LEDs Price (USD) Per Unit $39.00 Version Date Oct 2014<
d>

Homepage: http://www.ti.com/tool/prucape
