Smart Controller (class project)

So in our boot-camp style class, we have recently learned the basics of building IOT devices.

BeginnerWork in progress10 hours366
Smart Controller (class project)

Things used in this project

Hardware components

Breadboard (generic)
Breadboard (generic)
×1
Teensy 3.1
Teensy 3.1
×1
0.96" OLED 64x128 Display Module
ElectroPeak 0.96" OLED 64x128 Display Module
×1
BME/BMP280
×1
Rotary Encoder with Push-Button
Rotary Encoder with Push-Button
may be different from the one on my breadboard
×1
Resistor 220 ohm
Resistor 220 ohm
×1
NeoPixel Ring: WS2812 5050 RGB LED
Adafruit NeoPixel Ring: WS2812 5050 RGB LED
×1
RJ45 port Wiz820io01
×1

Software apps and online services

Arduino IDE
Arduino IDE

Hand tools and fabrication machines

Soldering iron (generic)
Soldering iron (generic)

Story

Read more

Schematics

Smart Controller

We learned and used Fritzing for this project

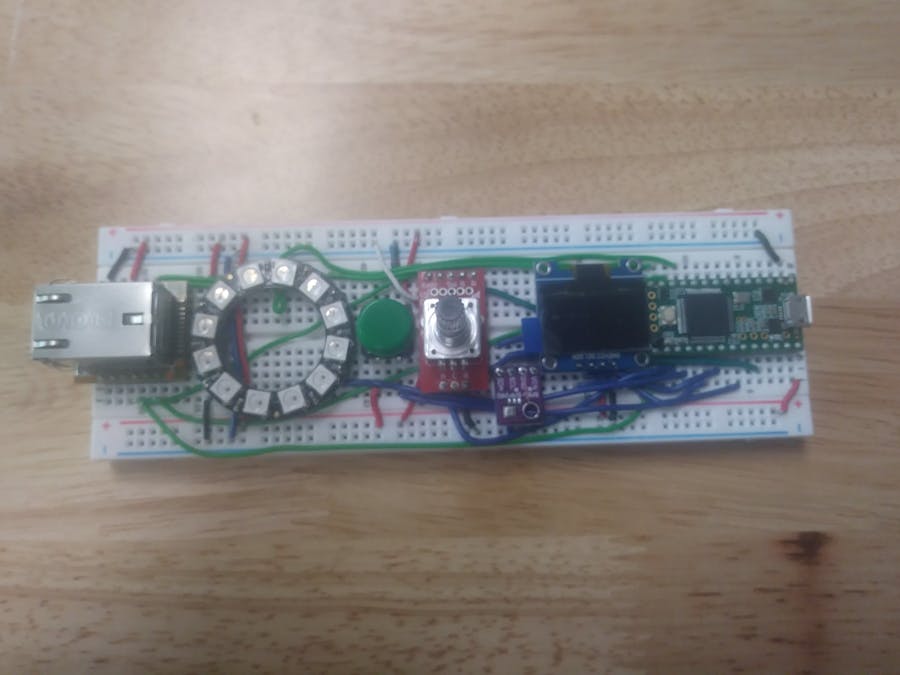

bread board png

Code

Smart Controller

C/C++
This is my first time writing code.
#include "libraries.h"
Timer timer;

OneButton GreenButton(21, false, true);

const int green_led = 12;
const int red_led = 4;
int GreenButtonState[] = {0, 1, 2, 3};
int G = 0;



void setup() {
 initeverything();

}

void loop() {
  GreenButton.tick();
  Serial.printf("%i \n", G);
  pixel2temp();

  if (G==0){
    whileBME();
  }
  if (G==1){
    whileSmartLights();
  }
  if (G==2){
    whileOutlets();
  }
}


void clickGB(){
  GreenButtonState[G];
  G++;
  if (G > 2){
    G=0;
  }
}
void doubleclickGB(){

  Serial.printf("Double Click %i \n");

}

void initGreenButton() {
  GreenButton.attachClick(clickGB);
  GreenButton.attachDoubleClick(doubleclickGB);
}
void click1Lights(){
  Serial.println("Click");
  hueState = !hueState;
}

void doubleClick1Lights(){
  Serial.println("DoubleClick");
  x++;
  if (x > 7) {
    x=0;
    }
}

void longPress1Lights(){
  y++;
  if(y>5){
    y=1;
    }
}

void initButtonLights(){
  button1.attachClick(click1Lights);
  button1.attachDoubleClick(doubleClick1Lights);
  button1.attachLongPressStop(longPress1Lights);
  button1.setDebounceTicks(100);
}

void initethernet(){
  Serial.begin(9600);
  Ethernet.begin(mac,ip);
  delay(2000);              // Wait for Serial Monitor
  Serial.println("connecting...");
  Serial.println(Ethernet.linkStatus());
    // print your local IP address:
  Serial.print("My IP address: ");
  for (byte thisByte = 0; thisByte < 4; thisByte++) {
    // print the value of each byte of the IP address:
    Serial.print(Ethernet.localIP()[thisByte], DEC);
    Serial.print(".");
  }
  Serial.println();
  Serial.print("LinkStatus: ");
}

void initLightsSetup() {
  Serial.println(" Ready.");
  x=2;
  y=1;
  setHue(bulb[y], true, colorArrayHue[x], bright);
  buttonstate = true;
  laststate = false;
  hueState = true;
  lastx = x;
  lastbright = bright;
  lastbulb = y;
}

void Brightness() {
    pos = myEnc.read();
  if (pos > 255){
    pos = 255;
    myEnc.write(255);
      }
  if (pos < 0){
   pos = 0;
    }
  bright = pos;
}

void BulbFunction() {
  char *a = "ON";
  if((hueState!=laststate)||(bright != lastbright) || (x != lastx) || (y != lastbulb)){
    setHue(bulb[y], hueState, colorArrayHue[x], bright);
    laststate = hueState;
    lastbright = bright;
    lastx = x;
    lastbulb = y;
      if (hueState == true){
       a = "ON";
        }
      else{
        a = "OFF";
          }
    Serial.printf("Bulb %i is %s, Color Value = %i, Brightness %i\n",  y, a, colorArrayHue[x], bright);
  display.clearDisplay();
  display.setTextSize(1);             // Normal 1:1 pixel scale
  display.setTextColor(SSD1306_WHITE);        // Draw white text
  display.setCursor(0,0);             // Start at top-left corner
  display.printf("Bulb %i is %s, Brightness %i\n", y, a, bright);
  display.display();
}}
void testdrawstyles(void) {
  display.clearDisplay();

  display.setTextSize(1);             // Normal 1:1 pixel scale
  display.setTextColor(SSD1306_WHITE);        // Draw white text
  display.setCursor(0,0);             // Start at top-left corner
  display.println(F("Hello, world!"));

  display.setTextColor(SSD1306_BLACK, SSD1306_WHITE); // Draw 'inverse' text

  display.setTextSize(2);             // Draw 2X-scale text
  display.setTextColor(SSD1306_WHITE);

  display.display();
  delay(2000);
}

void drawreadBME(void) {
  static int t = 0;
  display.clearDisplay();
  display.setTextSize(1);             // Normal 1:1 pixel scale
  display.setTextColor(SSD1306_WHITE);        // Draw white text
  display.setCursor(0,0);             // Start at top-left corner
  if (t == 0){
    display.printf("Atomspheric pressure is %.2f inches mercury. \n", inHg);
  }
  if (t == 1){
    display.printf("Humidity is %.2f percent. \n", humidRH);
  }
  if (t == 2){
    display.printf("Temperature right now is %.2f , F. \n", tempF);
  }
  display.display();
    t++;
    if (t > 2){
    t = 0;
  }
}

void initDisplay() {
  if(!display.begin(SSD1306_SWITCHCAPVCC, 0x3C)) { // Address 0x3C for 128x32
    Serial.println(F("SSD1306 allocation failed"));
    for(;;); // Don't proceed, loop forever
  }
}

void initPixel() {
  pixel.begin();
  pixel.show();
  pixel.setBrightness(10);
}

void pixel2temp() {
  newVal = map(tempF, 70, 90, 0, 12);
  pixel.fill(colorArray[newVal], 0, 12);
  pixel.show();
  pixel.setBrightness(10);
}

void StatusBME() {
  status = bme.begin(0x76);
  if(status == false){
    Serial.print("Error");
      }
}

float CtoF(float IN) {
  return (IN * 1.8) + 32;
}

float PressCon(float P){
  return (0.03 * P);
}

void click1Wemo(){
  Serial.println("Click");
  stateW = !stateW;
       if (stateW == true){
      switchON(wemo[Z]);}
     else{
       switchOFF(wemo[Z]);
    Serial.printf("i% Click \n", Z);
        }
}
void initWemoSetup(){
    Z = 0;
  buttonStateW = false;
  laststateW = true;
  stateW = false;
}

void initWemoButtons(){
  button1Wemo.attachClick(click1Wemo);
  button1Wemo.setDebounceTicks(100);
}

void WemoFunction(){
  if (G==2){
    if (buttonStateW != laststateW){
    laststateW = buttonStateW;
      }
  }
}

void WhichOutlet(){
  posW = myEnc.read();
  if (posW > 96){
    posW = 96;
    myEnc.write(96);
      }
  if (posW < 0){
    posW = 0;
    myEnc.write(0);
      }
  Z = map(posW, 0, 96, 0, 3);
   if (stateW == true){
       o = "ON";
        }
      else{
        o = "OFF";
          }
  Serial.printf("%i Z \n", Z);
  display.clearDisplay();
  display.setTextSize(1);             // Normal 1:1 pixel scale
  display.setTextColor(SSD1306_WHITE);        // Draw white text
  display.setCursor(0,0);             // Start at top-left corner
  display.printf("Outlet %i is %s\n", Z, o);
  display.display();
}

void initeverything(){
      Serial.begin(9600);
  while (!Serial);
    Serial.print("Initializing...");
  initGreenButton();
  initButtonLights();
  initethernet();
  initLightsSetup();
  initDisplay();
  initPixel();
  StatusBME();
  testdrawstyles();
  drawreadBME();
  timer.startTimer(4000);
  initWemoButtons();
  initWemoSetup();
}

void whileBME(){
      button1.tick();
    GreenButton.tick();
    pressPA = bme.readPressure() / 100.0F;
    inHg = PressCon(pressPA);
    humidRH = bme.readHumidity();
    tempC = bme.readTemperature();
    tempF = CtoF(tempC);
    if (timer.isTimerReady() == true){
      drawreadBME();
      timer.startTimer(4000);
    }
    pixel2temp();
    Serial.printf("%i \n", G);
}

void whileSmartLights(){
  button1.tick();
  GreenButton.tick();
  Brightness();
  BulbFunction();
}

void whileOutlets(){
  button1Wemo.tick();
  GreenButton.tick();
  WhichOutlet();
  WemoFunction();
}

Smart Controller

We used Arduino to write the code. The libraries.h contains most of the libraries and variables used. The stateButton.ino is the main code.
