Published July 28, 2017 © CC BY-SA

Mobile Vote Box

Ever wonder what others are thinking about a particular question? This machine will ask it for you and stores results in the cloud.

BeginnerFull instructions provided1 hour4,273

Things used in this project

Hardware components

Arduino UNO

Adafruit FONA mini GSM breakout

Solderless Breadboard Full Size

Adafruit Colorful Round Tactile Button Switch

LED (generic)

Software apps and online services

Hologram Data Router

IFTTT Maker service

Story

Background

I'm fascinated by how differently each of us processes information and comes to conclusions. I'm equally fascinated by how peer pressure and groupthink influences or outright changes a persons response.

So I wondered, what if I could build a machine that would give me the ability to ask questions to groups of anonymous and random crowds? It would need to be un-intimidating (simple) and in an environment free of peer pressure or other external influences.

This project is my MVP to the challenge, I call it the Mobile Vote Box. For my first experiment I asked a simple yet passion invoking question.

"What pizza is better, Chicago style or New York style?"

I placed the Mobile Vote Box in random places around Chicago and Las Vegas. You can see everyone's responses here.

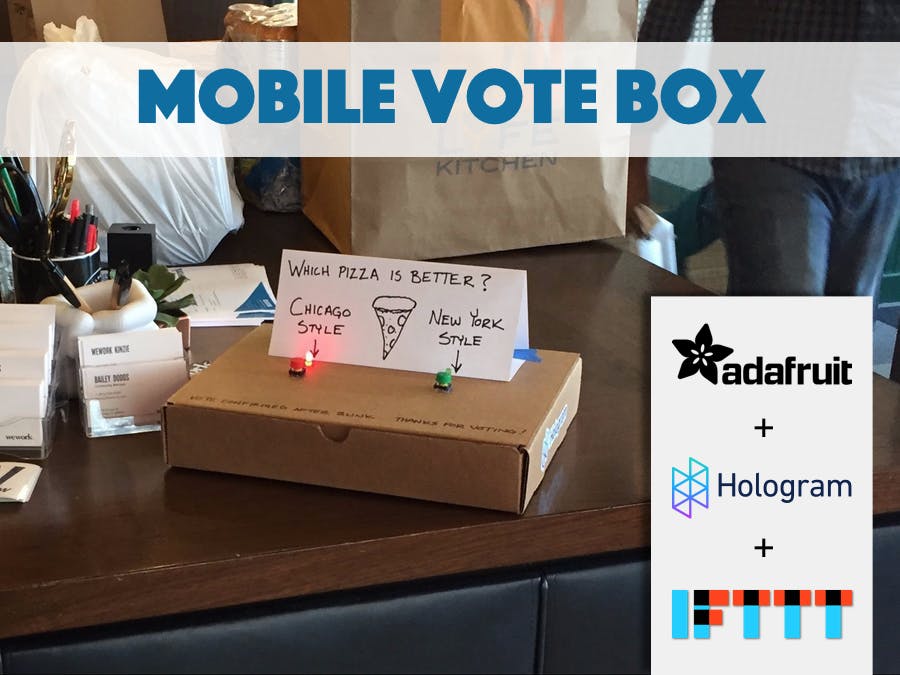

Mobile Vote Box chilling at our front desk

DEFCON

The Mobile Vote Box runs on battery and transmits every vote through cellular, making it extremely easy to set-and-forget. Parts cost about $50 but could be built for as cheap as $6 if you sourced everything through AliExpress.

Cellular connectivity is free from Hologram.io. Their Developer Plan allows me to get a free global SIM card plus 1MB of free data per month (that equates to about 2,000 free vote data packets per month). Order your free Developer SIM today, use promo code BUDS-WITH-BENSTR for free shipping and a few $$ of credit.

**Full disclosure: I work for Hologram so you'll see me make a bunch of IoT tuts based around cellular connectivity.**

1 / 2 • Free Developer Plan from Hologram.io

It would be amazing to iterate upon the idea and eventually come to a design robust enough that we could have a couple hundred Mobile Vote Boxes around the globe, asking the world a new question everyday and making the data publicly available.

How we'll build the Mobile Vote Box

From a high level we'll work backwards - starting from the egress, working our way to the ingress.

First we'll make an IFTTT Applet to push data into a Google Spreadsheet.

Next we'll activate our SIM, setup our data route, and verify with mock data.

Last, we'll wire our hardware and flash the device.

Now ask an intriguing question and put the box in a public place.

Understanding where the data is going.

Every time a vote is recorded our device sends a data String to the Hologram Data Router. The Data Router inflates/manipulates the String into a JSON object and sends it to a IFTTT Webhook. IFTTT appends each vote to a Google Sheet.

At first glance it may look excessive but each element serves an unique and important role.

Hologram Data Store is used because it does a great job abstracting the complexity of sending data fro a SIMCom module to the cloud.

Hologram Data Router is used because it does a great job manipulating my minimal String data into the JSON format IFTTT requires. It also gives me the freedom to add other integrations without needing to modify my device code.

IFTTT is used because it's awesome at abstracting away complex integrations to other clouds, in our case Google Sheets.

Google Sheets is used just because.

Where the data is going

1. IFTTT

1 / 3

Goto IFTTT, login or create an account

Create a new Applet

1 of 6: Select the Webhook service

2 of 6: Select Receive a Web Request trigger, name the event "vote" and create the trigger.

3 of 6: Select the Google Drive service

4 of 6: Choose the action Add Row to Spreadsheet

5 of 6: Complete the action fields, check out the image below (if you ignore this everything will still work fine).

6 of 6: Finish Applet!

IMPORTANT - Copy your webhook key (last part of the URL). Find your unique IFTTT webhook key here: https://ifttt.com/services/maker_webhooks/settings

Hologram will need your IFTTT webhook key

2. Hologram

Create a new device

Go to Hologram.io, login or create an account

Activate your SIM or select an existing Device

Note: activating a new SIM will automatically create a new device

Name the device anything you want, maybe Vote Btn #1

Create a new Data Route

In the left nav select Routes and add a New Route

IN: enter topic "vote"

OUT: select IFTTT Maker Webhook

Webhook Key: paste your IFTTT webhook key into this field (last step in IFTTT instructions above)

Event: vote

Data: {"value1": "Pizza: Chicago or New York Style?", "value2": "<<decdata>>"}

Create Route

3. Test Route and Webhook

Go to Devices > select your device > Messaging > Simulate from Device

Send data chicago to topic vote

The hologram console should pop up and show a successful route

If you go to Google Drive and open the spreadsheet, a new entry should appear.

If you have any errors or the data does not arrive then review above details.

If you cannot get it to work ask for help at https://community.hologram.io

4. Hardware

Grab your Data Router Device Key from the Hologram dashboard.

Devices > select device > Configure > Show CSR Credentials

Check out the schematic and sketch code below.

Make sure to replace the Device Key in the global variable.

Enjoy!

Code

Mobile Vote Box Arduino code - v1

#include <HologramSIMCOM.h>

#define RX_PIN 2 //SIMCom RX - MCU TX
#define TX_PIN 3 //SIMCom TX - MCU RX
#define RESET_PIN 4 //SIMCom reset
#define HOLO_KEY "########" //replace w/your SIM key
#define CONNECT_LED 12
#define VOTE1_BTN_PIN 6
#define VOTE1_LED_PIN 7
#define VOTE2_BTN_PIN 9
#define VOTE2_LED_PIN 10

HologramSIMCOM Hologram(TX_PIN, RX_PIN, RESET_PIN, HOLO_KEY); // Instantiate Hologram

String VOTE1_VALUE = "chicago";
String VOTE2_VALUE = "newYork";
String HOLOGRAM_TOPIC = "vote";

void setup() {
  Serial.begin(19200);
  while(!Serial);

  // Start modem and connect to Hologram's global network
  Hologram.debug();

  //set modes for used pins
  pinMode(CONNECT_LED, OUTPUT);
  pinMode(VOTE1_BTN_PIN, INPUT);
  pinMode(VOTE1_LED_PIN, OUTPUT);
  pinMode(VOTE2_BTN_PIN, INPUT);
  pinMode(VOTE2_LED_PIN, OUTPUT);

  bool cellConnected = Hologram.begin(19200, 8888); // set baud to 19200 and start server on port 8888
  if(cellConnected) {
    digitalWrite(CONNECT_LED, HIGH);
  }
}

void loop() {
  Hologram.debug();

  if(digitalRead(VOTE1_BTN_PIN) == HIGH) {
    sendVote(VOTE1_VALUE,VOTE1_LED_PIN);
  }

  if(digitalRead(VOTE2_BTN_PIN) == HIGH) {
   sendVote(VOTE2_VALUE,VOTE2_LED_PIN);
  }
}

void sendVote(String VOTE_VALUE, const int VOTE_LED) {
  digitalWrite(VOTE_LED, HIGH);
  // send to the Hologram Data Router
  if(Hologram.send(VOTE_VALUE, HOLOGRAM_TOPIC)) {
    // blink LED if vote was successful
    // this is crappy code, consider refactoring
    digitalWrite(VOTE_LED, LOW);
    delay(100);
    digitalWrite(VOTE_LED, HIGH);
    delay(100);
    digitalWrite(VOTE_LED, LOW);
    delay(100);
    digitalWrite(VOTE_LED, HIGH);
    delay(100);
    digitalWrite(VOTE_LED, LOW);
  } else {
    digitalWrite(VOTE_LED, LOW);
  }
}
