Arduino Project | Crabbie: My 1st Development Board

My 1st Development Board | Arduino Shield

6/11/2019

Early bird special on KickStarter & Indiegogo -----> July 8th

https://www.kickstarter.com/projects/bits4botsllc/1552980522?ref=b2mi87&token=fae5ea97

https://www.indiegogo.com/projects/crabbie-development-board-for-kids/x/22067607#/

Did you know there are 2.4 million unfilled STEM jobs in America? How can we produce more engineers? One way is to help bring this project to life. Bits4Bots LLC is aiming to promote STEAM (Science Technology Engineering Arts & Mathematics) in hopes to inspire future engineers and technology related careers. Link to Kickstarter coming soon. Follow us on LinkedIn.

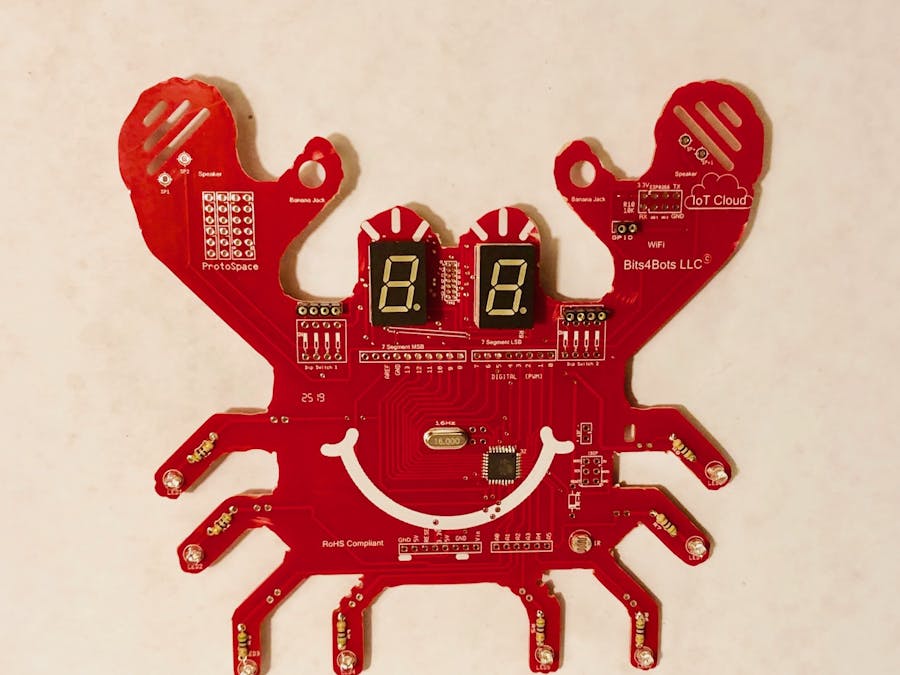

Introducing Crabbie |  My 1st Development Board Arduino Uno compatible, will work with other programming microcontrollers. This cool crab shaped hybrid/shield development board was designed with kids K-5th grade in mind. The board features a programmable TQFP Atmega328P that can be used when shielded with the Arduino Uno or used as a standalone.

On board includes two (2) 8 watt speakers, eight (8) 3mm leds, ISCP header, JST-1 battery connector, two (2) 7 segment displays, two (2) dip switches, one (1) IR sensor, one (1) hall effect magnet sensor, 6x6 prototype space, and a header for ESP8622 wifi connection. #iot

Dimensions: 167mm x 157mm

Out of the box kids can learn about binary & hex numbers using the dip switches to count up or down manually. The 7 segments can be programmed to count automatically. There is also a 14 pin breakout header to control each segment of both displays to allow full control of more than 128 states. The allows full creativity to give the development board facial expressions using segments as eyes.

Play a tune through the speakers, build a weather station, a garden monitor and more!  Program this board using Circuits on TinkerCad and the popular Arduino IDE.

 Unlock your child's creativity. Open source. Support this project.
