Setup KDS environment.
Getting Started Videos Freedom K82 Videos

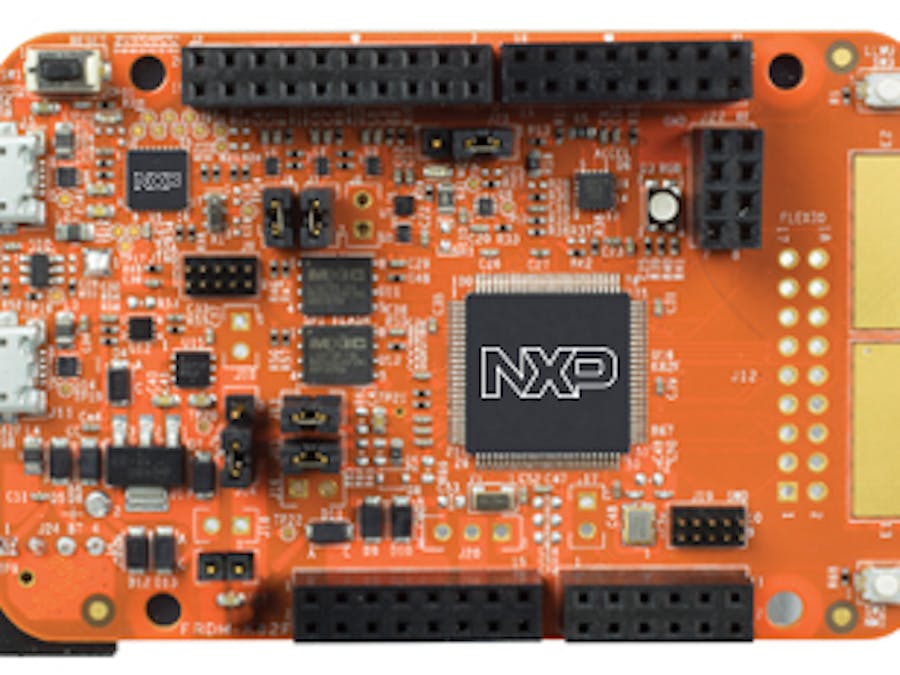

Run the Out-of-Box DemoYour FRDM-K82F comes loaded with a "bubble level" demo that leverages the on-board accelerometer. When the board is flat, the RGB LED is turned off, and when the board is tilted, the green or blue LEDs gradually illuminate based on the degree of tilt on the X- and Y-axis.
Jump Start Your Design with the Kinetis SDK!The Kinetis Software Development Kit (SDK) is complimentary and includes full source code under a permissive open-source license for all hardware abstraction and peripheral driver software.
Click to download the K82 SDK package.
Install Your ToolchainNXP offers a complimentary toolchain called Kinetis Design Studio (KDS).
Many of the example applications output data over the MCU UART so you’ll want to make sure that the driver for the board’s virtual COM port is installed. Before you run the driver installer, you MUST have the board plugged in to your PC.
With the serial port driver installed, run your favorite terminal application to view the serial output from the MCU's UART. Configure the terminal to 115200 baud rate, 8 data bits, no parity and 1 stop bit. To determine the port number of the FRDM-K82F's virtual COM port, open the device manager and look under the "Ports" group.
Freedom K82 Board manual shows which pins are connected to RGB LED, Switches, Accelerometer, Jumpers and Power Options.
Board Characteristics (voltage, current, power, frequency etc) of the MCU check this
Provided Webinars :
FAQs-
