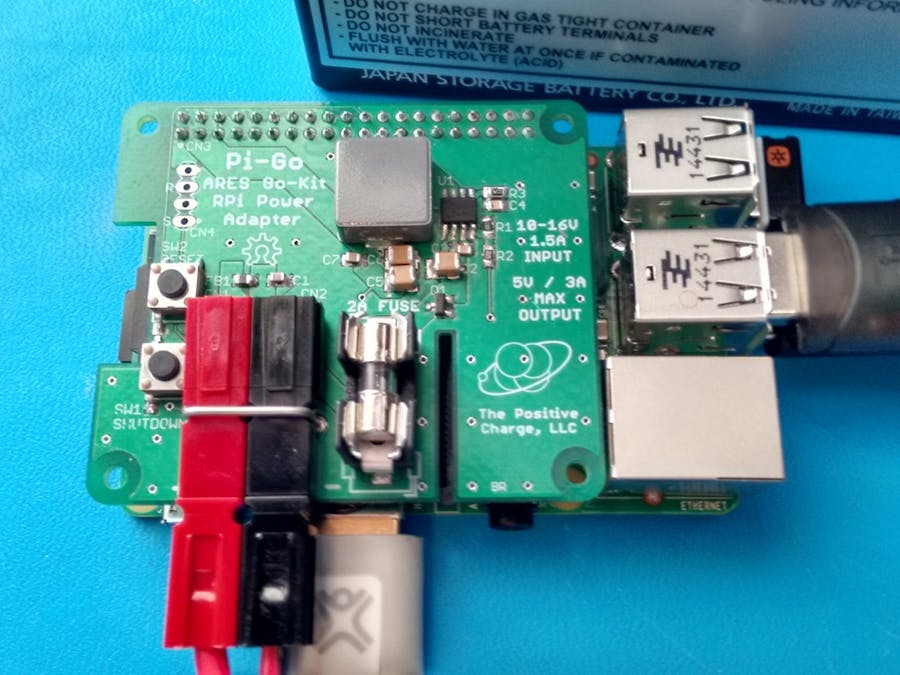

Pi-Go - Amateur Radio Power for your Raspberry Pi

There's always room for Pi in your Amateur Radio Go Kit. Now you can top it off with the Pi-Go and plug right into your station power.

IntermediateWork in progress1,991
Pi-Go - Amateur Radio Power for your Raspberry Pi

Things used in this project

Hardware components

CAP CER 0.1UF 50V 10% X7R 0805
Kemet C0805C104K5RACTU
×3
CAP CER 22UF 25V 10% X5R 1210
Murata GRM32ER61E226KE15L
×3
CAP CER 1800PF 50V 10% X7R 0805
AVX Corporation 08055C182KAT2A
×1
Anderson Powerpole 25A Pin Right Angle Bottom Low Force
Anderson Power 1377G12
×2
THROUGH-HOLE .025" SQ POST SOCKET
Sullins SFH11-PBPC-D20-ST-BK
×1
FUSE GLASS 2A 250VAC 5X20MM
Bel Fuse Inc 5MF 2-R
×1
FERRITE CHIP 220 OHM 3A 0805
TDK Corporation MPZ2012S221AT000
×1
FIXED IND 10UH 10A 16.5 MOHM SMD
Bourns SRP1265A-100M
×1
MOSFET P-CH 30V 5.9A SOT-23
Vishay Siliconix SI2343CDS-T1-GE3
×1
RES SMD 10K OHM 1% 1/8W 0805
Yageo RC0805FR-0710KL
×1
RES SMD 52.3K OHM 1% 1/8W 0805
Yageo RC0805FR-0752K3L
×2
SWITCH TACTILE SPST-NO 0.05A 24V
Apem ADTSM61RVTR
×2
IC REG BUCK ADJ 3A SYNC 8SOIC
Alpha & Omega AOZ1031AI
×1
Heavy Duty Power Connectors PP15/45 HOUSING ONLY RED
Anderson Power 1327-BK
×1
Heavy Duty Power Connectors PP15/45 HOUSING ONLY BLACK
Anderson Power 1327G6-BK
×1
Anderson Powerpole Mounting Staple 2x1
Anderson Power 114555P2
×1
FUSE BLOK CARTRIDGE 300V 10A PCB
Littelfuse 02540101Z
×1
