Embedded Angular with Raspberry Pi

Overview

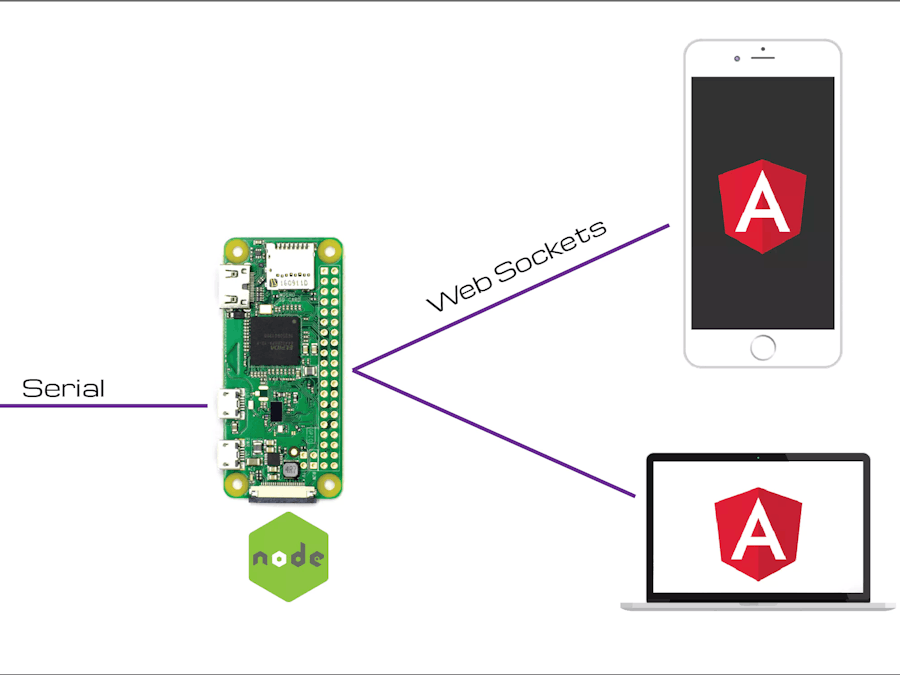

This project is a boilerplate for creating devices that have a low-level control requirement with an Angular front-end. This example utilises a Raspberry Pi Zero to serve an Angular interface through NodeJS. The Node server then talks to an Arduino via Serial and passes the data to and from the front-end using web sockects. The Node server also keeps a History of your messages by saving them to JSON files so each client gets the same relection of the system state.

Key Features

This project set's up a few handy things that form the base for a complete end-to-end system:

• Sets up primary Raspberry Pi WiFi as an access point with DHCP server
• Bridges primary wifi to secondary wifi (if available) to allow internet access via AP
• Serving an Angular App with ExpressJS
• Talking to the file system of a Raspberry Pi with Node.JS fs module
• Communicating to external device via NPM package serialport
• Allows multiple devices connected simultaneously with real-time updates via websockets

Hardware

To fully complete this porject you will need the following hardware:

• Raspberry Pi Zero W or Raspberry Pi 3
• An Arduino (I used an Arduino Leonardo)
• Edimax WiFi DOngle (Optional if using Raspberry Pi 3)
• 2 x Micro USB cables
• Micro USB Hub If using the Raspberry Pi Zero
• USB power source or Power Bank

Getting Started

Quick Start

The easiest and fastest way to demo this project is to download the applicable Raspberry Pi image, flash you SD and Ardunio switch it all on. You can download the images here:

• Raspberry Pi Zero W
• Raspberry Pi 3

You can find useful instructions on flashing your Raspberry Pi here.You will also need to flash your arduino with the arduino-code/serial-echo.ino. There's a good tutorial here on how to flash an Arduino with code.

Plug your Arduino's USB into the Raspberry Pi's USB port and you're ready to use the app.

NOTE: If you want to set up an existing Pi see the Setting up your Pi from Scratch section.

Usage

Demo

Watch the video below to see how the demo works

Video Coming SOON

Running the App

Once you have your Rapsberry Pi up and running with your Arduino connected follwo these steps to test the app:

reboot the Pi sudo reboot .

• Connect to the Pi's hotspot SSID: ngEmbedded using the password: raspberry from your laptop
• Connect to Raspberry Pi via SSH and set the WiFi (if you want internet access through the WiFi dongle), Serial port and the Express Server port (optional). Instructions for this are below.
• Make sure you reconnect to the ngEmbedded network
• On your laptop or smart phone go to 192.168.42.1:2506 in a web browser. You should see the App interface load with some messages loaded in the recieved section. These are from file and tell you the server is running.
• Send a message. You should see it echoed back to the recieved section of the app.

Configure WiFi Dongle

To connect the WiFi dongle (wlan1) to your network follow these steps:

From the SSH terminal open the network interfaces file sudo nano /etc/network/interfaces

• Scroll down to wlan1 settings and replaced the wpa-ssid field and wpa-psk field with your SSID and WiFi password.

Configure Serial Port

To set up your desired Serial Port naviaget to the project

cd /home/pi/embedded-angular/embedded-angular-interface

and open the port.json file

sudo nano port.json

Simply set the desired port and baud then close and save the file using Ctrl-X, Y, EnterFor the Pi the config might look like this

{
    "port":"/dev/ttyACM0",
    "baud":1000000
}

If you want to see the ports available for use I have written a app that prints the available ports. You can run it by issuing

node list-devices.js

You'll get a response of ports that looks something like this

/dev/ttyAMA0
/dev/ttyS0

Configure Express Port

You can also configure the port you want the Angualr app to be served on by opening the expressConfig file

sudo nano expressConfig.json

and editing the port to whatever you want

{
    "port":2506
}

Set Up Your Pi from Scratch

If you want to set up your Raspberry Pi yourself or are already running a Raspberry Pi image and want to add this project to it then just follow these steps or pick and choose the steps you need.

Set Up Your Pi OS

The first step is to set up your Raspberry Pi's SD with an operating system. I used the latest version of Raspbian. I recommend using this tutorial. If you are using Windows Etcher is the best tool for flashing the SD card with your downloaded Pi image.

Once your SD is imaged power up your Raspberry Pi and take it through the first time boot setup. The easiest way to do this is plug your Pi into a tv, connect the USB hub with a mouse, keyboard and wifi dongle. Ensure you enable SSH in the raspi-config. I also changed the host name of my pi to ng-embedded. Connect the WiFi dongle (will appear as wlan1) to your home wifi network.

Headless Setup: If you want to set up your Pi and you don't have a keyboard, mouse and HDMI screen I reccommend this tutorial: How to Setup Pi Zero Headless

Once your Raspberry Pi is connected to your network you can SSH into it from your computer. It's easier to continue the rest of the setup from this point forward on your computer. You can see how to connect to your Pi via SSH here: Connect to Raspberry Pi via SSH

Configure Pi as Wireless AP

Now we have our Pi up and running we want to enable the ability to connect to it directly from our computer or smart phone without an external network. The following instructions are modified from the [Ardupilot Docs on Mavlink WiFi Bridge] (http://ardupilot.org/dev/docs/making-a-mavlink-wifi-bridge-using-the-raspberry-pi.html). To se tup the Pi as an AP, follow these steps:

Make sure your Pi is up to date then install hostapd and isc-dhcp-server

sudo apt-get update
sudo apt-get install hostapd isc-dhcp-server

NOTE: You may seem some errors after install but ignore them for now

Configure the DHCP sever

Open the config file

sudo nano /etc/dhcp/dhcpd.conf

and comment out the option domain name lines as follows

#option domain-name "example.org";
#option domain-name-servers ns1.example.org, ns2.example.org;

Also enable the authoritive setting

# If this DHCP server is the official DHCP server for the local
# network, the authoritative directive should be uncommented.
authoritative;

At the end of this file add the following lines:

subnet 192.168.42.0 netmask 255.255.255.0 {
    range 192.168.42.10 192.168.42.50;
    option broadcast-address 192.168.42.255;
    option routers 192.168.42.1;
    default-lease-time 600;
    max-lease-time 7200;
    option domain-name "local";
    option domain-name-servers 8.8.8.8, 8.8.4.4;
}

Press Control-X then Y then Enter to save the edited config file.

Configure ISC network interfaces

Open the DHCP server file

sudo nano /etc/default/isc-dhcp-server

and change the INTERFACESv4 line like so:

INTERFACESv4="wlan0"

Set Up wlan0 as Static

We need to congfigure a static IP for the AP so we know what to it. Shut down the wlan0 wifi and open the interfaces file

sudo ifdown wlan0
sudo nano /etc/network/interfaces

And replace the contents with the following

# Include files from /etc/network/interfaces.d:
source-directory /etc/network/interfaces.d
auto lo
iface lo inet loopback
iface eth0 inet dhcp
allow-hotplug wlan0
iface wlan0 inet static
  address 192.168.42.1
  netmask 255.255.255.0
allow-hotplug wlan1
iface wlan1 inet dhcp
    wpa-ssid "YOUR-SSID"
    wpa-psk "YOUR-WIFI-PASSWORD"
up iptables-restore < /etc/iptables.ipv4.nat

Press Control-X then Y then Enter to save the edited config file. Then you can bring the wifi back online

sudo ifconfig wlan0 192.168.42.1

Configure AP Details

Open the hostapd conf

sudo nano /etc/hostapd/hostapd.conf

and put the following lines in the file

# This is the name of the WiFi interface we configured above
interface=wlan0
# Use the nl80211 driver for on-board wifi for pi 3 and zero
driver=nl80211
# This is the name of the network
ssid=ngEmbedded
# Use the 2.4GHz band
hw_mode=g
# Use channel 6
channel=6
# Enable 802.11n
#ieee80211n=1
# Enable WMM
wmm_enabled=0
# Enable 40MHz channels with 20ns guard interval
#ht_capab=[HT40][SHORT-GI-20][DSSS_CCK-40]
# Accept all MAC addresses
#macaddr_acl=0
# Use WPA authentication
auth_algs=1
# Require clients to know the network name
#ignore_broadcast_ssid=0
# Use WPA2
wpa=2
# Use a pre-shared key
#wpa_key_mgmt=WPA-PSK
# The network passphrase
wpa_passphrase=raspberry
# Use AES, instead of TKIP
#wpa_pairwise=TKIP
#rsn_pairwise=CCMP

Press Control-X then Y then Enter to save the edited config file. Now we must tell hostapd to use our new config. Open the hostapd DAEMON file

sudo nano /etc/default/hostapd

and modify the DAEMON_CONF line like so

DAEMON_CONF="/etc/hostapd/hostapd.conf"

Press Control-X then Y then Enter to save the edited config file.

Bridge AP to Internet

Now we want to bridge our wlan0 AP to our wlan1 network so we can have internet access while connected to the AP. Open the sysctl.conf

sudo nano /etc/sysctl.conf

and uncomment the the IPV4 line like so

# Uncomment the next line to enable packet forwarding for IPv4
net.ipv4.ip_forward=1

Press Control-X then Y then Enter to save the edited config file. Apply the changes immediately by issuing the following commad

sudo sh -c "echo 1 > /proc/sys/net/ipv4/ip_forward"

Set up the forward rules by running these 3 commands

sudo iptables -t nat -A POSTROUTING -o wlan1 -j MASQUERADE
sudo iptables -A FORWARD -i wlan1 -o wlan0 -m state --state RELATED,ESTABLISHED -j ACCEPT
sudo iptables -A FORWARD -i wlan0 -o wlan1 -j ACCEPT

So these changes apply after boot issue

sudo sh -c "iptables-save > /etc/iptables.ipv4.nat"

Running Everything on Boot

Start both service by issuing these commands

sudo service hostapd start
sudo service isc-dhcp-server start

You may get an error about the hostapd service being masked. If so do this:

sudo systemctl unmask hostapd.service

then add them to your update-rc.d file via

sudo update-rc.d hostapd enable
sudo update-rc.d isc-dhcp-server enable

I had some trouble getting the the DHCP server to boot. To fix this I removed the dhcpcd5

sudo apt-get remove dhcpcd5

and added a command to force the DHCP server to run by opening the rc.local

sudo nano /etc/rc.local

and adding the following line just before the final exit 0 line

sudo service isc-dhcp-server start

You're Done

Now reboot the RPi and you should see the ngEmbedded SSID available for connection

sudo reboot

Install NodeJS

For Raspberry Pi Zero Issue these 3 commands to install NodeJS

curl -o node-v8.9.3-linux-armv6l.tar.gz https://nodejs.org/dist/v8.9.3/node-v8.9.3-linux-armv6l.tar.gz
tar -xzf node-v8.9.3-linux-armv6l.tar.gz
sudo cp -r node-v8.9.3-linux-armv6l/* /usr/local/

For Raspberry Pi 3 Issue these commands to install NodeJS

curl -sL https://deb.nodesource.com/setup_8.x | sudo -E bash -
sudo apt-get install -y nodejs

Confirm node and npm are installed

node -v
npm -v

You can use a different version of node by replacing the version number with your chosen version.

Set Up the Code on Your Pi

Put the code onto you Pi by issuing the following command to clone the project to your /home/pi/ directory

git clone https://github.com/camow7/embedded-angular.git

Navigate into the project directory

cd ./embedded-angular/embedded-angular-interface

and instal the npm packages for the project

sudo npm install --unsafe-perm

This takes quite while to complete (took an hour for me) and throws a few warnings but be patient.

Configure the Project to Run on Boot by Opening the rc.local

sudo nano /etc/rc.local

and adding the following line just before the final exit 0 line

su pi -c 'node /home/pi/embedded-angular/embedded-angular-interface/server.js < /dev/null &'

Reboot and Test

You should now be set up and ready to run the demo.
