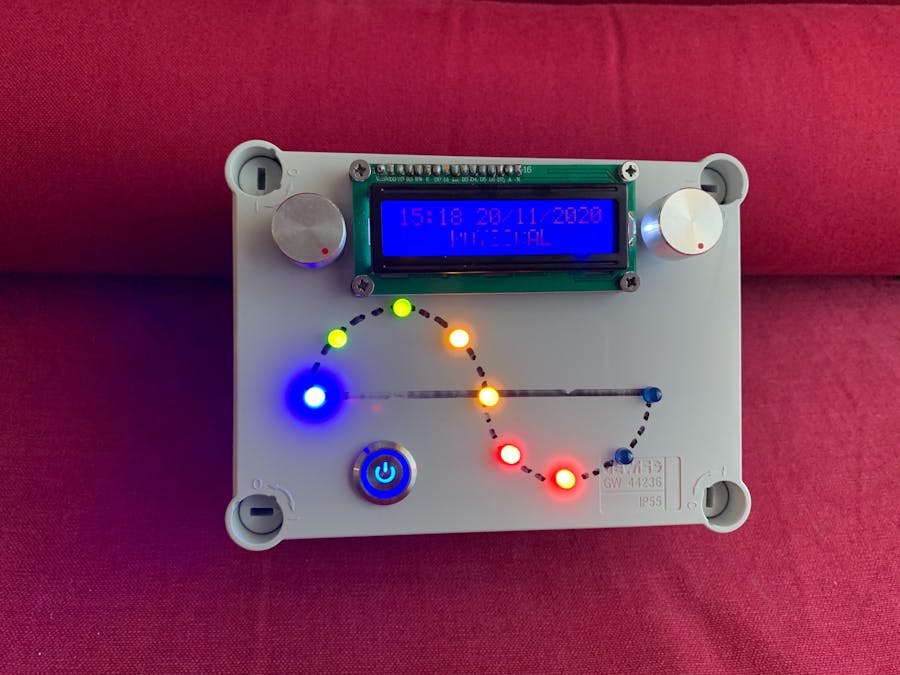

// Sketch biorhythm with clock
// Place your default birth date in the sketch
#include <DS3232RTC.h>
#include <LiquidCrystal.h>
#include <OneButton.h>
#include <RotaryEncoder.h>
// ----- Rotary settings here ----
#define ROTARYSTEPS 1
#define ROTARYMIN 0
#define ROTARYMAX 10
int lastPos = 0;
int exitFlag = 0;
// Setup a RoraryEncoder for pins A2 and A3:
RotaryEncoder encoder(A2, A3);
// Last known rotary position.
DS3232RTC myRTC;
const int rs = 8, en =7, d4 = 5, d5 = 4, d6 = 3, d7 = 2;
LiquidCrystal lcd(rs, en, d4, d5, d6, d7);
// Setup a new OneButton on pin A1.
OneButton button1(A1, true);
//Pin connected to ST_CP of 74HC595
int latchPin = 9;
//Pin connected to SH_CP of 74HC595
int clockPin = 12;
////Pin connected to DS of 74HC595
int dataPin = 11;
// Place your default birth date below
int dayBirth = 8;
int monthBirth = 4;
int yearBirth = 1968;
// NOT TO BE CHANGED
int anno = 1950;
int mese = 1;
int giorno = 1;
void setup() {
Serial.begin(115200);
encoder.setPosition(0 / ROTARYSTEPS); // start with the value of 0.
// link the button 1 functions.
button1.attachClick(click1);
button1.attachDoubleClick(doubleclick1);
button1.attachLongPressStart(longPressStart1);
button1.attachLongPressStop(longPressStop1);
button1.attachDuringLongPress(longPress1);
delay(200);
//set pins to output so you can control the shift register
pinMode(latchPin, OUTPUT);
pinMode(clockPin, OUTPUT);
pinMode(dataPin, OUTPUT);
pinMode(6, OUTPUT);
pinMode(10, OUTPUT);
lcd.begin(16, 2);
setSyncProvider(RTC.get); // the function to get the time from the RTC
if(timeStatus() != timeSet)
Serial.println("Unable to sync with the RTC");
else
Serial.println("RTC has set the system time");
myRTC.begin();
}
void loop() {
button1.tick();
int daysPassed;
display();
// delay(5000);
char buf[40];
time_t t = myRTC.get();
daysPassed = dateDiff(yearBirth, monthBirth, dayBirth, year(t), month(t), day(t));
Serial.print("DAYS PASSED: ");
Serial.println(daysPassed);
ledBioritmo(daysPassed);
}
// Display Ora a data
void display()
{
char buf[40];
time_t t = myRTC.get();
sprintf(buf, "%.2d:%.2d %.2d/%.2d/%d ",
hour(t), minute(t), day(t), month(t), year(t));
Serial.println(buf);
lcd.setCursor(0, 0);
lcd.print(buf);
}
void ledBioritmo(int daysPassed)
{
int fisico;
int emotivo;
int intellettuale;
fisico = bioFisico(daysPassed);
Serial.print("Physical: ");
Serial.println(fisico);
lcd.setCursor(0, 1);
lcd.print(" PHYSICAL ");
if (fisico < 0x1ff)
{
digitalWrite(10, LOW);
digitalWrite(6, LOW);
digitalWrite(latchPin, LOW);
// shift out the bits:
shiftOut(dataPin, clockPin, MSBFIRST, fisico);
//take the latch pin high so the LEDs will light up:
digitalWrite(latchPin, HIGH);
delay (3000);
}
else
if (fisico == 0x1FF)
{
digitalWrite(10, LOW);
digitalWrite(6, LOW);
digitalWrite(latchPin, LOW);
// shift out the bits:
shiftOut(dataPin, clockPin, MSBFIRST, 0xFF);
//take the latch pin high so the LEDs will light up:
digitalWrite(latchPin, HIGH);
digitalWrite(10, HIGH);
delay (3000);
}
else
if (fisico == 0x2FF)
{
digitalWrite(10, LOW);
digitalWrite(6, LOW);
digitalWrite(latchPin, LOW);
// shift out the bits:
shiftOut(dataPin, clockPin, MSBFIRST, 0xFF);
//take the latch pin high so the LEDs will light up:
digitalWrite(latchPin, HIGH);
digitalWrite(10, HIGH);
digitalWrite(6, HIGH);
delay (3000);
}
emotivo = bioEmotivo(daysPassed);
Serial.print("Emotional: ");
Serial.println(emotivo);
lcd.setCursor(0, 1);
lcd.print(" EMOTIONAL ");
if (emotivo < 0x1ff)
{
digitalWrite(10, LOW);
digitalWrite(6, LOW);
digitalWrite(latchPin, LOW);
// shift out the bits:
shiftOut(dataPin, clockPin, MSBFIRST, emotivo);
//take the latch pin high so the LEDs will light up:
digitalWrite(latchPin, HIGH);
delay (3000);
}
else
if (emotivo == 0x1FF)
{
digitalWrite(10, LOW);
digitalWrite(6, LOW);
digitalWrite(latchPin, LOW);
// shift out the bits:
shiftOut(dataPin, clockPin, MSBFIRST, 0xFF);
//take the latch pin high so the LEDs will light up:
digitalWrite(latchPin, HIGH);
digitalWrite(10, HIGH);
delay (3000);
}
else
if (emotivo == 0x2FF)
{
digitalWrite(10, LOW);
digitalWrite(6, LOW);
digitalWrite(latchPin, LOW);
// shift out the bits:
shiftOut(dataPin, clockPin, MSBFIRST, 0xFF);
//take the latch pin high so the LEDs will light up:
digitalWrite(latchPin, HIGH);
digitalWrite(10, HIGH);
digitalWrite(6, HIGH);
delay (3000);
}
intellettuale = bioIntellettuale(daysPassed);
Serial.print("Intellectual: ");
Serial.println(intellettuale);
lcd.setCursor(0, 1);
lcd.print(" INTELLECTUAL ");
if (intellettuale < 0x1ff)
{
digitalWrite(10, LOW);
digitalWrite(6, LOW);
digitalWrite(latchPin, LOW);
// shift out the bits:
shiftOut(dataPin, clockPin, MSBFIRST, intellettuale);
//take the latch pin high so the LEDs will light up:
digitalWrite(latchPin, HIGH);
delay (3000);
}
else
if (intellettuale == 0x1FF)
{
digitalWrite(10, LOW);
digitalWrite(6, LOW);
digitalWrite(latchPin, LOW);
// shift out the bits:
shiftOut(dataPin, clockPin, MSBFIRST, 0xFF);
//take the latch pin high so the LEDs will light up:
digitalWrite(latchPin, HIGH);
digitalWrite(10, HIGH);
delay (3000);
}
else
if (intellettuale == 0x2FF)
{
digitalWrite(10, LOW);
digitalWrite(6, LOW);
digitalWrite(latchPin, LOW);
// shift out the bits:
shiftOut(dataPin, clockPin, MSBFIRST, 0xFF);
//take the latch pin high so the LEDs will light up:
digitalWrite(latchPin, HIGH);
digitalWrite(10, HIGH);
digitalWrite(6, HIGH);
delay (3000);
}
}
int bioFisico(int dayPassed)
{
/*
* Positive = 0x1 - (led 1)
* Negative = 0x2 - (led 2)
* Critical Negative = 0x4 - (led 3)
* Critical Positive = 0x8 - (led 4)
* Semicritic = 0x10 - (led 5)
*
*/
button1.tick();
int i;
int fisicoValue;
fisicoValue = (dayPassed)/23;
i = fisicoValue * 23;
fisicoValue = dayPassed - i;
if (fisicoValue > -1 and fisicoValue < 3)
fisicoValue = 0x3;
else
if (fisicoValue > 2 and fisicoValue < 6)
fisicoValue = 0x7;
else
if (fisicoValue > 5 and fisicoValue < 9)
fisicoValue = 0xF;
else
if (fisicoValue > 8 and fisicoValue < 12)
fisicoValue = 0x1F;
else
if (fisicoValue > 11 and fisicoValue < 15)
fisicoValue = 0x3F;
else
if (fisicoValue > 14 and fisicoValue < 18)
fisicoValue = 0x7F;
else
if (fisicoValue > 17 and fisicoValue < 21)
fisicoValue = 0xFF;
else
if (fisicoValue > 20 and fisicoValue < 22)
fisicoValue = 0x1FF;
else
fisicoValue = 0x2FF;
return (fisicoValue);
}
int bioEmotivo(int dayPassed)
{
/*
* Positive = 0x1 - (led 1)
* Negative = 0x2 - (led 2)
* Critical Negative = 0x4 - (led 3)
* Critical Positive = 0x8 - (led 4)
* Semicritic = 0x10 - (led 5)
*
*/
button1.tick();
int i;
int fisicoValue;
fisicoValue = (dayPassed)/28;
i = fisicoValue * 28;
fisicoValue = dayPassed - i;
if (fisicoValue > -1 and fisicoValue < 3)
fisicoValue = 0x3;
else
if (fisicoValue > 2 and fisicoValue < 7)
fisicoValue = 0x7;
else
if (fisicoValue > 6 and fisicoValue < 10)
fisicoValue = 0xF;
else
if (fisicoValue > 9 and fisicoValue < 14)
fisicoValue = 0x1F;
else
if (fisicoValue > 13 and fisicoValue < 18)
fisicoValue = 0x3F;
else
if (fisicoValue > 17 and fisicoValue < 21)
fisicoValue = 0x7F;
else
if (fisicoValue > 20 and fisicoValue < 25)
fisicoValue = 0xFF;
else
if (fisicoValue > 24 and fisicoValue < 27)
fisicoValue = 0x1FF;
else
fisicoValue = 0x2FF;
return (fisicoValue);
}
int bioIntellettuale(int dayPassed)
{
/*
* Positive = 0x1 - (led 1)
* Negative = 0x2 - (led 2)
* Critical Negative = 0x4 - (led 3)
* Critical Positive = 0x8 - (led 4)
* Semicritic = 0x10 - (led 5)
*
*/
button1.tick();
int i;
int fisicoValue;
fisicoValue = (dayPassed)/33;
i = fisicoValue * 33;
fisicoValue = dayPassed - i;
if (fisicoValue > -1 and fisicoValue < 4)
fisicoValue = 0x3;
else
if (fisicoValue > 3 and fisicoValue < 8)
fisicoValue = 0x7;
else
if (fisicoValue > 7 and fisicoValue < 12)
fisicoValue = 0xF;
else
if (fisicoValue > 11 and fisicoValue < 16)
fisicoValue = 0x1F;
else
if (fisicoValue > 15 and fisicoValue < 20)
fisicoValue = 0x3F;
else
if (fisicoValue > 19 and fisicoValue < 24)
fisicoValue = 0x7F;
else
if (fisicoValue > 23 and fisicoValue < 28)
fisicoValue = 0xFF;
else
if (fisicoValue > 27 and fisicoValue < 32)
fisicoValue = 0x1FF;
else
fisicoValue = 0x2FF;
return (fisicoValue);
}
int dateDiff(int year1, int mon1, int day1, int year2, int mon2, int day2)
{
int ref,dd1,dd2,i;
ref = year1;
if(year2<year1)
ref = year2;
dd1=0;
dd1=dater(mon1);
for(i=ref;i<year1;i++)
{
if(i%4==0)
dd1+=1;
}
dd1=dd1+day1+(year1-ref)*365;
dd2=0;
for(i=ref;i<year2;i++)
{
if(i%4==0)
dd2+=1;
}
dd2=dater(mon2)+dd2+day2+((year2-ref)*365);
return dd2-dd1;
}
int dater(int x)
{ const int dr[]= { 0, 31, 59, 90, 120, 151, 181, 212, 243, 273, 304, 334};
return dr[x-1];
}
void illuminaLed(int val)
{
Serial.print("VAL: ");
Serial.println(val);
int i=0;
int led=0;
if (val == 2)
led = 9;
else if (val == 4)
led = 10;
else if (val == 8)
led = 11;
else if (val == 1)
led = 6;
else if (val == 16)
led = 11;
Serial.print("LED: ");
Serial.println(led);
for (i=0;i<20;i++)
{
analogWrite(led,i);
delay (50);
}
for (i=20;i>-1;i--)
{
analogWrite(led,i);
delay (50);
}
}
void click1() {
Serial.println("Button 1 click.");
}
// This function will be called when the button1 was pressed 2 times in a short timeframe.
void doubleclick1() {
Serial.println("Button 1 doubleclick.");
lcd.noBlink();
if (exitFlag == 0)
{
yearBirth = anno+lastPos;
exitFlag = 1;
exit;
}
else
if (exitFlag == 1)
{
monthBirth = mese+lastPos;
exitFlag = 2;
exit;
}
else
if (exitFlag == 2)
{
dayBirth = giorno+lastPos;
exitFlag = 3;
exit;
}
} // doubleclick1
// This function will be called once, when the button1 is pressed for a long time.
void longPressStart1() {
Serial.println("Button 1 longPress start");
lcd.setCursor(0, 0);
lcd.print(" SET BIRTH DATE ");
lcd.setCursor(0,1);
lcd.print("Year: ");
lcd.setCursor(6,1);
lcd.blink();
lcd.print(anno+lastPos);
lcd.setCursor(6,1);
exitFlag = 0;
while(exitFlag < 1)
{
encoder.tick();
button1.tick();
// Insert year
#define ROTARYMAX 70
int newPos = encoder.getPosition() * ROTARYSTEPS;
if (newPos < ROTARYMIN) {
encoder.setPosition(ROTARYMIN / ROTARYSTEPS);
newPos = ROTARYMIN;
} else if (newPos > ROTARYMAX) {
encoder.setPosition(ROTARYMAX / ROTARYSTEPS);
newPos = ROTARYMAX;
}
if (lastPos != newPos) {
Serial.print(newPos+anno);
Serial.println();
lcd.print(newPos+anno);
lcd.setCursor(6,1);
lastPos = newPos;
} // if
}
lastPos = 0;
lcd.setCursor(0, 0);
lcd.print(" SET BIRTH DATE ");
lcd.setCursor(0,1);
lcd.print("Month: ");
lcd.setCursor(7,1);
lcd.blink();
lcd.print(mese+lastPos, DEC);
lcd.setCursor(7,1);
encoder.setPosition(0 / ROTARYSTEPS); // start with the value of 1.
while(exitFlag < 2)
{
encoder.tick();
button1.tick();
// Insert month
#define ROTARYMAX 11
int newPos = encoder.getPosition() * ROTARYSTEPS;
if (newPos < ROTARYMIN) {
encoder.setPosition(ROTARYMIN / ROTARYSTEPS);
newPos = ROTARYMIN;
} else if (newPos > ROTARYMAX) {
encoder.setPosition(ROTARYMAX / ROTARYSTEPS);
newPos = ROTARYMAX;
}
if (lastPos != newPos) {
Serial.print(newPos+mese);
Serial.println();
lcd.setCursor(0,1);
lcd.print("Month: ");
lcd.setCursor(7,1);
lcd.print(newPos+mese,DEC);
lcd.setCursor(7,1);
lastPos = newPos;
}
}
lastPos = 0;
lcd.setCursor(0, 0);
lcd.print(" SET BIRTH DATE ");
lcd.setCursor(0,1);
lcd.print("Day: ");
lcd.setCursor(5,1);
lcd.blink();
lcd.print(mese+lastPos);
lcd.setCursor(5,1);
encoder.setPosition(0 / ROTARYSTEPS); // start with the value of 1.
while(exitFlag < 3)
{
encoder.tick();
button1.tick();
// Insert day
#define ROTARYMAX 30
int newPos = encoder.getPosition() * ROTARYSTEPS;
if (newPos < ROTARYMIN) {
encoder.setPosition(ROTARYMIN / ROTARYSTEPS);
newPos = ROTARYMIN;
} else if (newPos > ROTARYMAX) {
encoder.setPosition(ROTARYMAX / ROTARYSTEPS);
newPos = ROTARYMAX;
} // if
if (lastPos != newPos) {
Serial.print(newPos+giorno);
Serial.println();
lcd.setCursor(0,1);
lcd.print("Day: ");
lcd.setCursor(5,1);
lcd.print(newPos+giorno);
lcd.setCursor(5,1);
lastPos = newPos;
}
}
} // longPressStart1
// This function will be called often, while the button1 is pressed for a long time.
void longPress1() {
Serial.println("Button 1 longPress...");
} // longPress1
// This function will be called once, when the button1 is released after beeing pressed for a long time.
void longPressStop1() {
Serial.println("Button 1 longPress stop");
} // longPressStop1
Comments
Please log in or sign up to comment.
