Color Detector with Arduino and OLED display

this tutorial we will show you how to build a color detector using the TCS3200 sensor and an SH1106 OLED display, all controlled by an Arduino board. This system can recognize colors and display them clearly on the OLED screen , ideal for robotics projects, object classification, or any creative idea you have!

What will you learn?

• Configuring the TCS3200 Color Sensor : Learn how to interpret the RGB information detected by this sensor.
• Integrating an SH1106 OLED display : Discover how to display results in a readable and attractive format.
• Processing Color Data with Arduino : Master converting readings into useful values ​​for your projects.

Why This Project?

This project is not only fun to build, but also very useful for learning about sensors and data processing. Plus, you can expand it with new functionalities, such as classifying objects or making more precise color measurements.

Read on to discover the step-by-step instructions, the materials you need, and the code to take your color detector to the next level. Let's get started!

Electronic components of the project

Arduino Nano

A socket for arduino

Female pins

Dupont cables female male

Display oled sh1106

This is a 128x64 dot monochrome OLED display module with I2C interface. It has several advantages over LCD displays, such as high brightness, very good contrast, a wider viewing angle, and low power consumption. It is compatible with Arduino Rasberry Pi and PIC microcontrollers among others. It works with logic levels from 3.3V to 5V and has a viewing angle greater than 160 degrees. The screen size is 1.3 inches. It is powered by a voltage of 3.3V to 5V. It can be used in applications such as smart watches, MP3, thermometers, instruments, and various projects, etc.

Features

• Interface: I2C(3.3V / 5V logic level)
• Resolution: 128 x 64
• Angle of view: >160 degree
• Display color: Blue
• Display size: 1.3 inch
• Driver IC: SH1106
• Power supply: DC 3.3V~5V
• Operating temperature: -20~70’C
• Application: smart watch, MP3, thermometer, instruments, DIY projects, etc.

A TCS3200 Sensor

The TCS3200 is a full featured RGB color sensor with 4 built-in LEDs and can detect an almost infinite range of colors. Its applications are various such as measuring ambient light, color classification etc. Internally the sensor has an array of small phototransistors each with several color filters, allowing it to be quite accurate and sensitive. The sensor output returns a pulse of duration proportional to the intensity of the detected color.

Features:

• Power: 2.7V to 5.5V
• Salida digital TTL
• Programmable scale and filters
• Power down function
• Size: 28.4×28.4mm

Manual–> TCS3200 TCS3210

PCB

Download the PCB

Electronic pcb diagram

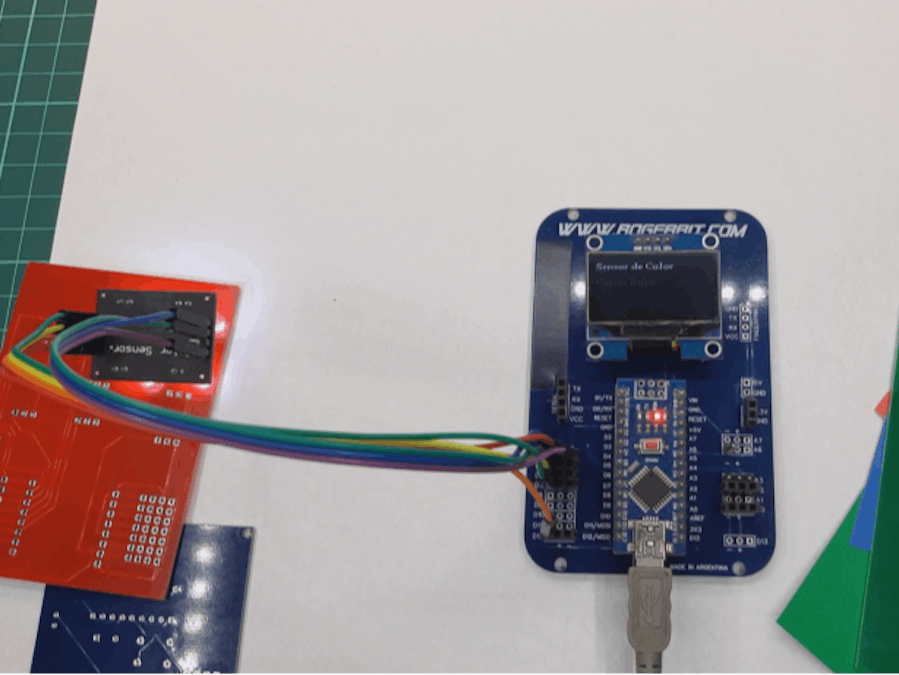

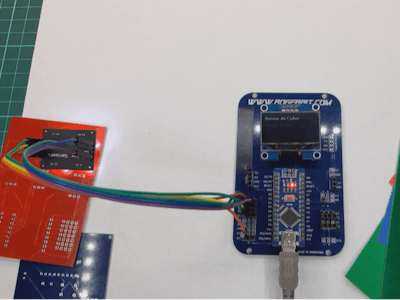

Circuit with PCB
