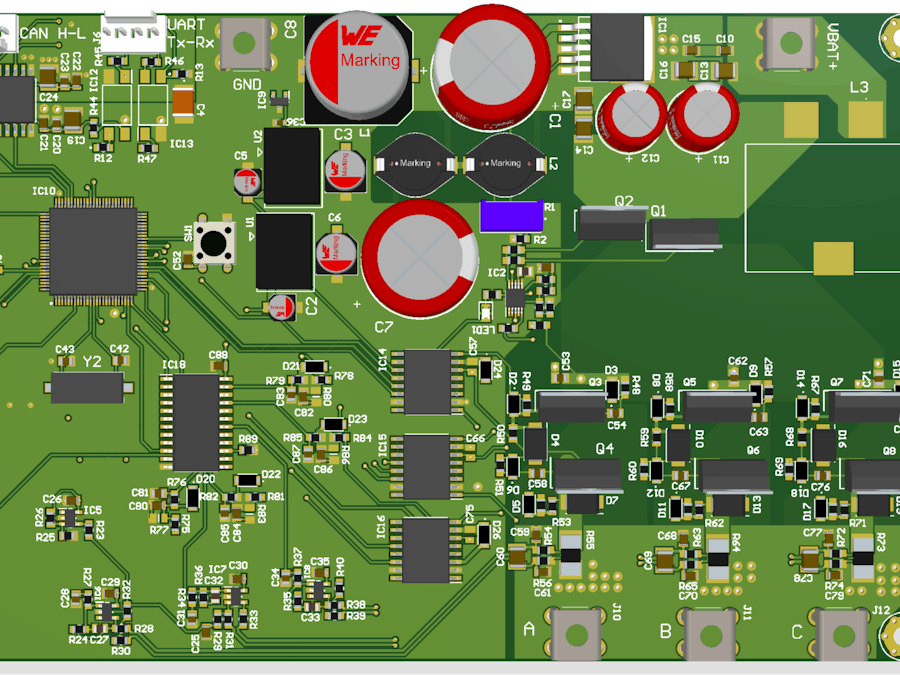

BLDC Motor Controller

Features:

• Sensored/Sensorless drive
• Temperature sense
• Isolated CAN BUS and UART interface
• 24V to 72V supply
• For motors up to 2kW
• Phase current and voltage sense
• Bus voltage sense
• High speed STM32F4 MCU

Circuit Components

Driver Circuit

• IR2110S
• IRFB7730 MOSFET
• LM5060 High Side Protection IC

Control and Sense Circuits

• STM32F407VGT6
• OPA365A
• LM358
• KTY84
• CD74HC4067M

Power Circuits

• LM2575HVS-ADJ (48V to 12V)
• Würth MagI³C-FDSM for 3.3V & 5V
• AMS1117-3.3 for MCU VDDA supply

After all, we just need to order our PCB. For that, go to https://jlcpcb.com/?from=see, press ADD GERBER FILE and select your project's Gerber file (Gerber file must be in.zip format). After that, customize your production process if you want and order your PCB.
