ESP8266 Garage Multisensor for Home Assistant

Updated for 2019 China-US Young Maker Competition

I love using Home Assistant to monitor and automate my house. While I prefer using Z-Wave sensors and devices, openzwave's support for garage controls has been unstable at best in my experience. I therefore set out to create my own all-in-one multi-sensor and garage door controller with the following features:

• Monitor temperature and humidity (Si7021 sensor)
• Detect motion (PIR sensor)
• Track whether the garage door is open/closed (magentic contact switch)
• Control the garage door to open/close on command (relay)

Platform Choice

The Sparkfun ESP8266 Thing Dev board was the perfect choice for this project:

• Easily programmable via USB
• WiFi connectivity
• Runs at 3.3V but also has ~5V available (via the VCC pin) for the PIR sensor and relay
• I²C support for the Si7021 I2C temperature/humidity sensor
• Community libraries available for MQTT and the Si7021 sensor
• Onboard LED we can blink to show activity!

Wiring

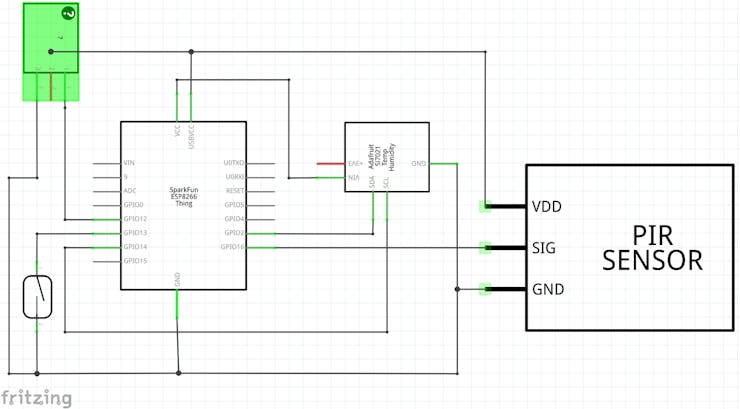

The wiring is fairly straight-forward:

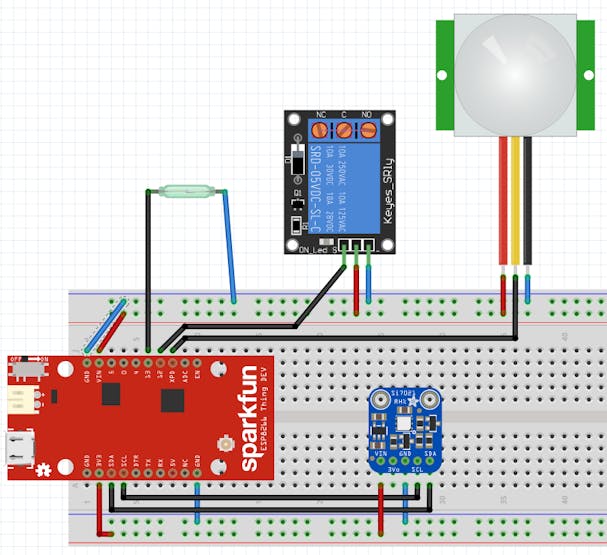

I've also described the connections below:

Si7021 Sensor

• VIN (sensor) to 3V3 (ESP8266)
• GND to GND
• SCL to pin 14
• SDA to pin 2

PIR Sensor

• VCC (sensor) to VIN (ESP8266)
• GND to GND
• OUT to pin 16

Magnetic Contact Switch

• One of the wires (switch) to GND (ESP8266)
• The other wire to pin 13

Relay

• VCC (relay) to VIN (ESP8266)
• GND to GND
• IN to pin 12

Code

The code is based off my MQTT Temperature and Humidity Monitor for Home Assistant:

#include <PubSubClient.h>
#include <Adafruit_Si7021.h>
#include <ESP8266WiFi.h>
// START CONFIGURATION
// Replace these with your WiFi credentials
const char* ssid     = "GetOffMyLAN";
const char* password = "correcthorsebatterystaple";
// Replace these with your MQTT connection info
const char* mqtt_server = "192.168.1.12";
const char* mqtt_user = "garage";
const char* mqtt_password = "password123";
// Define which MQTT topics the data is published to
#define humidity_topic "sensor/garage/humidity"
#define temperature_topic "sensor/garage/temperature"
#define garage_status_topic "sensor/garage/door-status"
#define garage_command_topic "sensor/garage/door-command"
#define motion_topic "sensor/garage/motion"
// Pins
#define pin_led 5
#define pin_door_status 13
#define pin_door_relay 12
#define pin_motion 16
// END CONFIGURATION
WiFiClient espClient;
PubSubClient client(espClient);
Adafruit_Si7021 sensor;
void setup() {
 // Configure the pins
 digitalWrite(pin_led, HIGH);
 digitalWrite(pin_door_relay, HIGH);
 pinMode(pin_led, OUTPUT);
 pinMode(pin_door_relay, OUTPUT);
 pinMode(pin_door_status, INPUT_PULLUP);
 pinMode(pin_motion, INPUT);
 Serial.begin(115200);
 delay(100);
 // We start by connecting to a WiFi network
 Serial.println();
 Serial.println();
 Serial.print("Connecting to ");
 Serial.println(ssid);
 WiFi.begin(ssid, password);
 // Blink the LED until we're connected
 int i = 0;
 while (WiFi.status() != WL_CONNECTED) {
   digitalWrite(pin_led, i % 2);
   delay(500);
   Serial.print(".");
   i++;
 }
 digitalWrite(pin_led, HIGH);
 Serial.println("");
 Serial.println("WiFi connected");
 Serial.println("IP address: ");
 Serial.println(WiFi.localIP());
 Serial.println("");
 // Connect to MQTT
 client.setServer(mqtt_server, 1883);
 client.setCallback(onMessageReceived);
 // Set up the climate sensor
 sensor = Adafruit_Si7021();
 if (sensor.begin()) {
   Serial.println('Climate sensor ready');
 } else {
   // TODO: We should probably reset the device if this happens
   Serial.println('SENSOR FAILED TO START');
 }
 delay(50);
 digitalWrite(pin_led, HIGH);
}
// Attempts to reconnect to MQTT if we're ever disconnected
void reconnect() {
 // Loop until we're reconnected
 while (!client.connected()) {
   digitalWrite(pin_led, LOW);
   Serial.print("Attempting MQTT connection...");
   // Attempt to connect
   if (client.connect("GarageMultiSensor", mqtt_user, mqtt_password)) {
     Serial.println("connected");
     client.subscribe(garage_command_topic);
     digitalWrite(pin_led, HIGH);
     delay(100);
   } else {
     Serial.print("failed, rc=");
     Serial.print(client.state());
     Serial.println(" try again in 5 seconds");
     // Wait 5 seconds before retrying
     delay(5000);
   }
 }
}
// Helps check whether any value change is significant enough to warrant a data push
bool checkBound(float newValue, float prevValue, float maxDiff) {
 return !isnan(newValue) &&
        (newValue < prevValue - maxDiff || newValue > prevValue + maxDiff);
}
long lastMsg = 0;
float temp = 0.0;
float hum = 0.0;
float diff = 0.1;
bool motion = false;
bool doorOpen = false;
void loop() {
  // Ensure we stay connected
 if (!client.connected()) {
   reconnect();
 }
 // Let MQTT do its thing
 client.loop();
 digitalWrite(pin_led, HIGH);
 bool sent = false;
 // Check the temp, humidity, and door state once per second
 long now = millis();
 if (now - lastMsg > 1000) {
   lastMsg = now;
   // Read the values from the sensor
   float newTemp = sensor.readTemperature();
   float newHum = sensor.readHumidity();
   bool newDoorOpen = digitalRead(pin_door_status);
   // Check whether the temperature has changed
   if (checkBound(newTemp, temp, diff)) {
     temp = newTemp;
     Serial.print("New temperature:");
     Serial.println(String(temp).c_str());
     client.publish(temperature_topic, String(temp).c_str(), true);
     sent = true;
   }
   // Check whether the humidity has changed
   if (checkBound(newHum, hum, diff)) {
     hum = newHum;
     Serial.print("New humidity:");
     Serial.println(String(hum).c_str());
     client.publish(humidity_topic, String(hum).c_str(), true);
     sent = true;
   }
   if (doorOpen && !newDoorOpen) {
     doorOpen = false;
     Serial.println("Door closed");
     client.publish(garage_status_topic, "closed", true);
     sent = true;
   } else if (!doorOpen && newDoorOpen) {
     doorOpen = true;
     Serial.println("Door open");
     client.publish(motion_topic, "open", true);
     sent = true;
   }
 }
 // Constantly check for motion
 bool newMotion = digitalRead(pin_motion);
 if (motion && !newMotion) {
   motion = false;
   Serial.println("No more motion");
   client.publish(motion_topic, "OFF", true);
   sent = true;
 } else if (!motion && newMotion) {
   motion = true;
   Serial.println("Motion detected");
   client.publish(motion_topic, "ON", true);
   sent = true;
 }
 // If any data was sent (due to a change) then blink the blue LED
 if (sent) {
   sent = false;
   digitalWrite(pin_led, LOW);
   delay(100);
   digitalWrite(pin_led, HIGH);
 }
}
void onMessageReceived(char* topic, byte* payload, unsigned int length) {
 int i;
 char message_buff[100];
 for(i=0; i<length; i++) {
   message_buff[i] = payload[i];
 }
 message_buff[i] = '\0';
 String msgString = String(message_buff);
 Serial.println("Payload: " + msgString);
 bool activateRelay = false;
 if (!doorOpen && msgString.equals("OPEN")) {
   activateRelay = true;
 } else if (doorOpen && msgString.equals("CLOSE")) {
   activateRelay = true;
 }
 if (activateRelay) {
   Serial.println("Toggling door state");
   digitalWrite(pin_door_relay, LOW);
   delay(300);
   digitalWrite(pin_door_relay, HIGH);
 }
}

Home Assistant

Adding the sensors to Home Assistant is very easy. First, ensure you've configured an MQTT broker. Once done you can add the following sensors:

• 2x MQTT Sensor for temperature and humidity
• 1x MQTT Binary Sensor for the PIR motion sensor
• 1x MQTT Cover for the garage door status and control

Your configuration should look something like this:

sensor:
  - platform: mqtt
    state_topic: sensor/garage/temperature
    name: "Garage Temperature"
    unit_of_measurement: "°C"
  - platform: mqtt
    state_topic: sensor/basement/humidity
    name: "Garage Humidity"
    unit_of_measurement: "%"
binary_sensor:
  - platform: mqtt
    state_topic: sensor/garage/motion
    name: "Garage Motion"
cover:
  - platform: mqtt
    status_topic: sensor/garage/door-status
    payload_topic: sensor/garage/door-command
    name: "Garage Door"

Mounting & Final Steps

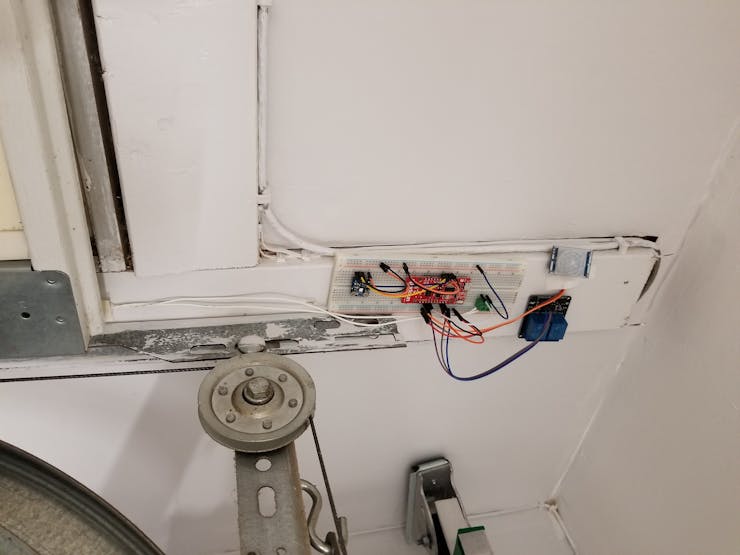

I've mounted this multi-sensor in an upper corner of my garage so that the PIR sensor points to the middle of the garage:

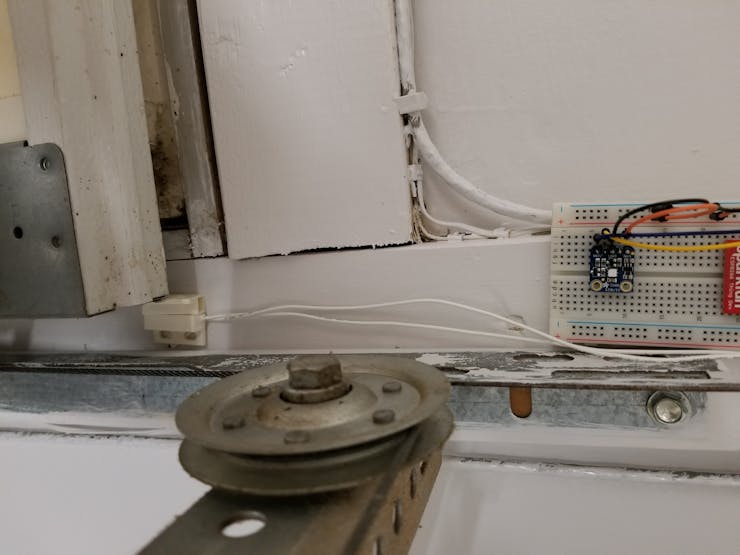

The magnetic reed switch is mounted on the door frame, with the magnet on the door, in order to detect the current state of the garage door:

While this is completely functional, I do hope to eventually design a simple PCB I can solder everything onto, and then design & 3D print a plastic enclosure to house the project!
