Our intelligent fish tank project has open source on github now. This post we’ll show you its effect demonstration. You can learn how to operate the interface and set the functions from our video.
Demonstration Video:

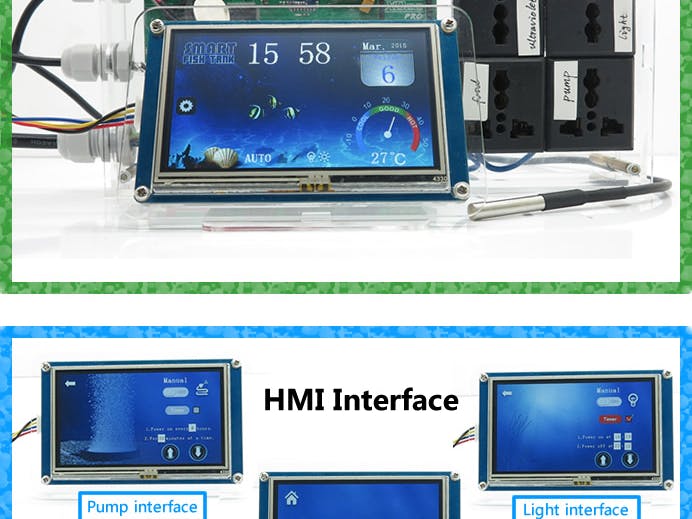

The intelligent fish tank is consisted of six sections, a main display section, and 5 functions sections, including time setting(Time), pump (Pump), feed (Feed), light (Light) and ultraviolet (UV). Because this project needs to realize these functions and set a timer, a lot of nextion components has been used inside. But do not worry, these components are set separately according to the function. I believe as long as you understand one function’s implementation way, you will naturally understand the others. In addition, the program has added AT commands set. You must pay attention to the realization mechanism for error handling in the program.
For all support files about this project, please visit here: https://github.com/itead/FishTank
If you have any ideas or questions, please post on Nextion forums.
/**
* @file FishTank.ino
*
* @par To control fishtank's device and RTC display and temperature display and set time.
*
* This program is used to control intelligent fish tank. Its structure
* is very simple. It is consisted of six sections, a main display section, and
* 5 functions sections, including time setting(Time), pump (Pump), feed (Feed),
* light (Light) and ultraviolet (Uv). Because this project needs to realize these
* functions and set a timer, a lot of nextion components has been used inside.
* But do not worry, these components are set separately according to the function.
* I believe as long as you understand one function implementation way, you will naturally
* understand the others.
*
* @author huang xianming (email:<xianming.huang@itead.cc>)
* @date 2015/7/23
* @copyright
* Copyright (C) 2014-2015 ITEAD Intelligent Systems Co., Ltd. \n
* This program is free software; you can redistribute it and/or
* modify it under the terms of the GNU General Public License as
* published by the Free Software Foundation; either version 2 of
* the License, or (at your option) any later version.
*
*/
#include "NexButton.h"
#include "NexText.h"
#include <string.h>
#include "Arduino.h"
#include "Wire.h"
#include "RTCLib.h"
#include "NexPage.h"
#include "NexPicture.h"
#include "NexGauge.h"
#include <OneWire.h>
#define PIN_PUMP 42
#define PIN_FEED 43
#define PIN_LIGHT 44
#define PIN_UV 45
OneWire ds(A0);
#define at_serial Serial1
/*
*******************************************************************
* AT Instruction Set
*
*******************************************************************
*/
#define AT_AT "AT"
#define AT_TIME "AT+TIME"
#define AT_PUMP "AT+PUMP"
#define AT_FEED "AT+FEED"
#define AT_LIGHT "AT+LIGHT"
#define AT_UV "AT+UV"
#define AT_OK "OK"
#define AT_FAILED "FAILED"
#define AT_UNKNOWN_CMD "Unknown command"
#define AT_UNSUPPORTED "Not supported"
#define AT_ERR_FORMAT "Bad format"
#define AT_ERR_PARAM "Bad param"
/*
*******************************************************************
* Nextion component for page:home
*
*******************************************************************
*/
NexText hour = NexText(0, 1, "hour");
NexText minute = NexText(0, 13, "minute");
NexText second = NexText(0, 14, "sec");
NexText month = NexText(0, 3, "mon");
NexText year = NexText(0, 4, "year2");
NexText week = NexText(0, 5, "week");
NexText day = NexText(0, 6, "day");
NexText temperature = NexText(0, 7, "tem");
NexPicture home_pumppic = NexPicture(0, 8, "p0");
NexPicture home_feedpic = NexPicture(0, 10, "p1");
NexPicture home_lightpic = NexPicture(0, 11, "p2");
NexPicture home_uvpic = NexPicture(0, 12, "p3");
NexGauge pointer = NexGauge(0, 16, "z0");
NexButton goset = NexButton(0, 2, "goset");
/*
*******************************************************************
* Nextion component for page:set
*
*******************************************************************
*/
NexButton backhome = NexButton(1, 1, "backhome");
NexButton settime = NexButton(1, 2, "settime");
NexButton setpump = NexButton(1, 3, "setpump");
NexButton setfeed = NexButton(1, 4, "setfeed");
NexButton setlight = NexButton(1, 5, "setlight");
NexButton setuv = NexButton(1, 6, "setuv");
/*
*******************************************************************
* Nextion component for page:time
*
*******************************************************************
*/
NexText sethour = NexText(2, 2, "sethour1");
NexText setmin = NexText(2, 3, "setmin1");
NexText setweek = NexText(2, 16, "setweek1");
NexText setday = NexText(2, 8, "setday1");
NexText setmon = NexText(2, 12, "setmon1");
NexText setyear = NexText(2, 13, "setyear2");
NexButton settime_add = NexButton(2, 5, "up0");
NexButton settime_dec = NexButton(2, 6, "down0");
NexButton settime_ok = NexButton(2, 7, "settimeok");
NexButton time_back_to_set = NexButton(2, 1, "backset1");
/*
*******************************************************************
* Nextion component for page:pump
*
*******************************************************************
*/
NexPicture setpump_manual = NexPicture(3, 9, "on1");
NexPicture setpump_timer = NexPicture(3, 10, "timer1");
NexButton setpump_add = NexButton(3, 5, "up1");
NexButton setpump_dec = NexButton(3, 6, "down1");
NexText setpump_hour = NexText(3, 7, "hour1");
NexText setpump_min = NexText(3, 8, "min1");
NexButton pump_back_to_set = NexButton(3, 1, "backset2");
/*
*******************************************************************
* Nextion component for page:feed
*
*******************************************************************
*/
NexPicture setfeed_manual = NexPicture(4, 9, "on2");
NexPicture setfeed_timer = NexPicture(4, 10, "timer2");
NexButton setfeed_add = NexButton(4, 5, "up2");
NexButton setfeed_dec = NexButton(4, 6, "down2");
NexText setfeed_hour = NexText(4, 7, "hour2");
NexText setfeed_min = NexText(4, 8, "min2");
NexButton feed_back_to_set = NexButton(4, 1, "backset3");
/*
*******************************************************************
* Nextion component for page:light
*
*******************************************************************
*/
NexPicture setlight_manual = NexPicture(5, 11, "on3");
NexPicture setlight_timer = NexPicture(5, 12, "timer3");
NexButton setlight_add = NexButton(5, 5, "up3");
NexButton setlight_dec = NexButton(5, 6, "down3");
NexText setlight_hour_on = NexText(5, 7, "hour31");
NexText setlight_hour_off = NexText(5, 8, "hour32");
NexText setlight_min_on = NexText(5, 9, "min31");
NexText setlight_min_off = NexText(5, 10, "min32");
NexButton light_back_to_set = NexButton(5, 1, "backset4");
/*
*******************************************************************
* Nextion component for page:uv
*
*******************************************************************
*/
NexPicture setuv_manual = NexPicture(6, 9, "on4");
NexPicture setuv_timer = NexPicture(6, 10, "timer4");
NexButton setuv_add = NexButton(6, 5, "up4");
NexButton setuv_dec = NexButton(6, 6, "down4");
NexText setuv_hour = NexText(6, 7, "hour4");
NexText setuv_min = NexText(6, 8, "min4");
NexButton uv_back_to_set = NexButton(6, 1, "backset5");
/*
*******************************************************************
* Nextion component all page
*
*******************************************************************
*/
NexPage home = NexPage(0, 0, "home");
NexPage set = NexPage(1, 0, "set");
NexPage time = NexPage(2, 0, "time");
NexPage pump = NexPage(3, 0, "pump");
NexPage feed = NexPage(4, 0, "feed");
NexPage light = NexPage(5, 0, "light");
NexPage uv = NexPage(6, 0, "uv");
NexTouch *nex_Listen_List[] =
{
&settime, &setpump, &setfeed, &setlight, &setuv, &backhome,
&goset,
&sethour, &setmin, &setweek, &setday, &setmon, &setyear,
&settime_add, &settime_dec, &settime_ok, &time_back_to_set,
&setpump_manual, &setpump_timer, &setpump_add, &setpump_dec,
&setpump_hour, &setpump_min, &pump_back_to_set,
&setfeed_manual, &setfeed_timer, &setfeed_add, &setfeed_dec,
&setfeed_hour, &setfeed_min, &feed_back_to_set,
&setlight_manual, &setlight_timer, &setlight_add, &setlight_dec,
&setlight_hour_on, &setlight_min_off, &setlight_hour_off, &setlight_min_on,
&light_back_to_set,
&setuv_manual, &setuv_timer, &setuv_add, &setuv_dec,
&setuv_hour, &setuv_min, &uv_back_to_set,
NULL
};
RTCLib rtc;
/*
*******************************************************************
* Temperature partial variable
*
*******************************************************************
*/
uint32_t number = 0;
uint16_t sensor_pin = A0; /* select the input pin for the Temperature */
uint16_t sensor_value = 0; /* variable to store the value coming from the Temperature*/
unsigned long update = 1;
int32_t timer = -1; /* timer for second */
/*
*******************************************************************
* Buffer zone of various variables
*
*******************************************************************
*/
char buffer[10] = {0};
char buffer_temp[10] = {0};
char buffer_year[10] = {0};
char buffer_month[10] = {0};
char buffer_day[10] = {0};
char buffer_hour[10] = {0};
char buffer_minute[10] = {0};
char buffer_week[10] = {0};
uint8_t buffer_second =0;
char buffer_temperature[10] = {0};
/*
*******************************************************************
* TIME partial variable
*
*******************************************************************
*/
int8_t settime_type = -1;
int8_t settime_up = -1;
int8_t number_settime_year = -1;
int8_t number_settime_month = -1;
int8_t number_settime_day = -1;
int8_t number_settime_hour = -1;
int8_t number_settime_minute = -1;
int32_t number_settime_week = -1;
/*
*******************************************************************
* PUMP partial variable
*
*******************************************************************
*/
int8_t setpump_type = -1;
int8_t setpump_up = -1;
uint8_t number_setpump_hour = 4;
uint8_t number_setpump_min = 30;
uint32_t pump_timer = 15;
uint32_t pump_manual = 16;
uint32_t pump_respond = 0;
uint32_t pump_stop = 0;
/*
*******************************************************************
* FEED partial variable
*
*******************************************************************
*/
int8_t setfeed_type = -1;
int8_t setfeed_up = -1;
uint8_t number_setfeed_hour = 4;
uint8_t number_setfeed_sec = 30;
uint32_t feed_timer = 15;
uint32_t feed_manual = 16;
uint32_t feed_respond = 0;
uint32_t feed_stop = 0;
/*
*******************************************************************
* UV partial variable
*
*******************************************************************
*/
int8_t setuv_type = -1;
int8_t setuv_up = -1;
uint8_t number_setuv_hour = 4;
uint8_t number_setuv_min = 30;
uint32_t uv_timer = 15;
uint32_t uv_manual = 16;
uint32_t uv_respond = 0;
uint32_t uv_stop = 0;
/*
*******************************************************************
* LIGHT partial variable
*
*******************************************************************
*/
int8_t setlight_type = -1;
int8_t setlight_up = -1;
uint8_t number_setlight_hour_on = 18;
uint8_t number_setlight_min_on = 10;
uint8_t number_setlight_hour_off = 22;
uint8_t number_setlight_min_off = 10;
uint32_t light_timer = 40;
uint32_t light_manual = 38;
/*
*******************************************************************
* AT partial start
*
*******************************************************************
*/
void atInit(void)
{
at_serial.begin(9600);
at_serial.println("Device Ready");
}
void atRespond(void)
{
char temp[40];
int16_t num;
int16_t index_at = -1;
int16_t index_crlf = -1;
int16_t index_question_mark = -1;
int16_t index_equal_mark = -1;
String cmd;
String param;
while (at_serial.available() > 0)
{
String str = "";
at_serial.setTimeout(500);
num = at_serial.readBytesUntil('\n', temp, sizeof(temp) - 2);
temp[num] = '\n';
temp[num + 1] = '\0';
str += temp;
index_at = str.indexOf(AT_AT);
index_equal_mark = str.indexOf("=");
index_question_mark = str.indexOf("?");
index_crlf = str.indexOf("\r\n");
if (index_crlf > index_at
&& index_at >= 0
&& index_equal_mark < 0
&& index_question_mark < 0
)
{
/* Execute */
cmd = str.substring(index_at, index_crlf);
if (cmd == AT_AT)
{
at_serial.println(AT_OK);
}
else
{
at_serial.println(AT_UNKNOWN_CMD);
}
}
else if (index_crlf > index_equal_mark
&& (index_equal_mark > index_at)
&& index_at >= 0
&& index_question_mark < 0
)
{
/* Set */
cmd = str.substring(index_at, index_equal_mark);
param = str.substring(index_equal_mark + 1, index_crlf);
if (cmd == AT_TIME)
{
if (param.length() == 14)
{
timeATRespond(param);
}
else
{
at_serial.println(AT_ERR_PARAM);
}
}
else if (cmd == AT_PUMP)
{
if (atSet(param, &pump_manual, &pump_timer, &number_setpump_hour, &number_setpump_min))
{
pumpATRespond();
}
}
else if (cmd == AT_FEED)
{
if (atSet(param, &feed_manual, &feed_timer, &number_setfeed_hour, &number_setfeed_sec))
{
feedATRespond();
}
}
else if (cmd == AT_UV)
{
if(atSet(param, &uv_manual, &uv_timer, &number_setuv_hour, &number_setuv_min))
{
uvATRespond();
}
}
else if (cmd == AT_LIGHT)
{
lightATRespond(param);
}
else
{
at_serial.println(AT_UNKNOWN_CMD);
}
}
else if (index_crlf > index_question_mark
&& index_question_mark > index_at
&& index_at >= 0
&& index_equal_mark < 0
)
{
/* Query */
cmd = str.substring(index_at, index_question_mark);
if(cmd == AT_PUMP)
{
atQuery(pump_manual, pump_timer, number_setpump_hour, number_setpump_min, NULL, NULL);
}
else if (cmd == AT_FEED)
{
atQuery(feed_manual, feed_timer, number_setfeed_hour, number_setfeed_sec, NULL, NULL);
}
else if (cmd == AT_UV)
{
atQuery(uv_manual, uv_timer, number_setuv_hour, number_setuv_min, NULL, NULL);
}
else if (cmd == AT_LIGHT)
{
atQuery(light_manual, light_timer, number_setlight_hour_on, number_setlight_min_on,
number_setlight_hour_off, number_setlight_min_off);
}
else
{
at_serial.println(AT_UNKNOWN_CMD);
}
}
else if (index_crlf > index_question_mark
&& index_question_mark > index_equal_mark
&& index_equal_mark > index_at
&& index_at >= 0
)
{
/* Test */
at_serial.println(AT_UNSUPPORTED);
}
else
{
at_serial.println(AT_ERR_FORMAT);
}
if (index_at >= 0 && index_crlf >= 0)
{
refreshHome();
}
}
}
void atQuery(uint8_t query_manaul, uint8_t query_timer, uint8_t query_hour, uint8_t query_min,
uint8_t query_hour2, uint8_t query_min2)
{
String query;
if (query_manaul == 16 || query_manaul == 38)
{
query += "OFF";
}
else if (query_manaul == 14 || query_manaul == 39)
{
query += "ON";
}
query += ",";
if (query_timer == 15 || query_timer == 40)
{
query += "OFF";
}
else if (query_timer == 17 || query_timer == 41)
{
query += "ON";
}
query += ",";
if (query_hour <10)
{
query += "0";
}
itoa(query_hour,buffer,10);
query += buffer;
query += ",";
if (query_min <10)
{
query += "0";
}
itoa(query_min, buffer, 10);
query += buffer;
if (query_manaul == 16 || query_manaul == 14)
{
at_serial.println(query);
}
else
{
query += ",";
if (query_hour2 <10)
{
query += "0";
}
itoa(query_hour2, buffer, 10);
query += buffer;
query += ",";
if (query_min2 <10)
{
query += "0";
}
itoa(query_min2, buffer, 10);
query += buffer;
at_serial.println(query);
}
at_serial.println(AT_OK);
}
bool atSet(String param, uint32_t *set_manual, uint32_t *set_timer, uint8_t *set_hour, uint8_t *set_min)
{
String newparam;
String manual;
String timer;
String next_time;
String respond_timer;
uint8_t comma;
uint8_t temp_hour;
uint8_t temp_min;
comma = param.indexOf(",");
manual = param.substring(0 , comma);
param = param.substring(comma + 1);
comma = param.indexOf(",");
timer = param.substring(0 , comma);
param = param.substring(comma + 1);
comma = param.indexOf(",");
next_time = param.substring(0, comma);
newparam = param.substring(comma + 1);
respond_timer = newparam.substring(0);
if(param.length() == 5)
{
temp_hour = atoi(next_time.c_str());
temp_min = atoi(respond_timer.c_str());
if (temp_hour >= 1 && temp_hour <= 12
&& temp_min >= 1 && temp_min <= 59
&& manual.length() > 0
&& timer.length() > 0
)
{
*set_hour = temp_hour;
*set_min = temp_min;
if (!strcmp(manual.c_str(), "OFF"))
{
*set_manual = 16;
}
else if (!strcmp(manual.c_str(), "ON"))
{
*set_manual = 14;
}
else
{
at_serial.println(AT_ERR_PARAM);
return false;
}
if (!strcmp(timer.c_str(), "OFF"))
{
*set_timer = 15;
}
else if (!strcmp(timer.c_str(), "ON"))
{
*set_timer = 17;
}
else
{
at_serial.println(AT_ERR_PARAM);
return false;
}
at_serial.println(AT_OK);
return true;
}
else
{
at_serial.println(AT_ERR_PARAM);
return false;
}
}
else
{
at_serial.println(AT_ERR_PARAM);
return false;
}
}
void pumpATRespond()
{
if (pump_manual == 14)
{
pump_timer = 15;
digitalWrite(PIN_PUMP, HIGH);
}
else
{
digitalWrite(PIN_PUMP, LOW);
}
if (pump_timer == 17)
{
pump_respond = number_setpump_hour*60*60 + timer;
pump_stop = number_setpump_hour*1*60*60 + timer + number_setpump_min*1*60;
}
setpump_manual.setPic(pump_manual);
setpump_timer.setPic(pump_timer);
}
void feedATRespond()
{
if (feed_manual == 14)
{
feed_timer = 15;
digitalWrite(PIN_FEED, HIGH);
}
else
{
digitalWrite(PIN_FEED, LOW);
}
if (feed_timer == 17)
{
feed_respond = number_setfeed_hour*1*60*60 + timer;
feed_stop = number_setfeed_hour*1*60*60 + timer + number_setfeed_sec*1;
}
setfeed_manual.setPic(feed_manual);
setfeed_timer.setPic(feed_timer);
}
void uvATRespond()
{
if (uv_manual == 14)
{
uv_timer = 15;
digitalWrite(PIN_UV, HIGH);
}
else
{
digitalWrite(PIN_UV, LOW);
}
if (uv_timer == 17)
{
uv_respond = number_setuv_hour*1*60*60 + timer;
uv_stop = number_setuv_hour*1*60*60 + timer + number_setuv_min*1*60;
}
setuv_manual.setPic(uv_manual);
setuv_timer.setPic(uv_timer);
}
void lightATRespond(String param)
{
String newparam;
String manual;
String timer;
uint8_t comma;
comma = param.indexOf(",");
manual = param.substring(0 , comma);
param = param.substring(comma + 1);
comma = param.indexOf(",");
timer = param.substring(0 , comma);
param = param.substring(comma + 1);
comma = param.indexOf(",");
String light_hour_on = param.substring(0, comma);
newparam = param.substring(comma + 1);
comma = newparam.indexOf(",");
String light_min_on = newparam.substring(0, comma);
newparam = newparam.substring(comma + 1);
comma = newparam.indexOf(",");
String light_hour_off = newparam.substring(0, comma);
newparam = newparam.substring(comma + 1);
String light_min_off = newparam.substring(0);
if(param.length() == 11)
{
number_setlight_hour_on = atoi(light_hour_on.c_str());
number_setlight_min_on = atoi(light_min_on.c_str());
number_setlight_hour_off = atoi(light_hour_off.c_str());
number_setlight_min_off = atoi(light_min_off.c_str());
if(number_setlight_hour_on >= 0 && number_setlight_hour_on <= 23
&&number_setlight_hour_off >= 0 && number_setlight_hour_off <= 23
&&number_setlight_min_on >= 0 && number_setlight_min_on <=59
&&number_setlight_min_off >= 0 && number_setlight_min_off <=59
)
{
if (!strcmp(timer.c_str(),"OFF"))
{
light_timer = 40;
}
else if (!strcmp(timer.c_str(),"ON"))
{
light_timer = 41;
}
else
{
at_serial.println(AT_ERR_PARAM);
}
if (!strcmp(manual.c_str(),"OFF"))
{
light_manual = 38;
digitalWrite(PIN_LIGHT, LOW);
setlight_manual.setPic(light_manual);
setlight_timer.setPic(light_timer);
at_serial.println(AT_OK);
}
else if (!strcmp(manual.c_str(),"ON"))
{
light_manual = 39;
light_timer = 40;
digitalWrite(PIN_LIGHT, HIGH);
setlight_manual.setPic(light_manual);
setlight_timer.setPic(light_timer);
at_serial.println(AT_OK);
}
else
{
at_serial.println(AT_ERR_PARAM);
}
}
else
{
at_serial.println(AT_ERR_PARAM);
}
}
else
{
at_serial.println(AT_ERR_PARAM);
}
}
void timeATRespond(String param)
{
uint8_t comma;
comma = param.indexOf(",");
String year = param.substring(0 , comma);
param = param.substring(comma+1);
number_settime_year = atoi(year.c_str());
comma = param.indexOf(",");
String mon = param.substring(0 , comma);
param = param.substring(comma+1);
number_settime_month = atoi(mon.c_str());
comma = param.indexOf(",");
String day = param.substring(0 , comma);
param = param.substring(comma+1);
number_settime_day = atoi(day.c_str());
comma = param.indexOf(",");
String hour = param.substring(0 , comma);
param = param.substring(comma+1);
number_settime_hour = atoi(hour.c_str());
comma = param.indexOf(",");
String min = param.substring(0 , comma);
param = param.substring(comma+1);
number_settime_minute = atoi(min.c_str());
setWeek();
if (number_settime_minute >= 0 && number_settime_minute <= 59
&& number_settime_hour >= 0 && number_settime_hour <= 23
&& number_settime_month >= 1 && number_settime_month <= 12
&& number_settime_year >= 10 && number_settime_year <= 99
)
{
if (number_settime_month == 1 || number_settime_month == 3
|| number_settime_month == 5 || number_settime_month == 7
|| number_settime_month == 8 || number_settime_month == 10
|| number_settime_month == 12
)
{
if (number_settime_day >= 1 && number_settime_day <= 31)
{
rtc.set(0, number_settime_minute, number_settime_hour,
number_settime_week, number_settime_day,
number_settime_month, number_settime_year);
at_serial.println(AT_OK);
}
else
{
at_serial.println(AT_ERR_PARAM);
}
}
else if (number_settime_month == 4 || number_settime_month == 6
|| number_settime_month == 9 || number_settime_month == 10
|| number_settime_month == 11
)
if (number_settime_day >= 1 && number_settime_day <= 30)
{
rtc.set(0, number_settime_minute, number_settime_hour,
number_settime_week, number_settime_day,
number_settime_month, number_settime_year);
at_serial.println(AT_OK);
}
else
{
at_serial.println(AT_ERR_PARAM);
}
else if (number_settime_month == 2)
{
if ((number_settime_year%4 == 0&&number_settime_year%100 != 0)||number_settime_year%400 == 0)
{
if (number_settime_day >= 1 && number_settime_day <=29)
{
rtc.set(0, number_settime_minute, number_settime_hour,
number_settime_week, number_settime_day,
number_settime_month, number_settime_year);
at_serial.println(AT_OK);
}
else
{
at_serial.println(AT_ERR_PARAM);
}
}
else
{
if (number_settime_day >= 1 && number_settime_day <=28)
{
rtc.set(0, number_settime_minute, number_settime_hour,
number_settime_week, number_settime_day,
number_settime_month, number_settime_year);
at_serial.println(AT_OK);
}
else
{
at_serial.println(AT_ERR_PARAM);
}
}
}
}
else
{
at_serial.println(AT_ERR_PARAM);
}
}
/*Local Synchronization Funcation */
void localSync(String cmd, uint32_t *manual, uint32_t *timer, uint8_t *time_hour,
uint8_t *time_min, uint8_t *time_hour2, uint8_t *time_min2)
{
cmd += "=";
if (*manual == 14 || *manual == 39)
{
cmd += "ON";
}
else if (*manual == 16 || *manual == 38)
{
cmd += "OFF";
}
cmd += ",";
if (*timer == 17 || *timer == 41)
{
cmd += "ON";
}
else if (*timer == 15 || *timer == 40)
{
cmd += "OFF";
}
cmd += ",";
if (*time_hour < 10)
{
cmd += "0";
}
itoa(*time_hour, buffer, 10);
cmd += buffer;
cmd += ",";
if (*time_min < 10)
{
cmd += "0";
}
itoa(*time_min, buffer, 10);
cmd += buffer;
String cmd_new = "+IPD,";
uint8_t len;
if (*manual == 14 || *manual == 16)
{
len = cmd.length();
itoa(len, buffer, 10);
cmd_new += buffer;
cmd_new += ":";
cmd_new += cmd;
at_serial.println(cmd_new);
}
else
{
cmd += ",";
if (*time_hour2 < 10)
{
cmd += "0";
}
itoa(*time_hour2, buffer, 10);
cmd += buffer;
cmd += ",";
if (*time_min2 < 10)
{
cmd += "0";
}
itoa(*time_min2, buffer, 10);
cmd += buffer;
len = cmd.length();
itoa(len, buffer, 10);
cmd_new += buffer;
cmd_new += ":";
cmd_new += cmd;
at_serial.println(cmd_new);
}
}
/*
*******************************************************************
* AT partial end
*
*******************************************************************
*/
/*
*******************************************************************
* UV partial start
*
*******************************************************************
*/
void uvPopCallback(void *ptr)
{
uv.show();
memset(buffer, 0, sizeof(buffer));
itoa(number_setuv_hour, buffer, 10);
setuv_hour.setText(buffer);
memset(buffer, 0, sizeof(buffer));
itoa(number_setuv_min, buffer, 10);
setuv_min.setText(buffer);
setuv_timer.setPic(uv_timer);
setuv_manual.setPic(uv_manual);
}
void uvHourPopCallback(void *ptr)
{
setuv_type = 1;
}
void uvMinPopCallback(void *ptr)
{
setuv_type = 2;
}
void uvAddPopCallback(void *ptr)
{
setuv_up = 1;
setUv();
}
void uvDECPopCallback(void *ptr)
{
setuv_up = 0;
setUv();
}
void setUv(void)
{
switch (setuv_type)
{
case 1:
if (setuv_up == 1)
{
number_setuv_hour++;
if (number_setuv_hour > 12)
{
number_setuv_hour = 1;
}
memset(buffer, 0, sizeof(buffer));
itoa(number_setuv_hour, buffer, 10);
setuv_hour.setText(buffer);
}
else if (setuv_up == 0)
{
number_setuv_hour--;
if (number_setuv_hour < 1)
{
number_setuv_hour = 12;
...
This file has been truncated, please download it to see its full contents.
Comments
Please log in or sign up to comment.
