NFC Controller for OSC

Control OSC-enabled software with an NFC-enabled NodeMCU-ESP32.

BeginnerFull instructions provided3 hours8,061

Things used in this project

Hardware components

NodeMcu ESP32

RFID- RC522

Jumper wires (generic)

NFC Tags

Software apps and online services

Arduino IDE

Hand tools and fabrication machines

Soldering iron (generic)

Story

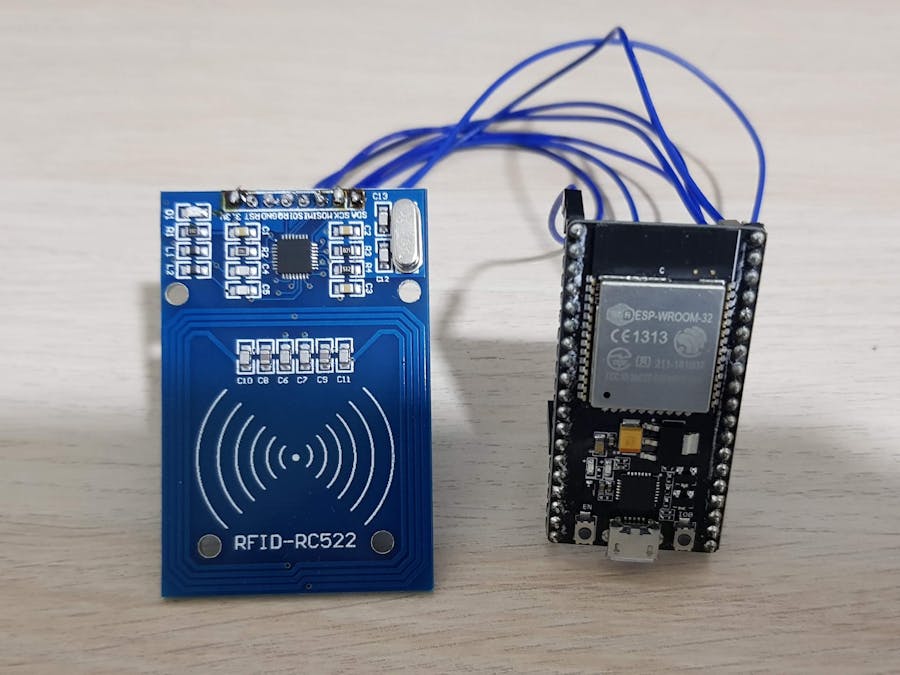

The purpose of this project is to be able to control a software like Resoume that can receive OSC input using a hardware device. For this, I have used a cube with 6 NFC tag stickers, an RC522 NFC reader and a NodeMCU-ESP32 controller, but you can use any Arduino-compatible WiFi-enabled board.

The building is pretty simple: you have to solder the wires from the NFC reader on to the NodeMCU board. Then you have 3 steps to take for the software to match your needs:

1. Read your NFC tags with your new NFC reader and using the Serial monitor of Arduino IDE, note down each tag ID. (The code already logs any NFC ID detected.)

2. Create a list of OSC addresses that you need to access on each tag detection. In my case, I used latest version of Resolume and controlled the play of columns (for those used with Resolume).

3. Modify the code so that upon detection of a certain NFC tag, a certain OSC command is sent. (Use the comments to figure out where to put what.)

You can use this in 2 ways:

1. Use the ESP32 as an access point and create a new WiFi network to which you can connect a computer and then things are simple: the first connected device will always have the first ip in the range so no other set up is needed.

2. Use the ESP32 to connect to an existing WiFi, in which case you will have to hard code the IP of the computer to which you want to send the commands in the code.

Both versions are available in code.

I have used a small battery pack to power all up and worked excellent for almost 12 hours. For longer times, you can use a bigger battery or just switch it with a recharged one.

If you don't have your ESP 32 board installed on Arduino IDE, you can follow this tutorial: https://randomnerdtutorials.com/installing-the-esp32-board-in-arduino-ide-windows-instructions/

You will also need to install these libraries on Arduino IDE: MFRC522 and Arduino OSC by hideakitai.

Code

NFC Controller for OSC

#include <SPI.h>
#include <MFRC522.h>
#include <WiFi.h>
#include <WiFiUdp.h>
#include <ArduinoOSC.h>


WiFiUDP udp;
ArduinoOSC<WiFiUDP> osc;

////////////////set here the IP and the port of the receiving computer////////////
///////////////The port is usually indicated in the software you want to controll////
//////////////The ip can be left as it is if you use AP mode, but if not make sure you input the computer IP////////////////

const int recv_port = 10000;
const int send_port = 7000;
const char* host = "192.168.0.2";



///////////////////Set the ID for the NFC Tags Here/////////////////
const char* tag1 = "4 68 167 194";
const char* tag2 = "4 134 167 194";
const char* tag3 = "4 101 167 194";
const char* tag4 = "4 168 167 194";
const char* tag5 = "4 135 167 194";
const char* tag6 = "4 236 167 194";

String previousTag = "";

////////////////Set OSC Comands here//////////////////

const char* comand1 =  "/composition/columns/1/connect";
const char* comand2 =  "/composition/columns/2/connect";
const char* comand3 =  "/composition/columns/3/connect";
const char* comand4 =  "/composition/columns/4/connect";
const char* comand5 =  "/composition/columns/5/connect";
const char* comand6 =  "/composition/columns/6/connect";
////Failsafe - if an unregistred tag is detected will send this command///
const char* other =  "/composition/columns/7/connect";



//////////////////Define your SSID and Password - if on AP mode this will be used as settings for AP if in Wifi mode this will be used to connect to an existing WiFi network//////////////
///////////////////////////////////////////////////////////////////////////////////////////////////////////////////////////////////////////////////////////////////////////////////////////

const char* ssid = "YOUR_SSID";
const char* password =  "YOUR_PASSWORD";



////Wifi stuff
WiFiServer server(80);
IPAddress IP(192,168,4,15);
IPAddress mask = (255, 255, 255, 0);

///nfc stuff
const int resetPin = 22; // Reset pin
const int ssPin = 21;    // Slave select pin
MFRC522 rfid = MFRC522(ssPin, resetPin); // Create instance
int code[] = {69,141,8,136}; //This is the stored UID
int codeRead = 0;
String uidString;
int selectedChannel = 0;



void setup() {

  ///serial setup
  Serial.begin(115200);

  SPI.begin();

  rfid.PCD_Init();
  rfid.PCD_DumpVersionToSerial();



//////////////Use this code if you want to connect the ESP32 to an existing WIFI/////////////
////////////////////////////////////////////////////////////////////////////////////////////


  /////Wifi connect

   WiFi.begin(ssid, password);

  while (WiFi.status() != WL_CONNECTED) {

    delay(500);
    Serial.println("Connecting to WiFi..");

  }

  Serial.println("Connected to the WiFi network");


//////////////Use this code if you want to enable ESP32 AP mode and create a WiFI network/////////////
/////////////////////////////////////////////////////////////////////////////////////////////////////

 // WiFi.mode(WIFI_AP);
 // WiFi.softAP(ssid, password);
 // WiFi.softAPConfig(IP, IP, mask);
//  server.begin();

//  Serial.println();
//  Serial.println("Server started.");
//  Serial.print("IP: ");     Serial.println(WiFi.softAPIP());
//  Serial.print("MAC:");     Serial.println(WiFi.softAPmacAddress());



/////osc init
osc.begin(udp, recv_port);
}

void loop() {
//////Uncomment next line if you use the AP mode
//runWifi();
runRfid();

}



void runWifi(){

  WiFiClient client = server.available();
  if (!client) {return;}

  String request = client.readStringUntil('\r');
  client.flush();

}

void runRfid(){

 // Look for new cards
  if ( ! rfid.PICC_IsNewCardPresent()) {
    return;
  }

  // Select one of the cards
  if ( ! rfid.PICC_ReadCardSerial()) {
    return;
  }

  // Dump debug info about the card. PICC_HaltA() is automatically called.
   uidString = String(rfid.uid.uidByte[0])+" "+String(rfid.uid.uidByte[1])+" "+String(rfid.uid.uidByte[2])+ " "+String(rfid.uid.uidByte[3]);

Serial.println("Detected:");
Serial.println(uidString);

///////You can use this code if all you need is to just send the next osc command when a new NFC is detected////////////
////////////////////////////////////////////////////////////////////////////////////////////////////////////////////////

//if(uidString != previousTag){
//
//
//  previousTag = uidString;
//  if(selectedChannel == 6){
//
//    selectedChannel = 1;
//  }
//  else{
//
//  selectedChannel++;
//  }
//  sendOscSignal(selectedChannel);
//
//}

///////////////////////////Use this code if you want to control the sent OSC Command When a certain NFC Tag is detected/////////////////////////
///////////////////////////////////////////////////////////////////////////////////////////////////////////////////////////////////////////////

if(uidString == tag1){

  if(selectedChannel != 1){
  selectedChannel =  1;
  sendOscSignal(selectedChannel);
  }
}

else if(uidString == tag2){

  if(selectedChannel != 2){
  selectedChannel =  2;
  sendOscSignal(selectedChannel);
  }
}

else if(uidString == tag3){

  if(selectedChannel != 3){
  selectedChannel =  3;
  sendOscSignal(selectedChannel);
  }
}

else if(uidString == tag4){

  if(selectedChannel != 4){
  selectedChannel =  4;
  sendOscSignal(selectedChannel);
  }
}

else if(uidString == tag5){

  if(selectedChannel != 5){
  selectedChannel =  5;
  sendOscSignal(selectedChannel);
  }
}

else if(uidString == tag6){

  if(selectedChannel != 6){
  selectedChannel =  6;
  sendOscSignal(selectedChannel);
  }
}
else{
  if(selectedChannel != 7){
  selectedChannel =  7;
  sendOscSignal(selectedChannel);
  }

}


 delay(500);


}


void sendOscSignal(int v){
Serial.println("Preparing OSC:");
 OSCMessage msg;
    msg.beginMessage(host, send_port);

if(v == 1){
Serial.println("sending v1:");
 msg.setOSCAddress(comand1);
 msg.addArgInt32(1);
  Serial.println("Sent v1:");
}
else if(v == 2){
Serial.println("sending v2:");
 msg.setOSCAddress(comand2);
 msg.addArgInt32(1);
  Serial.println("Sent v2:");
}
else if(v == 3){
Serial.println("sending v3:");
 msg.setOSCAddress(comand3);
 msg.addArgInt32(1);
  Serial.println("Sent v3:");
}
else if(v == 4){
Serial.println("sending v4:");
 msg.setOSCAddress(comand4);
 msg.addArgInt32(1);
  Serial.println("Sent v4:");
}
else if(v == 5){
Serial.println("sending v5:");
 msg.setOSCAddress(comand5);
 msg.addArgInt32(1);
  Serial.println("Sent v5:");
}
else if(v == 6){
Serial.println("sending v6:");
 msg.setOSCAddress(comand6);
 msg.addArgInt32(1);
  Serial.println("Sent v6:");
}
else{

  Serial.println("sending other:");
 msg.setOSCAddress(other);
 msg.addArgInt32(1);
  Serial.println("Sent other:");
}

osc.send(msg);
}
