IOT PIVOT IRRIGATION

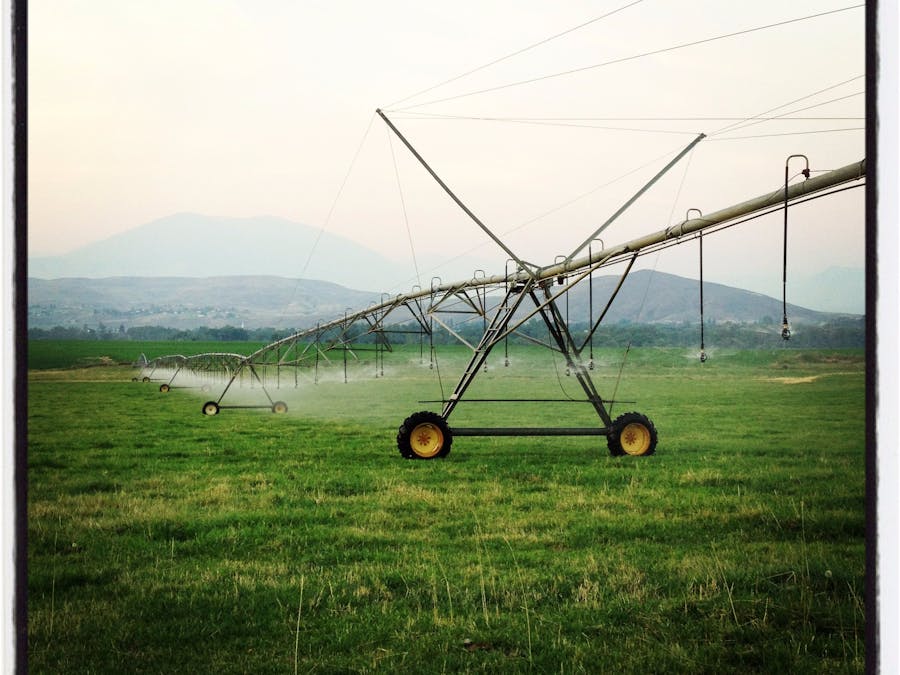

The IOT Pivot Irrigation System is design for farmers to connect their pivots for machine management to get the best crop yields each year.

70
IOT PIVOT IRRIGATION

Things used in this project

Hardware components

AT&T IoT Starter Kit
×1

Software apps and online services

PubNub Publish/Subscribe API
PubNub Publish/Subscribe API

Story

Read more

Schematics

Schematics Connection

This is the connections needed with the Forward and Reverse Signals

Schematic

This the the connection that is used for both forward and reverse signal lines. The signal lines are 24V so we drop them down with a voltage divider for a digital input pin

Code

Android App Code

Java
This is the Activity Code in Android Studio
public class MainActivity extends AppCompatActivity {


    TextView powerText, directionText;
    Button refresh;

    @Override
    protected void onCreate(Bundle savedInstanceState) {
        super.onCreate(savedInstanceState);
        setContentView(R.layout.activity_main);
        PNConfiguration pnConfiguration = new PNConfiguration();
        pnConfiguration.setSubscribeKey("mykey");
        pnConfiguration.setPublishKey("mykey");
        pnConfiguration.setUuid("MobilePhone");

        final PubNub pubnub = new PubNub(pnConfiguration);

        powerText = (TextView) findViewById(R.id.power);
        directionText = (TextView) findViewById(R.id.direction);
        refresh = (Button) findViewById(R.id.refreshBtn);
        refresh.setOnClickListener(new View.OnClickListener() {

               @Override
               public void onClick(View v) {
                   pubnub.publish()
                           .message(Arrays.asList("PUB"))
                           .channel("IoTPivot")
                           .shouldStore(true)
                           .usePOST(true)
                           .async(new PNCallback<PNPublishResult>() {
                               @Override
                               public void onResponse(PNPublishResult result, PNStatus status) {
                                   if (status.isError()) {
                                       // something bad happened.
                                       System.out.println("error happened while publishing: " + status.toString());
                                   } else {
                                       System.out.println("publish worked! timetoken: " + result.getTimetoken());
                                   }
                               }
                           });


               }
           }
        );



        pubnub.addListener(new SubscribeCallback() {
            @Override
            public void status(PubNub pubnub, PNStatus status) {


                if (status.getCategory() == PNStatusCategory.PNUnexpectedDisconnectCategory) {
                    // This event happens when radio / connectivity is lost
                }

                else if (status.getCategory() == PNStatusCategory.PNConnectedCategory) {

                    // Connect event. You can do stuff like publish, and know you'll get it.
                    // Or just use the connected event to confirm you are subscribed for
                    // UI / internal notifications, etc

                    if (status.getCategory() == PNStatusCategory.PNConnectedCategory){
                        pubnub.publish().channel("IoTPivot").message("hello!!").async(new PNCallback<PNPublishResult>() {
                            @Override
                            public void onResponse(PNPublishResult result, PNStatus status) {
                                // Check whether request successfully completed or not.
                                if (!status.isError()) {

                                    // Message successfully published to specified channel.
                                }
                                // Request processing failed.
                                else {

                                    // Handle message publish error. Check 'category' property to find out possible issue
                                    // because of which request did fail.
                                    //
                                    // Request can be resent using: [status retry];
                                }
                            }
                        });
                    }
                }
                else if (status.getCategory() == PNStatusCategory.PNReconnectedCategory) {

                    // Happens as part of our regular operation. This event happens when
                    // radio / connectivity is lost, then regained.
                }
                else if (status.getCategory() == PNStatusCategory.PNDecryptionErrorCategory) {

                    // Handle messsage decryption error. Probably client configured to
                    // encrypt messages and on live data feed it received plain text.
                }
            }

            @Override
            public void message(PubNub pubnub, PNMessageResult message) {
                // Handle new message stored in message.message
                if (message.getChannel() != null) {
                    // Message has been received on channel group stored in
                    // message.getChannel()
                }
                else {
                    // Message has been received on channel stored in
                    // message.getSubscription()
                }

            /*
                log the following items with your favorite logger
                    - message.getMessage()
                    - message.getSubscription()
                    - message.getTimetoken()
            */

                JsonElement result = message.getMessage();
                if (result.isJsonObject()) {
                    JsonObject r = result.getAsJsonObject();
                    String m = r.get("string").toString();
                    System.out.println(m);
                    // Message Format

                    if(m.contains("PWRON")) {
                        System.out.println("IoT Pivot is ON");
                        runOnUiThread(new Runnable() {
                            @Override
                            public void run() {

                                //stuff that updates ui
                                setPowerText("ON");
                            }
                        });
                    }
                    else if (m.contains("PWROFF")) {
                        System.out.println("IoT Pivot is OFF");
                        runOnUiThread(new Runnable() {
                            @Override
                            public void run() {

                                //stuff that updates ui
                                setPowerText("OFF");
                                setDirectionText("OFF");
                            }
                        });
                    }
                    if(m.contains("DIRFWD")) {
                        System.out.println("IoT Pivot is FWD");
                        runOnUiThread(new Runnable() {
                            @Override
                            public void run() {

                                //stuff that updates ui
                                setDirectionText("FORWARD");
                            }
                        });
                    }
                    else if (m.contains("DIRRVRS")) {
                        System.out.println("IoT Pivot is RVRS");
                        runOnUiThread(new Runnable() {
                            @Override
                            public void run() {

                                //stuff that updates ui
                                setDirectionText("REVERSE");
                            }
                        });

                    }
                }
                else {
                    if(message.toString().contains("PWRON")) {
                        System.out.println("IoT Pivot is ON");
                        runOnUiThread(new Runnable() {
                            @Override
                            public void run() {

                                //stuff that updates ui
                                setPowerText("ON");
                            }
                        });
                    }
                    else if (message.toString().contains("PWROFF")) {
                        System.out.println("IoT Pivot is OFF");
                        runOnUiThread(new Runnable() {
                            @Override
                            public void run() {

                                //stuff that updates ui
                                setPowerText("OFF");
                            }
                        });
                    }
                    if(message.toString().contains("DIRFWD")) {
                        System.out.println("IoT Pivot is FWD");
                        runOnUiThread(new Runnable() {
                            @Override
                            public void run() {

                                //stuff that updates ui
                                setDirectionText("FORWARD");
                            }
                        });
                    }
                    else if (message.toString().contains("DIRRVRS")) {
                        System.out.println("IoT Pivot is RVRS");
                        runOnUiThread(new Runnable() {
                            @Override
                            public void run() {

                                //stuff that updates ui
                                setDirectionText("REVERSE");
                            }
                        });
                    }

                }

            }

            @Override
            public void presence(PubNub pubnub, PNPresenceEventResult presence) {

            }
        });

        pubnub.subscribe().channels(Arrays.asList("IoTPivot")).execute();
    }
    public void setPowerText(String powerText) {
        this.powerText.setText(powerText);
    }

    public void setDirectionText(String directionText) {
        this.directionText.setText(directionText);
    }


}

C Code for mbed Module

C/C++
#include "mbed.h"
#include "WNCInterface.h"
#include <string>

#include "pubnub_sync.h"
#include "srand_from_pubnub_time.h"

#define CRLF "\r\n"

WNCInterface eth;
MODSERIAL pc(USBTX,USBRX,256,256);

// Monitoring GPIO
DigitalIn fwdSig(PTC16); // input on the forward signal
DigitalIn rvrsSig(PTC17); // input on the reverse signal

int publish = 1;


static void generate_uuid(pubnub_t *pbp)
{
    char const *uuid_default = "zeka-peka-iz-jendeka";
    struct Pubnub_UUID uuid;
    static struct Pubnub_UUID_String str_uuid;

    pubnub_set_uuid(pbp, "P1");

}


int main()
{
    pc.baud(115200);
    pc.printf(CRLF CRLF "Pubnub Test starting..." CRLF);

    pc.printf("init() returned 0x%04X" CRLF, eth.init(NULL,&pc));
    eth.connect();
    pc.printf("IP Address: %s" CRLF, eth.getIPAddress());
    eth.doDebug(1);


    pubnub_t *pbp = pubnub_alloc();
    pubnub_init(pbp, "mykey", "mykey");  // insert your pubnub key here

    if (fwdSig.is_connected()) {
        pc.printf("fwdSig is connected and initialized. \n\r");
      }
    if (rvrsSig.is_connected()) {
        pc.printf("rvrsSig is connected and initialized. \n\r");
      }

    while (true) {

            const char *json = "{\"string\": \"empty\"}";

            if(fwdSig.read() && !rvrsSig.read()){
                json = "{\"string\": \"PWRONDIRFWD\"}";
            }
            else if (!fwdSig.read() && rvrsSig.read()){
                json = "{\"string\": \"PWRONDIRRVRS\"}";
            }
            else if (!fwdSig.read() && !rvrsSig.read()){
                json = "{\"string\": \"PWROFF\"}";
            }

            if (publish == 0) {
                publish = 1;
                pubnub_res rslt = pubnub_publish(pbp, "IoTPivot", json);
                //pubnub_publi
                if (rslt != PNR_STARTED) {
                    pc.printf("Failed to start publishing, rslt=%d"CRLF, rslt);
                }
                else {
                    rslt = pubnub_await(pbp);
                    if (rslt != PNR_OK) {
                        pc.printf("Failed to finished publishing, rslt=%d"CRLF, rslt);
                    }
                    else {
                        pc.printf("Published! Response from Pubnub: %s"CRLF, pubnub_last_publish_result(pbp));
                    }
                }

            }

        pubnub_res sub_rslt = pubnub_subscribe(pbp, "IoTPivot", 0);
        if (sub_rslt != PNR_STARTED) {
            pc.printf("Failed to start subscribing, sub_rslt=%d"CRLF, sub_rslt);

        }
        else {
            sub_rslt = pubnub_await(pbp);
            if (sub_rslt != PNR_OK) {
                pc.printf("Failed to finished subscribing, sub_rslt=%d"CRLF, sub_rslt);

            }
            else {
                pc.printf("Subscribed! Received messages follow: %s"CRLF);

                while (char const *msg = pubnub_get(pbp)) {
                    pc.printf("subscribe got: %s"CRLF, msg);

                    if (strstr(msg, "PUB")) {
                     pc.printf("Asked to publish");
                     publish = 0;
                    }
                }
            }
        }

        wait_ms(1000);
        }

}

Android XML

XML
This is the View XML code for the android app
<?xml version="1.0" encoding="utf-8"?>
<RelativeLayout xmlns:android="http://schemas.android.com/apk/res/android"
    xmlns:tools="http://schemas.android.com/tools"
    android:layout_width="match_parent"
    android:layout_height="match_parent"
    android:paddingBottom="@dimen/activity_vertical_margin"
    android:paddingLeft="@dimen/activity_horizontal_margin"
    android:paddingRight="@dimen/activity_horizontal_margin"
    android:paddingTop="@dimen/activity_vertical_margin"
    tools:context="iotpivot.MainActivity">


    <TextView
        android:layout_width="wrap_content"
        android:layout_height="wrap_content"
        android:textAppearance="?android:attr/textAppearanceLarge"
        android:text="IoT Pivot Status"
        android:id="@+id/title"
        android:layout_alignParentLeft="true"
        android:layout_alignParentStart="true"
        android:layout_marginLeft="24dp"
        android:layout_marginStart="24dp"
        android:layout_marginTop="56dp" />

    <TextView
        android:layout_width="wrap_content"
        android:layout_height="wrap_content"
        android:textAppearance="?android:attr/textAppearanceLarge"
        android:text="direction"
        android:id="@+id/direction"
        android:layout_alignTop="@+id/refreshBtn"
        android:layout_toRightOf="@+id/title"
        android:layout_toEndOf="@+id/title"
        android:layout_marginLeft="43dp"
        android:layout_marginStart="43dp" />

    <TextView
        android:layout_width="wrap_content"
        android:layout_height="wrap_content"
        android:textAppearance="?android:attr/textAppearanceLarge"
        android:text="power"
        android:id="@+id/power"
        android:layout_above="@+id/direction"
        android:layout_alignLeft="@+id/direction"
        android:layout_alignStart="@+id/direction" />

    <Button
        android:layout_width="wrap_content"
        android:layout_height="wrap_content"
        android:text="Refresh"
        android:id="@+id/refreshBtn"
        android:layout_below="@+id/title"
        android:layout_alignLeft="@+id/title"
        android:layout_alignStart="@+id/title"
        android:layout_marginTop="32dp" />

</RelativeLayout>
