Implementing PID Control on the APM8S007 Microcontroller

In the realm of embedded systems and control applications, the PID (Proportional-Integral-Derivative) algorithm has proven to be an indispensable tool for achieving precise and efficient control. Today, we'll explore how to harness the power of this algorithm on the APM8S007 microcontroller, a versatile 8051-based solution from Geehy.

The APM8S007: A Versatile Control Platform The APM8S007 is a highly capable microcontroller that combines the reliable 8051 core with advanced features like an on-chip operational amplifier (OPA) and LED driver. This unique combination makes it an ideal choice for a wide range of control applications, from motor control to lighting systems and beyond.

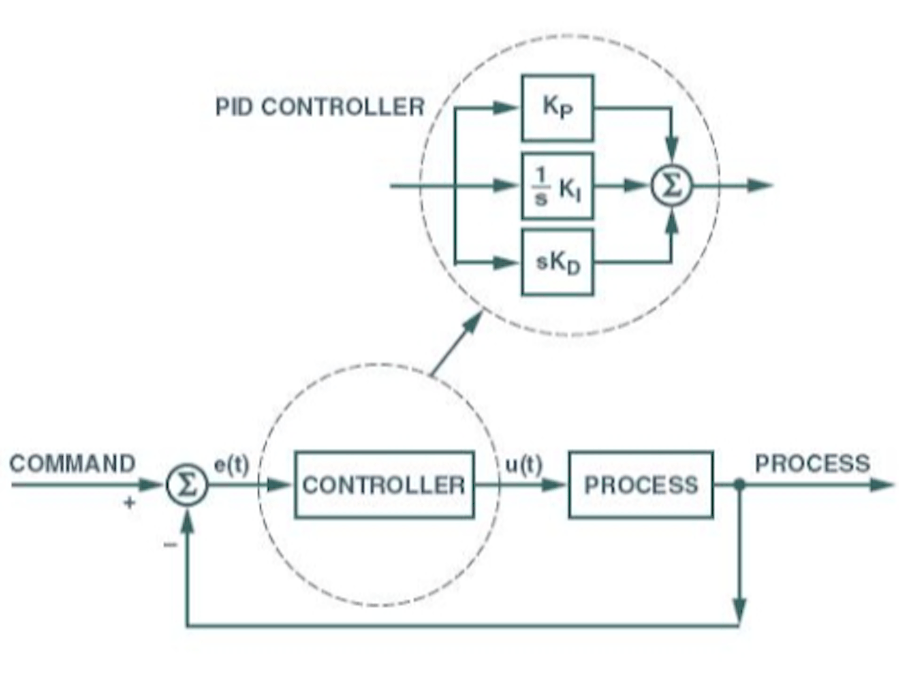

Understanding the PID Algorithm Before diving into the implementation, let's briefly review the PID algorithm. It is a feedback control loop mechanism that calculates an error value as the difference between a desired setpoint and a measured process variable. The algorithm then adjusts the control output based on three terms:

• Proportional Term (P): This term is proportional to the current error value and determines the reaction to the current error.
• Integral Term (I): This term is proportional to the sum of past errors and accounts for accumulated errors over time.
• Derivative Term (D): This term is proportional to the rate of change of the error and predicts future errors based on the current rate of change.

The control output is calculated by summing the weighted contributions of these three terms, each multiplied by a respective gain constant (Kp, Ki, and Kd). Tuning these gain constants is crucial for achieving optimal control performance.

Implementing PID on the APM8S007 Here's a basic implementation of the PID algorithm in C for the APM8S007 microcontroller:

#include <stdio.h>
#include <stdlib.h>

// PID parameters
float Kp = 0.5;   // Proportional gain
float Ki = 0.1;   // Integral gain
float Kd = 0.2;   // Derivative gain

float setpoint = 100.0;  // Desired setpoint value

// PID variables
float error = 0.0;
float integral = 0.0;
float derivative = 0.0;
float last_error = 0.0;

// Control output variable
float control_output = 0.0;

void pid_controller(float process_value) {
    // Calculate error
    error = setpoint - process_value;

    // Calculate integral term
    integral += error;

    // Calculate derivative term
    derivative = error - last_error;
    last_error = error;

    // Calculate control output
    control_output = Kp * error + Ki * integral + Kd * derivative;

    // Apply control output to the system
    // (implementation specific to your system)
}

int main() {
    float process_value = 50.0;  // Initial process value

    while (1) {
        // Read process value from sensor or input
        // (implementation specific to your system)
        // For example: process_value = read_sensor_value();

        pid_controller(process_value);

        // Update the process based on the control output
        // (implementation specific to your system)

        // Delay or sleep for a specific time period
        // (implementation specific to your system)
    }

    return 0;
}

In this implementation, the pid_controller function calculates the control output based on the PID algorithm. The error is calculated as the difference between the setpoint and the process_value. The integral term accumulates the errors over time, and the derivative term calculates the rate of change of the error.

The control output is then calculated by summing the weighted contributions of the proportional, integral, and derivative terms, using the respective gain constants (Kp, Ki, and Kd).

In the main function, you need to implement the code to read the process value from a sensor or input source, and update the process based on the control output. Additionally, you may need to add delay or sleep functionality to control the loop execution rate.

Leveraging the APM8S007's Features One of the key advantages of the APM8S007 is its on-chip operational amplifier (OPA). This feature can be utilized for efficient signal conditioning and processing, which is essential in many control applications. Additionally, the integrated LED driver can be employed for visual feedback or control of lighting systems.

Tuning and Optimization While this implementation provides a starting point, achieving optimal control performance often requires fine-tuning the gain constants (Kp, Ki, and Kd) based on your specific system dynamics and requirements. Additionally, you may need to handle integral windup and other considerations to ensure stable and responsive control.

Empowering Your Control Applications The APM8S007 microcontroller, with its 8051 core and advanced features like the OPA and LED driver, offers a powerful platform for implementing the PID algorithm in a wide range of control applications. Whether you're working on motor control, lighting systems, or any other control system, mastering the PID algorithm on this versatile microcontroller can unlock new possibilities for your projects.

Dive into the world of control systems and explore the full potential of the APM8S007 with the PID algorithm. Happy coding!
