I'm pretty new to Arduino and electronics in general. Browsing around I soon noticed these orange glowing tube projects that a lot of people made. Came to find out that they are called nixie tubes and are vintage electronics used in the 60s and 70s for displaying numbers and symbols. Plus, they are not made anymore (with one exception) and those tubes that people used are from old stocks or gutted from old equipment. Can this get any cooler I thought? Then I learned that to light up they need about 180 Volts... That scared me enough to put my plans on the self until I had a little more experience with electronics.
Two projects later (a three wheel robot and a 1280 LED scrolling text display) I felt ready to get my hands on those dusty old tubes and treat myself and my living room to a great looking nixie clock.
So, here we are.

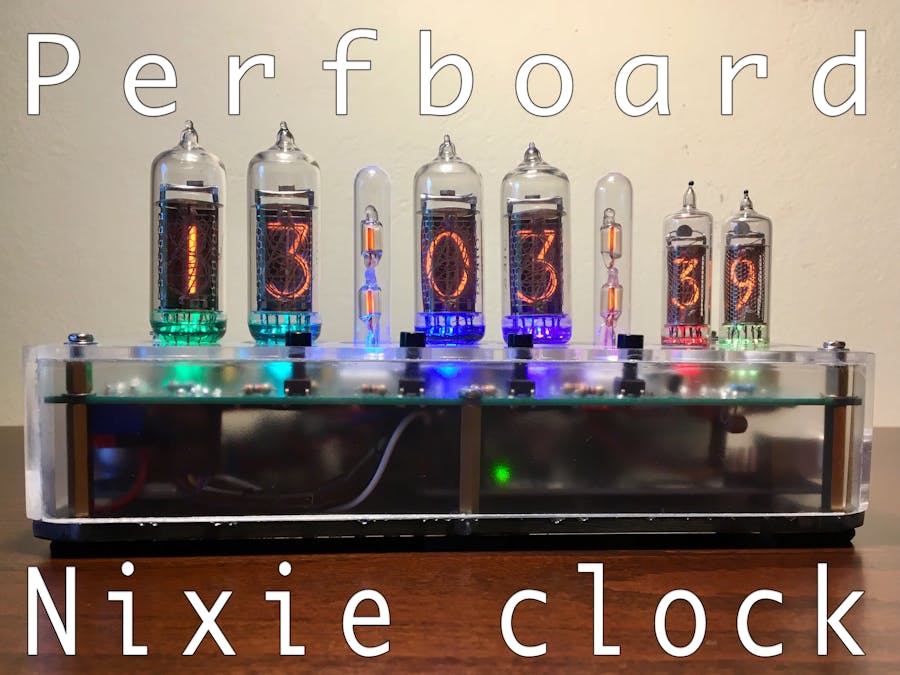

1 / 2 • Finished project
Features:
The clock has the following features implemented:
Time display of course (only in 24 hour format since I prefer that), with blinking colons
Accurate time keeping and battery to keep the time when the power is off
RGB LED backlight on the digits and the semicolons, with eight different color effects
Light sensor and automatic dimming of the LEDs depending on the light in the room
Test mode which circles through every digit and LED color plus display of the light sensor reading
Four buttons which can control the following:
- set the time
- circle through the LED color effects
- turn the LEDs on and off
- enter and control test mode
Anti-Cathode-Poison (ACP) routines to keep the tubes in healthy condition
Routine that turns the tubes and LEDs off at night when there is no light in the room to save power and increase their lifetime
easy access for repairs
On-off power switch
Fuse for safety
Design:
So, the thinking behind the design was to make it as simple as possible so all the components could be placed on one perfboard neatly. The perfboard had to look presentable since the cover was going to be see-through. I did not use multiplexing because to do so I would have to include extra circuitry to make each nixie turn on and off individually and since those soviet nixie chips (K155ID1) are cheap enough, it was easier to use six of them. I also had a lot of space on the bottom floor for an Arduino mega, so the many pins needed for each chip (4 per chip) would not be a problem. The IDC ribbon cable helped a lot making all those pins easy to connect. Again, simplicity was the goal and this was the simplest way considering my skills and understanding.
1 / 3 • Bottom of the perfboard (taken before adding the photoresistor)
For the backlighting I used the WS2811 addressable RGB LEDs which do not need much extra circuitry and can be easily controlled individually to create some cool effects.
The clock gets its power from a simple 12Volt wall power supply I had laying around. For powering the tubes I chose a high voltage nixie power supply (12V to 174V) and a step down - buck - converter (12V to 5V) for powering the LEDs. The Arduino Mega is powered straight from the 12Volts of the wall power supply. Current consumption of the finished clock is at about 250mA.
Finnaly, for the time keeping part I choose a cheap ebay RTC module based on the DS3231 chip. It communicates with the arduino using the I2C protocol and is powered straight from the arduino 5V pin.
1 / 3 • Without the acrylic cover
Lessons learned:
Since finding out how a nixie tube works, how to light it up and that kind of stuff is pretty easy online thanks to the articles that many folks have written on the topic, I decided that it would be more useful to talk about the things I learned making the project which I wish somebody had told me before starting. So, here we go:
There are many nixie tube power supplies available on e-bay from chinese sellers that are pretty cheap. I bought some of them and they all worked, but not on the advertised capacities. What I came to find out is that this power supplies are copies of designs available online and are advertised as having the same capabilities with the originals. The problem is that since they use cheaper components than the originals, they can't really perform as advertised. In my case, the knock-off power supplies could not output enough current for all the six nixies and the colon lamps, so the nixies would fade when the colon were on and some numbers (number 2 mostly) would not light up fully. With another design, the flicker would go away but the power supply would get extremely hot. So, I ended up getting an original power supply that worked great and as advertised.
You can get wires that are rapped in silicon rubber which, unlike PVC, does not melt with a soldering iron. This is really, really helpful when you are trying to solder many wires on a perfboard.
Before connecting your nixie tubes, clean their pins with steel wool or something like that. Since they were made decades before, the metal pins can get oxidized. Cleaning them will save you from a lot of headaches and connection issues.
Plugging and unplugging the tubes is hard because their pins bend easily. Especially on the IN-16 (small ones for displaying the seconds). If I did it all over again, I would prefer to use some tube sockets, connect the tubes on them and then (the sockets) on the clock pins - something like an in-between. This way I could plug and unplug the the sockets as many times as I wanted, easily and without risking damage on the tube pins. On ebay you can buy sockets like these. Or you can create your own ether on perfboard or PCB.
Plan your algorithm before you start writing code. Making things as you go along works with small projects but as soon as things get a little more complex, spaghetti code is waiting around the corner. What I mean is that you need to plan the flow of information (variable values etc.) between the various parts (e.g. functions) of the algorithm, otherwise - when things get more complex - you end up with making one change and having five things broken! For example, you will often hear that using global variables is bad practice. Well, as soon as you get tangled into the spaghetti code, you'll understand why. Having a general plan of how information will flow helps a lot.
Bill of materials:
4pcs IN-14 Nixie tubes
2pcs IN-16 Nixie tubes
2pcs Glass Columns with 2 NE-2H Neon Lamps + Holders
This is the schematic of the perfboard - it a real world schematic not an engineering one, meaning that the cable lines are as they will be in the real perfboard - even the ground.
Perfboard components placement schematic
This is a schematic of the components and there place on the perfboard - Designing this helped a lot with figuring out what can fit where.
Bottom layer components schematic
This is a components schematic of the bottom layer of the clock. The components that have the "placeholder" marking are not the actual components, just something similar I found.
Table with all the pin connections
This is a table that has all the pin connections that exist on the clock - what connects to what, simple and easy.
The sketch with the code of the project. I'm an amateur programmer as well so some things might appear a little spaghetti-like. I tried to comment everything.
/********************************************************************************************************* ********************************************************************************************************* * Nixie Clock Main Sketch * Version 0.9 * Tested with: Arduino IDE 1.8.13 - Arduino AVR Boards 1.8.3 - MD_DS3231 1.3.1 - * Adafruit_NeoPixel 1.7.0 - MD_KeySwitch 1.4.2 - Arduino Mega 2560 R3 * 30-04-2021 * Leon ********************************************************************************************************/// Libraries needed:#include<MD_DS3231.h> // Pre-existing object named RTC (SCL to pin 21, SDA to pin 20)#include<Adafruit_NeoPixel.h>#include<MD_KeySwitch.h>// Turn debugging on and off:#define DEBUG 0#if DEBUG#define PRINTS(s) { Serial.print (F(s));} // Print a string#define PRINT(s, v) { Serial.print (F(s)); Serial.print (v);} // Print string then value (dec) #include<MemoryFree.h> // Library for printing free memory on runtime #else #define PRINTS(s) // Print a string#define PRINT(s, v) // Print a string followed by a value (decimal)#endif// General universal variables:boolsecondPassFlag=false;// flag for checking if a second has passedbytecurrentSeconds=0;// variable to hold the value of the current secondsbytecurrentHours=0;// variable to hold the value of the current hourbytepreviousHours=0;// variable to hold the value of the previous hourboolacpMinRoutineFlag=false;// flag for checking if the acpMinRoutine function is running#define ACPNIGHTHOUR 2 // hour that the acp night routine runs (different from night pause)#define NIGHTPAUSESTART 3 // start time of the night pause (must be after midnight)#define NIGHTPAUSEEND 7 // end time of the night pause (must be after midnight and start time)boolsetTimeModeFlag=false;// flag for checking if setTimeMode is runningbooltestModeFlag=false;// flag for checking if test mode is runningbooltestPhotoresistorFlag=false;// flag for checking if photoresistor part of test mode is runningboolacpNightRoutineFlag=false;// flag for checking if the acpNightRoutine function is runningboolacpNightRoutineOn=false;// flag that's true when the routine is actually displayedboolnightLightTrigger=false;// flag for checking if the light in the room is low enoughboolnightEndTrigger=false;// flag for checking if a night mode end event happenedboolnightPauseRoutineFlag=false;// flag for checking if the nigthPauseRoutine function runsboolnightPauseRoutineOn=false;// flag that's true when the tubes are actually pausedbooltimeSetModeReset=true;// used to reset variables at the first run of timeSetMode functionbytetempTimeHolder=0;// hold the time that is displayed currently on setTimeModeboolsetTimeStageArray[3]={false};// array that holds witch steps of the time setting are completed// Variables for holding the individual digits of time:bytehoursFirstDigit=0;bytehoursSecondDigit=0;byteminutesFirstDigit=0;byteminutesSecondDigit=0;bytesecondsFirstDigit=0;bytesecondsSecondDigit=0;// Nixie1:// Use pins 36, 32, 30 & 34 of Arduino to connect to pins A, B, C & D of the Nixie1 driver chip#define N1A 36#define N1B 32#define N1C 30#define N1D 34// Nixie2:// Use pins 35, 31, 29 & 33 of Arduino to connect to pins A, B, C & D of the Nixie2 driver chip#define N2A 35#define N2B 31#define N2C 29#define N2D 33// Nixie3:// Use pins 44, 40, 38 & 42 of Arduino to connect to pins A, B, C & D of the Nixie3 driver chip#define N3A 44#define N3B 40#define N3C 38#define N3D 42// Nixie4:// Use pins 43, 39, 37 & 41 of Arduino to connect to pins A, B, C & D of the Nixie4 driver chip#define N4A 43#define N4B 39#define N4C 37#define N4D 41// Nixie5:// Use pins 52, 48, 46 & 50 of Arduino to connect to pins A, B, C & D of the Nixie5 driver chip#define N5A 52#define N5B 48#define N5C 46#define N5D 50// Nixie6:// Use pins 51, 47, 45 & 49 of Arduino to connect to pins A, B, C & D of the Nixie4 driver chip#define N6A 51#define N6B 47#define N6C 45#define N6D 49// Dots:// Use transistor 1 to control dots 1 & 2 and transistor 2 to control dots 2 & 3 #define TRAN1 28#define TRAN2 53// WS2811 THT RGB LEDs:#define WSPIN 23 // Arduino pin for controlling the WS2811 LEDs#define WSCOUNT 8 // number of WS2911 LEDs connected togetherAdafruit_NeoPixelwsStrip(WSCOUNT,WSPIN,NEO_RGB+NEO_KHZ800);// create neopixel objectbytewsMode=1;// variable to hold the WS2911 LEDs mode - default is 1bytewsModeNum=8;// variable to hold the number (sum) of WS2911 LEDs modesboolwsTransition=false;// true if mode transition is on, false if not#define WSTRANSTIME 1400UL // transition duration in millisecondsboolwsOff=false;// true if the WS2911 LEDs are off, false if they are onboolwsWasOn=false;// true if the LEDs were on, false if notboolrainbowEffectTrigger=false;// flag for triggering the rainbow effectboolcolorWipeEffectTrigger=false;// flag for triggering the color wipe effectboolcolorWheelEffectTrigger=false;// flag for triggering the colorWheel effectintredLedArray[8]={0};// array to hold the values of the red WS2911 LEDsintgreenLedArray[8]={0};// array to hold the values of the green WS2911 LEDsintblueLedArray[8]={0};// array to hold the values of the blue WS2911 LEDsunsignedlongtempColorArray[8]={0};// array to hold the values of rainbow or wheel colors// LDR Photoresistor:#define LDRPIN A0 // analog pin that the LDR photoresistor is connected on the ArduinounsignedintwsBrightness=50;// startup brightness of the WS2811 LEDs from 0 to 255#define BRIGHTNESSMAX 80 // maximum brightness the LEDs will go depending on room light#define BRIGHTNESSMIN 5 // minimum brightness the LEDs will go depending on room light// Buttons:MD_KeySwitchbutton1(24,HIGH);// set button 1 to pin 24MD_KeySwitchbutton2(25,HIGH);// set button 2 to pin 25MD_KeySwitchbutton3(26,HIGH);// set button 3 to pin 26MD_KeySwitchbutton4(27,HIGH);// set button 4 to pin 27boolrepeatOn=false;// true if repeat button pressed// High voltage power supply:#define HVPSUPIN 22// Functions with default values declaration:voidwsModeHandler(boolshuffleTrigger=false);voidcolorWipeEffect(boolresetTrigger=false);voidtestMode(boolresetTrigger=false);boolpsuState(byteorder=2);/*----------------------------------------------- SETUP: -----------------------------------------------*/voidsetup(){// Debug setup:#if DEBUGSerial.begin(9600);PRINTS("\n[Nixie Clock]");#endif// Setup the pins that communicate with the nixie chips (K144ID1) us outputs // and write on all the tubes the number 0:// Nixie1:pinMode(N1A,OUTPUT);pinMode(N1B,OUTPUT);pinMode(N1C,OUTPUT);pinMode(N1D,OUTPUT);writeOnNixieX(1,0);// Nixie2:pinMode(N2A,OUTPUT);pinMode(N2B,OUTPUT);pinMode(N2C,OUTPUT);pinMode(N2D,OUTPUT);writeOnNixieX(2,0);// Nixie3:pinMode(N3A,OUTPUT);pinMode(N3B,OUTPUT);pinMode(N3C,OUTPUT);pinMode(N3D,OUTPUT);writeOnNixieX(3,0);// Nixie4:pinMode(N4A,OUTPUT);pinMode(N4B,OUTPUT);pinMode(N4C,OUTPUT);pinMode(N4D,OUTPUT);writeOnNixieX(4,0);// Nixie5:pinMode(N5A,OUTPUT);pinMode(N5B,OUTPUT);pinMode(N5C,OUTPUT);pinMode(N5D,OUTPUT);writeOnNixieX(5,0);// Nixie6:pinMode(N6A,OUTPUT);pinMode(N6B,OUTPUT);pinMode(N6C,OUTPUT);pinMode(N6D,OUTPUT);writeOnNixieX(6,0);// Dots:pinMode(TRAN1,OUTPUT);pinMode(TRAN2,OUTPUT);// WS2811 LEDs setup:wsStrip.begin();// initialize NeoPixel strip objectwsStrip.show();// turn OFF all pixels ASAPwsStrip.setBrightness(wsBrightness);// Set the brightnesswsModeHandler(true);// LDR Photoresistor:pinMode(LDRPIN,INPUT);// Buttons setup:// Button 1:button1.begin();button1.enableDoublePress(false);button1.enableLongPress(true);button1.enableRepeat(false);button1.enableRepeatResult(false);button1.setDebounceTime(160);button1.setLongPressTime(2000);// set long press time to 2 seconds // Button 2:button2.begin();button2.enableDoublePress(false);button2.enableLongPress(false);button2.enableRepeat(true);button2.enableRepeatResult(true);button2.setRepeatTime(120);button2.setDebounceTime(140);// Button 3:button3.begin();button3.enableDoublePress(false);button3.enableLongPress(false);button3.enableRepeat(true);button3.enableRepeatResult(true);button3.setRepeatTime(120);button3.setDebounceTime(140);// Button 4:button4.begin();button4.enableDoublePress(false);button4.enableLongPress(true);button4.enableRepeat(false);button4.enableRepeatResult(false);button4.setDebounceTime(160);button4.setLongPressTime(2000);// set long press time to 2 seconds // High Voltage power supply:pinMode(HVPSUPIN,OUTPUT);psuState(HIGH);// turn on HV psu// Command so that the "L" onboard LED of the Arduino MEGA (connected to pin 13) stays off:pinMode(13,OUTPUT);}/*---------------------------------------------- LOOP: -------------------------------------------------*/voidloop(){// Run the mode that is currently on or if no specific mode is on, run the default - displayTime:if(setTimeModeFlag==true){setTimeMode();}elseif(testModeFlag==true){testMode();}elseif(wsTransition==true){wsTransitionDisplay();}elseif(acpMinRoutineFlag==true){acpMinRoutine();}elseif(acpNightRoutineFlag==true){acpNightRoutine();}elseif(nightPauseRoutineFlag==true){nightPauseRoutine();}else{displayTime();}// Run the rainbow effect if it is on:if(rainbowEffectTrigger==true){rainbowEffect();}// Run the color wipe effect if it is on:if(colorWipeEffectTrigger==true){colorWipeEffect();}// Run the color wipe effect if it is on:if(colorWheelEffectTrigger==true){colorWheelEffect();}// Run the function that handles button presses:buttonsHandler();// Run the function that handles the photoresistor:photoresistorHandler();}/*------------------------------------------- END OF LOOP ----------------------------------------------*//********************************************************************************************************* * Functions for managing the RTC time aspects of the clock: ********************************************************************************************************//*------------------------------------------------------------------------------------------------------*//* Function for doing the necessary steps for displaying the time on the nixie tubes. Also, it manages * various timing events of the clock (dots blinking every second, night modes etc) using the time read * from the DS3231 RTC clock: */voiddisplayTime(){RTC.readTime();// get the time from the module// Hours:currentHours=RTC.h;separateDoubleDigits(currentHours,hoursFirstDigit,hoursSecondDigit);if(currentHours==ACPNIGHTHOUR)// check if it is acp night hour and turn it's flag on{acpNightRoutineFlag=true;}else// turn the acp night flag off if not it's hour{acpNightRoutineFlag=false;}if(currentHours>=NIGHTPAUSESTART&¤tHours<NIGHTPAUSEEND)// check if it's night pause hours and{// turn it's flag onnightPauseRoutineFlag=true;}else// turn the night pause flag off if not it's hours{nightPauseRoutineFlag=false;}if(acpMinRoutineFlag==false){writeOnNixieX(1,hoursFirstDigit);writeOnNixieX(2,hoursSecondDigit);previousHours=currentHours;}// Minutes:separateDoubleDigits(RTC.m,minutesFirstDigit,minutesSecondDigit);if(acpMinRoutineFlag==false){writeOnNixieX(3,minutesFirstDigit);writeOnNixieX(4,minutesSecondDigit);}// Seconds:currentSeconds=RTC.s;// Blinking dots every second:if(currentSeconds%2==0)// if the seconds are even turn off dots{dotsOn(false);}else// if the seconds are even turn on dots{dotsOn(true);}separateDoubleDigits(currentSeconds,secondsFirstDigit,secondsSecondDigit);// Acp routine trigger at the 00 seconds and change random LED color if on mode 1:if(secondsFirstDigit==0&&secondsSecondDigit==0){acpMinRoutineFlag=true;if(wsMode==1&&wsOff==false){colorWipeEffect(true);// reset color wipe effect to make sure it starts from first LEDwsModeHandler(true);// trigger color change if on random mode}}else{writeOnNixieX(5,secondsFirstDigit);writeOnNixieX(6,secondsSecondDigit);}}/*------------------------------------------------------------------------------------------------------*//* Function for writing the digits on a specific (x) nixie tube - it gets me nixie number and the value * (one digit) that is going to be written: */voidwriteOnNixieX(bytenixieNum,bytevalue){switch(nixieNum){case1:sentToNixie(N1A,N1B,N1C,N1D,value);break;case2:sentToNixie(N2A,N2B,N2C,N2D,value);break;case3:sentToNixie(N3A,N3B,N3C,N3D,value);break;case4:sentToNixie(N4A,N4B,N4C,N4D,value);break;case5:sentToNixie(N5A,N5B,N5C,N5D,value);break;case6:sentToNixie(N6A,N6B,N6C,N6D,value);break;default:return;}}/*------------------------------------------------------------------------------------------------------*//* Function for running the anti-cathode-poisoning routine for keeping the nixie tubes in good condition * - it cycles through the digits, about 100ms each digit - 1 second total: */voidacpMinRoutine(){// Local variables declaration:staticunsignedlonglastTime=0;// millis() memorystaticbytecounter=0;staticbytenixie1_Order[10];// Arrays for holding the order of the digits based on whatstaticbytenixie2_Order[10];// is currently on display and the physical order of the digitsstaticbytenixie3_Order[10];// in the tubesstaticbytenixie4_Order[10];bytenixie5_Order[10]={5,6,1,0,7,9,3,8,4,2};// Since the starting seconds are alwaysbytenixie6_Order[10]={9,3,8,4,2,5,6,1,0,7};// the same (00) there arrays are fixedstaticboolfirstRunFlag=true;// Main code:if(firstRunFlag==true)// check if it is the first run of each routine so to populate the arrays{getOrderIn14(nixie1_Order,hoursFirstDigit);getOrderIn14(nixie2_Order,hoursSecondDigit);getOrderIn14(nixie3_Order,minutesFirstDigit);getOrderIn14(nixie4_Order,minutesSecondDigit);firstRunFlag=false;}switch(counter){case0:if(millis()-lastTime<120UL)// more than 100ms to make sure that a second passes in total{writeOnNixieX(1,nixie1_Order[0]);writeOnNixieX(2,nixie2_Order[0]);writeOnNixieX(3,nixie3_Order[0]);writeOnNixieX(4,nixie4_Order[0]);writeOnNixieX(5,nixie5_Order[0]);writeOnNixieX(6,nixie6_Order[0]);}else{counter++;lastTime=millis();}break;case1:if(millis()-lastTime<120UL){writeOnNixieX(1,nixie1_Order[1]);writeOnNixieX(2,nixie2_Order[1]);writeOnNixieX(3,nixie3_Order[1]);writeOnNixieX(4,nixie4_Order[1]);writeOnNixieX(5,nixie5_Order[1]);writeOnNixieX(6,nixie6_Order[1]);}else{counter++;lastTime=millis();}break;case2:if(millis()-lastTime<120UL){writeOnNixieX(1,nixie1_Order[2]);writeOnNixieX(2,nixie2_Order[2]);writeOnNixieX(3,nixie3_Order[2]);writeOnNixieX(4,nixie4_Order[2]);writeOnNixieX(5,nixie5_Order[2]);writeOnNixieX(6,nixie6_Order[2]);}else{counter++;lastTime=millis();}break;case3:if(millis()-lastTime<120UL){writeOnNixieX(1,nixie1_Order[3]);writeOnNixieX(2,nixie2_Order[3]);writeOnNixieX(3,nixie3_Order[3]);writeOnNixieX(4,nixie4_Order[3]);writeOnNixieX(5,nixie5_Order[3]);writeOnNixieX(6,nixie6_Order[3]);}else{counter++;lastTime=millis();}break;case4:if(millis()-lastTime<120UL){writeOnNixieX(1,nixie1_Order[4]);writeOnNixieX(2,nixie2_Order[4]);writeOnNixieX(3,nixie3_Order[4]);writeOnNixieX(4,nixie4_Order[4]);writeOnNixieX(5,nixie5_Order[4]);writeOnNixieX(6,nixie6_Order[4]);}else{counter++;lastTime=millis();}break;case5:if(millis()-lastTime<120UL){writeOnNixieX(1,nixie1_Order[5]);writeOnNixieX(2,nixie2_Order[5]);writeOnNixieX(3,nixie3_Order[5]);writeOnNixieX(4,nixie4_Order[5]);writeOnNixieX(5,nixie5_Order[5]);writeOnNixieX(6,nixie6_Order[5]);}else{counter++;lastTime=millis();}break;case6:if(millis()-lastTime<120UL){writeOnNixieX(1,nixie1_Order[6]);writeOnNixieX(2,nixie2_Order[6]);writeOnNixieX(3,nixie3_Order[6]);writeOnNixieX(4,nixie4_Order[6]);writeOnNixieX(5,nixie5_Order[6]);writeOnNixieX(6,nixie6_Order[6]);}else{counter++;lastTime=millis();}break;case7:if(millis()-lastTime<120UL){writeOnNixieX(1,nixie1_Order[7]);writeOnNixieX(2,nixie2_Order[7]);writeOnNixieX(3,nixie3_Order[7]);writeOnNixieX(4,nixie4_Order[7]);writeOnNixieX(5,nixie5_Order[7]);writeOnNixieX(6,nixie6_Order[7]);}else{counter++;lastTime=millis();}break;case8:if(millis()-lastTime<120UL){writeOnNixieX(1,nixie1_Order[8]);writeOnNixieX(2,nixie2_Order[8]);writeOnNixieX(3,nixie3_Order[8]);writeOnNixieX(4,nixie4_Order[8]);writeOnNixieX(5,nixie5_Order[8]);writeOnNixieX(6,nixie6_Order[8]);}else{counter++;lastTime=millis();}break;case9:if(millis()-lastTime<120UL){writeOnNixieX(1,nixie1_Order[9]);writeOnNixieX(2,nixie2_Order[9]);writeOnNixieX(3,nixie3_Order[9]);writeOnNixieX(4,nixie4_Order[9]);writeOnNixieX(5,nixie5_Order[9]);writeOnNixieX(6,nixie6_Order[9]);}else{counter=0;lastTime=millis();firstRunFlag=true;acpMinRoutineFlag=false;}break;default:break;}}/*------------------------------------------------------------------------------------------------------*//* Function for running the anti-cathode-poisoning night routine for keeping the nixie tubes in good * condition - it runs for and hour and cycles between all the numbers for 6 minutes each. It starts * from 9 in order to give the bigger numbers better chance of running because they are usually not * used. Also, the LEDs are turned off for long life and energy savings: */voidacpNightRoutine(){// Local variables declaration:staticunsignedlonglastTime=0;// millis() memorystaticboolfirstRunFlag=true;staticbytecurrentDay=0;staticbooldailyRunArray[10]={false};// Main code:if(firstRunFlag==true)// check if it is the first run for the day and reset the run array{firstRunFlag=false;currentDay=RTC.dd;for(inti=0;i<10;i++){dailyRunArray[i]=false;}}if(currentDay!=RTC.dd)// if the day has changed, reset the first run and night end trigger flags{firstRunFlag=true;nightEndTrigger=false;}if(nightLightTrigger==true&&nightEndTrigger==false){acpNightRoutineOn=true;dotsOn(false);if(wsOff==false)// check if the LEDs were on and turn them off{wsWasOn=true;wsOff=true;rainbowEffectTrigger=false;colorWipeEffectTrigger=false;colorWheelEffectTrigger=false;wsStrip.clear();wsStrip.show();}if(dailyRunArray[9]==false){if(millis()-lastTime<340000UL)// run for about six minutes{writeOnNixieX(1,9);writeOnNixieX(2,9);writeOnNixieX(3,9);writeOnNixieX(4,9);writeOnNixieX(5,9);writeOnNixieX(6,9);}else{lastTime=millis();dailyRunArray[9]=true;}}elseif(dailyRunArray[8]==false){if(millis()-lastTime<340000UL)// run for about six minutes{writeOnNixieX(1,8);writeOnNixieX(2,8);writeOnNixieX(3,8);writeOnNixieX(4,8);writeOnNixieX(5,8);writeOnNixieX(6,8);}else{lastTime=millis();dailyRunArray[8]=true;}}elseif(dailyRunArray[7]==false){if(millis()-lastTime<340000UL)// run for about six minutes{writeOnNixieX(1,7);writeOnNixieX(2,7);writeOnNixieX(3,7);writeOnNixieX(4,7);writeOnNixieX(5,7);writeOnNixieX(6,7);}else{lastTime=millis();dailyRunArray[7]=true;}}elseif(dailyRunArray[6]==false){if(millis()-lastTime<340000UL)// run for about six minutes{writeOnNixieX(1,6);writeOnNixieX(2,6);writeOnNixieX(3,6);writeOnNixieX(4,6);writeOnNixieX(5,6);writeOnNixieX(6,6);}else{lastTime=millis();dailyRunArray[6]=true;}}elseif(dailyRunArray[5]==false){if(millis()-lastTime<340000UL)// run for about six minutes{writeOnNixieX(1,5);writeOnNixieX(2,5);writeOnNixieX(3,5);writeOnNixieX(4,5);writeOnNixieX(5,5);writeOnNixieX(6,5);}else{lastTime=millis();dailyRunArray[5]=true;}}elseif(dailyRunArray[4]==false){if(millis()-lastTime<340000UL)// run for about six minutes{writeOnNixieX(1,4);writeOnNixieX(2,4);writeOnNixieX(3,4);writeOnNixieX(4,4);writeOnNixieX(5,4);writeOnNixieX(6,4);}else{lastTime=millis();dailyRunArray[4]=true;}}elseif(dailyRunArray[3]==false){if(millis()-lastTime<340000UL)// run for about six minutes{writeOnNixieX(1,3);writeOnNixieX(2,3);writeOnNixieX(3,3);writeOnNixieX(4,3);writeOnNixieX(5,3);writeOnNixieX(6,3);}else{lastTime=millis();dailyRunArray[3]=true;}}elseif(dailyRunArray[2]==false){if(millis()-lastTime<340000UL)// run for about six minutes{writeOnNixieX(1,2);writeOnNixieX(2,2);writeOnNixieX(3,2);writeOnNixieX(4,2);writeOnNixieX(5,2);writeOnNixieX(6,2);}else{lastTime=millis();dailyRunArray[2]=true;}}elseif(dailyRunArray[1]==false){if(millis()-lastTime<340000UL)// run for about six minutes{writeOnNixieX(1,1);writeOnNixieX(2,1);writeOnNixieX(3,1);writeOnNixieX(4,1);writeOnNixieX(5,1);writeOnNixieX(6,1);}else{lastTime=millis();dailyRunArray[1]=true;}}elseif(dailyRunArray[0]==false){if(millis()-lastTime<340000UL)// run for about six minutes{writeOnNixieX(1,0);writeOnNixieX(2,0);writeOnNixieX(3,0);writeOnNixieX(4,0);writeOnNixieX(5,0);writeOnNixieX(6,0);}else{lastTime=millis();dailyRunArray[0]=true;}}else// if the daily run is completed, start again for the remaining time{for(inti=0;i<10;i++){dailyRunArray[i]=false;}}}else// if the conditions are not right, display the time as usual{if(wsWasOn==true)// turn the LEDs back on, if they were previously on{wsOff=false;wsModeHandler();}acpNightRoutineOn=false;displayTime();}// Make sure that if the acp night hour ends, we go to night pause routine:if(RTC.h==NIGHTPAUSESTART){acpNightRoutineFlag=false;nightPauseRoutineFlag=true;}}/*------------------------------------------------------------------------------------------------------*//* Function for running the night pause routine which turns off the nixie tubes at the night when the * light is low in order to make them last longer. The tubes are turned off by setting the high voltage * power supply pin to low. Also, the WS2811 LEDs are turned off for power saving and long life: */voidnightPauseRoutine(){if(nightLightTrigger==true&&nightEndTrigger==false){nightPauseRoutineOn=true;if(wsOff==false){wsOff=true;wsWasOn=true;rainbowEffectTrigger=false;colorWipeEffectTrigger=false;colorWheelEffectTrigger=false;wsStrip.clear();wsStrip.show();}dotsOn(false);psuState(LOW);// turn off HV psu}else{nightPauseRoutineOn=false;psuState(HIGH);// turn on HV psuif(wsWasOn==true){wsOff=false;wsModeHandler();}displayTime();}}/*------------------------------------------------------------------------------------------------------*//* Function for separating the double digits that hours, minutes and seconds come from the RTC module, * to single digits for writing on the nixie tubes: */voidseparateDoubleDigits(bytedoubleDigit,byte&firstDigit,byte&secondDigit){firstDigit=doubleDigit/10;secondDigit=doubleDigit%10;}/*------------------------------------------------------------------------------------------------------*//* Function for separating a triple digit to single digits for writing on the nixie tubes: */voidseparateThreeDigits(unsignedintthreeDigit,byte&firstDigit,byte&secondDigit,byte&thirdDigit){firstDigit=(threeDigit/100)%10;secondDigit=(threeDigit/10)%10;thirdDigit=threeDigit%10;}/*------------------------------------------------------------------------------------------------------*//* Function for separating a quadruple digit to single digits for writing on the nixie tubes: */voidseparateFourDigits(unsignedintfourDigit,byte&firstDigit,byte&secondDigit,byte&thirdDigit,byte&fourthDigit){firstDigit=(fourDigit/1000)%10;secondDigit=(fourDigit/100)%10;thirdDigit=(fourDigit/10)%10;fourthDigit=fourDigit%10;}/*------------------------------------------------------------------------------------------------------*//* Function for finally sending the value to be displayed to the nixie chips - it gets the numbers of * the four Arduino pins that communicate with the nixie chip and the value to be sent (one digit or for * blanking the number 10): */voidsentToNixie(bytea,byteb,bytec,byted,bytevalue){//D is most significant bit//A is least significant bitdigitalWrite(d,(value&0x08)>>3);digitalWrite(c,(value&0x04)>>2);digitalWrite(b,(value&0x02)>>1);digitalWrite(a,value&0x01);}/*------------------------------------------------------------------------------------------------------*//* Function for turning the dots on (true) or off (false): */voiddotsOn(boolonState){if(onState==true){digitalWrite(TRAN1,HIGH);digitalWrite(TRAN2,HIGH);}else{digitalWrite(TRAN1,LOW);digitalWrite(TRAN2,LOW);}}/*------------------------------------------------------------------------------------------------------*//* Function for turning the nixie PSU on (true - 1 - HIGH) or off (false - 0 - LOW) or just getting back * the state that it is currently (2, which is the default): */boolpsuState(byteorder=2){staticboolpsuStatus=false;if(order==0){digitalWrite(HVPSUPIN,LOW);// turn off HV psupsuStatus=false;returnpsuStatus;}elseif(order==1){digitalWrite(HVPSUPIN,HIGH);// turn on HV psupsuStatus=true;returnpsuStatus;}else{returnpsuStatus;}}/*------------------------------------------------------------------------------------------------------*//* Function that populates the IN-14 nixie order arrays with the physical order based on the currently * displayed digit (startValue): */voidgetOrderIn14(byte*nixieXArrayPosition,bytestartValue){// Local variables declaration:byterowArray[]={1,0,2,9,3,8,4,7,5,6};// physical order of the digits in the tubes// Main code:switch(startValue){case0:for(inti=0;i<10;i++){if(i<9){nixieXArrayPosition[i]=rowArray[i+1];}elseif(i>=9){nixieXArrayPosition[i]=rowArray[i-9];}}return;case1:for(inti=0;i<10;i++){nixieXArrayPosition[i]=rowArray[i];}return;case2:for(inti=0;i<10;i++){if(i<8){nixieXArrayPosition[i]=rowArray[i+2];}elseif(i>=8){nixieXArrayPosition[i]=rowArray[i-8];}}return;case3:for(inti=0;i<10;i++){if(i<6){nixieXArrayPosition[i]=rowArray[i+4];}elseif(i>=6){nixieXArrayPosition[i]=rowArray[i-6];}}return;case4:for(inti=0;i<10;i++){if(i<4){nixieXArrayPosition[i]=rowArray[i+6];}elseif(i>=4){nixieXArrayPosition[i]=rowArray[i-4];}}return;case5:for(inti=0;i<10;i++){if(i<2){nixieXArrayPosition[i]=rowArray[i+8];}elseif(i>=2){nixieXArrayPosition[i]=rowArray[i-2];}}return;case6:for(inti=0;i<10;i++){if(i<1){nixieXArrayPosition[i]=rowArray[i+9];}elseif(i>=1){nixieXArrayPosition[i]=rowArray[i-1];}}return;case7:for(inti=0;i<10;i++){if(i<3){nixieXArrayPosition[i]=rowArray[i+7];}elseif(i>=3){nixieXArrayPosition[i]=rowArray[i-3];}}return;case8:for(inti=0;i<10;i++){if(i<5){nixieXArrayPosition[i]=rowArray[i+5];}elseif(i>=5){nixieXArrayPosition[i]=rowArray[i-5];}}return;case9:for(inti=0;i<10;i++){if(i<7){nixieXArrayPosition[i]=rowArray[i+3];}elseif(i>=7){nixieXArrayPosition[i]=rowArray[i-7];}}return;default:return;}}/*------------------------------------------------------------------------------------------------------*//********************************************************************************************************* * Functions for managing the WS2811 RGB LEDs aspects of the clock: ********************************************************************************************************//*------------------------------------------------------------------------------------------------------*//* Function for managing the WS2811 RGB LEDs color modes - if the shuffleTrigger parameter is set to * true the random mode generates a new random color, else it displays the previous random color (used * with button4 to turn the RGBs on to the previous color for consistency): */voidwsModeHandler(boolshuffleTrigger=false){switch(wsMode){case1:// random color moderainbowEffectTrigger=false;colorWheelEffectTrigger=false;if(shuffleTrigger==true){// Feed the random seed for better randomness:randomSeed(analogRead(A1));intredValue=random(6,255);// starting from 6 to prevent off stateintgreenValue=random(6,255);intblueValue=random(6,255);for(inti=0;i<8;i++)// populate the arrays with the random values{redLedArray[i]=redValue;greenLedArray[i]=greenValue;blueLedArray[i]=blueValue;}colorWipeEffectTrigger=true;}else{colorWipeEffectTrigger=true;}break;case2:// red color moderainbowEffectTrigger=false;colorWipeEffectTrigger=true;colorWheelEffectTrigger=false;for(inti=0;i<8;i++)// populate the arrays with the color red{redLedArray[i]=255;greenLedArray[i]=0;blueLedArray[i]=0;}break;case3:// green color moderainbowEffectTrigger=false;colorWipeEffectTrigger=true;colorWheelEffectTrigger=false;for(inti=0;i<8;i++)// populate the arrays with the color green{redLedArray[i]=0;greenLedArray[i]=255;blueLedArray[i]=0;}break;case4:// blue color moderainbowEffectTrigger=false;colorWipeEffectTrigger=true;colorWheelEffectTrigger=false;for(inti=0;i<8;i++)// populate the arrays with the color blue{redLedArray[i]=0;greenLedArray[i]=0;blueLedArray[i]=255;}break;case5:// white color moderainbowEffectTrigger=false;colorWipeEffectTrigger=true;colorWheelEffectTrigger=false;for(inti=0;i<8;i++)// populate the arrays with the color white{redLedArray[i]=255;greenLedArray[i]=255;blueLedArray[i]=255;}break;case6:// multi color moderainbowEffectTrigger=false;colorWipeEffectTrigger=true;colorWheelEffectTrigger=false;// Hours LEDs set to red:redLedArray[0]=255;greenLedArray[0]=0;blueLedArray[0]=0;redLedArray[1]=255;greenLedArray[1]=0;blueLedArray[1]=0;// Dots 1 LEDs set to white:redLedArray[2]=255;greenLedArray[2]=255;blueLedArray[2]=255;// Minutes LEDs set to green:redLedArray[3]=0;greenLedArray[3]=255;blueLedArray[3]=0;redLedArray[4]=0;greenLedArray[4]=255;blueLedArray[4]=0;// Dots 2 LEDs set to white:redLedArray[5]=255;greenLedArray[5]=255;blueLedArray[5]=255;// Minutes LEDs set to blue:redLedArray[6]=0;greenLedArray[6]=0;blueLedArray[6]=255;redLedArray[7]=0;greenLedArray[7]=0;blueLedArray[7]=255;break;case7:// colorWheel moderainbowEffectTrigger=false;colorWheelEffectTrigger=true;break;case8:// rainbow moderainbowEffectTrigger=true;colorWheelEffectTrigger=false;break;default:return;}}/*------------------------------------------------------------------------------------------------------*//* Function for managing the transition effect between WS2811 RGB LEDs modes - it displays on the middle * nixies the number of the mode that is on: */voidwsTransitionDisplay(){// Local variables declaration:staticunsignedlongstartTime=0;// millis() memorybytefirstDigit=0;bytesecondDigit=0;staticbytewsModeHolder=0;// Main code:if(wsModeHolder!=wsMode){wsModeHolder=wsMode;startTime=millis();}if(wsModeHolder<=9){firstDigit=10;secondDigit=wsMode;}else{separateDoubleDigits(wsModeHolder,firstDigit,secondDigit);}if(millis()-startTime<WSTRANSTIME){writeOnNixieX(1,10);writeOnNixieX(2,10);writeOnNixieX(3,firstDigit);writeOnNixieX(4,secondDigit);writeOnNixieX(5,10);writeOnNixieX(6,10);dotsOn(false);}else{wsTransition=false;}}/*------------------------------------------------------------------------------------------------------*//* Function for running the rainbow WS effect (based on code from strandtest neopixel library example - * adjusted for real time execution): */voidrainbowEffect(){// Local variables declaration:staticunsignedlonglastTime=millis();staticlongfirstPixelHue=0;staticintpixelHue=0;// Main code:// Hue of first pixel runs 5 complete loops through the color wheel.// Color wheel has a range of 65536 but it's OK if we roll over, so// just count from 0 to 5*65536. Adding 256 to firstPixelHue each time// means we'll make 5*65536/256 = 1280 passes before starting over:if(firstPixelHue<5*65536){if(millis()-lastTime>26UL)// change colors every 26ms{lastTime=millis();for(inti=0;i<wsStrip.numPixels();i++){// For each pixel in strip...// Offset pixel hue by an amount to make one full revolution of the// color wheel (range of 65536) along the length of the strip// (wsStrip.numPixels() steps):pixelHue=firstPixelHue+(i*65536L/wsStrip.numPixels());// wsStrip.ColorHSV() can take 1 or 3 arguments: a hue (0 to 65535) or// optionally add saturation and value (brightness) (each 0 to 255).// Here we're using just the single-argument hue variant. The result// is passed through wsStrip.gamma32() to provide 'truer' colors// before assigning to each pixel:wsStrip.setPixelColor(i,wsStrip.gamma32(wsStrip.ColorHSV(pixelHue)));}wsStrip.show();// Update strip with new contentsfirstPixelHue+=256;}}else{firstPixelHue=0;}}/*------------------------------------------------------------------------------------------------------*//* Function for running the color wipe effect. When the resetTrigger parameter is set to true, the * counter starts again from the first (0) LED (used when pressing buttons quickly to ensure that the * new color is applied to all 8 LEDs every time). Default is false which allows the effect to * increment from LED to next LED: */voidcolorWipeEffect(boolresetTrigger=false){// Local variables declaration:staticunsignedlonglastTime=millis();staticbytecounter=0;// Main code:if(resetTrigger==true){counter=0;return;}if(millis()-lastTime>(unsignedlong)WSTRANSTIME/18)// time between every step - set it{// to be always done beforelastTime=millis();// wsTranstionDisplay is completedif(counter<8)// during every step set the color to one RGB LED{wsStrip.setPixelColor(counter,wsStrip.Color(redLedArray[counter],greenLedArray[counter],blueLedArray[counter]));wsStrip.show();counter++;}else{colorWipeEffectTrigger=false;counter=0;}}}/*------------------------------------------------------------------------------------------------------*//* Function for running the colorWheel effect (based on code from strandtest_Wheel neopixel library * example - adjusted for real time execution): */voidcolorWheelEffect(){// Local variables declaration:staticunsignedlonglastTime=millis();staticunsignedintcounter=0;unsignedinti=0;// Main code:if(counter<256){if(millis()-lastTime>50UL)// change colors every 50ms{lastTime=millis();for(i=0;i<wsStrip.numPixels();i++){wsStrip.setPixelColor(i,WheelColors((i+counter)&255));}wsStrip.show();counter++;}}else{counter=0;}}/*------------------------------------------------------------------------------------------------------*//* Function for calculating and returning the colors to the colorWheelEffect function. Input a value * 0 to 255 to get a color value. The colors are a transition r - g - b - back to r (code from * strandtest_Wheel neopixel library example - adjusted for real time execution): */unsignedlongWheelColors(byteWheelPos){WheelPos=255-WheelPos;if(WheelPos<85){returnwsStrip.Color(255-WheelPos*3,0,WheelPos*3);}if(WheelPos<170){WheelPos-=85;returnwsStrip.Color(0,WheelPos*3,255-WheelPos*3);}WheelPos-=170;returnwsStrip.Color(WheelPos*3,255-WheelPos*3,0);}/*------------------------------------------------------------------------------------------------------*//********************************************************************************************************* * Functions for managing the buttons and the photoresistor of the clock: ********************************************************************************************************//*------------------------------------------------------------------------------------------------------*//* Function to handle the button presses: */voidbuttonsHandler(){// ------------------------------------------ normal button mode: -------------------------------------if(setTimeModeFlag==false&&testModeFlag==false){// Button 1 (normal mode):if(button1.read()==MD_KeySwitch::KS_PRESS){// if button is pressed while night modes are on (displayed), set the night end trigger to true:if(acpNightRoutineOn==true||nightPauseRoutineOn==true){nightEndTrigger=true;if(psuState()==LOW){psuState(HIGH);// turn on HV psu}}PRINTS("\nButton 1 pressed.");}if(button1.read()==MD_KeySwitch::KS_LONGPRESS)// enter setTimeMode{setTimeModeFlag=true;// turn off the WS LEDs effects on set time mode:if(rainbowEffectTrigger==true){rainbowEffectTrigger=false;}if(colorWipeEffectTrigger==true){colorWipeEffectTrigger=false;}if(colorWheelEffectTrigger==true){colorWheelEffectTrigger=false;}// Light up only the hours WS LEDs if the LEDs were on, if they were off leave them off:if(wsOff==false){if(wsMode==7||wsMode==8)// if rainbow or colorWheel mode is on, pass the current color{// to the rainbow array so we can use them in the setTimeModefor(inti=0;i<8;i++){tempColorArray[i]=wsStrip.getPixelColor(i);}wsStrip.setPixelColor(0,tempColorArray[0]);wsStrip.setPixelColor(1,tempColorArray[1]);}else// if not rainbow or wheel mode, the color values are already available in there arrays{wsStrip.setPixelColor(0,wsStrip.Color(redLedArray[0],greenLedArray[0],blueLedArray[0]));wsStrip.setPixelColor(1,wsStrip.Color(redLedArray[1],greenLedArray[1],blueLedArray[1]));}wsStrip.setPixelColor(2,wsStrip.Color(0,0,0));wsStrip.setPixelColor(3,wsStrip.Color(0,0,0));wsStrip.setPixelColor(4,wsStrip.Color(0,0,0));wsStrip.setPixelColor(5,wsStrip.Color(0,0,0));wsStrip.setPixelColor(6,wsStrip.Color(0,0,0));wsStrip.setPixelColor(7,wsStrip.Color(0,0,0));wsStrip.show();}PRINTS("\nButton 1 long pressed.");}// Button 2 (normal mode):if(button2.read()==MD_KeySwitch::KS_PRESS)// go to next ws LEDs mode{if(wsMode<wsModeNum){wsMode++;}elseif(wsMode==wsModeNum){wsMode=1;}wsTransition=true;wsModeHandler(true);if(wsMode!=7&&wsMode!=8)// in modes 7 and 8 wipe effect is off so no reset needed{colorWipeEffect(true);// run once to reset the wipe effect}// if button is pressed while night modes are on (displayed), set the night end trigger to true:if(acpNightRoutineOn==true||nightPauseRoutineOn==true){nightEndTrigger=true;if(psuState()==LOW){psuState(HIGH);// turn on HV psu}}PRINTS("\nButton 2 pressed.");}// Button 3 (normal mode):if(button3.read()==MD_KeySwitch::KS_PRESS)// go to previous WS LEDs mode{if(wsMode>1){wsMode--;}elseif(wsMode==1){wsMode=wsModeNum;}wsTransition=true;wsModeHandler(true);if(wsMode!=7&&wsMode!=8)// in modes 7 and 8 wipe effect is off so no reset needed{colorWipeEffect(true);// run once to reset the wipe effect}// if button is pressed while night modes are on (displayed), set the night end trigger to true:if(acpNightRoutineOn==true||nightPauseRoutineOn==true){nightEndTrigger=true;if(psuState()==LOW){psuState(HIGH);// turn on HV psu}}PRINTS("\nButton 3 pressed.");}// Button 4 (normal mode):if(button4.read()==MD_KeySwitch::KS_PRESS)// turn WS LEDs on or off{if(wsOff==true){wsOff=false;if(wsMode!=7&&wsMode!=8)// in modes 7 and 8 wipe effect is off so no reset needed{colorWipeEffect(true);// run once to reset the wipe effect}wsModeHandler();}elseif(wsOff==false){wsOff=true;rainbowEffectTrigger=false;colorWipeEffectTrigger=false;colorWheelEffectTrigger=false;wsStrip.clear();wsStrip.show();}// if button is pressed while night modes are on (displayed), set the night end trigger to true:if(acpNightRoutineOn==true||nightPauseRoutineOn==true){nightEndTrigger=true;if(psuState()==LOW){psuState(HIGH);// turn on HV psu}}PRINTS("\nButton 4 pressed.");}if(button4.read()==MD_KeySwitch::KS_LONGPRESS)// enter test mode{testModeFlag=true;PRINTS("\nButton 4 long pressed.");}}elseif(testModeFlag==false)// ---------------- set time button mode: ----------------------------{// Button 1 (set time mode):if(button1.read()==MD_KeySwitch::KS_PRESS)// save temp time variable set{if(setTimeStageArray[0]==false){RTC.h=tempTimeHolder;RTC.writeTime();// save hourssetTimeStageArray[0]=true;tempTimeHolder=RTC.m;// pass current minutes to temp time variable for manipulation with buttons// Light up only the minutes WS LEDs if the LEDs were on, if they were off leave them off:if(wsOff==false){wsStrip.setPixelColor(0,wsStrip.Color(0,0,0));wsStrip.setPixelColor(1,wsStrip.Color(0,0,0));wsStrip.setPixelColor(2,wsStrip.Color(0,0,0));if(wsMode==7||wsMode==8)// if rainbow or color wheel was on, use tempColorArray to{// retrieve the colorswsStrip.setPixelColor(3,tempColorArray[3]);wsStrip.setPixelColor(4,tempColorArray[4]);}else// if not rainbow or wheel mode, use the individual color arrays to retrieve the colors{wsStrip.setPixelColor(3,wsStrip.Color(redLedArray[3],greenLedArray[3],blueLedArray[3]));wsStrip.setPixelColor(4,wsStrip.Color(redLedArray[4],greenLedArray[4],blueLedArray[4]));}wsStrip.setPixelColor(5,wsStrip.Color(0,0,0));wsStrip.setPixelColor(6,wsStrip.Color(0,0,0));wsStrip.setPixelColor(7,wsStrip.Color(0,0,0));wsStrip.show();}}elseif(setTimeStageArray[1]==false){RTC.m=tempTimeHolder;RTC.writeTime();// save minutessetTimeStageArray[1]=true;tempTimeHolder=RTC.s;// pass current seconds to temp time variable for manipulation with buttons// Light up only the seconds WS LEDs if the LEDs were on, if they were off leave them off:if(wsOff==false){wsStrip.setPixelColor(0,wsStrip.Color(0,0,0));wsStrip.setPixelColor(1,wsStrip.Color(0,0,0));wsStrip.setPixelColor(2,wsStrip.Color(0,0,0));wsStrip.setPixelColor(3,wsStrip.Color(0,0,0));wsStrip.setPixelColor(4,wsStrip.Color(0,0,0));wsStrip.setPixelColor(5,wsStrip.Color(0,0,0));if(wsMode==7||wsMode==8)// if rainbow or color wheel was on, use tempColorArray to{// retrieve the colorswsStrip.setPixelColor(6,tempColorArray[6]);wsStrip.setPixelColor(7,tempColorArray[7]);}else// if not rainbow mode, use the individual color arrays to retrieve the colors{wsStrip.setPixelColor(6,wsStrip.Color(redLedArray[6],greenLedArray[6],blueLedArray[6]));wsStrip.setPixelColor(7,wsStrip.Color(redLedArray[7],greenLedArray[7],blueLedArray[7]));}wsStrip.show();}}elseif(setTimeStageArray[2]==false){RTC.s=tempTimeHolder;RTC.writeTime();// save secondssetTimeStageArray[2]=true;tempTimeHolder=0;setTimeModeFlag=false;timeSetModeReset=true;if(wsMode!=7&&wsMode!=8)// in modes 7 and 8 wipe effect is off so no reset needed{colorWipeEffect(true);// run once to reset the wipe effect}if(wsOff==false){wsModeHandler();}}else{return;}PRINTS("\nButton 1 pressed.");}// Button 2 (set time mode):switch(button2.read()){caseMD_KeySwitch::KS_PRESS:// button 2 single press - increase temp time variableif(setTimeStageArray[0]==false){if(tempTimeHolder>=0&&tempTimeHolder<23)// increase hours{tempTimeHolder++;}else{tempTimeHolder=0;}}else{if(tempTimeHolder>=0&&tempTimeHolder<59)// increase minutes and seconds{tempTimeHolder++;}else{tempTimeHolder=0;}}PRINTS("\nButton 2 pressed.");break;caseMD_KeySwitch::KS_RPTPRESS:// button 2 repeat press - increase temp time variable fastrepeatOn=true;// set to true in order to stop blinking in setTimeMode functionif(setTimeStageArray[0]==false){if(tempTimeHolder>=0&&tempTimeHolder<23)// increase hours{tempTimeHolder++;}else{tempTimeHolder=0;}}else{if(tempTimeHolder>=0&&tempTimeHolder<59)// increase minutes and seconds{tempTimeHolder++;}else{tempTimeHolder=0;}}PRINTS("\nButton 2 repeat pressed.");break;default:break;}// Button 3 (set time mode):switch(button3.read()){caseMD_KeySwitch::KS_PRESS:// button 3 single press - decrease temp time variableif(setTimeStageArray[0]==false){if(tempTimeHolder>0&&tempTimeHolder<=23)// decrease hours{tempTimeHolder--;}else{tempTimeHolder=23;}}else{if(tempTimeHolder>0&&tempTimeHolder<=59)// decrease minutes and seconds{tempTimeHolder--;}else{tempTimeHolder=59;}}PRINTS("\nButton 3 pressed.");break;caseMD_KeySwitch::KS_RPTPRESS:// button 3 repeat press - decrease temp time variable fastrepeatOn=true;// set to true in order to stop blinking in setTimeMode functionif(setTimeStageArray[0]==false){if(tempTimeHolder>0&&tempTimeHolder<=23)// decrease hours{tempTimeHolder--;}else{tempTimeHolder=23;}}else{if(tempTimeHolder>0&&tempTimeHolder<=59)// decrease minutes and seconds{tempTimeHolder--;}else{tempTimeHolder=59;}}PRINTS("\nButton 3 repeat pressed.");break;default:break;}// Button 4 (set time mode):if(button4.read()==MD_KeySwitch::KS_PRESS)// exit set time mode{setTimeModeFlag=false;timeSetModeReset=true;if(wsMode!=7&&wsMode!=8)// in modes 7 and 8 wipe effect is off so no reset needed{colorWipeEffect(true);// run once to reset the wipe effect}if(wsOff==false){wsModeHandler();}PRINTS("\nButton 4 pressed.");}}else// ----------------------------------------- test mode: -----------------------------------------{// Button 1 (test mode):if(button1.read()==MD_KeySwitch::KS_PRESS)// switch photoresistor test on and off{if(testPhotoresistorFlag==false){testPhotoresistorFlag=true;if(psuState()==LOW){psuState(HIGH);// turn on HV psu}}else{testPhotoresistorFlag=false;}PRINTS("\nButton 1 pressed.");}// Button 4 (test mode):if(button4.read()==MD_KeySwitch::KS_PRESS)// exit test mode{testModeFlag=false;testPhotoresistorFlag=false;testMode(true);// reset test modeif(psuState()==LOW){psuState(HIGH);// turn on HV psu}if(wsMode!=7&&wsMode!=8)// in modes 7 and 8 wipe effect is off so no reset needed{colorWipeEffect(true);// run once to reset the wipe effect}if(wsOff==false){wsModeHandler();}PRINTS("\nButton 4 pressed.");}}}/*------------------------------------------------------------------------------------------------------*//* Function for handling the set time mode: */voidsetTimeMode(){// Local variables declaration:staticunsignedlongstartTime=millis();// millis() memory// Main code:RTC.readTime();// get the time from the moduleif(timeSetModeReset==true)// check if it's the first run of function{dotsOn(false);// turn off dotstimeSetModeReset=false;for(inti=0;i<3;i++)// reset array{setTimeStageArray[i]=false;}// Hours:tempTimeHolder=RTC.h;// pass current time to temp variable for manipulation with buttonsseparateDoubleDigits(tempTimeHolder,hoursFirstDigit,hoursSecondDigit);writeOnNixieX(1,hoursFirstDigit);writeOnNixieX(2,hoursSecondDigit);// Minutes:separateDoubleDigits(RTC.m,minutesFirstDigit,minutesSecondDigit);writeOnNixieX(3,minutesFirstDigit);writeOnNixieX(4,minutesSecondDigit);// Seconds:separateDoubleDigits(RTC.s,secondsFirstDigit,secondsSecondDigit);// Acp routine trigger at the 00 seconds and change random LED color if on mode 1:writeOnNixieX(5,secondsFirstDigit);writeOnNixieX(6,secondsSecondDigit);}elseif(setTimeStageArray[0]==false)// blink hours except when on repeat{// Hours:if(repeatOn==false){separateDoubleDigits(tempTimeHolder,hoursFirstDigit,hoursSecondDigit);if(millis()-startTime<500UL){writeOnNixieX(1,hoursFirstDigit);writeOnNixieX(2,hoursSecondDigit);}elseif(millis()-startTime<1000UL){writeOnNixieX(1,10);writeOnNixieX(2,10);}else{startTime=millis();}}else// if on repeat button press don't blink{separateDoubleDigits(tempTimeHolder,hoursFirstDigit,hoursSecondDigit);writeOnNixieX(1,hoursFirstDigit);writeOnNixieX(2,hoursSecondDigit);repeatOn=false;startTime=millis();}// Minutes:separateDoubleDigits(RTC.m,minutesFirstDigit,minutesSecondDigit);writeOnNixieX(3,minutesFirstDigit);writeOnNixieX(4,minutesSecondDigit);// Seconds:separateDoubleDigits(RTC.s,secondsFirstDigit,secondsSecondDigit);// Acp routine trigger at the 00 seconds and change random LED color if on mode 1:writeOnNixieX(5,secondsFirstDigit);writeOnNixieX(6,secondsSecondDigit);}elseif(setTimeStageArray[1]==false)// if hours set, blink minutes except on repeat{// Hours:separateDoubleDigits(RTC.h,hoursFirstDigit,hoursSecondDigit);writeOnNixieX(1,hoursFirstDigit);writeOnNixieX(2,hoursSecondDigit);// Minutes:if(repeatOn==false){separateDoubleDigits(tempTimeHolder,minutesFirstDigit,minutesSecondDigit);if(millis()-startTime<500UL){writeOnNixieX(3,minutesFirstDigit);writeOnNixieX(4,minutesSecondDigit);}elseif(millis()-startTime<1000UL){writeOnNixieX(3,10);writeOnNixieX(4,10);}else{startTime=millis();}}else// if on repeat button press don't blink{separateDoubleDigits(tempTimeHolder,minutesFirstDigit,minutesSecondDigit);writeOnNixieX(3,minutesFirstDigit);writeOnNixieX(4,minutesSecondDigit);repeatOn=false;startTime=millis();}// Seconds:separateDoubleDigits(RTC.s,secondsFirstDigit,secondsSecondDigit);// Acp routine trigger at the 00 seconds and change random LED color if on mode 1:writeOnNixieX(5,secondsFirstDigit);writeOnNixieX(6,secondsSecondDigit);}elseif(setTimeStageArray[2]==false)// if hours and minutes set, blink seconds except on repeat{// Hours:separateDoubleDigits(RTC.h,hoursFirstDigit,hoursSecondDigit);writeOnNixieX(1,hoursFirstDigit);writeOnNixieX(2,hoursSecondDigit);// Minutes:separateDoubleDigits(RTC.m,minutesFirstDigit,minutesSecondDigit);writeOnNixieX(3,minutesFirstDigit);writeOnNixieX(4,minutesSecondDigit);// Seconds:if(repeatOn==false){separateDoubleDigits(tempTimeHolder,secondsFirstDigit,secondsSecondDigit);if(millis()-startTime<500UL){writeOnNixieX(5,secondsFirstDigit);writeOnNixieX(6,secondsSecondDigit);}elseif(millis()-startTime<1000UL){writeOnNixieX(5,10);writeOnNixieX(6,10);}else{startTime=millis();}}else// if on repeat button press don't blink{separateDoubleDigits(tempTimeHolder,secondsFirstDigit,secondsSecondDigit);writeOnNixieX(5,secondsFirstDigit);writeOnNixieX(6,secondsSecondDigit);repeatOn=false;startTime=millis();}}}/*------------------------------------------------------------------------------------------------------*//* Function for running test mode - it first tunrs off the HV power supply then it runs throught all * the numbers once, blinks the dots and sets the WS2811 LEDs to green then red and finally blue color. * When button 1 is pressed, it displays the value of the photoresistor readings. If resetTrigger is set * to true, it resets the function variables to be ready for the next run.: */voidtestMode(boolresetTrigger=false){// Local variables declaration:staticunsignedlonglastTime=0;// millis() memorystaticunsignedlonglastTimeLight=millis();// millis() memory for the light partstaticbytecounter=0;unsignedlongonTime=2200;// time in ms that each number stays onstaticboolfirstRunFlag=true;// flag to check if it's the first run of every instanceunsignedintlightValue=0;bytelightValueDigits=0;bytelightFirstDigit=0;bytelightSecondDigit=0;bytelightThirdDigit=0;bytelightFourthDigit=0;// Main code:if(resetTrigger==true)// reset variables{counter=0;firstRunFlag=true;return;}if(firstRunFlag==true)// check if it is the first run of each routine{rainbowEffectTrigger=false;colorWipeEffectTrigger=false;colorWheelEffectTrigger=false;for(inti=0;i<8;i++){wsStrip.setPixelColor(i,wsStrip.Color(255,0,0));}wsStrip.show();lastTime=millis();dotsOn(false);firstRunFlag=false;}if(testPhotoresistorFlag==false)// normal test part{switch(counter){case0:if(millis()-lastTime<onTime)// run for "onTime" duration{psuState(LOW);// turn off HV psu}else{counter++;lastTime=millis();dotsOn(true);psuState(HIGH);// turn on HV psu}break;case1:if(millis()-lastTime<onTime)// run for "onTime" duration{for(inti=0;i<8;i++){writeOnNixieX(i,0);}}else{counter++;lastTime=millis();dotsOn(false);}break;case2:if(millis()-lastTime<onTime)// run for "onTime" duration{for(inti=0;i<8;i++){writeOnNixieX(i,1);}}else{counter++;lastTime=millis();dotsOn(true);}break;case3:if(millis()-lastTime<onTime)// run for "onTime" duration{for(inti=0;i<8;i++){writeOnNixieX(i,2);}}else{counter++;lastTime=millis();dotsOn(false);for(inti=0;i<8;i++){wsStrip.setPixelColor(i,wsStrip.Color(0,255,0));}wsStrip.show();}break;case4:if(millis()-lastTime<onTime)// run for "onTime" duration{for(inti=0;i<8;i++){writeOnNixieX(i,3);}}else{counter++;lastTime=millis();dotsOn(true);}break;case5:if(millis()-lastTime<onTime)// run for "onTime" duration{for(inti=0;i<8;i++){writeOnNixieX(i,4);}}else{counter++;lastTime=millis();dotsOn(false);}break;case6:if(millis()-lastTime<onTime)// run for "onTime" duration{for(inti=0;i<8;i++){writeOnNixieX(i,5);}}else{counter++;lastTime=millis();dotsOn(true);}break;case7:if(millis()-lastTime<onTime)// run for "onTime" duration{for(inti=0;i<8;i++){writeOnNixieX(i,6);}}else{counter++;lastTime=millis();dotsOn(false);for(inti=0;i<8;i++){wsStrip.setPixelColor(i,wsStrip.Color(0,0,255));}wsStrip.show();}break;case8:if(millis()-lastTime<onTime)// run for "onTime" duration{for(inti=0;i<8;i++){writeOnNixieX(i,7);}}else{counter++;lastTime=millis();dotsOn(true);}break;case9:if(millis()-lastTime<onTime)// run for "onTime" duration{for(inti=0;i<8;i++){writeOnNixieX(i,8);}}else{counter++;lastTime=millis();dotsOn(false);}break;case10:if(millis()-lastTime<onTime)// run for "onTime" duration{for(inti=0;i<8;i++){writeOnNixieX(i,9);}}else{counter=0;testModeFlag=false;firstRunFlag=true;if(wsMode!=7&&wsMode!=8)// in modes 7 and 8 wipe effect is off so no reset needed{colorWipeEffect(true);// run once to reset the wipe effect}if(wsOff==false){wsModeHandler();}}break;default:break;}}else// photoresistor test part{dotsOn(false);if(millis()-lastTimeLight>500UL)// run every half second{lastTimeLight=millis();lightValue=analogRead(LDRPIN);lightValueDigits=numberOfDigits(lightValue);switch(lightValueDigits){case1:writeOnNixieX(1,0);writeOnNixieX(2,0);writeOnNixieX(3,0);writeOnNixieX(4,lightValue);writeOnNixieX(5,10);writeOnNixieX(6,10);break;case2:separateDoubleDigits(lightValue,lightFirstDigit,lightSecondDigit);writeOnNixieX(1,0);writeOnNixieX(2,0);writeOnNixieX(3,lightFirstDigit);writeOnNixieX(4,lightSecondDigit);writeOnNixieX(5,10);writeOnNixieX(6,10);break;case3:separateThreeDigits(lightValue,lightFirstDigit,lightSecondDigit,lightThirdDigit);writeOnNixieX(1,0);writeOnNixieX(2,lightFirstDigit);writeOnNixieX(3,lightSecondDigit);writeOnNixieX(4,lightThirdDigit);writeOnNixieX(5,10);writeOnNixieX(6,10);break;case4:separateFourDigits(lightValue,lightFirstDigit,lightSecondDigit,lightThirdDigit,lightFourthDigit);writeOnNixieX(1,lightFirstDigit);writeOnNixieX(2,lightSecondDigit);writeOnNixieX(3,lightThirdDigit);writeOnNixieX(4,lightFourthDigit);writeOnNixieX(5,10);writeOnNixieX(6,10);break;default:break;}}}}/*------------------------------------------------------------------------------------------------------*//* Function for handling the photoresistor - read the light in the room and adjust the WS2811 LEDs * brightness accordingly: */voidphotoresistorHandler(){// Local variables declaration:// WS2811 LEDs brightness part:staticunsignedintcount=0;staticunsignedlonglastTime=millis();staticunsignedintsum=0;unsignedintlightMedian=0;intcountReset=10;// how many counts (seconds) it takes before changing the brightness// Night mode part:staticunsignedlongnightCount=0;staticunsignedlonglastTimeNightMode=millis();staticboolnightEnd=false;// check if the night modes time has ended// Main code:// WS2811 LEDs brightness part:if(wsOff==false)// run only if the LEDs are on{if(millis()-lastTime>1000UL)// check the value of the photoresistor every second{lastTime=millis();count++;sum=analogRead(LDRPIN)+sum;lightMedian=sum/count;}if(count==countReset){wsBrightness=map(lightMedian,0,1023,BRIGHTNESSMIN,BRIGHTNESSMAX);wsStrip.setBrightness(wsBrightness);PRINT("\nBrightness set to: ",wsBrightness)if(setTimeModeFlag==false&&testModeFlag==false){wsModeHandler();}count=0;sum=0;}}// Night mode part:RTC.readTime();// get the time from the module - also populate rtc variables at every run// so that other functions can have updated values without having to read// the module again and again// Start checking for the light in the room only at the acp night hour or the night pause time:if(RTC.h==ACPNIGHTHOUR||(RTC.h>=NIGHTPAUSESTART&&RTC.h<NIGHTPAUSEEND)){if(millis()-lastTimeNightMode>2000UL)// check the value of the photoresistor every 2 seconds{PRINT("\nLDR: ",analogRead(LDRPIN))lastTimeNightMode=millis();if(analogRead(LDRPIN)<100)// check if the light in the room is low enough for the night acp{// and the pause routines to trigger, if not resetnightCount++;}else{nightCount=0;}}if(nightCount>=15)// if the light is low for many readings (30 seconds) start night mode{nightLightTrigger=true;}else// but if it gets brighter, end it immediately{nightLightTrigger=false;}nightEnd=false;}elseif(RTC.h==NIGHTPAUSEEND)// make sure that the night light and end triggers{// are false when night time endsif(nightEnd==false)// a check used for running once{nightEnd=true;nightLightTrigger=false;nightEndTrigger=false;if(wsWasOn==true){wsOff=false;wsModeHandler();}wsWasOn=false;if(psuState()==LOW){psuState(HIGH);// turn on HV psu}}}}/*------------------------------------------------------------------------------------------------------*//* Function for counting the number of digits of the photoresistor value - it gets the reading and * returns the number of the digits: */bytenumberOfDigits(unsignedintnumber){bytedigits=0;if(number==0){return1;}while(number!=0){number=number/10;digits++;}returndigits;}/******************************************************************************************************************************************************************************************************************/
_wzec989qrF.jpg?auto=compress%2Cformat&w=48&h=48&fit=fill&bg=ffffff)
_schematic_v7kjspq5c5_HnQjxycEuw.png)
_pcb_3ob1oaoeuo_U9JLLts4dh.png)
_schematic_v7kjspq5c5_HnQjxycEuw.png){kind=link}
_pcb_3ob1oaoeuo_U9JLLts4dh.png){kind=link}
