John Ellis
Published © Apache-2.0

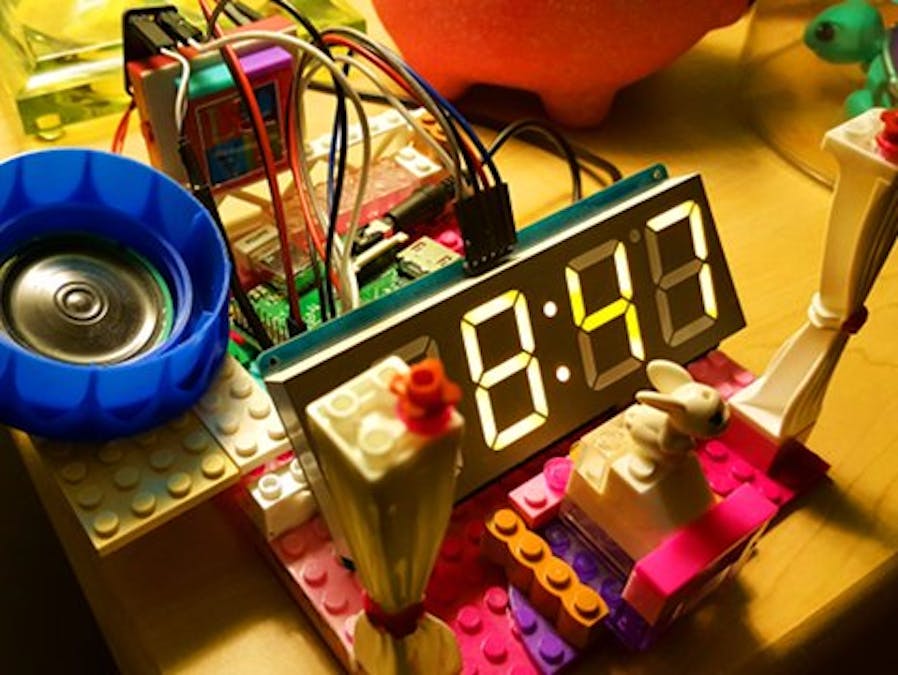

Hack Clock

A hackable alarm clock, made for experimentation in order to build programming skills as well as the basics of circuit building.

IntermediateFull instructions provided2 hours1,617
Hack Clock

Things used in this project

Hardware components

Raspberry Pi Zero Wireless
Raspberry Pi Zero Wireless
Although any network-connected Pi will work
×1
Adafruit 5V 2.4A Switching Power Supply with 20AWG MicroUSB Cable
×1
Adafruit 1.2" 4-Digit 7-Segment Display w/I2C Backpack
×1
Adafruit I2S 3W Class D Amplifier
×1
Adafruit 16GB Card with NOOBS
×1
Adafruit Thin Plastic Speaker
×1
SparkFun Tactile Button Assortment
×1
SparkFun jumper wires
×1
SparkFun Short breadboard wire
×1
SparkFun 4.7k resistors
×1

Software apps and online services

Hack Clock

Story

Read more

Schematics

HackClock GitHub Repo

Fritzing schematics contained within /docs

Code

HackClock GitHub Repo

The Hack Clock software that controls the clock and includes a web-based IDE
