Stephen Borsay
Published © GPL3+

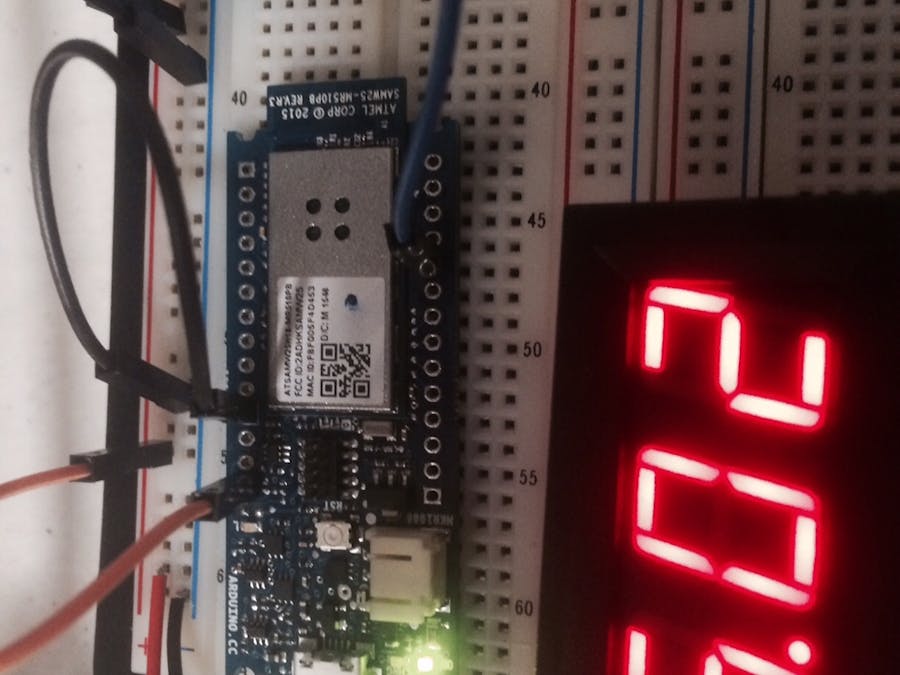

MKR1000 to ThingSpeak.com

A fairly simple project that attaches everyone's favorite environmental monitor, the DHT, to the Arduino MKR1000 then transmits sensor data.

IntermediateFull instructions provided2 hours7,188
MKR1000 to ThingSpeak.com

Things used in this project

Hardware components

Arduino MKR1000
Arduino MKR1000
×1
DHT11 Temperature & Humidity Sensor (4 pins)
DHT11 Temperature & Humidity Sensor (4 pins)
×1

Story

Read more

Schematics

Board image

Wire DHT data line to MKR100 pin 1 (5th pin up)
connect 5v and ground to DHT sensor, both of which are provided by the MKR1000

Code

MKR1000 to DHT to ThingSpeak Wireless cloud based Environmental Sensor graphing

Arduino
A combination of sketches from AdaFruit, WiFi101 WebClient, and ThingSpeak Arduino Templates.
/*
This sketch is a combination of ADAFruits DHT sketch, WiFi101 Webclient
and The arduino example from ThingSpeak
Modified by Stephen Borsay for the MKR1000, feel free to use
 */

#include <SPI.h> //you don't need this as we arn't using the shiled just chip
#include <WiFi101.h>
#include "DHT.h"

#define DHTPIN 1    // what pin we're connected to, pin1 is 5th pin from end

// Uncomment whatever DHT sensor type you're using!
#define DHTTYPE DHT11  // DHT 11
//#define DHTTYPE DHT21  // DHT 21
//#define DHTTYPE DHT22  // DHT 22

DHT dht(DHTPIN,DHTTYPE);

String apiKey ="YourApiKeyHere"; // api from ThingSpeak

char ssid[] = "YourSSIDHERE"; //  your network SSID (name)
char pass[] = "YourPasswordHere";    //your network password
int keyIndex = 0;     // your network key Index number (needed only for WEP)

//#define WEBSITE "api.thingspeak.com"

int status = WL_IDLE_STATUS;
// if you don't want to use DNS (and reduce your sketch size)
// use the numeric IP instead of the name for the server:
//IPAddress server(74,125,232,128);  // numeric IP for Google (no DNS)
char server[] = "api.thingspeak.com";    // name address for Google (using DNS)

// Initialize the Ethernet client library
// with the IP address and port of the server
// that you want to connect to (port 80 is default for HTTP):
WiFiClient client;

void setup() {
  //Initialize serial and wait for port to open:
  Serial.begin(9600);
  while (!Serial)
  {
    ; // wait for serial port to connect. Needed for native USB port only
  }

  // check for the presence of the shield:
  if (WiFi.status() == WL_NO_SHIELD) {
    Serial.println("WiFi shield not present");
    // don't continue:
    while (true);
  }

  // attempt to connect to Wifi network:
  while (status != WL_CONNECTED)
  {
    Serial.print("Attempting to connect to SSID: ");
    Serial.println(ssid);
    //Connect to WPA/WPA2 network.Change this line if using open/WEP network
    status = WiFi.begin(ssid, pass);

    // wait 10 seconds for connection:
    delay(10000);
  }

  Serial.println("Connected to wifi");
  printWifiStatus();

}

void loop() {

   // Wait a few seconds between measurements.
  delay(2000);

  //prefer to use float, but package size or float conversion isnt working
  //will revise in future with a string fuction or float conversion function

  int h = dht.readHumidity();
  // Read temperature as Celsius (the default)
  int t = dht.readTemperature();
  // Read temperature as Fahrenheit (isFahrenheit = true)
  int f = dht.readTemperature(true);

  // Check if any reads failed and exit early (to try again).
  if (isnan(h) || isnan(t) || isnan(f))
  {
    Serial.println("Failed to read from DHT sensor!");
    return;
  }

  // Compute heat index in Fahrenheit (the default)
  int hif = dht.computeHeatIndex(f, h);
  // Compute heat index in Celsius (isFahreheit = false)
  int hic = dht.computeHeatIndex(t, h, false);

  Serial.print("Humidity: ");
  Serial.print(h);
  Serial.print(" %\t");
  Serial.print("Temperature: ");
  Serial.print(t);
  Serial.print(" *C ");
  Serial.print(f);
  Serial.print(" *F\t");
  Serial.print("Heat index: ");
  Serial.print(hic);
  Serial.print(" *C ");
  Serial.print(hif);
  Serial.println(" *F\n");

    Serial.println("\nStarting connection to server...");
  // if you get a connection, report back via serial:
  if (client.connect(server, 80)) {
    Serial.println("connected to server");


          client.print(F("POST "));
          client.print("/update?key=apiKey&field1="
          +               (String) h
          +  "&field2=" +(String) t
          +  "&field3=" +(String) f
          +  "&field4=" +(String) hic
          +  "&field5=" +(String) hif
                                   );

          String tsData = "field1="   //need the length to give to ThingSpeak
          +             (String)  h
          +  "&field2=" +(String) t
          +  "&field3=" +(String) f
          +  "&field4=" +(String) hic
          +  "&field5=" +(String) hif
        ;


          client.print("POST /update HTTP/1.1\n");
          client.print("Host: api.thingspeak.com\n");
          client.print("Connection: close\n");
          client.print("X-THINGSPEAKAPIKEY: " + apiKey + "\n");
          client.print("Content-Type: application/x-www-form-urlencoded\n");
          client.print("Content-Length: ");
          client.print(tsData.length());  //send out data string legth to ts
          client.print("\n\n");
          client.print(tsData);
          client.stop();
          delay(1000);
    }

}


void printWifiStatus() {
  // print the SSID of the network you're attached to:
  Serial.print("SSID: ");
  Serial.println(WiFi.SSID());

  // print your WiFi shield's IP address:
  IPAddress ip = WiFi.localIP();
  Serial.print("IP Address: ");
  Serial.println(ip);

  // print the received signal strength:
  long rssi = WiFi.RSSI();
  Serial.print("signal strength (RSSI):");
  Serial.print(rssi);
  Serial.println(" dBm");
}

Code in GitHub

Same code but in GitHub for MKR1000
