Music reactive LED Strip

Music reactive LED Strips are great for lighting projects. You can make this with Arduino and also without Arduino.

BeginnerFull instructions provided2 hours5,011

Things used in this project

Hardware components

Arduino NANO UTSOURCE:

PCB Board UTSOURCE:

9v Battery UTSOURCE:

Female Header UTSOURCE:

Heat Shrink Tube UTSOURCE:

LED strip UTSOURCE:

Different Values of Resistor UTSOURCE:

Screw Terminal Block UTSOURCE:

Sound Sensor UTSOURCE:

IRFZ44N MOSFET UTSOURCE:

BC547 Transistor UTSOURCE:

Hand tools and fabrication machines

Soldering Iron UTSOURCE:

Iron Stand UTSOURCE:

Nose Pliers UTSOURCE:

Flux UTSOURCE:

Story

Introduction:

Music reactive LED Strips are great for lighting projects. You can make this with Arduino and also without Arduino. In this article, we are going to discuss how to make Music Reactive LED Strip by using Arduino Programming. The code is a simple working process is also simple. You just need to understand the working principle.

Watch the YouTube Video:

If you want full detailed Instructions about the video then watch the video till the END. And you will understand everything about the Music reactive LED Strip.

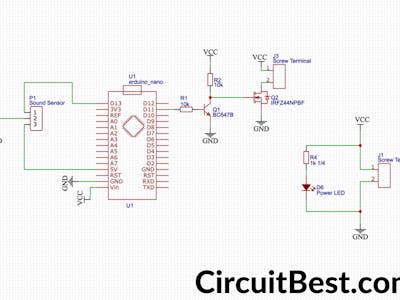

Schematics of Music Reactive LED Strip:

How does the Music reactive LED Strip circuit work?

This is an easyMicrocontrollerbased project. The microcontroller gives a signal to the connected Transistor's Base and it drives an N-Channel MOSFET. And this MOSFET drives the higher loads like LED strips.

Now let's talk about how the signal is generated from the microcontroller. At first, the Audio sensor's out pin gives a signal. Then it is taken through Arduino. If the signal is in a certain limit then only the led strip will run.

If the Condenser mic didn't get a signal then the sensor module doesn't give output. So, in this case, the LED strip will not run.

This process repeats over and over.

Code

Music reactive LED strip Code

/*
Code Name: Music Reactive Led Strip
Code URI: https://circuitbest.com/category/arduino-projects/
Author: Creative Creator
Author URI: https://www.youtube.com/channel/UCJoXoKcfAo4j9XWDlxCWMyg
Description: Music Reactive LED Strip with Arduino Nano
Version: 1.0
License: Remixing or Changing this Thing is allowed. Commercial use is not allowed.
*/


int Sound_Sensor = 13;                //initialize Sound Sensor Pin
int LED_Strip = 11;                   //initialize 12V LED Strip Pin

void setup()
{
  pinMode (Sound_Sensor, INPUT);      //define Sound Sensor as input
  pinMode (LED_Strip, OUTPUT);        //define LED Strip as output
}

void loop()
{
  int Store_Data = digitalRead (Sound_Sensor);    //define variable of the Sound Sensor status
                                                  //get the value of the Sensor

  if (Store_Data == 1)                 //When Sensor gets a signal
  {
    digitalWrite(LED_Strip, HIGH);     //LED_Strip will be on
  }

  else                                //If no signal is found
  {
    digitalWrite(LED_Strip, LOW);     //LED_Strip strip will be off
  }

}

Music reactive LED Strip
