Simple LED Flasher Circuit with IRFZ44N MOSFET

Introduction:

This is a small-sized LED flasher Circuit build with IRFZ44N MOSFET and a Multi-color LED. The IRFZ44N is an N-Channel Enhancement type MOSFET thereto can Deliver high Output for easy LED Flasher Circuit. This Circuit also works with other MOSFETs also. that's just about it and you'll use the Circuit for Flashing Your Bike Light. I will be able to thank Utsource for sponsoring.

Watch Video for LED Flasher:

Watch the YouTube video from the Creative Creator for more detailed instructions. You can see step by step process for making the Simple LED Flasher.

How does the IRFZ44N LED Flasher Circuit work?

• This is an easy circuit supported RGB LED Color Change.
• The RGB LED D1 and therefore the Resistor R1 make a potential divider.
• When the LED Changes the color then the potential divider middle point makes a sudden change in voltage. Then this sudden change Triggers the MOSFET’s, GATE Pin. Whenever the MOSFET’s GATE PIN is triggered then the MOSFET became conductive.
• As a result, Current flows from Dran to Source and therefore the LOAD which is connected with the MOSFET are going to be powered.
• The Triggering process lasts for a brief time. And multiple triggering happens during this case. due to multiple triggering,
• The MOSFET is going to be conducive for multiple times. as a result, The LED flashes by a fraction of your time.

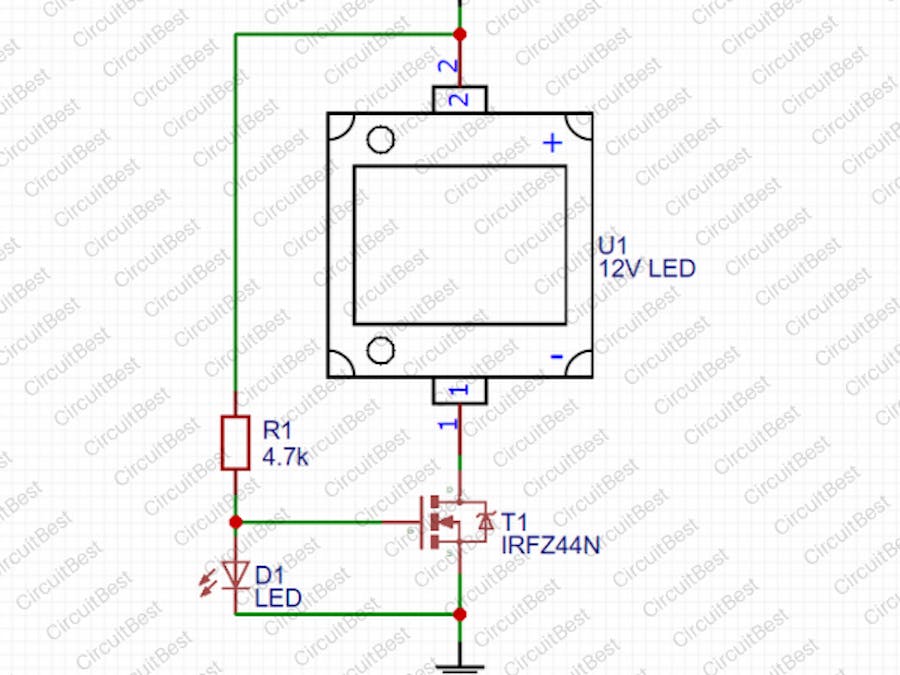

Schematics for IRFZ44N Flasher:

Conclusion:

All in all, we will say that there's numerous Application of LED Strip Dimmer. you'll make 100W Dimmer circuit, Motor Speed Controller with this board. The components are so cheap and may be found from Utsource and also in local shops. an equivalent sort of security protection is often arranged with Microcontrollers like Arduino, Raspberry Pi, PIC ICs, and lots of other controllers. But they aren't cheap. So, this is often an easily led dimmer with minimal components.
