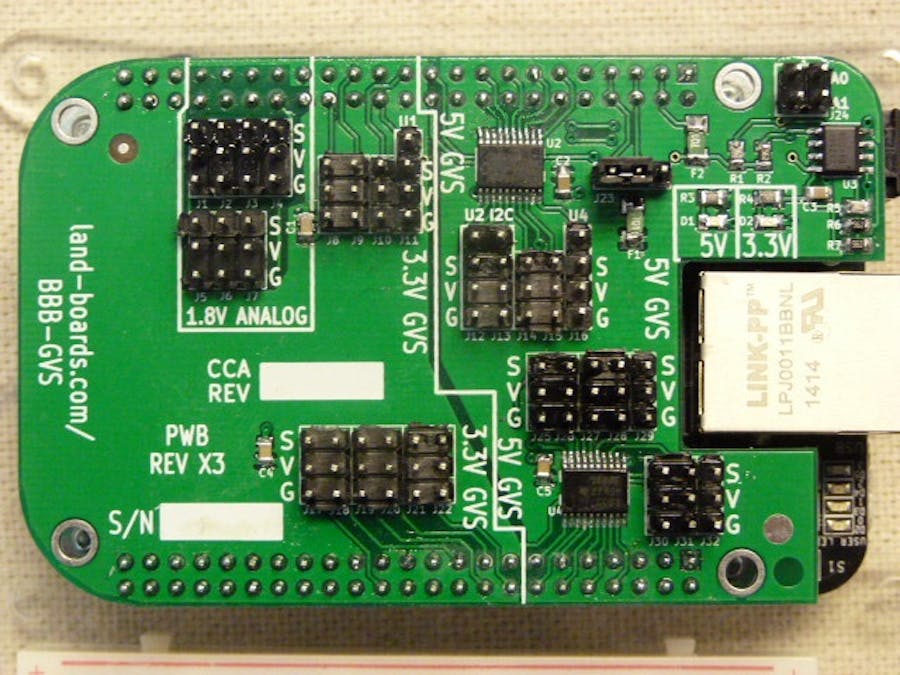

BBB-GVS - A GVS Cape for the Beaglebone Black

Features

Extensive I/O connections:

• (5) 5V GPIOs: J14, J15, J26, J27, J28
• (2) 5V UART connections (auto direction detection): J12, J16
• (1) 5V I2C bus connections (auto direction detection): J13
• (1) 5V PWM: J25
• (4) 5V Timers: J29-J32
• (1) 3.3V UART: J11
• (7) 3.3V GPIOs: J9, J10, J17, J19, J20, J21, J22
• (1) 3.3V SPI_D1: J8
• (1) 3.3V PWM: J18
• (7) 1.8V analog GVS connections with analog reference voltage/ground: J1-J7
• 5V pins are all ESD protected pins with 15 kV of protection
• Fuses on 5V and 3.3V power protect the Beaglebone from miswired sensors
• Selectable 5V source (SYS_5V or VDD_5V) - J22
• Cape configuration EEPROM with address select jumpers J24
• Beaglebone Black form factor

Homepage: http://land-boards.com/blwiki/index.php?title=BBB-GVS
