SMS-based Home Automation Using GSM Module

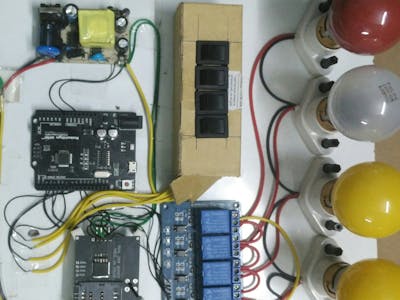

Use SMS commands to control various devices at your home.

BeginnerShowcase (no instructions)1 hour6,294
SMS-based Home Automation Using GSM Module

Things used in this project

Schematics

Home automation over SMS

Code

Home automation over SMS

C/C++
Control electrical appliances using SMS commands.
#include <SoftwareSerial.h>
#include <String.h>
#define NO_OF_DEV 4
int devices[4] = {2 , 3 , 4 , 5}; // Device pins
int switches[4] = {6 , 7 , 8 , 9}; // Switch pins
int d_status[4]; // Device status
int s_status[4]; // Status of switches
int toggle, stat;
String phone_num , buffer;
String id[4] = {"LED 1", "LED 2", "LED 3", "LED 4"};
SoftwareSerial SIM800(10 , 11);

void setup()
{
  Serial.begin(4800); // Serial Monitor baud rate
  SIM800.begin(4800); // GSM module baud rate
  delay(40000);// 40s delay for the GSM module to lock on network (had issues with the GSM module)
  SIM800.print("AT+CNMI=2,2,0,0,0\r"); // Blurt out contents of new SMS upon receipt
  delay(100);
  SIM800.print("AT+CMGF=1\r"); // Set SMS mode to text
  delay(100);
  for(int i = 0;i < NO_OF_DEV;i++)
  {
      pinMode(switches[i] , INPUT_PULLUP);
      pinMode(devices[i] , OUTPUT);
  }
  for(int i = 0;i < NO_OF_DEV;i++)
  {
      digitalWrite(devices[i] , HIGH);
  }
  for(int i = 0;i < NO_OF_DEV;i++)
     d_status[i] = 1; // All devices are OFF by default
  for(int i = 0;i <= NO_OF_DEV;i++)
     s_status[i] = digitalRead(switches[i]); // Read initial status of switches
  toggle = 0;
  stat = 0;
  buffer.remove(0);
  pinMode(13,OUTPUT);
  digitalWrite(13,HIGH);
  Serial.println("Device is ready.");
}
void loop()
{
    for(int i = 0;i < NO_OF_DEV;i++)
       if(s_status[i] != digitalRead(switches[i])) // Control from switch
       {
           s_status[i] = !s_status[i];
           d_status[i] = !d_status[i]; // Toggle switch and device status
           toggle = 1;
           stat = 1;
           phone_num = "+XXXXXXXXXXX"; //Default recipient of status on toggling of switch
       }
    buffer = readSIM800();
    if (buffer.startsWith("\r\n+CMT: "))
    {
        phone_num = get_num(buffer);
        Serial.println("*** RECEIVED SMS *** from " + phone_num);
        buffer.remove(0, 51); // Remove first 51 characters
        int len = buffer.length();
        buffer.remove(len - 2); // Remove \r\n from tail
        Serial.println(buffer);
        Serial.println("*** END SMS ***");

        if(buffer.startsWith("l") || buffer.startsWith("L"))
        {
            buffer.remove(0,1);
            int i = int(buffer[0]) - int('0') - 1;
            buffer.remove(0,2);
            d_status[i] = toggle_command(buffer);
            toggle = 1;
            stat = 1;
        }
        else if((buffer == "s") || (buffer == "S"))
        {
            stat = 1;
        }
    }
    if(toggle)
    {
       for(int i = 0;i < NO_OF_DEV;i++)
       {
         if(d_status[i])
            digitalWrite(devices[i] , HIGH);
         else
            digitalWrite(devices[i] , LOW);
       }
       toggle = 0;
    }
    if(stat)
    {
      send_status(phone_num);
      stat = 0;
    }
}
String readSIM800() // Save whole SMS into a string
{
    String buffers;
    char c;
    while (SIM800.available())
    {
        c = SIM800.read();
        buffers.concat(c);
        delay(10);
    }
    return buffers;
}
String get_num(String buffer)
{
  String phone_num;
  int i = 9; // Starting index of phone number
  while(buffer.charAt(i) != '"')
  {
      phone_num.concat(buffer.charAt(i));
      i++;
  }
  return(phone_num);
}
int toggle_command(String buffers)
{
  if((buffer == "OFF") || (buffer == "off"))
     return 1;
  else if((buffer == "ON") || (buffer == "on"))
     return 0;
}
void send_status(String phone_num)
{
  SIM800.println("AT+CMGS=\""+ phone_num +"\"\r");
  delay(50);
  for(int i = 0;i < NO_OF_DEV;i++)
  {
     if(!d_status[i])
        SIM800.println(id[i] + " is ON");
     else
        SIM800.println(id[i] + " is OFF");
     delay(100);
  }
  SIM800.println((char)26);
  Serial.println("Status sent.");
}
