Touchscreen Theremin

/*
 * Theremin using a 240x320 (2.4") touchscreen.
 * Screen is set in landscape mode. Touch on screen at p reads coordinates p=(x,y).
 * Larger side of screen determines frequency (y), while shorter side determines duration (x).
 * (Attach speaker between digital pin 10 and ground; needs to be a PWM-enabled pin.)
 *
 * N.B.- tone() clashes with PWM on pins 3 and 9, because they use the same timer.
 * The TFT_LCD touchscreen used here uses most of Arduino UNO's pins, but some are for the SD card.
 * If no SD card is being used, we may use one of the PWM-enabled pins in the SD block,
 * such as pin 10 used here.
 */

#include <Adafruit_GFX.h>
#include <MCUFRIEND_kbv.h>
#include <TouchScreen.h>

MCUFRIEND_kbv tft;          // define tft_lcd object (thin film transistor lcd)

#define MINPRESSURE 500     // to avoid spurious events
// #define MAXPRESSURE 1000

// Touch panels vary; calibrate to get proper pins:
/*
 These are the pins for the shield coordinates,
 obtained from TouchScreen_Calibr_native example
 (in MCUFRIEND.kvb examples):
*/
#define YP A2  // coordinate y plus
#define XM A1  // coordinate x minus
#define YM 6   // coordinate y minus
#define XP 7   // coordinate x plus

const int TS_LEFT=177,TS_RT=952,TS_TOP=213,TS_BOT=956;    // 240x320 ID=0x9340

TouchScreen ts = TouchScreen(XP, YP, XM, YM, 300);    // define touchscreen object

#define BLACK 0x0000
#define BLUE 0x001F
#define RED 0xF800
#define CYAN 0x07FF
#define LIGHTGREY 0xC618
#define GREY 0x8410
#define WHITE 0xFFFF

#define sp 10           // pin for speaker (connect speaker between pin 10 and ground;
                        //  needs to be a PWM-enabled pin)

int fMin = 130;         // lowest frequency (C3)
int fMax = 1500;        // highest frequency (C7)
int tMin = 100;         // minimum note duration
int tMax = 1000;        // maximum note duration

TSPoint tp;             // (x,y) coordinates of point touched on screen, and
                        //  z coordinate for pressure

void setup()
{
  Serial.begin(9600);             // only use for debugging
  pinMode(sp, OUTPUT);            // speaker output
  digitalWrite(sp, LOW);

  tft.reset();
  uint16_t ID = tft.readID();     // get ID of screen

  if (ID == 0xD3D3) ID = 0x9486;  // write-only shield
  tft.begin(ID);
  tft.setRotation(1);             // 0 = portrait; 1 = landscape
  tft.fillScreen(LIGHTGREY);

  //welcome screen
  uint16_t width = tft.width() - 1;
  uint16_t height = tft.height() - 1;
  uint8_t border = 10;
  tft.fillScreen(GREY);
  tft.fillRect(border, border, (width - border * 2), (height - border * 2), WHITE);
  tft.setTextSize (3);
  tft.setTextColor(RED);
  tft.setCursor ((tft.width()/2)-97, 40);
  tft.println("TOUCHSCREEN");
  tft.setCursor ((tft.width()/2)-70, 85);
  tft.println("THEREMIN");
  tft.setCursor ((tft.width()/2)-17, 160);
  tft.setTextSize (2);
  tft.setTextColor(BLACK);
  tft.println("ENA");
  tft.setTextColor(BLUE);
  tft.setCursor ((tft.width()/2)-95, 250);
  tft.println("Touch to Proceed");

  //wait for touch
  do{
    tp= ts.getPoint();
    pinMode(XM, OUTPUT);  // Pins for TFT control
    pinMode(YP, OUTPUT);
    } while(tp.z < MINPRESSURE);

  tp.x = map(tp.x, TS_LEFT, TS_RT, 0, tft.width());
  tp.y = map(tp.y, TS_TOP, TS_BOT, 0, tft.height());

  // theremin screen
  tft.fillScreen(LIGHTGREY);
  tft.setTextSize (2);
  tft.setTextColor(BLUE);
}


void loop()
{
  // wait for touch:
  do {
      tp= ts.getPoint();
      pinMode(XM, OUTPUT);  // Pins for TFT control
      pinMode(YP, OUTPUT);
     } while(tp.z < MINPRESSURE);

  // calculate frequency and duration; display them and output sound to speaker:
   if (tp.z >= MINPRESSURE)
    {
      unsigned int dur = map(tp.x, TS_LEFT, TS_RT, tMin, tMax);     // map to note duration in ms
      unsigned int freq = map(tp.y, TS_TOP, TS_BOT, fMin, fMax);    // map to frequency from C3 to C7

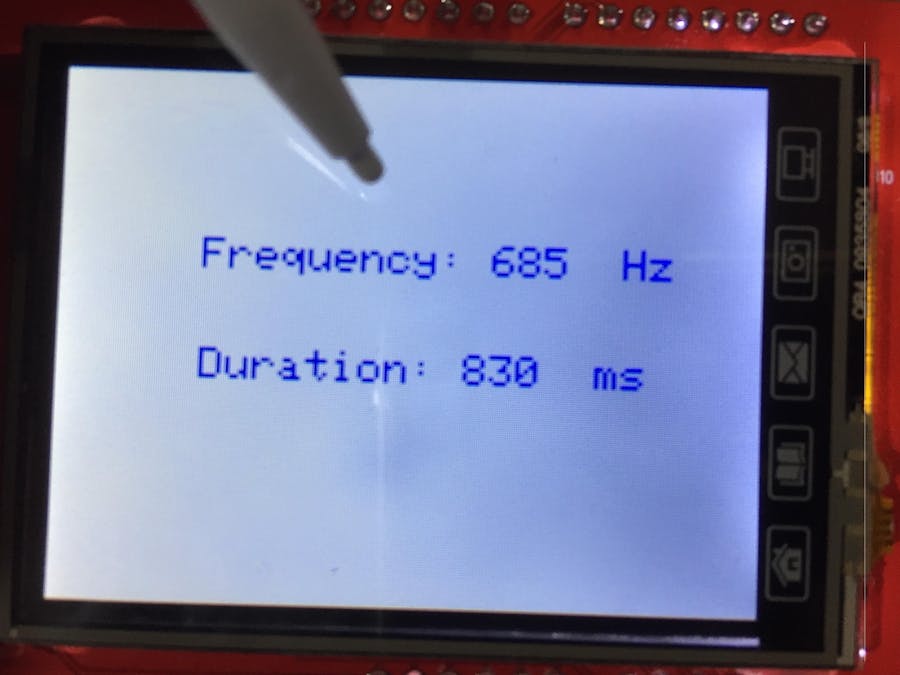

      tft.setCursor ((tft.width()/2)-95, 75);
      tft.print("Frequency: ");
      tft.print(freq);
      tft.print("  Hz");
      tft.setCursor ((tft.width()/2)-95, 125);
      tft.print("Duration: ");
      tft.print(dur);
      tft.print("  ms");

      tone(sp, freq, dur);                    // play note

      delay(dur + 100);                       // wait for duration of note + 100ms
      noTone(sp);                             // kill sound
      tft.fillScreen(LIGHTGREY);              // clear screen
      tp.z=0;                                 // reset pressure for next touch
    }
}
