Eduardo Gimeno
Created October 9, 2017

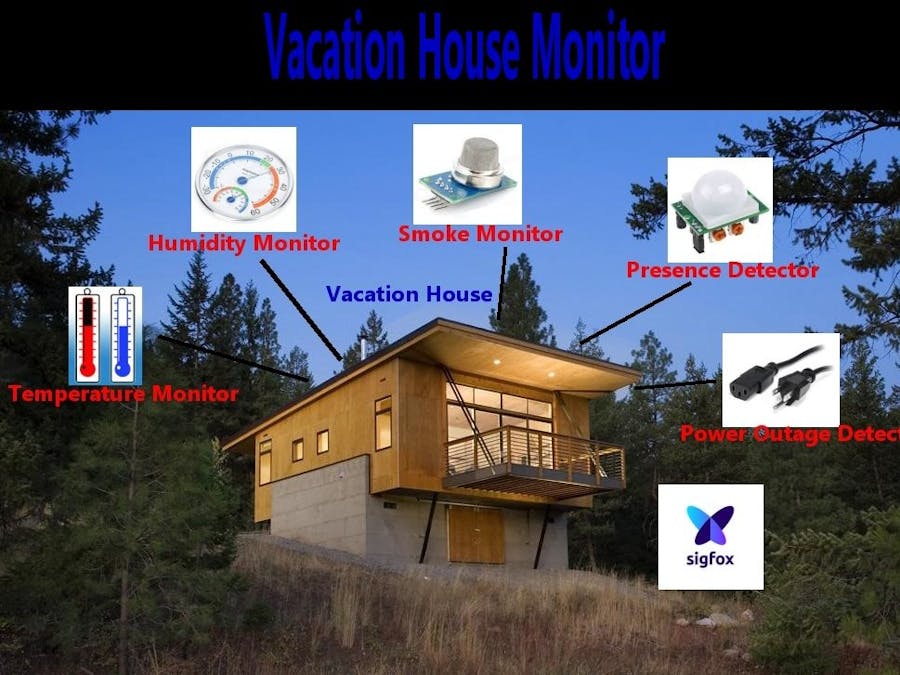

Second House Remote monitor

This project will help owners of a second house (summer house, vacation house, etc...) to stay connected to what's going on in the premises.

371
Second House Remote monitor

Things used in this project

Hardware components

Arduino MKR Fox 1200
Arduino MKR Fox 1200
×1
6V 300mAh Solar Panel
×1
DHT22 Temperature Sensor
DHT22 Temperature Sensor
×1
MQ2 Smoke and gases detector
×1
TP4051 battery charger
×1
LiPo 3.7V 650mAh Battery cell
×1
1N4007 – High Voltage, High Current Rated Diode
1N4007 – High Voltage, High Current Rated Diode
To reduce the woltage from the LiPO by 0.7V so its usable by MKRFOX1200
×1
Optocoupler
To detect presence of Main current (along with a bunch of passive components, like resistor, diode and capacitor)
×1
