Raven - RISC-V Microcontroller based on PicoRV32 Core

ASIC implementation of the PicoRV32 PicoSoC in X-Fab XH018. It contains two ADCs, a DAC, comparator, bandgap, RC oscillator and other IP.

AdvancedWork in progress10 hours8,115
Raven - RISC-V Microcontroller based on PicoRV32 Core

Things used in this project

Hardware components

Efabless RAVEN_SOC - RISC-V CPU.
×1
XSPRAM_1024X32_M8P Single Port SRAM Hard IP
Made by X-FAB
×1
3.3V/1.8V Linear Voltage Regulator Hard IP
Made by X-FAB
×1
10-bit Successive Approximation ADC Hard IP
Made by X-FAB
×1

Software apps and online services

efabless - ASIC Design Toolbox

Story

Read more

Schematics

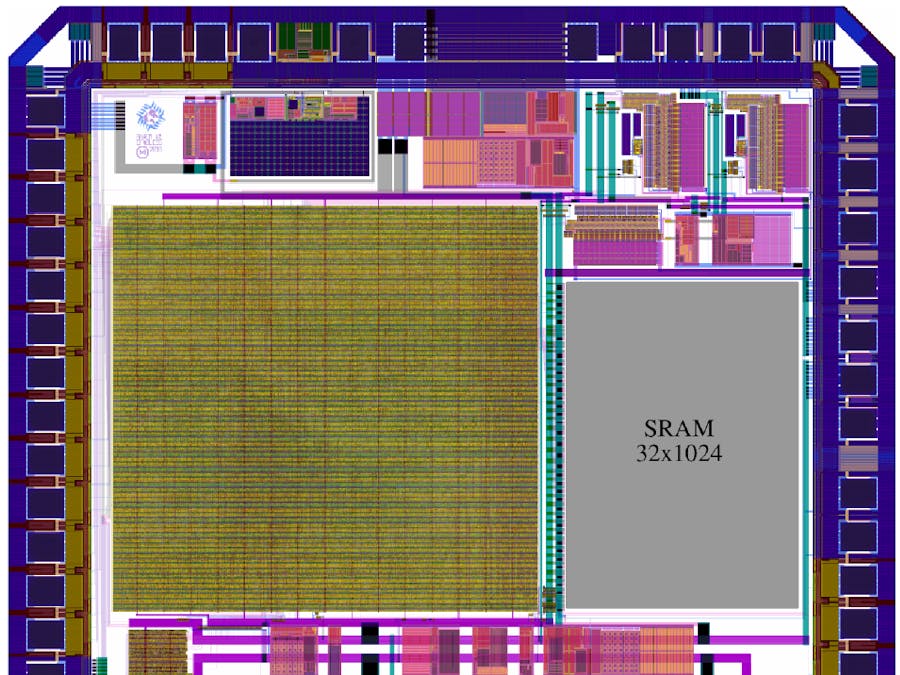

Raven SoC Layout

Raven SoC Block Diagram

Code

RAVEN on GitHub

Silicon-validated SoC implementation of the PicoSoc/PicoRV32
