RGB LED Strip Controller Circuit

➢ Step descriptions

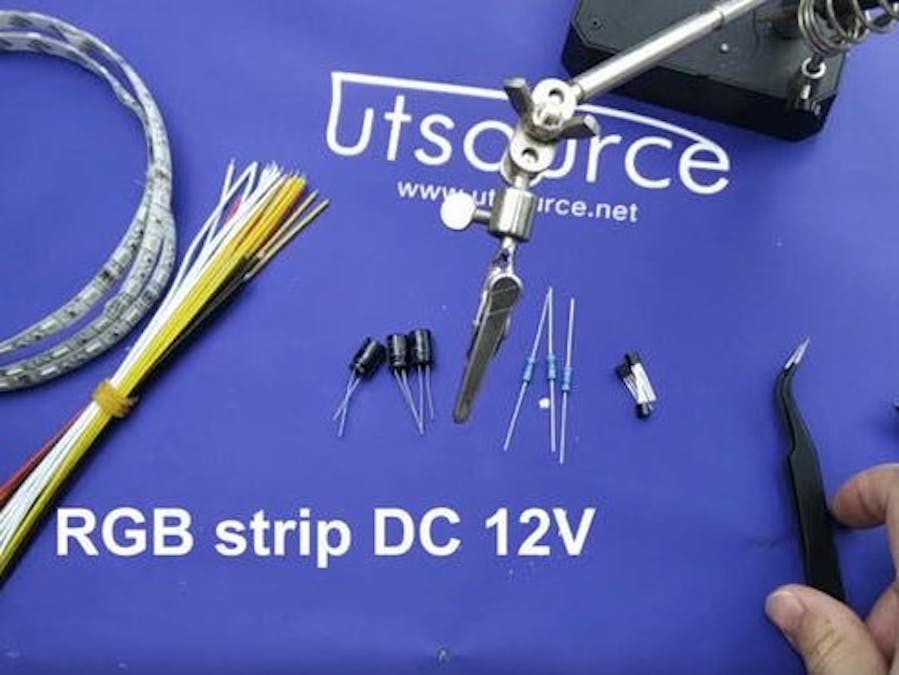

✦ Step 1: Prepare all the part need in this videos: 8050 transistor X3, 220uF capacitor 8*10mm X3, 10k resistor 0.5W X3, RGB strip DC 12V X1 and Some wire jumpers.

✦ Step 2: Solder all the transistors, capacitors and resistors one by one as showed in the pic below.

✦ Step 3: Then solder the jumper as showed in the pic below.

✦ Step 4: Cut a piece of solder and solder it to the other end of the 3 resistors.

✦ Step 5: Use another piece of solder and solder it to the other pins of the 3 transistors.

✦ Step 6: Solder wires as showed in the pic.

✦ Step 7: Solder the wires to the RGB BLED.

✦ Step 8: Connect it to the power supper and the RGB LED is shinning.

Products list

• 8050 transistor X3
• 220uF capacitor 8*10mm X3
• 10k resistor 0.5W X3
• RGB strip DC 12V X1
• Some wire jumpers
