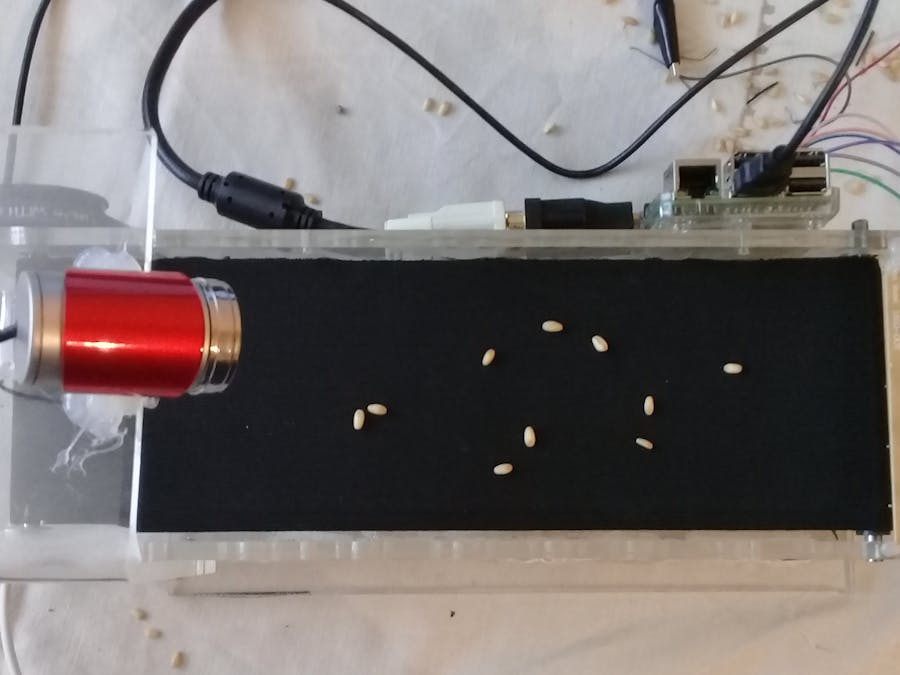

Grain cleaning and sorting with machine vision

#!/usr/bin/env python
import threading
import device_patches       # Device specific patches for Jetson Nano (needs to be before importing cv2)
import RPi.GPIO as GPIO
from time import sleep     #time
from array import *
GPIO. setwarnings ( False ) #
GPIO. setmode ( GPIO.BOARD ) #
GPIO. setup ( 11 , GPIO.OUT, initial=GPIO.LOW ) #
leds= array('B',[11,13,15,19,21])# GPIO Pin numbers for actuator control
aa=0
yy=0

for i in range(len(leds)):

    GPIO. setup ( leds[i] , GPIO.OUT, initial=GPIO.LOW )



for i in range(0,5):
    GPIO.output(leds[i] , GPIO.HIGH) # Turn on actuator
    sleep(0.3)                  # Sleep for 0,3 second
    GPIO.output(leds[i] , GPIO.LOW)  # Turn off actuator
    sleep(0.3)



#Non blocking Delay function
def LED_Off_Wait( wait_time,IO_port ):
    threading.Timer(wait_time, lambda: GPIO.output(IO_port, False)).start()


import cv2
import os
import sys, getopt
import signal
import time
from edge_impulse_linux.image import ImageImpulseRunner
GPIO.setwarnings(False) # Ignore warning for now
GPIO.setmode(GPIO.BOARD) # Use physical pin numbering




runner = None
# if you don't want to see a camera preview, set this to False
show_camera = True
if (sys.platform == 'linux' and not os.environ.get('DISPLAY')):
    show_camera = False

def now():
    return round(time.time() * 1000)

def get_webcams():
    port_ids = []
    for port in range(5):
        print("Looking for a camera in port %s:" %port)
        camera = cv2.VideoCapture(port)
        if camera.isOpened():
            ret = camera.read()[0]
            if ret:
                backendName =camera.getBackendName()
                w = camera.get(30)
                h = camera.get(40)
                print("Camera %s (%s x %s) found in port %s " %(backendName,h,w, port))
                port_ids.append(port)
            camera.release()
    return port_ids

def sigint_handler(sig, frame):
    print('Interrupted')
    if (runner):
        runner.stop()
    sys.exit(0)

signal.signal(signal.SIGINT, sigint_handler)

def help():
    print('python classify.py <path_to_model.eim> <Camera port ID, only required when more than 1 camera is present>')

def main(argv):
    try:
        opts, args = getopt.getopt(argv, "h", ["--help"])
    except getopt.GetoptError:
        help()
        sys.exit(2)

    for opt, arg in opts:
        if opt in ('-h', '--help'):
            help()
            sys.exit()

    if len(args) == 0:
        help()
        sys.exit(2)

    model = args[0]

    dir_path = os.path.dirname(os.path.realpath(__file__))
    modelfile = os.path.join(dir_path, model)

    print('MODEL: ' + modelfile)

    with ImageImpulseRunner(modelfile) as runner:
        try:
            model_info = runner.init()
            print('Loaded runner for "' + model_info['project']['owner'] + ' / ' + model_info['project']['name'] + '"')
            labels = model_info['model_parameters']['labels']
            if len(args)>= 2:
                videoCaptureDeviceId = int(args[1])
            else:
                port_ids = get_webcams()
                if len(port_ids) == 0:
                    raise Exception('Cannot find any webcams')
                if len(args)<= 1 and len(port_ids)> 1:
                    raise Exception("Multiple cameras found. Add the camera port ID as a second argument to use to this script")
                videoCaptureDeviceId = int(port_ids[0])

            camera = cv2.VideoCapture(videoCaptureDeviceId)
            ret = camera.read()[0]
            if ret:
                backendName = camera.getBackendName()
                w = camera.get(3)
                h = camera.get(4)
                print("Camera %s (%s x %s) in port %s selected." %(backendName,h,w, videoCaptureDeviceId))
                camera.release()
            else:
                raise Exception("Couldn't initialize selected camera.")

            next_frame = 0 # limit to ~10 fps here

            for res, img in runner.classifier(videoCaptureDeviceId):
                if (next_frame > now()):
                    time.sleep((next_frame - now()) / 1000)

                # print('classification runner response', res)

                if "classification" in res["result"].keys():
                    print('Result (%d ms.) ' % (res['timing']['dsp'] + res['timing']['classification']), end='')
                    for label in labels:
                        score = res['result']['classification'][label]
                        print('%s: %.2f\t' % (label, score), end='')
                    print('', flush=True)

                elif "bounding_boxes" in res["result"].keys():
                    global yy
                    global aa
                    print('Found %d bounding boxes (%d ms.)' % (len(res["result"]["bounding_boxes"]), res['timing']['dsp'] + res['timing']['classification']))
                    for bb in res["result"]["bounding_boxes"]:
                        print('\t%s (%.2f): x=%d y=%d w=%d h=%d' % (bb['label'], bb['value'], bb['x'], bb['y'], bb['width'], bb['height']))

   #number of actuator -- if bb['x']=42   then     number=42//19=2
                        aa=bb['x']//19
                        yy=bb['y']
                        if yy<10: #threshold value for actuating the actuator
                            GPIO.output(leds[aa], GPIO.HIGH) # Turn on actuator
                            LED_Off_Wait(0.2,leds[aa])
                        yy=20


                        img = cv2.rectangle(img, (bb['x'], bb['y']), (bb['x'] + bb['width'], bb['y'] + bb['height']), (255, 0, 0), 1)






                if (show_camera):
                    cv2.imshow('edgeimpulse', cv2.cvtColor(img, cv2.COLOR_RGB2BGR))
                    if cv2.waitKey(1) == ord('q'):
                        break

                next_frame = now() + 100
        finally:
            if (runner):
                runner.stop()

if __name__ == "__main__":
   main(sys.argv[1:])
