Driver circuits are used to control the other components or circuits. MOSFET / IGBT drivers are used to drive the Gate of high power MOSFETs and IGBTs. MOSFET/ IGBT is a voltage controlled device that is used for switching or amplification of the electrical signals.
IR2118 is a high voltage, high speed MOSFET/ IGBT driver. Proprietary HVIC and latch immune CMOS enables ruggedized monolithic construction. Input to IC is compatible with standard CMOS output. The floating channel can be used to drive N channel MOSFET or IGBT in high or low side configuration.
Features of IR2118
Floating channel design for bootstrap operation
- Floating channel design for bootstrap operation
Tolerant to negative transient voltage
- Tolerant to negative transient voltage
Gate drive supply voltage range (10-20 V)
- Gate drive supply voltage range (10-20 V)
Under voltage lockout
- Under voltage lockout
CMOS Schmitt trigger inputs with pull down
- CMOS Schmitt trigger inputs with pull down
Available lead free
- Available lead free
Replacement Part
L6380/ L6381
Pictorial View

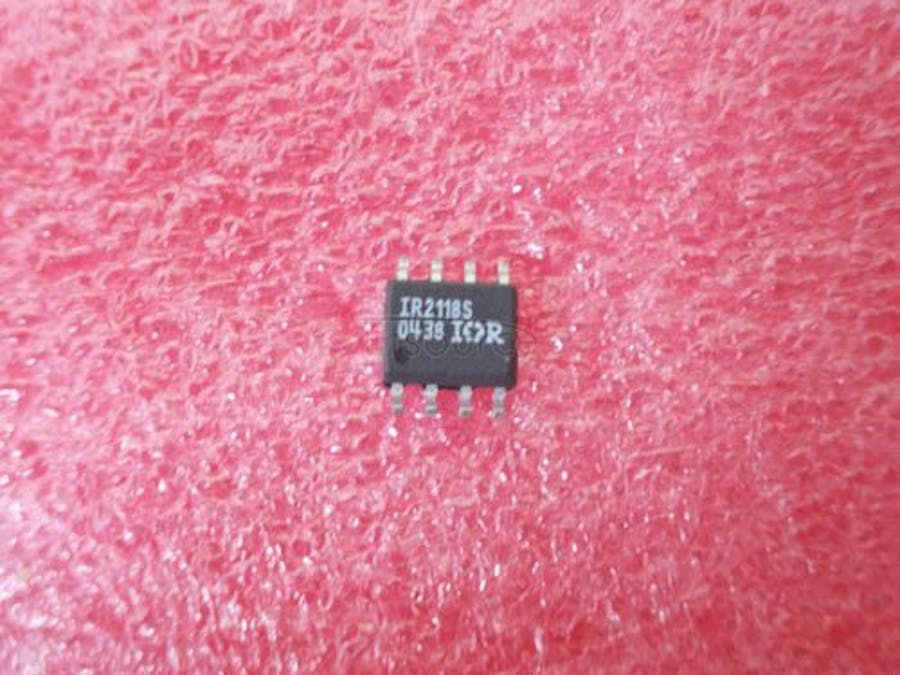

Pictorial view of the utsource IR2118 is shown below, it is available in 8 lead PDIP and SOIC packages
Working Principle
IR2118 consists of a Schmitt trigger, pulse generator, under voltage detector, pulse filter and RS latch. Input signal is applied at pin 2 (/IN) of the IC, which passes through the Schmitt trigger, this signal drives the pulse generator. Pulse generator drives the built in MOSFETs to produce the input signals for the SR latch. Depending upon the response of the latch high side or low side MOSFETs are operated. Output of the IC is CMOS compatible which is used to drive the externally connected high power devices like MOSFETs and IGBTs. Since it is a single channel device only one device can be operated with IR2118
Application
IR2118 can be utilized in the following applications
Half bridge applications
- Half bridge applications
Full bridge applications
- Full bridge applications
Gate drive for high power MOSFET and IGBT
- Gate drive for high power MOSFET and IGBT
High Power MOSFET Driver
Application of IR2118 as high power MOSFET driver is shown in circuit diagram below
IGBT Driver
IGBT driver circuit for individual gate resistance for parallel IGBTs is shown in circuit diagram below. This circuit can be used to improve the efficiency of DC DC boost converter
