CO2-Monitor

/*******************************************************************************************************
 *
 *
 *   Einbinden von Libraries
 *
 *
 *******************************************************************************************************/


//
// EEPROM
//

#include <EEPROM.h>


//
// Time
//

#include "TimeLib.h"
#include <DS1307RTC.h>


//
// Display
//

/*
PINOUT:
MODUL                  Arduino pin
============================================
BLK                    GND
BLA                    +3.3V (LED backlight)
PSB (SPI)              GND (-> Serielle Daten erwarten)
E (SCK)                D13
R/W (MOSI)             D11
RS (CS)                D10
VCC                    +5V
GND                    GND
*/


#include "U8glib.h"
#define CS_PIN 10
U8GLIB_ST7920_128X64_1X u8g(CS_PIN);

define logo_width 64
#define logo_height 64

static const unsigned char PROGMEM logo_bmp[] = {
0x0, 	0x0, 	0x0, 	0xE0, 	0x7, 	0x0, 	0x0, 	0x0,
0x0, 	0x0, 	0x0, 	0x10, 	0x8, 	0x0, 	0x0, 	0x0,
0x0, 	0x0, 	0x0, 	0x10, 	0x8, 	0x0, 	0x0, 	0x0,
0x0, 	0x0, 	0x1C, 	0x10, 	0x8, 	0x38, 	0x0, 	0x0,
0x0, 	0x0, 	0x13, 	0x10, 	0x8, 	0xC8, 	0x0, 	0x0,
0x0, 	0xC0, 	0x20, 	0x10, 	0x8, 	0x8, 	0x3, 	0x0,
0x0, 	0x20, 	0x20, 	0x10, 	0x8, 	0x4, 	0x4, 	0x0,
0x0, 	0x20, 	0x20, 	0x1E, 	0x78, 	0x4, 	0x4, 	0x0,
0x0, 	0x60, 	0xC0, 	0x1, 	0x80, 	0x3, 	0x6, 	0x0,
0x0, 	0x40, 	0x0, 	0x1C, 	0x0, 	0x0, 	0x2, 	0x0,
0x0, 	0x80, 	0x0, 	0x1E, 	0x0, 	0x0, 	0x1, 	0x0,
0x0, 	0x0, 	0x1, 	0x3E, 	0x0, 	0x80, 	0x0, 	0x0,
0x0, 	0x0, 	0x1, 	0x3F, 	0x0, 	0x80, 	0x0, 	0x0,
0xC0, 	0x81, 	0x0, 	0x27, 	0x0, 	0x0, 	0x81, 	0x3,
0x20, 	0x43, 	0x0, 	0x23, 	0x0, 	0x0, 	0xC2, 	0x4,
0x20, 	0x24, 	0x0, 	0x63, 	0x0, 	0x0, 	0x24, 	0x4,
0x10, 	0x18, 	0x0, 	0x21, 	0x0, 	0x0, 	0x18, 	0x8,
0x10, 	0xE0, 	0xFF, 	0xFF, 	0xFF, 	0xFF, 	0xF, 	0x8,
0x8, 	0x0, 	0x0, 	0x31, 	0x0, 	0x0, 	0x0, 	0x10,
0x8, 	0x0, 	0x0, 	0x31, 	0x0, 	0x0, 	0x0, 	0x10,
0x18, 	0x0, 	0x0, 	0x39, 	0x0, 	0x0, 	0x0, 	0x18,
0xE0, 	0x0, 	0x0, 	0x9D, 	0xFF, 	0x7F, 	0x0, 	0x7,
0x0, 	0x1, 	0x0, 	0x9E, 	0x0, 	0x40, 	0x80, 	0x0,
0x0, 	0x1, 	0x0, 	0x9F, 	0x0, 	0x40, 	0x80, 	0x0,
0x0, 	0xF1, 	0xFF, 	0xFF, 	0x0, 	0xC0, 	0x8F, 	0x0,
0x80, 	0x0, 	0xC0, 	0x87, 	0x0, 	0x40, 	0x0, 	0x1,
0x80, 	0x0, 	0xE0, 	0x83, 	0xFF, 	0x7F, 	0x0, 	0x1,
0x80, 	0x0, 	0xF0, 	0x7, 	0x0, 	0x0, 	0x0, 	0x1,
0xFE, 	0x0, 	0xF0, 	0x4, 	0x0, 	0x0, 	0x0, 	0x7F,
0x1, 	0x0, 	0x78, 	0x4, 	0x0, 	0x0, 	0x0, 	0x80,
0x1, 	0xE0, 	0xFF, 	0xFF, 	0xFF, 	0xFF, 	0xF, 	0x80,
0x1, 	0x0, 	0x1C, 	0x7E, 	0x0, 	0x0, 	0x0, 	0x80,
0x1, 	0x0, 	0x1C, 	0xFF, 	0x20, 	0x1, 	0x0, 	0x80,
0x1, 	0x0, 	0x8C, 	0xFF, 	0x21, 	0x1, 	0x0, 	0x80,
0x1, 	0x0, 	0x8C, 	0xCB, 	0x21, 	0x1, 	0x0, 	0x80,
0xFE, 	0x0, 	0x8C, 	0x89, 	0x23, 	0x1, 	0x0, 	0x7F,
0x80, 	0x0, 	0x8C, 	0x8, 	0x23, 	0x1, 	0x0, 	0x1,
0x80, 	0xF0, 	0xFF, 	0xFF, 	0x3F, 	0xFF, 	0xF, 	0x1,
0x80, 	0x0, 	0x88, 	0x10, 	0x23, 	0x1, 	0x0, 	0x1,
0x0, 	0x1, 	0x8, 	0x11, 	0x23, 	0x1, 	0x80, 	0x0,
0x0, 	0x1, 	0x10, 	0x12, 	0x21, 	0x1, 	0x80, 	0x0,
0x0, 	0x1, 	0x20, 	0x90, 	0x20, 	0x1, 	0x80, 	0x0,
0xE0, 	0x0, 	0xC0, 	0x70, 	0x20, 	0x1, 	0x0, 	0x7,
0x18, 	0xE0, 	0xBF, 	0xBF, 	0xFF, 	0xFF, 	0xF, 	0x18,
0x8, 	0x0, 	0x0, 	0x20, 	0x0, 	0x0, 	0x0, 	0x10,
0x8, 	0x0, 	0x0, 	0x20, 	0x0, 	0x0, 	0x0, 	0x10,
0x10, 	0x0, 	0x0, 	0x20, 	0x0, 	0x0, 	0x0, 	0x8,
0x10, 	0x18, 	0x80, 	0x41, 	0x0, 	0x0, 	0x18, 	0x8,
0x20, 	0x24, 	0xC0, 	0x43, 	0x0, 	0x0, 	0x24, 	0x4,
0x20, 	0x43, 	0xE0, 	0x43, 	0x0, 	0x0, 	0xC2, 	0x4,
0xC0, 	0x81, 	0xE0, 	0x47, 	0x0, 	0x0, 	0x81, 	0x3,
0x0, 	0x0, 	0xE1, 	0x63, 	0x0, 	0x80, 	0x0, 	0x0,
0x0, 	0x0, 	0xC1, 	0x21, 	0x0, 	0x80, 	0x0, 	0x0,
0x0, 	0x80, 	0x80, 	0x1D, 	0x0, 	0x0, 	0x1, 	0x0,
0x0, 	0x40, 	0x0, 	0x6, 	0x0, 	0x0, 	0x2, 	0x0,
0x0, 	0x60, 	0xC0, 	0x1, 	0x80, 	0x3, 	0x6, 	0x0,
0x0, 	0x20, 	0x20, 	0x1E, 	0x78, 	0x4, 	0x4, 	0x0,
0x0, 	0x20, 	0x20, 	0x10, 	0x8, 	0x4, 	0x4, 	0x0,
0x0, 	0xC0, 	0x20, 	0x10, 	0x8, 	0x8, 	0x3, 	0x0,
0x0, 	0x0, 	0x13, 	0x10, 	0x8, 	0xC8, 	0x0, 	0x0,
0x0, 	0x0, 	0x1C, 	0x10, 	0x8, 	0x38, 	0x0, 	0x0,
0x0, 	0x0, 	0x0, 	0x10, 	0x8, 	0x0, 	0x0, 	0x0,
0x0, 	0x0, 	0x0, 	0x10, 	0x8, 	0x0, 	0x0, 	0x0,
0x0, 	0x0, 	0x0, 	0xE0, 	0x7, 	0x0, 	0x0, 	0x0
};





/*******************************************************************************************************
 *
 *
 *   globale Deklarationen
 *
 *
 *******************************************************************************************************/


const int               interrupt_pin =  3,
                        pwm_pin       =  5,
                        calib_pin     =  6,

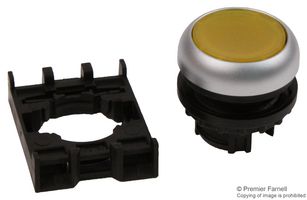

                        set_pin       =  7,
                        menue_pin     =  8,
                        record_pin    =  9,

                        set_led       = 14, // A0
                        menue_led     = 15, // A1


                        day_cell     = 4 * 24 * 2,
                        mon_cell     = day_cell  +1,
                        year_cell    = mon_cell  +1,
                        hour_cell    = year_cell +1,
                        minu_cell    = hour_cell +1,
                        start_cell   = minu_cell +1,

                        y_min_abs    =  300;

int                     cell_pointer = -1,
                        data[98],

                        pwm_data[5],
                        pwm_pointer   = 0,

                        this_minute   = -1,
                        current_ppm   = y_min_abs;

bool                    recording     = false;

unsigned long           ppm_collect   = 0,
                        ppm_count     = 0;



volatile bool           new_value                = false;
volatile unsigned long  millis_trigger_goes_high = 0,
                        millis_trigger_goes_low  = 0,
                        high_duration,
                        low_duration;



/*******************************************************************************************************
 *
 *
 *   Serielle Ausgabe und PWM-Ausgabe
 *
 *
 *******************************************************************************************************/




void print_ddot()
{
  Serial.print(F(":"));
}


void print_two_digits(int val)
{
  if (val < 10) Serial.print(F("0"));
  Serial.print(val);
}


void serial_print_headline()
{
  Serial.println(F("\n\naktuelle Messwerte\n=================="));
}


//
// analoges Ausgangssignal fr PWM
//

void write_ppm_to_pwm(int ppm)
{
  float result = float(ppm) / 2500.0 * 255.0;  // 2500 ppm sind 100% PWM-Signal, also = 255
  if (result > 255.0) result = 255.0;
  else if (result < 0.0) result = 0.0;

  pwm_data[pwm_pointer] = int(result);
  pwm_pointer++;
  if (pwm_pointer > 5) pwm_pointer = 0;

  int mean = 0;
  for (int i = 0; i < 5; i++)
  {
    mean += pwm_data[i];
  }
  mean /= 5;

  analogWrite(pwm_pin, mean);
}





/*******************************************************************************************************
 *
 *
 *   ===================== Messroutinen =====================
 *
 *
 *******************************************************************************************************/




void detect_change() {
  if (digitalRead(interrupt_pin) == HIGH)
  {
    millis_trigger_goes_high = millis();
    low_duration             = millis_trigger_goes_high - millis_trigger_goes_low;
  }
  else
  {
    millis_trigger_goes_low  = millis();
    high_duration            = millis_trigger_goes_low - millis_trigger_goes_high;
    new_value = true;
  }
}




int ppmCO2(int high,
           int low)
{
  int            duration =  (high -2);
                 duration += (1002 - low);
  int            result    = duration*2;

  return result;
}




/*******************************************************************************************************
 *
 *
 * L C D - Funktionen
 *
 *
 *******************************************************************************************************/




//
// schreibe eine Integerzahl mit 4 Ziffern rechtsbndig
//
void draw_int(int xx_offset, int yy_offset, int the_int)
{
  String theString = "";

  int x = the_int;
  if (x == 0) x = 1;
  while(x < 1000)
  {
    theString += " ";
    x *= 10;
  }
  theString += String(the_int);
  char thisline_c[8];
  theString.toCharArray(thisline_c, 8);

  u8g.drawStr(xx_offset, yy_offset, thisline_c);
}


//
// schreibe Zeit und Datum ins Display
//
void draw_time()
{
  String theString             = "";                  // Zeitstring erstellen
  char   thisline_c[8];

  if (hour() < 10) theString   = F("0");
  theString += String(hour());
  if (second()%2==0) theString += F(":");
  else               theString += F(" ");

  if (minute() < 10) theString += F("0");
  theString += String(minute());

  theString.toCharArray(thisline_c, 7);              // Zeitstring ausgeben
  u8g.setFont(u8g_font_5x8); // Schriftart ndern
  u8g.drawStr(0, 7, thisline_c);


  if (day() < 10) theString   = F("0");             // Datumsstring erstellen
  else            theString   = "";

  theString += String(day())
            +  F(" ");

  if (month() < 10) theString += F("0");            // Datumsstring ausgeben
  theString += String(month());

  theString.toCharArray(thisline_c, 7);

  u8g.setFont(u8g_font_5x8); // Schriftart ndern
  u8g.drawStr(0, 15, thisline_c);

  u8g.drawLine(11, 13, 12, 13);                   // Datumspunkt setzen
  u8g.drawLine(11, 14, 12, 14);

  if ((second()%2==0)&&(digitalRead(record_pin)==LOW))
  {
    u8g.drawStr(124, 4, F("r"));
  }
}


//
// Schreibe gro ppm-Wert ins Display
//
void draw_ppm(int ppm)
{
  ppm +=  5;                     // ppm-Werte auf 10er-Stelle runden
  ppm /= 10;
  ppm *= 10;

  u8g.setFont(u8g_font_courB18); // Schriftart ndern
  draw_int(25, 16, ppm);

  u8g.setFont(u8g_font_helvR08); // Schriftart ndern
  u8g.drawStr(81, 16, F(" ppm CO"));
  u8g.setFont(u8g_font_5x8);    // Schriftart ndern
  u8g.drawStr(123, 20, F("2"));
}


//
// Zeichne Diagramm
//
void draw_graph()
{
  const int y_ddelta  =    200,
            y_res     =     63,
            y_offset  =      3,
            y_width   =     40,

            x_res     =    127,
            x_offset  =     27;

  int       y_range,
            y_delta;




  //
  // zeichne x-Achse
  //

  u8g.drawLine(x_offset, y_res-3, x_res, y_res-3);
  for (int i = 1; i < 25; i++)
  {
    if (i%6==0) u8g.drawLine(x_offset+i*4, y_res-3,x_offset+i*4, y_res);
    else        u8g.drawLine(x_offset+i*4, y_res-3,x_offset+i*4, y_res-1);
  }


  //
  // beschrifte x-Achse
  //

  u8g.setFont(u8g_font_5x8); // Schriftart ndern
  for (int i = 0; i < 5; i++)
  {
    if (i == 1) draw_int(x_offset-16 + 24*i, y_res-4, i*6);    // zeichne die $6$ um 2 Pixel nach links versetzt
    else        draw_int(x_offset-14 + 24*i, y_res-4, i*6);
  }


  //
  // zeichne y-Achse
  //

  u8g.drawLine(x_offset, y_res, x_offset, y_res-y_width-y_offset);
  for (int i = 0; i < 5; i++)
  {
     u8g.drawLine(x_offset, y_res-i*10-y_offset, x_offset-3, y_res-i*10-y_offset);
  }


  //
  // ermittle y_delta
  //

  y_range = y_min_abs + y_ddelta;
  for (int i = 0; i < 96; i++)
  {
    while (data[i] > y_range)
    {
      y_range+=y_ddelta;
    }
  }

  while (current_ppm > y_range) y_range += y_ddelta;

  y_delta = (y_range-y_min_abs)/4;


  //
  // beschrifte y-Achse
  //

  for (int i = 0; i < 5; i++)
  {
    draw_int(0, y_res-i*10, y_min_abs+i*y_delta);
  }


  //
  // zeichne Messwert
  //

  if (second()%2==0)
  {
    int val = y_min_abs;                                                     // stelle sicher, dass ein Wert >= 300 ppm vorliegt
    if (current_ppm > y_min_abs) val = current_ppm;
                                                                             // zeichne Linie
    int x = x_offset + hour()*4 + (minute()/15 +1);
    u8g.drawLine(x, y_res - y_offset,
                 x, y_res - y_offset - int(float((val-y_min_abs))/float((y_range-y_min_abs))*float(y_width)));
  }


  //
  // zeichne Graph
  //

  for (int i = 0; i < 94; i++)
  {
    int j  = i+1;

    if ((data[i] >= y_min_abs)&&(data[j] >= y_min_abs))                       // Der Graph wird nur gezeichnet, wenn Anfangs- und Endpunkt definiert sind, also
    {                                                                         // einen Messwert >= 300 ppm aufweisen.
      int y0 = y_res - y_offset - int(float((data[i]-y_min_abs))/float((y_range-y_min_abs))*float(y_width)),
          y1 = y_res - y_offset - int(float((data[j]-y_min_abs))/float((y_range-y_min_abs))*float(y_width));

      u8g.drawLine(i+x_offset,   y0,
                   i+x_offset+1, y1);
    }
  }
}


/*******************************************************************************************************
 *
 *
 *   ===================== EEPROM-Protokoll =====================
 *
 *
 *******************************************************************************************************/




void begin_protokoll()
{
  EEPROM.put(day_cell,  byte(day()));
  EEPROM.put(mon_cell,  byte(month()));
  EEPROM.put(year_cell, byte(year()%2000));
  EEPROM.put(hour_cell, byte(hour()));
  EEPROM.put(minu_cell, byte(minute()));
  cell_pointer = start_cell;
}


void record(byte val)
{
  if (cell_pointer < 1024)                         // Wenn noch Speicher frei ist
  {
    EEPROM.put(cell_pointer, val);                 // Daten speichern
    cell_pointer++;                                // Zeiger auf nchstes Element setzen und
    if (cell_pointer < 1024)                       // falls dies vergbar ist:
    {
      EEPROM.put(cell_pointer, 0);                 // setze dieses auf "0", um Ende der Aufzeichnung zu markieren.
    }
  }
}


void print_two_digits_eeprom(int cell)
{
  byte val;
  EEPROM.get(cell, val);
  print_two_digits(val);
}



void replay()
{
  Serial.println(F("\nhh:mm:ss; CO2/ppm"));
  for (int i = 0; i < 96; i++)
  {
    print_two_digits(i/4);                       // gib Daten des Displayspeichers auf die serielle Schnittstelle
    print_ddot();
    print_two_digits((i-(i/4)*4)*15);
    Serial.print(F(":00;"));
    Serial.println(data[i]);
  }

  byte val;

  Serial.println(F("\ndd.mm.yy hh:mm:ss; CO2/ppm"));
  print_two_digits_eeprom(day_cell);
  Serial.print(F("."));
  print_two_digits_eeprom(mon_cell);
  Serial.print(F("."));
  print_two_digits_eeprom(year_cell);
  Serial.print(F(" "));
  print_two_digits_eeprom(hour_cell);
  print_ddot();
  print_two_digits_eeprom(minu_cell);
  Serial.print(F(":00"));

  for (int cell = start_cell; cell < 1024; cell++)
  {
    EEPROM.get(cell, val);
    if (val == 0) break;
    Serial.print(";");
    Serial.println(int(val)*10);
  }

  serial_print_headline();
}


/*******************************************************************************************************
 *
 *
 *   ===================== Zeit und Datum setzen =====================
 *
 *
 *******************************************************************************************************/




void wait_for_high()
{
  int i = 100;
  do
  {
    i--;
    if ((digitalRead(menue_pin)==LOW)||(digitalRead(set_pin)==LOW)) i = 100;
    delay(1);
  }
  while ( i > 0);
}


bool select_item()
{
  wait_for_high();                                                       // stelle sicher, dass kein KNopf gedrckt
  while((digitalRead(menue_pin)==HIGH)&&(digitalRead(set_pin)==HIGH))    // warte, solange nichts gedrckt
  {
    delay(1);
  }

  bool menue_pressed = (digitalRead(menue_pin)==LOW);                    // merke, welcher Knopf gedrckt
  wait_for_high();                                                       // warte bis alle Knpfe losgelassen
  return menue_pressed;                                                  // gib gedrckten Knopf zurck
}



void display_menu(String str)
{
  u8g.firstPage();

  u8g.setFont(u8g_font_helvR08);
  u8g.drawStr(0,  8, F("Menue"));

  do
  {
    u8g.drawStr(0,  16, F("======"));

    char thisline_c[32];
    str.toCharArray(thisline_c, 30);
    u8g.drawStr(0, 34, thisline_c);
  }
  while (u8g.nextPage());
}


void lcd_Time_Date(int y, int h, int m, int s, char separate, int blankpos)
{
  String theString             = "";                  // Zeitstring erstellen
  char   thisline_c[8];

  if (h < 10) theString        = F("0");
  theString += String(h)
            +  separate;

  if (m < 10) theString += F("0");
  theString += String(m)
            +  separate;

  if (s < 10) theString += F("0");
  theString += String(s);

  theString.toCharArray(thisline_c, 10);              // Zeitstring in Array umwandeln
  if (blankpos > -1)                                  // Zeichen lschen fr Blinkeffekt
  {
    thisline_c[blankpos]   = '_';
    thisline_c[blankpos+1] = '_';
    digitalWrite(set_led, HIGH);
  }
  else
  {
    digitalWrite(set_led, LOW);
  }

  do
  {
    u8g.drawStr(y, 40, thisline_c);
  }
  while (u8g.nextPage());
}



int setdigits(int a, int b, int c, int abc, int minval, int maxval, char sep)
{
  int  digitwait   = 0,
       blankblink = -1;
  bool set_button, menue_button;

  do
  {
    do
    {
      if (second()%2==0) blankblink = -1;
      else               blankblink = abc*3;
      u8g.firstPage();
      lcd_Time_Date(30, a, b, c, sep, blankblink);
      set_button   = digitalRead(set_pin)   == LOW;
      menue_button = digitalRead(menue_pin) == LOW;
    }while(!set_button && !menue_button);

    if (set_button)
    {
      switch (abc)
      {
        case 0: a++;
                if (a > maxval) a = minval;
                break;
        case 1: b++;
                if (b > maxval) b = minval;
                break;
        case 2: c++;
                if (c > maxval) c = minval;
                break;
      }

      if (digitwait < 5)
      {
        delay(666);
        digitwait++;
      }
      else{
        delay(222);
      }
    }
    else
    {
      wait_for_high();
    }

  }while(!menue_button);

  digitalWrite(set_led, LOW);

  int val;
  switch (abc)
  {
    case 0: val = a;
            break;
    case 1: val = b;
            break;
    case 2: val = c;
            break;
  }
  return val;
}



void set_time()
{
  int t_hour = hour(),
      t_min  = minute(),
      t_sec  = 0;

  t_hour = setdigits(t_hour, t_min, t_sec, 0, 0, 23, ':');
  t_min  = setdigits(t_hour, t_min, t_sec, 1, 0, 59, ':');

  setTime(t_hour, t_min, 0, day(), month(), year());
  RTC.set(now());
  delay(1000);
}


void set_date()
{
  int d_day  = day(),
      d_mon  = month(),
      d_yea  = year()%100;

  d_day = setdigits(d_day, d_mon, d_yea, 0, 0, 30, '.');
  d_mon = setdigits(d_day, d_mon, d_yea, 1, 1, 12, '.');
  d_yea = setdigits(d_day, d_mon, d_yea, 2, 0, 40, '.');

  setTime(hour(), minute(), second(), d_day, d_mon, d_yea+2000);
  //RTC.set(now());
}



void clear_data(bool eeprom)
{
  display_menu(F("-> wird geloescht..."));
  for (int i = 0; i < 96; i++)
  {
    data[i] = y_min_abs;
    if (eeprom) EEPROM.put(i*2, int(0));

  }
  delay(1000);
}



void calibrate_400ppm()
{
  display_menu(F("-> wird kalibriert..."));
  pinMode(calib_pin,      OUTPUT);
  digitalWrite(calib_pin, LOW);
  delay(10*1000);
  digitalWrite(calib_pin, HIGH);
  pinMode(calib_pin,      INPUT);
}



void menue()
{
  display_menu(F("Messdaten ausgeben?"));
  if (!select_item())
  {
    replay();
    return;
  }


  display_menu(F("Display loeschen?"));
  if (!select_item())
  {
    clear_data(false);
    return;
  }


  display_menu(F("Speicher loeschen?"));
  if (!select_item())
  {
    clear_data(true);
    return;
  }


  display_menu(F("Uhrzeit stellen?"));
  if (!select_item())
  {
    set_time();
    return;
  }


  display_menu(F("Datum stellen?"));
  if (!select_item())
  {
    set_date();
    return;
  }


  display_menu(F("Sensor 400ppm kalibrieren?"));
  if (!select_item())
  {
    calibrate_400ppm();
    return;
  }
}




/*******************************************************************************************************
 *
 *
 *   ===================== SETUP =====================
 *
 *
 *******************************************************************************************************/




void setup()
{
  //
  // Startbildschirm: Logo
  //

  u8g.firstPage();
  do
  {
    u8g.drawXBMP(32, 0, logo_width, logo_height, logo_bmp);
  }
  while (u8g.nextPage());
  delay(2000);


  //
  // definiere i/o-Pins
  //

  pinMode(calib_pin,  INPUT);
  pinMode(set_pin,    INPUT_PULLUP);
  pinMode(menue_pin,  INPUT_PULLUP);
  pinMode(record_pin, INPUT_PULLUP);

  pinMode(menue_led,  OUTPUT);
  pinMode(set_led,    OUTPUT);

  pinMode(pwm_pin,    OUTPUT);
  analogWrite(pwm_pin, 0);



  //
  // serielle Ausgabe
  //

  Serial.begin(9600);



  //
  // RTC
  //

  setSyncProvider(RTC.get);   // the function to get the time from the RTC



  //
  // Messwertspeicher aus dem EEPROM seriell ausgeben und ins RAM bertragen
  //

  for (int i = 0; i < 96; i++)
  {
    EEPROM.get(2*i, data[i]);                                 // bertrage EEPROM-Daten in den Arbeitsspeicher
  }

  serial_print_headline();
  for (int i = 0; i < 5; i++)
  {
    pwm_data[i] = y_min_abs;
  }

  attachInterrupt(digitalPinToInterrupt(interrupt_pin), detect_change, CHANGE);

  u8g.setFont(u8g_font_helvR08); // Schriftart whlen
  u8g.firstPage();
  do
  {
    u8g.drawStr(10, 25, F("CO2-Logger V 1.0 V/'21"));
    u8g.drawStr(10, 45, F("Warte auf Messdaten..."));
  }
  while (u8g.nextPage());


  for (int i = 0; i < 7; i++)                    // berpringe die ersten 7 Messwerte, um konstante Werte zu erhalten
  {
    while (!new_value)
    {
      delay(100);
    }
    new_value = false;
  }
}



/*******************************************************************************************************
 *
 *
 *   ===================== LOOP =====================
 *
 *
 *******************************************************************************************************/




void loop()
{
  if (new_value)
  {
    //
    // hole neuen Messwert ab und schreibe ihn auf den PWM-Ausgang
    //

    new_value    = false;
    current_ppm  = ppmCO2(high_duration, low_duration);
    write_ppm_to_pwm(current_ppm);


    //
    // serielle Ausgabe des Messwerts
    //

    print_two_digits(hour());
    print_ddot();
    print_two_digits(minute());
    print_ddot();
    print_two_digits(second());
    Serial.print(F("; "));
    Serial.println(current_ppm);


    //
    // zeige auf dem Display den aktuellen Wert und den Graph fr die letzten 24 Stunden an
    //

    u8g.firstPage();
    do
    {
      draw_time();
      draw_ppm(current_ppm);
      draw_graph();
    }
    while (u8g.nextPage());


    //
    // halte jede Minute einen Wert fest
    //

    if (minute() != this_minute)
    {
      ppm_collect += current_ppm;
      ppm_count++;
      this_minute = minute();

      if ((this_minute%15) == 0)
      {
        ppm_collect /= ppm_count;
        if      (ppm_collect <  y_min_abs) ppm_collect =  y_min_abs;
        else if (ppm_collect > 2000) ppm_collect = 2000;

        int data_pointer = hour()*4 + (minute()/15);
        data[data_pointer] = ppm_collect;

        EEPROM.put(data_pointer*2, ppm_collect);
        if (ppm_collect > 2554) ppm_collect = 2554;


        //
        // Aufzeichnung von Messwerten vorbereiten
        //

        if ((digitalRead(record_pin) == LOW)&&(!recording))       // Aufzeichnungsschalter ist gerade umgelegt worden:
        {
          recording = true;                                       // neuen Aufzeichnungsstatus merken und
          begin_protokoll();                                      // Aufzeichnungsbeginn speichern und Pointer auf Anfang setzen (= alle alten Messwerte damit lschen)
        }
        else if (digitalRead(record_pin) == HIGH)
        {
          recording = false;
        }

        if (recording) record(byte((ppm_collect+5)/10));          // Schreibe Daten in den groen Datenspeicher, wenn seit Anfang an der Record-Schalter kontinuierlich bettigt war

        ppm_collect = 0;
        ppm_count   = 0;

        for (int i = 0; i < 4; i++)                               // leere Datenspeicher hinter den aktuellen Messwerten, um eine
        {                                                         // graphische Lcke zu erzeugen
          data_pointer++;
          if (data_pointer > 24*4-1) data_pointer = 0;
          data[data_pointer] = 0;
        }
      }
    }
  }

  if (digitalRead(menue_pin) == LOW)
  {
    digitalWrite(menue_led, HIGH);
    menue();
    digitalWrite(menue_led, LOW);
  }

  delay(100);
}
