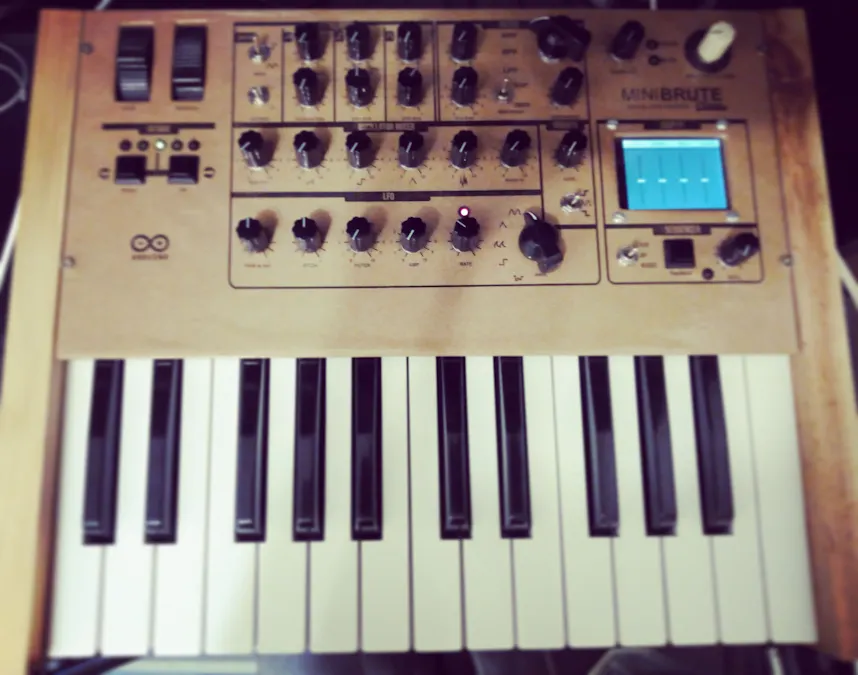

MINIBRUTE Clone with Arduino DUE

MINIBRUTE Clone with Arduino DUE

Supported features:

Waveforms:

• Sub osc

• Square

• Saw

• Triangular

• Noise

Waveform mods:

• Ultrasaw

• PWM

• Metalizer

Analog VCF:

• HPF / BPF / LPF

• Cutoff [knob or modwheel]

• Resonance

• Envelope

Inputs:

• Line

• MIDI

Outputs:

• Line

• Headphones

• MIDI

• USB MIDI

• Pitch Wheel

• Mod Wheel

• Octave selection

• Vibrato

• Sequencer

• LFO

Still not implemented features:

• Vibrato

• Sequencer

• Configuration screen

• Sequencer screen

• MIDI In

• MIDI Out

Not Supported features:

• Brute factor

• Fine tune

• Mod wheel LFO Amt

• Bend range

• Glide

• Aftertouch

• Arpeggiator (was changed by microbrute sequencer)

Block diagram

This project contains:

• External Arduino libraries (included in this project):

• DUE Timer lib: https://github.com/ivanseidel/DueTimer

• DUE PWM lib: https://github.com/antodom/pwm_lib

• MIDIUSB lib: https://github.com/arduino-libraries/MIDIUSB

• LCD and Touch lib: http://www.rinkydinkelectronics.com/library.php?id=51

• Arduino DUE Firmware

• Schematics

• Pictures

• Images for LCD

• Front and back panel blueprints

License

MINIBRUTE Clone with arduino DUE

Copyright (C) 2018 Ernesto Gigliotti ernestogigliotti@gmail.com

This program is free software: you can redistribute it and/or modifyit under the terms of the GNU General Public License as published bythe Free Software Foundation, either version 3 of the License, or(at your option) any later version.

This program is distributed in the hope that it will be useful,but WITHOUT ANY WARRANTY; without even the implied warranty ofMERCHANTABILITY or FITNESS FOR A PARTICULAR PURPOSE. See theGNU General Public License for more details.

You should have received a copy of the GNU General Public Licensealong with this program. If not, see https://www.gnu.org/licenses/.
