AdaTis-100

This project was made for the contest MakeWithAda (https://www.makewithada.org/), for the assignement of the ADA course of Epita.

The Goal

The idea of this project is to reproduce the TIS-100 architecture with multiple STM32F4-discovery.

TIS-100

TIS-100 is a fictionnal computer that can be found in the eponym puzzle game /TIS-100/ (http://www.zachtronics.com/tis-100/).

The TIS-100 computer is composed of parallel nodes that can be programmed in a pseudo-assembly language.

The nodes communicates between them with channels depending of their position (UP, DOWN, LEFT, RIGHT).

Our take at TIS-100

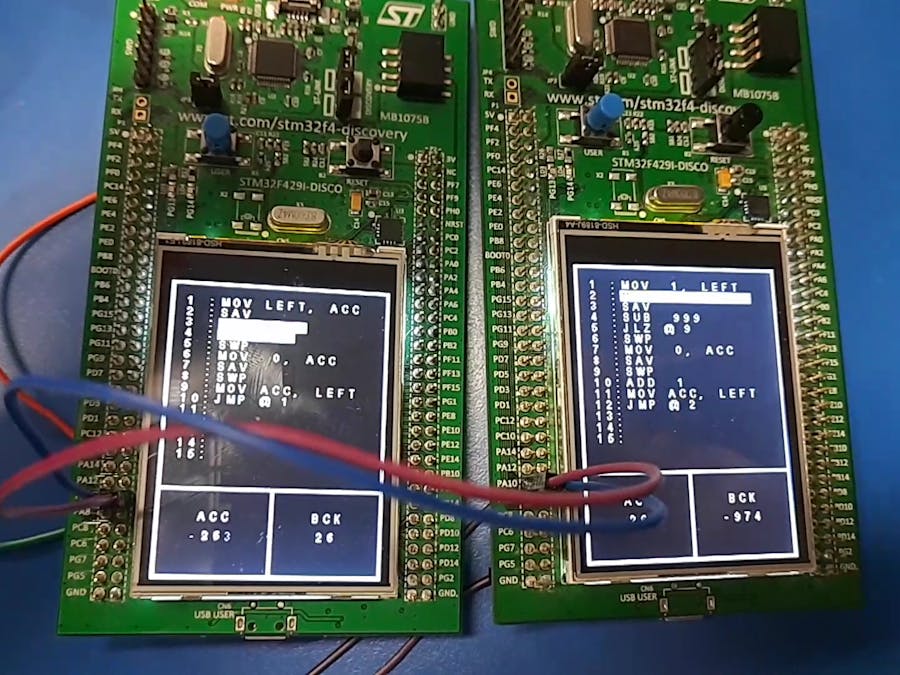

Within this project, we want to emulate each TIS-100 node with a STM32F4-DISCOVERY board, each board communicates with it's neighbours with serial.

Modes

This project has 3 working modes:

• Basic : Emulates a basic TIS-100 mode.
• Input : Shows a numpad UI thats sends to it's neighbours the numbers given by the user.
• Stack : A visual mode that push in a stack each value given to the node and pop when a value is read.

Load a program

The build system will parse from a `input.tis100` file the program to load in the board.

To flash a board, do `make flash`
