Musical Cube

This project started from FabLab of Boilchon High School. Turning the button changes the sound.

BeginnerShowcase (no instructions)1.5 hours2,929

Things used in this project

Hardware components

Arduino UNO

Rotary potentiometer (generic)

LED (generic)

SparkFun Pushbutton switch 12mm

Breadboard (generic)

Jumper wires (generic)

Resistor 221 ohm

Speaker: 0.25W, 8 ohms

AA Batteries

4xAA battery holder

Software apps and online services

Arduino Web Editor

Hand tools and fabrication machines

Laser cutter (generic)

Story

Our teacher made us to make something. So, we thought and made this.

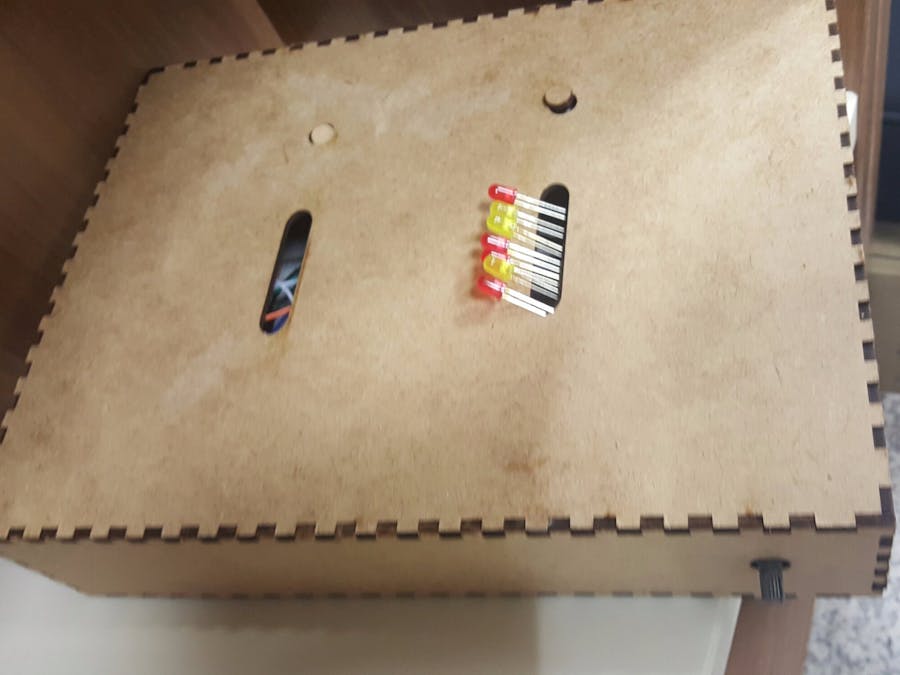

This cube is an instrument. This cube makes various sounds, when we turn the potentiometer.

Code

int Pot = A1;
int av;
int Switch = 5;
int SwitchState = 0;
int L7 = 6;
int L8 = 3;
int L9 = 2;
int L10 = 9;
int speaker = 8; // Breadboard 2
void setup() {
  Serial.begin(9600);
  pinMode (speaker, OUTPUT);
  pinMode (Switch, INPUT);
}
void loop() {
  av = analogRead(Pot);
  av = map(av, 0, 1023, 1, 5);
  Serial.print(av);
  Serial.println(SwitchState);
  SwitchState = digitalRead(Switch);
   if(av == 1){
    digitalWrite(L7, HIGH);
    digitalWrite(L8, LOW);
    digitalWrite(L9, LOW);
    digitalWrite(L10, LOW);
  }else if(av == 2){
    digitalWrite(L7, LOW);
    digitalWrite(L8, HIGH);
    digitalWrite(L9, LOW);
    digitalWrite(L10, LOW);
  }
  else if(av == 3){
    digitalWrite(L7, LOW);
    digitalWrite(L8, LOW);
    digitalWrite(L9, HIGH);
    digitalWrite(L10, LOW);
  }
  else if(av == 4){
    digitalWrite(L7, LOW);
    digitalWrite(L8, LOW);
    digitalWrite(L9, LOW);
    digitalWrite(L10, HIGH);
  }
if(SwitchState == 1){
  if(av == 1){
    tone(speaker, 2979, 10);
  }else if(av == 2){
    tone(speaker, 3363, 10);
  }else if(av == 3){
    tone(speaker, 3747, 10);
  }else if(av == 4){
    tone(speaker, 4003, 10);
  }
}
}

int Pot = A1;
int av;
int Switch = 5;
int SwitchState = 0;
int L7 = 6;
int L8 = 3;
int L9 = 2;
int L10 = 9;
int speaker = 8; // Breadboard 2
void setup() {
  Serial.begin(9600);
  pinMode (speaker, OUTPUT);
  pinMode (Switch, INPUT);
}
void loop() {
  av = analogRead(Pot);
  av = map(av, 0, 1023, 1, 5);
  Serial.print(av);
  Serial.println(SwitchState);
  SwitchState = digitalRead(Switch);
   if(av == 1){
    digitalWrite(L7, HIGH);
    digitalWrite(L8, LOW);
    digitalWrite(L9, LOW);
    digitalWrite(L10, LOW);
  }else if(av == 2){
    digitalWrite(L7, LOW);
    digitalWrite(L8, HIGH);
    digitalWrite(L9, LOW);
    digitalWrite(L10, LOW);
  }
  else if(av == 3){
    digitalWrite(L7, LOW);
    digitalWrite(L8, LOW);
    digitalWrite(L9, HIGH);
    digitalWrite(L10, LOW);
  }
  else if(av == 4){
    digitalWrite(L7, LOW);
    digitalWrite(L8, LOW);
    digitalWrite(L9, LOW);
    digitalWrite(L10, HIGH);
  }
if(SwitchState == 1){
  if(av == 1){
    tone(speaker, 2851, 10);
  }else if(av == 2){
    tone(speaker, 3235, 10);
  }else if(av == 3){
    tone(speaker, 3491, 10);
  }else if(av == 4){
    tone(speaker, 3747, 10);
  }
}
}
