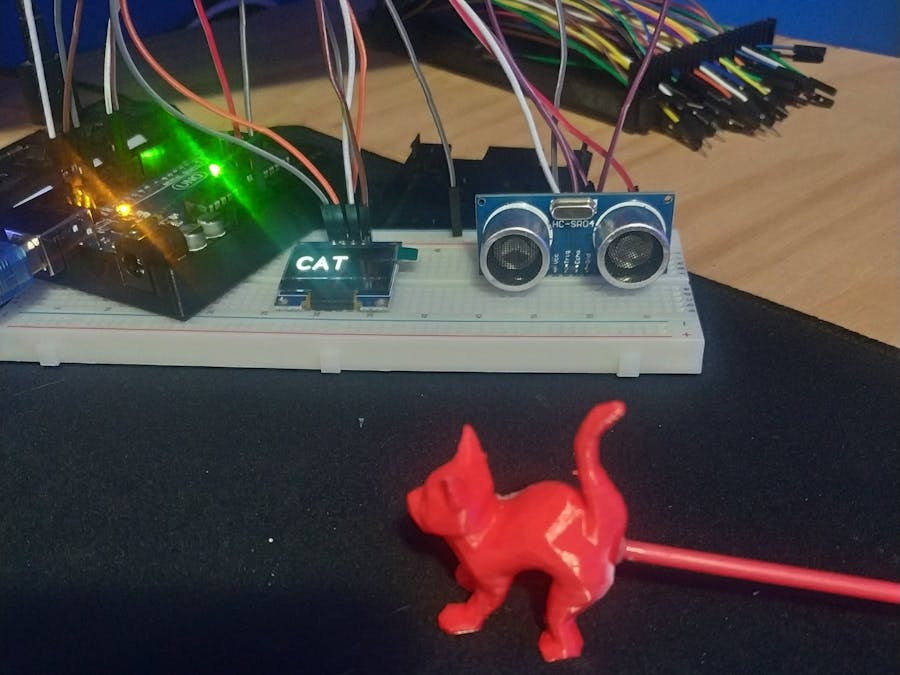

Cat Detector!

Learn how to use an OLED display and an Ultrasonic sensor with this funny and easy to build Cat Detector!

BeginnerProtip694
Cat Detector!

Things used in this project

Hardware components

Arduino UNO
Arduino UNO
×1
Ultrasonic Sensor - HC-SR04 (Generic)
Ultrasonic Sensor - HC-SR04 (Generic)
×1
Graphic OLED, 128 x 64
Graphic OLED, 128 x 64
×1

Story

Read more

Schematics

Protoboard

U8g2 library

You will need to instal de U8g2 library to control the display

Code

Code

C/C++
#include <Arduino.h>
#include <U8g2lib.h>
#ifdef U8X8_HAVE_HW_SPI
#include <SPI.h>
#endif
#ifdef U8X8_HAVE_HW_I2C
#include <Wire.h>
#endif
U8G2_SSD1306_128X64_NONAME_F_SW_I2C u8g2(U8G2_R0, /* clock=*/ SCL, /* data=*/ SDA, /* reset=*/ U8X8_PIN_NONE);   // All Boards without Reset of the Display

// Define pins for ultrasonic sensor
int const trigPin = 10;
int const echoPin = 9;

void setup(void) {
  u8g2.begin();             // Oled display begins
  pinMode(trigPin, OUTPUT); // trig pin will have pulses output
  pinMode(echoPin, INPUT);  // echo pin should be input to get pulse width
}

void loop(void) {
  int duration, distance; // Duration will be the input pulse width and distance will be the distance to the obstacle in centimeters

  // Output pulse with 1ms width on trigPin
  digitalWrite(trigPin, HIGH);
  delay(1);
  digitalWrite(trigPin, LOW);

  duration = pulseIn(echoPin, HIGH); // Measure the pulse input in echo pin

  distance = (duration/2) / 29.1;    // Distance is half the duration devided by 29.1 (from datasheet)

  // if distance less than 0.5 meter and more than 0 (0 or less means over range)
    if (distance <= 50 && distance >= 0) {
         u8g2.clearBuffer();                // clear the internal memory
         u8g2.setFont(u8g2_font_inr30_mf);  // choose a suitable font
         u8g2.drawStr(0,50,"CAT");          // write something to the internal memory
         u8g2.sendBuffer();                 // transfer internal memory to the display
    } else {
         u8g2.clearBuffer();                // clear the internal memory
         u8g2.sendBuffer();                 // transfer internal memory to the display
    }

    delay(30);
}
