Problem StatementEnvironmental monitoring is critical for understanding and addressing the challenges of climate change, deforestation, and urbanization. However, existing solutions face significant limitations:
- Energy Autonomy: Many IoT devices require frequent human intervention for battery replacement or recharging, especially in remote areas.
- Scalability: Current systems are often expensive and complex, limiting their deployment across diverse environments.
- Adaptability to Extreme Climates: Devices may fail to operate in harsh conditions such as extreme cold, heat, or high humidity.
These limitations hinder the continuous and reliable collection of environmental data on a global scale.

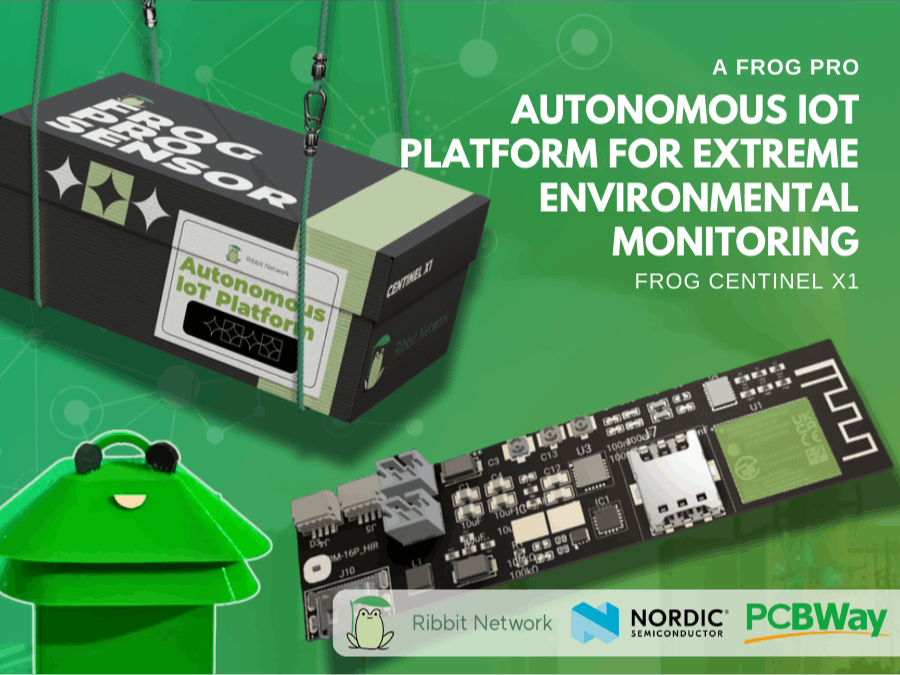

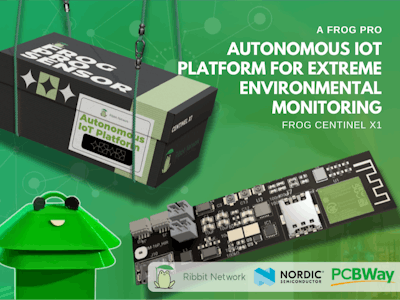

Proposed Solution: Frog Sentinel X11 / 3 • 3D PCB Frog Sentinel X1
The Frog Sentinel X1 is an innovative IoT platform designed to overcome these challenges by providing:
Energy Autonomy:
Powered by a combination of solar energy harvesting with MPPT and an efficient LiPo battery system.
Global Connectivity:
Utilizes LTE-M and NB-IoT for real-time data transmission, along with GNSS for precise geolocation.
Robust Design:
Operates reliably in extreme climates (from -40°C to +85°C) with IP68-rated protection against moisture and dust.
This solution enables scalable deployment in remote and harsh environments for continuous environmental monitoring.
Key Features of Frog Sentinel X1a) Energy Management System
Solar Harvesting with MPPT (Maximum Power Point Tracking)
The BQ25504 PMIC dynamically adjusts to maximize energy harvested from a 5V/90mA solar panel, achieving 95% efficiency.
Supports operation even in low-light conditions (e.g., Arctic winters).
Battery Backup: A 3.7V, 1000mAh LiPo battery provides up to 43 days of autonomy without sunlight, ensuring uninterrupted operation during extended periods of low solar input.
b) Communication and Data Handling
LTE-M/NB-IoT Connectivity: Powered by the nRF9151 SiP from Nordic Semiconductor, enabling global real-time data transmission with low power consumption (198mA @ 20dBm).
GNSS Integration: Provides precise geolocation with a daily energy consumption of only 0.0027 Wh (30-second fix).
c) Environmental Sensing
SCD30 Sensor (CO₂, Temperature, Humidity): Measures CO₂ concentrations with high accuracy (±30 ppm), which is critical for climate research. Operates at 62.7mA during active mode (2 seconds per measurement) and consumes 3.3mA in idle mode.
d) Rugged Design for Extreme Climates
- Operates reliably across a wide temperature range (from -40°C to +85°C).
- The IP68-rated enclosure ensures protection against dust, water, and high humidity—ideal for environments like the Amazon Rainforest.
Energy Autonomy Analysisa) Daily Energy Consumption
b) Solar Harvesting Performance
The daily solar energy generated depends on sunlight hours and MPPT efficiency:
Operational Durability in Extreme Climatesa) Arctic Conditions (Barrow, Alaska)
- Winter sunlight: ~0.5 hours per day; net energy balance is slightly positive (+0.13 Wh/day).
- The system operates autonomously for up to 43 days without solar input during extended polar nights.
b) Desert Conditions (Sahara Desert)
- High sunlight exposure (~10 hours per day); a net energy surplus of +4.19 Wh/day ensures continuous operation with significant energy reserves.
c) Tropical Conditions (Amazon Rainforest)
- Moderate sunlight (~4 hours per day); a net energy surplus of +1.63 Wh/day supports long-term autonomous operation despite high humidity.
Schematic DesignThe Frog Sentinel X1 schematic integrates Nordic Semiconductor’s nRF9151 SiP, leveraging its Power Class 5 (20dBm) capability for extended LTE-M/NB-IoT range and reliability. Key technical highlights include:
- Solar Energy Harvesting: The BQ25504 PMIC dynamically adjusts to solar input (0.3–5.5V) with 95% MPPT efficiency, charging a 3.7V LiPo battery and 5F supercapacitor for uninterrupted operation.
- Ultra-Low Power Regulation: The TPS62840 buck converter delivers 3.3V at 93% efficiency, even under 350nA quiescent load, ensuring minimal energy waste.
- Sensor Integration: The SCD30 CO₂ sensor communicates via I2C with 10kΩ pull-ups, while the SX1262 LoRa transceiver enables mesh networking with secondary Nano Frogs (2x2cm nodes).
- Firmware Optimizations: Utilizing Nordic’s nRF Connect SDK v2.0.1+, the design implements delayed IPv6 updates during PSM sleep and GNSS outlier reduction for <5m accuracy in weak signal areas.
Platform: AI-Driven Environmental InsightsAccessible BETA at frog.gabotrix.com, the platform combines real-time monitoring with AI-powered multimodal interaction:
- Natural Language Queries: Ask questions like “Show CO₂ trends in the Amazon last week” or “Check device health in Barrow, Alaska” and receive synthesized reports.
- Predictive Analytics: Machine learning models forecast environmental shifts (e.g., CO₂ spikes) using historical data and satellite cross-validation.
- Automated Reporting: Generate PDF/Excel summaries with actionable insights, such as identifying pollution hotspots or recommending sensor recalibration.
- SDG Alignment: Data contributes to UN Sustainable Development Goals (SDG 13: Climate Action) by enabling evidence-based policy decisions.
Scalability & Future Expansion: Nano Frogs as a PlusIn addition to the Frog Sentinel X1 hub, the system supports the deployment of secondary nodes called Nano Frogs. These ultra-compact sensor nodes are designed to extend the monitoring network.
Nano Frog Specifications
- Size: 3x2 cm PCB footprint.
- Sensors: SCD41 (CO₂) and SHT40 (Temperature/Humidity).
- Communication: LoRa-based mesh network with up to a 5 km range, leveraging LoRa technology.
- Power Source: CR2032 coin cell battery with a lifespan of up to 2 years.
Integration with Frog Sentinel X1
Nano Frogs communicate locally via LoRa with the Frog Sentinel X1 hub, which aggregates data and transmits it to the cloud via LTE-M/NB-IoT.
About MeAs a certified Nordic Semiconductor (Cellular IoT Fundamentals Course), I bridge cutting-edge IoT technology with grassroots sustainability efforts. My work focuses on democratizing prototyping, vision AI, LoRa, mesh, and environmental monitoring through open-source hardware and education.
Key Contributions:
Open-Source Advocacy: Led hands-on workshops in Latin America in collaboration with Seeed Studio, empowering schools, universities and communities to monitor local ecosystems.
STEM Education: Partnered with NGOs to host prototyping and AI vision workshops on IoT and sustainability, aligning with SDG 4 (Quality Education).
Technical Expertise: Designed and developed LoRaWAN and IoT projects with research groups at universities in Colombia and IoT communities across the country and Hackster.io.
Certifications:
Nordic Semiconductor Cellular IoT Fundamentals (nRF9151 focus).
ConclusionThe Frog Sentinel X1 is a robust and scalable solution for global environmental monitoring, offering:
- Autonomous Operation: Minimal human intervention required across diverse climates.
- Scalable Architecture: Supports the integration of Nano Frogs to expand monitoring networks.
- Reliable Performance: Effective operation in extreme conditions (from -40°C to +85°C) with IP68 protection.
This platform empowers researchers and organizations to collect high-quality environmental data at unprecedented scales, facilitating informed decision-making and proactive responses to environmental challenges.
