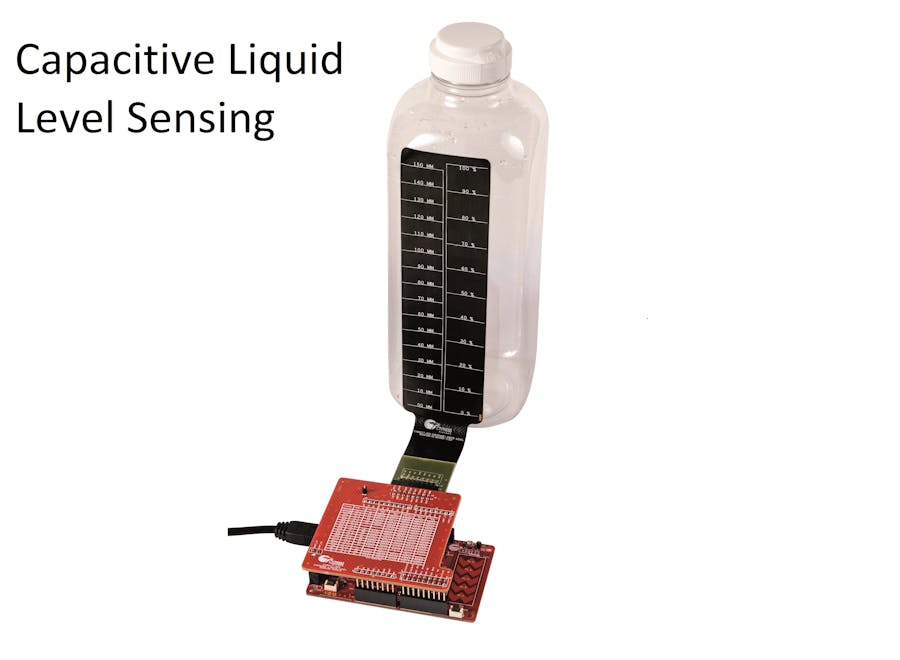

Contactless Liquid Level Sensing using CapSense

/*****************************************************************************
* File Name: main.c
*
* Version: 1.00
*
* Description: Demonstrates Liquid Level Sensing (LLS) using CapSense CSD with 12 sensors.
*
* Related Document: Code example CE202479
*
* Hardware Dependency: See code example CE202479
*
******************************************************************************
* Copyright (2015), Cypress Semiconductor Corporation.
******************************************************************************
* This software is owned by Cypress Semiconductor Corporation (Cypress) and is
* protected by and subject to worldwide patent protection (United States and
* foreign), United States copyright laws and international treaty provisions.
* Cypress hereby grants to licensee a personal, non-exclusive, non-transferable
* license to copy, use, modify, create derivative works of, and compile the
* Cypress Source Code and derivative works for the sole purpose of creating
* custom software in support of licensee product to be used only in conjunction
* with a Cypress integrated circuit as specified in the applicable agreement.
* Any reproduction, modification, translation, compilation, or representation of
* this software except as specified above is prohibited without the express
* written permission of Cypress.
*
* Disclaimer: CYPRESS MAKES NO WARRANTY OF ANY KIND, EXPRESS OR IMPLIED, WITH
* REGARD TO THIS MATERIAL, INCLUDING, BUT NOT LIMITED TO, THE IMPLIED
* WARRANTIES OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE.
* Cypress reserves the right to make changes without further notice to the
* materials described herein. Cypress does not assume any liability arising out
* of the application or use of any product or circuit described herein. Cypress
* does not authorize its products for use as critical components in life-support
* systems where a malfunction or failure may reasonably be expected to result in
* significant injury to the user. The inclusion of Cypress' product in a life-
* support systems application implies that the manufacturer assumes all risk of
* such use and in doing so indemnifies Cypress against all charges. Use may be
* limited by and subject to the applicable Cypress software license agreement.
*****************************************************************************/
#include <project.h>
#include <interface.h>
#include <main.h>


/* Global variables */
/* Global variables used because this is the method uProbe uses to access firmware data */
/* CapSense tuning variables */
uint8 modDac = SENSOR_MODDAC;               /* Modulation DAC current setting */
uint8 compDac[NUMSENSORS] = {SENSOR_CMPDAC, SENSOR_CMPDAC, SENSOR_CMPDAC, SENSOR_CMPDAC, SENSOR_CMPDAC, SENSOR_CMPDAC, SENSOR_CMPDAC, SENSOR_CMPDAC, SENSOR_CMPDAC, SENSOR_CMPDAC, SENSOR_CMPDAC, SENSOR_CMPDAC}; /* Compensation DAC current setting */
uint8 senseDivider = SENSOR_SENDIV;         /* Sensor clock divider */
uint8 modDivider = SENSOR_MODDIV;           /* Modulation clock divider */
/* Liquid Level variables */
int32 sensorRaw[NUMSENSORS] = {0u};         /* Sensor raw counts */
int32 sensorDiff[NUMSENSORS] = {0u};        /* Sensor difference counts */
int16 sensorEmptyOffset[NUMSENSORS] = {0u}; /* Sensor counts when empty to calculate diff counts. Loaded from EEPROM array */
const int16 CYCODE eepromEmptyOffset[] = {0u};/* Sensor counts when empty to calculate diff counts. Loaded from EEPROM array */
int16 sensorScale[NUMSENSORS] = {0x01D0, 0x0100, 0x0100, 0x0100, 0x0100, 0x0100, 0x0100, 0x0100, 0x0100, 0x0100, 0x0100, 0x01C0}; /* Scaling factor to normalize sensor full scale counts. 0x0100 = 1.0 in fixed precision 8.8 */
int32 sensorProcessed[NUMSENSORS] = {0u, 0u}; /* fixed precision 24.8 */
uint16 sensorLimit = SENSORLIMIT;           /* Threshold for determining if a sensor is submerged. Set to half of SENSORMAX value */
uint8 sensorActiveCount = 0u;               /* Number of sensors currently submerged */
int32 levelPercent = 0u;                    /* fixed precision 24.8 */
int32 levelMm = 0u;                         /* fixed precision 24.8 */
int32 sensorHeight = SENSORHEIGHT;          /* Height of a single sensor. Fixed precision 24.8 */
uint8 calFlag = FALSE;                      /* Flag to signal when new sensor calibration values should be stored to EEPROM */
/* Communication variables */
uint16 delayMs = UART_DELAY;                /* Main loop delay in ms to control UART data log output speed */


int main()
{
    uint8 i;

    /* Enable global interrupts */
    CyGlobalIntEnable;

    /* Read stored empty offset values from EEPROM */
    for(i = 0; i < NUMSENSORS; i++)
    {
        sensorEmptyOffset[i] = eepromEmptyOffset[i];
    }

    /* Start CapSense and UART components */
    CapSense_CSD_Start();
    CapSense_CSD_ScanEnabledWidgets();
    UART_Start();
    InitialUartMessage();

    while(1u)
    {
   		/* Check for CapSense scan complete*/
        if(CapSense_CSD_IsBusy() == FALSE)
        {
            /* Delay to control data logging rate */
            CyDelay(delayMs);

            /* Read and store new sensor raw counts*/
            for(i = 0; i < NUMSENSORS; i++)
            {
                sensorRaw[i] = CapSense_CSD_ReadSensorRaw(i);
                sensorDiff[i] = sensorRaw[i];
            }

            /* Start scan for next iteration */
            CapSense_CSD_ScanEnabledWidgets();

            /* Check if we should store new empty offset calibration values */
            if(calFlag == TRUE)
            {
                calFlag = FALSE;
                StoreCalibration();
            }

            /* Remove empty offset calibration from sensor raw counts and normalize sensor full count values */
            for(i = 0; i < NUMSENSORS; i++)
            {
                sensorDiff[i] -= sensorEmptyOffset[i];
                sensorProcessed[i] = (sensorDiff[i] * sensorScale[i]) >> 8;
            }

            /* Find the number of submerged sensors */
            sensorActiveCount = 0;
            for(i = 0; i < NUMSENSORS; i++)
            {
                if(sensorProcessed[i] > sensorLimit)
                {
                    /* First and last sensor are half the height of middle sensors */
                    if((i == 0) || (i == NUMSENSORS - 1))
                    {
                        sensorActiveCount += 1;
                    }
                    /* Middle sensors are twice the height of 1st and last sensors */
                    else
                    {
                        sensorActiveCount += 2;
                    }
                }
            }

            /* Calculate liquid level height in mm */
            levelMm = sensorActiveCount * (sensorHeight >> 1);
            /* If level is near full value then round to full. Avoids fixed precision rounding errors */
            if(levelMm > ((int32)LEVELMM_MAX << 8) - (sensorHeight >> 2))
            {
                levelMm = LEVELMM_MAX << 8;
            }

            /* Calculate level percent. Stored in fixed precision 24.8 format to hold fractional percent */
            levelPercent = (levelMm * 100) / LEVELMM_MAX;

            /* Report level and process uProbe and UART interfaces */
            ProcessUprobe();
            ProcessUart();
        }

        /* Can do other main loop stuff here */

    }
}





/* [] END OF FILE */
