Arduino Nano Pac Man

/**************************************************************************
 *
 *  ARDUINO PAC-MAN 1.2
 *
 *  Jan/2022  Giovanni Verrua
 *
 *   This program is free software: you can redistribute it and/or modify
 *   it under the terms of the GNU General Public License as published by
 *   the Free Software Foundation, either version 3 of the License, or
 *   (at your option) any later version.
 *
 *   This program is distributed in the hope that it will be useful,
 *   but WITHOUT ANY WARRANTY; without even the implied warranty of
 *   MERCHANTABILITY or FITNESS FOR A PARTICULAR PURPOSE.  See the
 *   GNU General Public License for more details.
 *
 *   You should have received a copy of the GNU General Public License
 *   along with this program.  If not, see <https://www.gnu.org/licenses/>.
 *
 * NOTE: The code isn't optimized. I know that, it could be wrote
 *       in less lines and some choices I made are quite awful.
 *       The main reason is that I wrote it learning Arduino, so I
 *       preferred a code easy to read than a more compact code.
 *
 *       Also, I faced many strange problems. In example, a simple
 *       variable declaration, an IF sentence, etc. in some cases prevented
 *       the Arduino Nano from boot. Specifically, I couldn't use the
 *       TV.print() function (that's the reason to use bitmap for the score
 *       and the lives) and I also have had serious troubles where the
 *       ghosts slow the speed when they are "haunted" (I mean: when you eat
 *       the magic pill, also called "happy hour" in the comments ;-) or to
 *       make them flashing at the 3 last seconds of the happy hour.
 *
 *       So, forgive the sometimes strange code, but I've lost more time
 *       trying to fix this kind of problems than to wrote the whole code.
 *
 *       -- I wrote the game from scratch instead to port it from another
 *       platform. Since I'm not a game designer and honestly I have
 *       no skill about that, I'm sure there's a better way to
 *       write the ghosts AI. My ghosts are AI: Artificially Idiots.
 *       Sorry for that.
 *
 *   Connections to Arduino Uno/Nano:
 *
 *   Connect buttons to: pin 2 and +5V (button up),
 *                       pin 3 and +5V (button down),
 *                       pin 4 and +5V (button left),
 *                       pin 5 and +5V (but.right),
 *                       pin 6 and +5V (button Fire / Start)
 *
 *   (note: you can use an Atari compatible Joystick too)
 *
 *   Connect 100 kohm pulldown resistors between pin 2 and GND,
 *                                               pin 3 and GND,
 *                                               pin 4 and GND,
 *                                               pin 5 and GND,
 *                                               pin 6 and GND
 *
 *   TV composite out:
 *   Connect  1k ohm resistor from pin 9 to TV out (+)
 *   Connect 470 ohm resistor from pin 7 to TV out (+)
 *   Connect GND                         to TV out (-)
 *
 *   Audio:
 *   Connect a speaker between pin 11 and GND
 *
 **************************************************************************/

#include <TVout.h>
#include <fontALL.h>
#include "bitmap.h"
#include "pitches.h"


//You can use buttons or a Joystick Atari compatible
#define BUTTON_UP     2
#define BUTTON_DOWN   3
#define BUTTON_LEFT   4
#define BUTTON_RIGHT  5
#define BUTTON_START  6  //digital - button

#define PAC_STARTX   48 //pacman X position
#define PAC_STARTY   61 //pacman Y position


#define GAME_SPEED 30 //higher value, lower speed
#define GHOST_RELEASE_DELAY  1000 //how many millisec between 2 ghosts release

#define HOWMANYGHOSTS 4  //USED FOR DEBUG. MAX 4 GHOSTS (UNLESS YOU CHANGE THE GHOSTS ARRAY DECLARATIONS AND RESET)
#define EATGHOSTSECS  10 //TIME ALLOWED TO EAT GHOSTS (HAPPY HOUR)


TVout TV;

int Score = 0;
int lives = 3;

int gamSt = 0;  //0 = menu, 1 = in game, 2 = game over

int FoodPosY[8]   =       {5,15,25,35,55,65,75,85};

int FoodPosX[12]   =      {  5, 15, 25, 34, 44, 59, 70, 84, 94,103,113,122};

//This declaration is just for explaining how the food and pills are.
//if you need to modify something, must change in reset_food() too.
int FoodMatr[8][12] = {   {  1,  1,  1,  1,  1,  1,  1,  1,  1,  1,  1,  1},    //5
                          {  2,  0,  1,  0,  1,  1,  1,  1,  0,  1,  0,  2},    //15
                          {  1,  1,  1,  1,  1,  1,  1,  1,  1,  1,  1,  1},    //25
                          {  1,  1,  1,  1,  0,  0,  0,  0,  1,  1,  1,  1},    //35
                          {  1,  1,  1,  1,  1,  1,  1,  1,  1,  1,  1,  1},    //55
                          {  1,  2,  1,  1,  1,  1,  1,  1,  1,  1,  2,  1},    //65
                          {  1,  1,  1,  1,  1,  1,  1,  1,  1,  1,  1,  1},    //75
                          {  1,  1,  1,  1,  1,  1,  1,  1,  1,  1,  1,  1} };  //85


          int gstPosX [4] = {51,52,53,54};  //ghosts position
          int gstPosY [4] = {41,41,41,41};  //ghosts position
          int gstDire [4] = {1,1,1,1};  //ghosts direction 0=north, 1=east, 2=south, 3=west


//===================================================================================== JINGLE
void  Jingle(){   //Playing pac-man jingle

TV.tone(NOTE_B4 ,100); delay(120);
TV.tone(NOTE_B5 ,100); delay(120);
TV.tone(NOTE_FS5,100); delay(120);
TV.tone(NOTE_DS5,100); delay(120);
TV.tone(NOTE_FS5,120); delay(200);
TV.tone(NOTE_DS5,150); delay(250);

TV.tone(NOTE_C5 ,100); delay(120);
TV.tone(NOTE_C6 ,100); delay(120);
TV.tone(NOTE_G5 ,100); delay(120);
TV.tone(NOTE_E5 ,100); delay(120);
TV.tone(NOTE_C6 ,120); delay(200);
TV.tone(NOTE_G5 ,150); delay(250);

TV.tone(NOTE_B4 ,100); delay(120);
TV.tone(NOTE_B5 ,100); delay(120);
TV.tone(NOTE_FS5,100); delay(120);
TV.tone(NOTE_DS5,100); delay(120);
TV.tone(NOTE_B5 ,120); delay(200);
TV.tone(NOTE_FS5,150); delay(250);

TV.tone(NOTE_DS5,100); delay(120);
TV.tone(NOTE_DS5,100); delay(120);
TV.tone(NOTE_E5 ,100); delay(120);
TV.tone(NOTE_F5 ,100); delay(120);
TV.tone(NOTE_F5 ,100); delay(120);
TV.tone(NOTE_FS5,100); delay(120);
TV.tone(NOTE_G5 ,100); delay(120);
TV.tone(NOTE_G5 ,100); delay(120);
TV.tone(NOTE_GS5,100); delay(120);
TV.tone(NOTE_A5 ,100); delay(120);
TV.tone(NOTE_B5 ,100); delay(120);
}



//===================================================================================== RESET_GHOST
void reset_ghosts() {

     gstPosX[0] = 51; gstPosX[1] = 52; gstPosX[2] = 53; gstPosX[3] = 54;  //ghosts position
     gstPosY[0] = 41; gstPosY[1] = 41; gstPosY[2] = 41; gstPosY[3] = 41;  //ghosts position
     gstDire[0] = 1;  gstDire[1] = 1;  gstDire[2] = 1;  gstDire[3] = 1;  //ghosts direction 0=north, 1=east, 2=south, 3=west

}

//===================================================================================== DRAW_FOOD
void draw_food() {
     for (int i=0;i<12;i++){
         for (int j=0;j<8;j++){

             if (FoodMatr[j][i] == 1) { //food
                TV.set_pixel(FoodPosX[i],FoodPosY[j],1);
             }

             if (FoodMatr[j][i] == 2) { //pill
                TV.set_pixel(FoodPosX[i]-1,FoodPosY[j]+1,1);
                TV.set_pixel(FoodPosX[i]-1,FoodPosY[j]-1,1);
                TV.set_pixel(FoodPosX[i]+1,FoodPosY[j]-1,1);
                TV.set_pixel(FoodPosX[i]+1,FoodPosY[j]+1,1);
             }

          }
      }
}

//===================================================================================== RESET_FOOD
void reset_food() {

  //I tried with a const array for initialization, but i got strange behaviors. I'm sure it's my fault. This isn't elegant but at least it works LOL
  FoodMatr[0][0]=1; FoodMatr[0][1]=1; FoodMatr[0][2]=1; FoodMatr[0][3]=1; FoodMatr[0][4]=1; FoodMatr[0][5]=1; FoodMatr[0][6]=1; FoodMatr[0][7]=1; FoodMatr[0][8]=1; FoodMatr[0][9]=1; FoodMatr[0][10]=1; FoodMatr[0][11]=1 ;
  FoodMatr[1][0]=2; FoodMatr[1][1]=0; FoodMatr[1][2]=1; FoodMatr[1][3]=0; FoodMatr[1][4]=1; FoodMatr[1][5]=1; FoodMatr[1][6]=1; FoodMatr[1][7]=1; FoodMatr[1][8]=0; FoodMatr[1][9]=1; FoodMatr[1][10]=0; FoodMatr[1][11]=2 ;
  FoodMatr[2][0]=1; FoodMatr[2][1]=1; FoodMatr[2][2]=1; FoodMatr[2][3]=1; FoodMatr[2][4]=1; FoodMatr[2][5]=1; FoodMatr[2][6]=1; FoodMatr[2][7]=1; FoodMatr[2][8]=1; FoodMatr[2][9]=1; FoodMatr[2][10]=1; FoodMatr[2][11]=1 ;
  FoodMatr[3][0]=1; FoodMatr[3][1]=1; FoodMatr[3][2]=1; FoodMatr[3][3]=1; FoodMatr[3][4]=0; FoodMatr[3][5]=0; FoodMatr[3][6]=0; FoodMatr[3][7]=0; FoodMatr[3][8]=1; FoodMatr[3][9]=1; FoodMatr[3][10]=1; FoodMatr[3][11]=1 ;
  FoodMatr[4][0]=1; FoodMatr[4][1]=1; FoodMatr[4][2]=1; FoodMatr[4][3]=1; FoodMatr[4][4]=1; FoodMatr[4][5]=1; FoodMatr[4][6]=1; FoodMatr[4][7]=1; FoodMatr[4][8]=1; FoodMatr[4][9]=1; FoodMatr[4][10]=1; FoodMatr[4][11]=1 ;
  FoodMatr[5][0]=1; FoodMatr[5][1]=2; FoodMatr[5][2]=1; FoodMatr[5][3]=1; FoodMatr[5][4]=1; FoodMatr[5][5]=1; FoodMatr[5][6]=1; FoodMatr[5][7]=1; FoodMatr[5][8]=1; FoodMatr[5][9]=1; FoodMatr[5][10]=2; FoodMatr[5][11]=1 ;
  FoodMatr[6][0]=1; FoodMatr[6][1]=1; FoodMatr[6][2]=1; FoodMatr[6][3]=1; FoodMatr[6][4]=1; FoodMatr[6][5]=1; FoodMatr[6][6]=1; FoodMatr[6][7]=1; FoodMatr[6][8]=1; FoodMatr[6][9]=1; FoodMatr[6][10]=1; FoodMatr[6][11]=1 ;
  FoodMatr[7][0]=1; FoodMatr[7][1]=1; FoodMatr[7][2]=1; FoodMatr[7][3]=1; FoodMatr[7][4]=1; FoodMatr[7][5]=1; FoodMatr[7][6]=1; FoodMatr[7][7]=1; FoodMatr[7][8]=1; FoodMatr[7][9]=1; FoodMatr[7][10]=1; FoodMatr[7][11]=1 ;

}

//===================================================================================== SETUP
void setup() {

    TV.begin(_PAL); //128x96 default

    pinMode(BUTTON_UP,INPUT);
    pinMode(BUTTON_DOWN,INPUT);
    pinMode(BUTTON_LEFT,INPUT);
    pinMode(BUTTON_RIGHT,INPUT);
    pinMode(BUTTON_START,INPUT);

    gamSt = 0;
}

//===================================================================================== DRAW_SCORE
//for some reason I can't use the tv.print() function: it hangs the sketch
//(it compiles fine but after upload it doesn't start). So I must to write the
//score using bitmaps.

void draw_score() {

 int pos = 30;
 int num = 0;
 int zero = 0;

  int a = Score /10;
  int b = Score /100;
  int c = Score /1000;
  int d = Score /10000;

  num = d;      if (num > 0 || zero !=0 ) { draw_numbers(num,pos); pos+=8; zero = 1; }
  num = c-d*10; if (num > 0 || zero !=0 ) { draw_numbers(num,pos); pos+=8; zero = 1; }
  num = b-c*10; if (num > 0 || zero !=0 ) { draw_numbers(num,pos); pos+=8; zero = 1; }
  num = a-b*10; if (num > 0 || zero !=0 ) { draw_numbers(num,pos); pos+=8; zero = 1; }
  num = Score-a*10;                         draw_numbers(num,pos);

}

//===================================================================================== DRAW_NUMBERS
//for some reason I can't use the tv.print() function: it hangs the sketch
//(it compiles fine but after upload it doesn't start). So I must to write the
//score using bitmaps.
void draw_numbers(uint8_t num, uint8_t pos ) {

               if (num == 0) TV.bitmap(  pos,88,nu0);
               if (num == 1) TV.bitmap(  pos,88,nu1);
               if (num == 2) TV.bitmap(  pos,88,nu2);
               if (num == 3) TV.bitmap(  pos,88,nu3);
               if (num == 4) TV.bitmap(  pos,88,nu4);
               if (num == 5) TV.bitmap(  pos,88,nu5);
               if (num == 6) TV.bitmap(  pos,88,nu6);
               if (num == 7) TV.bitmap(  pos,88,nu7);
               if (num == 8) TV.bitmap(  pos,88,nu8);
               if (num == 9) TV.bitmap(  pos,88,nu9);

}


//===================================================================================== COLLISION
unsigned char collision(uint8_t x, uint8_t y, uint8_t dir) {

  //-----------------------------------------------------------------------------------------------------north
  if (dir == 0){
    if ( TV.get_pixel(x,y-1)==1 || TV.get_pixel(x+7,y-1)==1 ) return 1;
     for (int i=1;i<6;i++){
        if ( TV.get_pixel(x+i,y-1)==1 && TV.get_pixel(x+i+1,y-1)==1 ) return 1; //must to have at least 2 pixel in front of it to represent a wall (1 pixel represent food or pill)
     }
  }

  //-----------------------------------------------------------------------------------------------------east
  if (dir == 1){
     if ( TV.get_pixel(x+8,y)==1 || TV.get_pixel(x+8,y+7)==1 ) return 1;
     for (int i=1;i<6;i++){
        if ( TV.get_pixel(x+8,y+i)==1 && TV.get_pixel(x+8,y+i+1)==1 ) return 1;  //must to have at least 2 pixel in front of it to represent a wall (1 pixel represent food or pill)
     }
  }

  //-----------------------------------------------------------------------------------------------------south
  if (dir == 2){
    if ( TV.get_pixel(x,y+8)==1 || TV.get_pixel(x+7,y+8)==1 ) return 1;
     for (int i=1;i<6;i++){
        if ( TV.get_pixel(x+i,y+8)==1 && TV.get_pixel(x+i+1,y+8)==1 ) return 1; //must to have at least 2 pixel in front of it to represent a wall (1 pixel represent food or pill)
     }
  }

  //-----------------------------------------------------------------------------------------------------west
  if (dir == 3){
     if ( TV.get_pixel(x-1,y)==1 || TV.get_pixel(x-1,y+7)==1 ) return 1;
     for (int i=1;i<6;i++){
        if ( TV.get_pixel(x-1,y+i)==1 && TV.get_pixel(x-1,y+i+1)==1 ) return 1; //must to have at least 2 pixel in front of it to represent a wall (1 pixel represent food or pill)
     }
  }

  return 0;
}

//===================================================================================== LOOP
void loop() {

  bool every_2 = false;
  //-----------------------------------------------------------------------------------------------------MENU

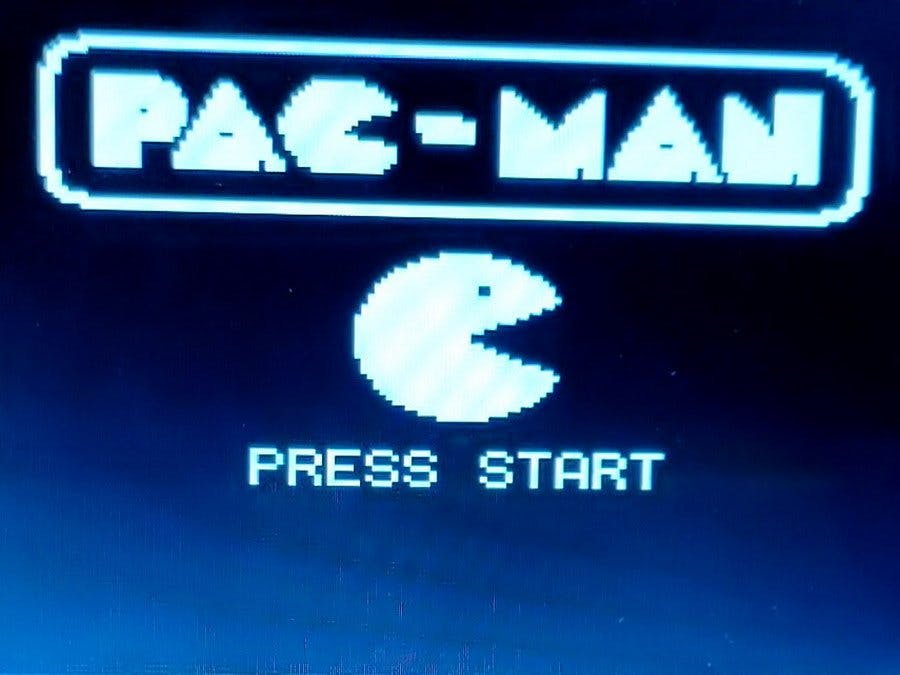

  if (gamSt == 0){   //MENU

        TV.clear_screen();
        TV.bitmap(0,  0, logo);
        TV.bitmap(0, 33, start);

        delay(1000);

        while ( digitalRead(BUTTON_START) == 0){}
         gamSt = 1;
         delay(300);

  }


 //-----------------------------------------------------------------------------------------------------IN GAME

  if (gamSt == 1){   // IN GAME

     Score = 0;
     lives = 3;

     //---------------------------------
     //drawing once the grid and the food before the jingle() - not needed, just for show
     TV.clear_screen();
     TV.bitmap(00,00,grid);
     reset_food();
     draw_food();
     Jingle();
     //---------------------------------


     while (lives > 0){

          int eatGhosts = 0;
          int oldDire = 1;  //old pacman direction

          unsigned long mill = millis() ;  //delay - aliens
          unsigned long relg = millis() ;  //delay - release ghosts
          unsigned long eatg = millis() ;  //delay - eat ghosts


          int pacPosX = PAC_STARTX; //pacman X position
          int pacPosY = PAC_STARTY; //pacman Y position
          int pacDire = 1;  //pacman direction 0=north, 1=east, 2=south, 3=west > changing with wheel or buttons

          int ghChg[4] = {0,0,0,0};  //ghost change direction
          int ghSts[4] = {0,0,0,0};  //ghost status (1=eaten, 0=alive) - when eatGhosts = 1


          int endfood = 0; // 0 = all eaten, 1 = some food/pills left yet
          int gotcha = 0;
          int numofgh = 0;

           endfood = 1;

           TV.clear_screen();
           TV.bitmap(00,00,grid);

           reset_ghosts();
           reset_food();
           draw_food();

           //-----------------------------------------------------------------------------------------------------Main Cycle-begin-\

           while ( endfood != 0 && lives > 0 ) {

             if (mill + GAME_SPEED < millis()){  //the game move all at the same speed

                if (every_2 ) every_2 = false; else every_2 = true;

                if (  numofgh < HOWMANYGHOSTS && relg + GHOST_RELEASE_DELAY < millis() ) { numofgh++; relg = millis(); }


               //----------------------------------------------------------------------------------------------\
               //DON'T MOVE THIS PART FROM HERE! IT MUST TO DELETE ALL THE GHOSTS BEFORE TO CHECK THE OBSTACLES
               //OR THE GHOSTS WILL BE CONFUSED BY THE PRESENCE OF OTHER GHOSTS!!!
               for (int i=0;i<numofgh;i++){
                   TV.bitmap(gstPosX[i],gstPosY[i],blk);  //delete all ghosts before to check obstacles.
                }
                TV.bitmap(pacPosX,pacPosY,blk);
                //----------------------------------------------------------------------------------------------/


                //----------------------------------------------------3 secs to the end of happy hour! Ghosts are flashing
                if (eatGhosts == 1 && eatg + EATGHOSTSECS*1000 -3000 < millis()) {
                     eatGhosts = 2;
                }

                //----------------------------------------------------end of happy hour! Ghosts are hunting you again!
                if (eatGhosts > 0 && eatg + EATGHOSTSECS*1000 < millis()) {
                     eatGhosts = 0;
                     ghSts[0] = 0; ghSts[1] = 0; ghSts[2] = 0; ghSts[3] = 0;
                }

                //----------------------------------------------------------------------------------------------\

                oldDire = pacDire ;
                if ( digitalRead(BUTTON_UP   ) == 1) pacDire = 0; //north
                if ( digitalRead(BUTTON_RIGHT) == 1) pacDire = 1; //east
                if ( digitalRead(BUTTON_DOWN ) == 1) pacDire = 2; //south
                if ( digitalRead(BUTTON_LEFT ) == 1) pacDire = 3; //west

                if (collision(pacPosX,pacPosY,pacDire) == 1 && pacDire != oldDire ) pacDire = oldDire ;

                if (collision(pacPosX,pacPosY,pacDire) == 0){

                      if (pacDire == 0) pacPosY--;
                      if (pacDire == 1) pacPosX++;
                      if (pacDire == 2) pacPosY++;
                      if (pacDire == 3) pacPosX--;

                      if (pacPosX > 120) pacPosX = 0;
                      if (pacPosX < 0)   pacPosX = 120;

                       //------------------------------------------------------------------------------------------------------check food/pills
                       endfood = 0;
                       for (int i=0;i<12;i++){
                           for (int j=0;j<8;j++){
                               if (FoodMatr[j][i] == 1 || FoodMatr[j][i] == 2 ) {
                                  endfood = 1;  //still some food / pills to eat

                                  //-------------------------------------------------------------------------------------------------------food
                                  if (FoodPosX[i] >= pacPosX && FoodPosX[i] <= pacPosX+7 && FoodPosY[j] >= pacPosY && FoodPosY[j] <= pacPosY+7) {
                                      if (FoodMatr[j][i] == 1) {
                                          FoodMatr[j][i] = 0;
                                          Score ++;
                                          TV.tone(NOTE_G1, 50);
                                      }
                                      if (FoodMatr[j][i] == 2) {
                                          FoodMatr[j][i] = 0;
                                          Score += 10;
                                          eatGhosts = 1;
                                          eatg = millis() ;
                                          TV.tone(NOTE_B5, 50);
                                      }
                                  }
                                  //-------------------------------------------------------------------------------------------------------pill
                               }
                            }
                        }

                        if (endfood == 0) Jingle();
                }


                //----------------------------------------------------------------------------------------------/

                //----------------------------------------------------------------------------------------------pac vs ghost collision
                 gotcha = 0;

                 for (int i=0;i<numofgh;i++){

                    if (eatGhosts == 0 || ghSts[i] == 0) {

                        //ghost coming from north
                        if (  gstPosY[i] <=pacPosY    && gstPosY[i]+8 >=pacPosY    &&  ( (gstPosX[i] >=pacPosX && gstPosX[i]+7 <=pacPosX) || (gstPosX[i] <=pacPosX && gstPosX[i]+7 >=pacPosX) ) ) { gotcha = i+1; i == numofgh; }

                        //ghost coming from south
                        if (  pacPosY    <=gstPosY[i] && pacPosY   +8 >=gstPosY[i] &&  ( (gstPosX[i] >=pacPosX && gstPosX[i]+7 <=pacPosX) || (gstPosX[i] <=pacPosX && gstPosX[i]+7 >=pacPosX) ) ) { gotcha = i+1; i == numofgh; }

                        //ghost coming from west
                        if (  gstPosX[i] <=pacPosX    && gstPosX[i]+8 >=pacPosX    &&  ( (gstPosY[i] >=pacPosY && gstPosY[i]+7 <=pacPosY) || (gstPosY[i] <=pacPosY && gstPosY[i]+7 >=pacPosY) ) ) { gotcha = i+1; i == numofgh; }

                        //ghost coming from south
                        if (  pacPosX    <=gstPosX[i] && pacPosX   +8 >=gstPosX[i] &&  ( (gstPosY[i] >=pacPosY && gstPosY[i]+7 <=pacPosY) || (gstPosY[i] <=pacPosY && gstPosY[i]+7 >=pacPosY) ) ) { gotcha = i+1; i == numofgh; }
                    }
                 }

                 if (gotcha > 0 ) {

                    if (eatGhosts == 0) {
                        //------------------------------------------------------------- the got you! ----------
                        lives --;

                        for (int i=0;i<5;i++){
                           TV.tone(NOTE_G1*(5-i)*10, 100);
                           TV.bitmap(pacPosX,pacPosY,p1w); delay(50) ;
                           TV.bitmap(pacPosX,pacPosY,p1s); delay(50) ;
                           TV.bitmap(pacPosX,pacPosY,p1e); delay(50) ;
                           TV.bitmap(pacPosX,pacPosY,p1n); delay(50) ;
                        }
                        delay(1000);
                        relg = millis() ;
                        pacPosX = PAC_STARTX; //pacman X position
                        pacPosY = PAC_STARTY; //pacman Y position
                        pacDire = 1;  //pacman direction 0=north, 1=east, 2=south, 3=west > changing with wheel or buttons
                        oldDire = 1;  //old pacman direction

                        ghChg[0] = 0; ghChg[1] = 0; ghChg[2] = 0; ghChg[3] = 0;   //ghost change direction
                        gotcha = 0;
                        numofgh = 0;

                        if (lives >0) {
                           TV.clear_screen();
                           TV.bitmap(00,00,grid);
                           draw_food();
                           reset_ghosts();
                        }
                     }
                     //------------------------------------------------------------- you got a ghost!-------
                     else {   // eatGhosts == 1
                          TV.tone(NOTE_B6, 200);
                          gstPosX[gotcha-1] = 51;
                          gstPosY[gotcha-1] = 41;
                          Score += 20;

                     }
                 }


               //---------------------------------------------------------------------------ghost moving-begin-\

                for (int i=0;i<numofgh;i++){ //DEBUG //<4 ma bisogna capire come fare per differenziare le direzioni dei fantasmi

                   ghChg[i] = 0;

                   //direction 0=north, 1=east, 2=south, 3=west

                   //----------------------------------------------------------------------------------------north
                   if (gstDire[i]==0 && ghChg[i]==0 && collision(gstPosX[i],gstPosY[i],gstDire[i]) == 1){  //
                       if (pacPosX < gstPosX[i] && eatGhosts == 0){           //if (random(1,3) == 1){
                           if (collision(gstPosX[i],gstPosY[i],3) == 0) { gstDire[i] = 3; ghChg[i] = 1; } else {  //n -> w
                           if (collision(gstPosX[i],gstPosY[i],1) == 0) { gstDire[i] = 1; ghChg[i] = 1; } }       //n -> e
                       }
                       else {
                           if (collision(gstPosX[i],gstPosY[i],1) == 0) { gstDire[i] = 1; ghChg[i] = 1; } else {  //n -> e
                           if (collision(gstPosX[i],gstPosY[i],3) == 0) { gstDire[i] = 3; ghChg[i] = 1; } }       //n -> w
                       }
                       if ( ghChg[i]==0 )  {gstDire[i]=2; ghChg[i] = 1; } //n -> s}  //means it can only go back
                   }
                   //----------------------------------------------------------------------------------------east
                   if (gstDire[i]==1 && ghChg[i]==0 && collision(gstPosX[i],gstPosY[i],gstDire[i]) == 1){
                      if (pacPosY > gstPosY[i] && eatGhosts == 0){           //if (random(1,3) == 1){
                          if (collision(gstPosX[i],gstPosY[i],2) == 0) { gstDire[i] = 2; ghChg[i] = 1; }  else {  //e -> s
                          if (collision(gstPosX[i],gstPosY[i],0) == 0) { gstDire[i] = 0; ghChg[i] = 1; } }        //e -> n
                        }
                       else {
                          if (collision(gstPosX[i],gstPosY[i],0) == 0) { gstDire[i] = 0; ghChg[i] = 1; }  else {  //e -> n
                          if (collision(gstPosX[i],gstPosY[i],2) == 0) { gstDire[i] = 2; ghChg[i] = 1; } }        //e -> s
                       }
                       if ( ghChg[i]==0 )  {gstDire[i]=3; ghChg[i] = 1; } //e -> w}  //means it can only go back
                   }
                   //----------------------------------------------------------------------------------------south
                   if (gstDire[i]==2 && ghChg[i]==0 && collision(gstPosX[i],gstPosY[i],gstDire[i]) == 1){
                       if (pacPosX > gstPosX[i] && eatGhosts == 0){           //if (random(1,3) == 1){
                           if (collision(gstPosX[i],gstPosY[i],1) == 0) { gstDire[i] = 1; ghChg[i] = 1; } else {   //s -> e
                           if (collision(gstPosX[i],gstPosY[i],3) == 0) { gstDire[i] = 3; ghChg[i] = 1; } }        //s -> w
                       }
                       else {
                           if (collision(gstPosX[i],gstPosY[i],3) == 0) { gstDire[i] = 3; ghChg[i] = 1; } else {   //s -> w
                           if (collision(gstPosX[i],gstPosY[i],1) == 0) { gstDire[i] = 1; ghChg[i] = 1; } }        //s -> e
                       }
                       if ( ghChg[i]==0 )  {gstDire[i]=0; ghChg[i] = 1; } //s -> n}  //means it can only go back
                   }
                   //----------------------------------------------------------------------------------------west
                   if (gstDire[i]==3 && ghChg[i]==0 && collision(gstPosX[i],gstPosY[i],gstDire[i]) == 1){
                       if (pacPosY < gstPosY[i] && eatGhosts == 0){           //if (random(1,3) == 1){
                           if (collision(gstPosX[i],gstPosY[i],0) == 0) { gstDire[i] = 0; ghChg[i] = 1; } else {   //w -> n
                           if (collision(gstPosX[i],gstPosY[i],2) == 0) { gstDire[i] = 2; ghChg[i] = 1; } }        //w -> s
                       }
                       else {
                           if (collision(gstPosX[i],gstPosY[i],2) == 0) { gstDire[i] = 2; ghChg[i] = 1; } else {   //w -> s
                           if (collision(gstPosX[i],gstPosY[i],0) == 0) { gstDire[i] = 0; ghChg[i] = 1; } }        //w -> n
                       }
                       if ( ghChg[i]==0 )  {gstDire[i]=1; ghChg[i] = 1; } //w -> e}  //means it can only go back
                   }


                 }  //next i



                for (int i=0;i<numofgh;i++){


                    if (ghChg[i]==0  && random(1,3) == 1){

                        //----------------------------------------------------------------------------------------west
                        if (gstDire[i]==3 && ghChg[i]==0){  //west
                           if (pacPosY < gstPosY[i] && eatGhosts == 0){           //if (random(1,3) == 1){
                               if ( collision(gstPosX[i],gstPosY[i],0) == 0 && ghChg[i]==0) {gstDire[i]=0;ghChg[i] = 1; } //w -> n
                               if (random(1,5)==2){
                               if ( collision(gstPosX[i],gstPosY[i],2) == 0 && ghChg[i]==0) {gstDire[i]=2;ghChg[i] = 1; } //w -> s
                               }
                            }
                           else {
                               if ( collision(gstPosX[i],gstPosY[i],2) == 0 && ghChg[i]==0) {gstDire[i]=2;ghChg[i] = 1; } //w -> s
                               if (random(1,5)==2){
                               if ( collision(gstPosX[i],gstPosY[i],0) == 0 && ghChg[i]==0) {gstDire[i]=0;ghChg[i] = 1; } //w -> n
                               }
                            }
                        }

                        //----------------------------------------------------------------------------------------north
                        if (gstDire[i]==0 && ghChg[i]==0){  //north
                              if (pacPosX < gstPosX[i] && eatGhosts == 0){           //if (random(1,3) == 1){
                                  if ( collision(gstPosX[i],gstPosY[i],1) == 0 && ghChg[i]==0) {gstDire[i]=1;ghChg[i] = 1; } //n -> e
                                  if (random(1,5)==2){
                                  if ( collision(gstPosX[i],gstPosY[i],3) == 0 && ghChg[i]==0) {gstDire[i]=3;ghChg[i] = 1; } //n -> w
                                  }
                              }

                              else {
                                  if ( collision(gstPosX[i],gstPosY[i],3) == 0 && ghChg[i]==0) {gstDire[i]=3;ghChg[i] = 1; } //n -> w
                                  if (random(1,5)==2){
                                  if ( collision(gstPosX[i],gstPosY[i],1) == 0 && ghChg[i]==0) {gstDire[i]=1;ghChg[i] = 1; } //n -> e
                                  }
                              }
                        }

                        //----------------------------------------------------------------------------------------east
                        if (gstDire[i]==1 && ghChg[i]==0){  //east
                             if (pacPosY > gstPosY[i] && eatGhosts == 0){           //if (random(1,3) == 1){
                                  if ( collision(gstPosX[i],gstPosY[i],2) == 0 && ghChg[i]==0) {gstDire[i]=2;ghChg[i] = 1; } //e -> s
                                  if (random(1,5)==2){
                                  if ( collision(gstPosX[i],gstPosY[i],0) == 0 && ghChg[i]==0) {gstDire[i]=0;ghChg[i] = 1; } //e -> n
                                  }
                              }
                             else {
                                  if ( collision(gstPosX[i],gstPosY[i],0) == 0 && ghChg[i]==0) {gstDire[i]=0;ghChg[i] = 1; } //e -> n
                                  if (random(1,5)==2){
                                  if ( collision(gstPosX[i],gstPosY[i],2) == 0 && ghChg[i]==0) {gstDire[i]=2;ghChg[i] = 1; } //e -> s
                                  }
                             }
                        }

                        //----------------------------------------------------------------------------------------south
                        if (gstDire[i]==2 && ghChg[i]==0){  //south
                           if (pacPosX > gstPosX[i] && eatGhosts == 0){           //if (random(1,3) == 1){
                                  if ( collision(gstPosX[i],gstPosY[i],3) == 0 && ghChg[i]==0) {gstDire[i]=3;ghChg[i] = 1; } //s -> w
                                  if (random(1,5)==2){
                                  if ( collision(gstPosX[i],gstPosY[i],1) == 0 && ghChg[i]==0) {gstDire[i]=1;ghChg[i] = 1; } //s -> e
                                  }
                            }
                            else {
                                  if ( collision(gstPosX[i],gstPosY[i],1) == 0 && ghChg[i]==0) {gstDire[i]=1;ghChg[i] = 1; } //s -> e
                                  if (random(1,5)==2){
                                  if ( collision(gstPosX[i],gstPosY[i],3) == 0 && ghChg[i]==0) {gstDire[i]=3;ghChg[i] = 1; } //s -> w
                                  }
                            }
                        }


                  }


                  //--------------------------------------------------------------------------------------don't touch the code or will hang Arduino begin ---\
                  //I know that the code isn't optimized and could be written in a more compact way; however if you will touch
                  //this part, even with replicated code, the sketch will hang the Arduino - it drove me crazy and this was
                  //the only way I succeded. If you find a better and working way, or can explain me how it hangs, please
                  //advise me. Thank you!

                //if (eatGhosts == 0 && every_2 ) {  this should work fine and avoid to replicate the IF; instead it hangs the sketch.

                  if (eatGhosts == 0 ) {  //ghosts at normal speed (they're hunting you)
                     if (gstDire[i] == 0) gstPosY[i]--;
                     if (gstDire[i] == 1) gstPosX[i]++;
                     if (gstDire[i] == 2) gstPosY[i]++;
                     if (gstDire[i] == 3) gstPosX[i]--;

                     if (gstPosX[i] > 120) gstPosX[i] = 0;
                     if (gstPosX[i] < 0)   gstPosX[i] = 120;
                     if (gstPosX[i] > 120) gstPosX[i] = 0; else if (gstPosX[i] < 0)   gstPosX[i] = 120;
                  }
                  //-------------------------------------------------------------------------------
                  if ( eatGhosts > 0  && every_2 ) {  //happy hour, the ghosts are haunted and move at half speed
                     if (gstDire[i] == 0) gstPosY[i]--;
                     if (gstDire[i] == 1) gstPosX[i]++;
                     if (gstDire[i] == 2) gstPosY[i]++;
                     if (gstDire[i] == 3) gstPosX[i]--;

                     if (gstPosX[i] > 120) gstPosX[i] = 0;
                     if (gstPosX[i] < 0)   gstPosX[i] = 120;
                     if (gstPosX[i] > 120) gstPosX[i] = 0; else if (gstPosX[i] < 0)   gstPosX[i] = 120;
                  }

                  //-----------------------------------------------------------------------draw ghosts
                 //Again, don't touch this part or the sketch will hang the Arduino!

                 if (eatGhosts == 0) {
                       if ( (gstPosX[i] % 2) - (gstPosY[i] % 2) == 0) TV.bitmap(gstPosX[i],gstPosY[i],g1n);
                       else                                           TV.bitmap(gstPosX[i],gstPosY[i],g2n);
                  }

                  if (eatGhosts == 1) {
                       if ( (gstPosX[i] % 2) - (gstPosY[i] % 2) == 0) TV.bitmap(gstPosX[i],gstPosY[i],g1h);
                       else                                           TV.bitmap(gstPosX[i],gstPosY[i],g2h);
                  }

                  if (eatGhosts == 2) {
                       if ( (gstPosX[i] % 2) - (gstPosY[i] % 2) == 0) TV.bitmap(gstPosX[i],gstPosY[i],g1h);
                       else                                           TV.bitmap(gstPosX[i],gstPosY[i],g2n);

                  }
                  //--------------------------------------------------------------------------------------don't touch the code or will hang Arduino end -----/




               }  //next i
               //---------------------------------------------------------------------------ghost moving-end---/



                //--------------------------------------------------------------------------------------------------- draw Pac Man
                if (pacDire == 0) {
                    if ( (pacPosX % 2) - (pacPosY % 2) == 0) { TV.bitmap(pacPosX,pacPosY,p1n); }
                    else                                     { TV.bitmap(pacPosX,pacPosY,p2n); }
                  }
                if (pacDire == 1) {
                    if ( (pacPosX % 2) - (pacPosY % 2) == 0) { TV.bitmap(pacPosX,pacPosY,p1e); }
                    else                                     { TV.bitmap(pacPosX,pacPosY,p2e); }
                  }
                if (pacDire == 2) {
                    if ( (pacPosX % 2) - (pacPosY % 2) == 0) { TV.bitmap(pacPosX,pacPosY,p1s); }
                    else                                     { TV.bitmap(pacPosX,pacPosY,p2s); }
                  }
                if (pacDire == 3) {
                    if ( (pacPosX % 2) - (pacPosY % 2) == 0) { TV.bitmap(pacPosX,pacPosY,p1w); }
                    else                                     { TV.bitmap(pacPosX,pacPosY,p2w); }
                  }

               //---------------------------------------------------------------------------------------------------
               draw_food();
               draw_score();
               draw_numbers( lives, 118 );

                //------------------------------------------------------------
                mill = millis();
              }


               //-----------------------------------------------------------------------------------------------------Main Cycle-end--- /

             } //while endfood != 0

       } //while lives >0
       gamSt = 2 ;
   } //if gamst == 1

  //-----------------------------------------------------------------------------------------------------GAME OVER
  if (gamSt == 2){  //GAME OVER
    gamSt = 0;
    TV.clear_screen();
    TV.bitmap(0,  0, logo);
    TV.bitmap(0, 33, over);

    draw_score();
    delay(1000);

    //must to release and press again the button before to continue
    while ( digitalRead(BUTTON_START) == 1){}
    while ( digitalRead(BUTTON_START) == 0){}

  }

}
