LED Christmas Lighting

We are going to make LED Christmas Lighting based on the Arduino MKR1000 board

113

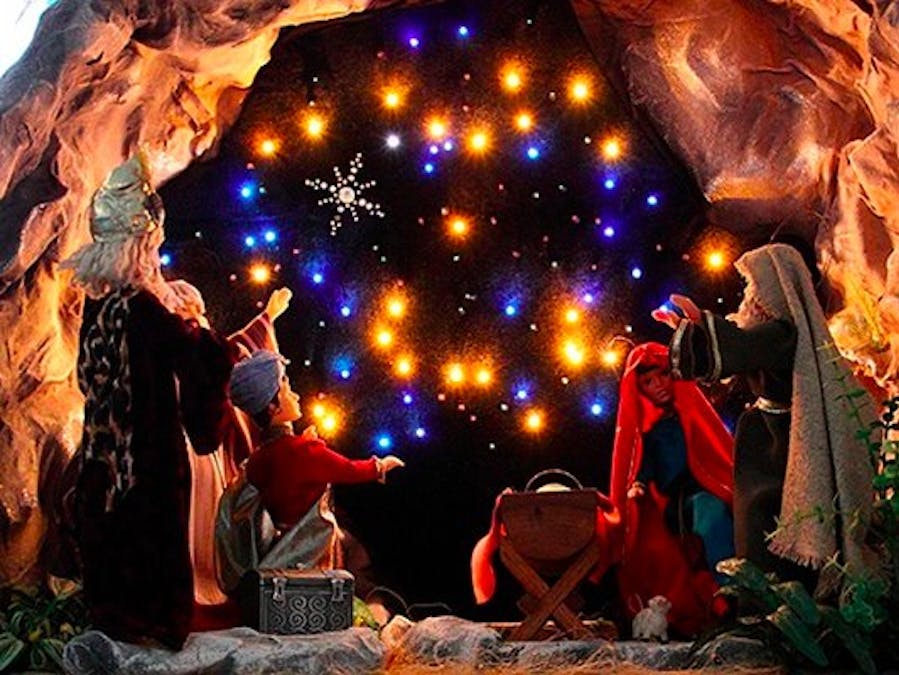

LED Christmas Lighting

Things used in this project

Hardware components

LED (generic)
LED (generic)
×20
Arduino MKR1000
Arduino MKR1000
×1
lan cable
×1
resistor 75 ohm
×6

Story

Read more

Schematics



Code

Untitled file

Arduino
#define A 8      // PIN defining
#define B 9
#define C 10
#define D 11
#define E 12

#define DELAY 1200

int c[5][4][2] = {
  { {A, B}, {B, A}, {C, A}, {A, C} },      // Pins defining for every LED 1-20
  { {A, D}, {D, A}, {E, A}, {A, E} },
  { {C, B}, {B, C}, {D, B}, {B, D} },
  { {B, E}, {E, B}, {C, D}, {D, C} },
  { {C, E}, {E, C}, {D, E}, {E, D} }
};

int frames[][5] = {

 {  0b1111,    //0. All LEDS ON
    0b1111,
    0b1111,
    0b1111,
    0b1111
 },
 {  0b0101,    //1. Even LEDs On
    0b0101,
    0b0101,
    0b0101,
    0b0101
 },
 {  0b1010,    //2. Odd LEDS ON
    0b1010,
    0b1010,
    0b1010,
    0b1010
 },
 {  0b1111,    //3. 4 LED train
    0b0000,
    0b0000,
    0b0000,
    0b0000
 },
 {  0b0111,
    0b1000,
    0b0000,
    0b0000,
    0b0000
 },
 {  0b0001,
    0b1110,
    0b0000,
    0b0000,
    0b0000
 },
 {  0b0000,
    0b1111,
    0b0000,
    0b0000,
    0b0000
 },
 {  0b0000,
    0b0111,
    0b1000,
    0b0000,
    0b0000
 },
 {  0b0000,
    0b0011,
    0b1100,
    0b0000,
    0b0000
 },
 {  0b0000,
    0b0001,
    0b1110,
    0b0000,
    0b0000
 },
};

void setup(){
  pinMode( A, INPUT );      // Set all pins as INPUT
  pinMode( B, INPUT );
  pinMode( C, INPUT );
  pinMode( D, INPUT );
  pinMode( E, INPUT );
  Serial.begin(9600);
}

void display( int frame[5], int duration ){
  int times = 0;
  int x = 0;
  int y = 0;

  while( times < duration ){
    for( y = 0; y < 5; y++ ){
      for( x = 0; x < 4; x++ ){
        setup();
        if( frame[y] & (0b1000 >> x) ){
          light( c[y][x] );
          delayMicroseconds(DELAY);
          times++;
        }
      }
    }
  }
}

void light( int pins[2] ){
  pinMode( pins[0], OUTPUT );
  digitalWrite( pins[0], HIGH );

  pinMode( pins[1], OUTPUT );
  digitalWrite( pins[1], LOW );
}


void loop(){
  //test_loop();

  int i;
    display( frames[0], 1000 );
    Serial.println("Cycle");

    for (int a=0; a <= 10; a++){
      for( i = 1; i < 3; i++ ){
        display( frames[i], 200 );
     }
    }
    for (int a=0; a <= 10; a++){
      for( i = 3; i < 10; i++ ){
        display( frames[i], 200 );


 }}}
