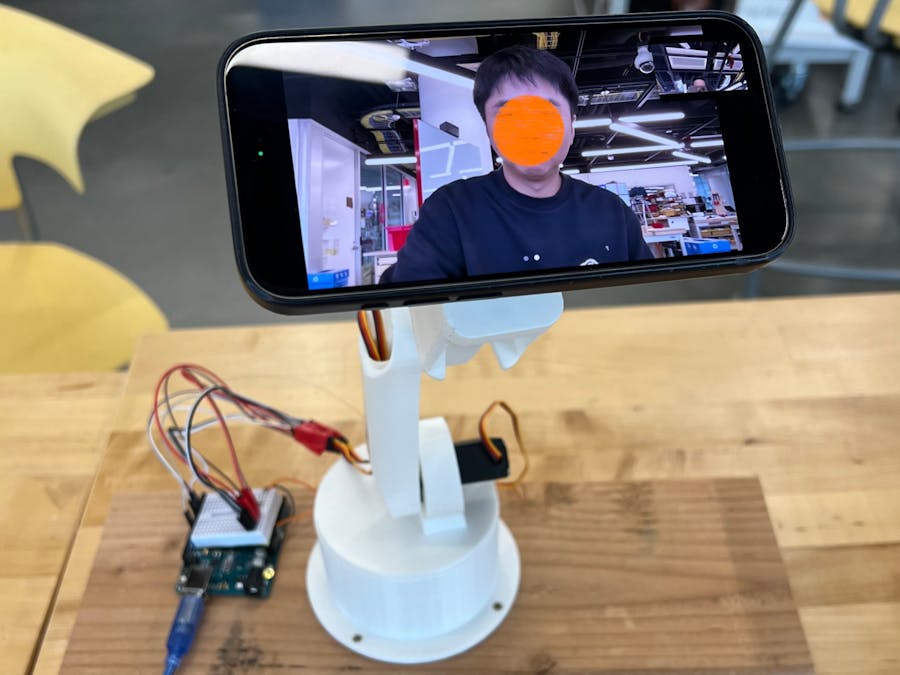

SmartDock

import csv
import copy
import argparse
import itertools
from collections import Counter
from collections import deque
import serial
import serial.tools.list_ports


import cv2 as cv
import numpy as np
import mediapipe as mp

from utils import CvFpsCalc
from model import KeyPointClassifier
from model import PointHistoryClassifier

def find_working_serial_port():
    ports = serial.tools.list_ports.comports()
    working_port = None

    for port in ports:
        try:
            print(f"Trying port: {port.device}")
            with serial.Serial(port.device, baudrate=9600, timeout=1) as ser:
                if ser.is_open:
                    working_port = port.device
                    print(f"Found working port: {working_port}")
                    break
        except (serial.SerialException, OSError) as e:
            print(f"Port {port.device} not working: {e}")

    if working_port:
        return working_port
    else:
        print("No working serial port found.")
        return None

def get_args():
    parser = argparse.ArgumentParser()

    parser.add_argument("--device", type=int, default=1)
    parser.add_argument("--width", help='cap width', type=int, default=960)
    parser.add_argument("--height", help='cap height', type=int, default=540)

    parser.add_argument('--use_static_image_mode', action='store_true')
    parser.add_argument("--min_detection_confidence",
                        help='min_detection_confidence',
                        type=float,
                        default=0.7)
    parser.add_argument("--min_tracking_confidence",
                        help='min_tracking_confidence',
                        type=int,
                        default=0.5)

    args = parser.parse_args()

    return args


def main():
    # Argument parsing
    args = get_args()

    cap_device = args.device
    cap_width = args.width
    cap_height = args.height

    use_static_image_mode = args.use_static_image_mode
    min_detection_confidence = args.min_detection_confidence
    min_tracking_confidence = args.min_tracking_confidence

    use_brect = True

    # Camera preparation
    cap = cv.VideoCapture(cap_device)
    cap.set(cv.CAP_PROP_FRAME_WIDTH, cap_width)
    cap.set(cv.CAP_PROP_FRAME_HEIGHT, cap_height)

    # Detect serial port
    # serial_port = find_working_serial_port()
    serial_port = '/dev/cu.usbmodem1101'  # Replace this with your port

    if serial_port:
        ser = serial.Serial(port=serial_port, baudrate=9600, timeout=1)
        print(f"Connected to {serial_port}")
    else:
        print("No available serial port. Exiting.")
        return


    # Model load

    # 1. Hand gesture model
    mp_hands = mp.solutions.hands
    hands = mp_hands.Hands(
            static_image_mode=use_static_image_mode,
            max_num_hands=1,
            min_detection_confidence=min_detection_confidence,
            min_tracking_confidence=min_tracking_confidence,
            )

    keypoint_classifier = KeyPointClassifier()

    point_history_classifier = PointHistoryClassifier()

    # Read labels
    with open('model/keypoint_classifier/keypoint_classifier_label.csv',
              encoding='utf-8-sig') as f:
        keypoint_classifier_labels = csv.reader(f)
        keypoint_classifier_labels = [
                row[0] for row in keypoint_classifier_labels
                ]
    with open(
            'model/point_history_classifier/point_history_classifier_label.csv',
            encoding='utf-8-sig') as f:
        point_history_classifier_labels = csv.reader(f)
        point_history_classifier_labels = [
                row[0] for row in point_history_classifier_labels
                ]

    # Coordinate history
    history_length = 16
    point_history = deque(maxlen=history_length)

    # Finger gesture history
    finger_gesture_history = deque(maxlen=history_length)

    mode = 0

    # 2. Face model
    mp_face_mesh = mp.solutions.face_mesh
    face_mesh = mp_face_mesh.FaceMesh(min_detection_confidence=0.5, min_tracking_confidence=0.5)

    mp_drawing = mp.solutions.drawing_utils

    drawing_spec = mp_drawing.DrawingSpec(color=(128,0,128),thickness=2,circle_radius=1)

    # FPS Measurement
    cvFpsCalc = CvFpsCalc(buffer_len=10)

    while cap.isOpened():
        fps = cvFpsCalc.get()

        # Process Key (ESC: end)
        key = cv.waitKey(10)
        if key == 27:  # ESC
            break
        number, mode = select_mode(key, mode)

        # Camera capture
        ret, image = cap.read()
        if not ret:
            break

        image = cv.flip(image, 1)  # Mirror display
        hand_debug_image = copy.deepcopy(image)
        face_debug_image = copy.deepcopy(image)

        # Detection implementation
        image = cv.cvtColor(image, cv.COLOR_BGR2RGB)

        image.flags.writeable = False
        hand_results = hands.process(image)
        face_results = face_mesh.process(image)
        image.flags.writeable = True


        if ser.in_waiting > 0:  # Check if data is available
            data = ser.readline().decode('utf-8').strip()
            print(f"Received from serial: {data}")
        # else:
        #     print("No data available in the serial buffer.")

        img_h , img_w, img_c = image.shape

        # 1. Hand gesture processing
        if hand_results.multi_hand_landmarks is not None:
            for hand_landmarks, handedness in zip(hand_results.multi_hand_landmarks,
                                                  hand_results.multi_handedness):
                # Bounding box calculation
                brect = calc_bounding_rect(hand_debug_image, hand_landmarks)
                # Landmark calculation
                landmark_list = calc_landmark_list(hand_debug_image, hand_landmarks)

                # Conversion to relative coordinates / normalized coordinates
                pre_processed_landmark_list = pre_process_landmark(
                        landmark_list)
                pre_processed_point_history_list = pre_process_point_history(
                        hand_debug_image, point_history)
                # Write to the dataset file
                logging_csv(number, mode, pre_processed_landmark_list,
                            pre_processed_point_history_list)

                # Hand sign classification
                hand_sign_id = keypoint_classifier(pre_processed_landmark_list)
                if hand_sign_id == 2:  # Point gesture
                    point_history.append(landmark_list[8])
                else:
                    point_history.append([0, 0])

                # Finger gesture classification
                finger_gesture_id = 0
                point_history_len = len(pre_processed_point_history_list)
                if point_history_len == (history_length * 2):
                    finger_gesture_id = point_history_classifier(
                            pre_processed_point_history_list)

                # Calculates the gesture IDs in the latest detection
                finger_gesture_history.append(finger_gesture_id)
                most_common_fg_id = Counter(
                        finger_gesture_history).most_common()

                # Drawing part
                gesture_label = keypoint_classifier_labels[hand_sign_id]  # Get the label
                ser.write(f"Gesture: {gesture_label}\n".encode('utf-8'))  # Send gesture label to serial port

                hand_debug_image = draw_bounding_rect(use_brect, hand_debug_image, brect)
                hand_debug_image = draw_landmarks(hand_debug_image, landmark_list)
                hand_debug_image = draw_info_text(
                        hand_debug_image,
                        brect,
                        handedness,
                        keypoint_classifier_labels[hand_sign_id],
                        point_history_classifier_labels[most_common_fg_id[0][0]],
                        )
        else:
            point_history.append([0, 0])

        hand_debug_image = draw_point_history(hand_debug_image, point_history)
        hand_debug_image = draw_info(hand_debug_image, fps, mode, number)

        # Screen reflection
        cv.imshow('Hand Gesture Recognition', hand_debug_image)

        # 2. Face recognition
        face_2d = []
        face_3d = []
        if face_results.multi_face_landmarks:
            for face_landmarks in face_results.multi_face_landmarks:
                for idx, lm in enumerate(face_landmarks.landmark):
                    if idx == 33 or idx == 263 or idx ==1 or idx == 61 or idx == 291 or idx==199:
                        if idx ==1:
                            nose_2d = (lm.x * img_w,lm.y * img_h)
                            nose_3d = (lm.x * img_w,lm.y * img_h,lm.z * 3000)
                        x,y = int(lm.x * img_w),int(lm.y * img_h)

                        face_2d.append([x,y])
                        face_3d.append(([x,y,lm.z]))


                # Get 2d Coord
                face_2d = np.array(face_2d,dtype=np.float64)

                face_3d = np.array(face_3d,dtype=np.float64)

                focal_length = 1 * img_w

                cam_matrix = np.array([[focal_length,0,img_h/2],
                                      [0,focal_length,img_w/2],
                                      [0,0,1]])
                distortion_matrix = np.zeros((4,1),dtype=np.float64)

                success,rotation_vec,translation_vec = cv.solvePnP(face_3d,face_2d,cam_matrix,distortion_matrix)


                # Getting rotational of face
                rmat,jac = cv.Rodrigues(rotation_vec)

                angles,mtxR,mtxQ,Qx,Qy,Qz = cv.RQDecomp3x3(rmat)

                x = angles[0] * 360
                y = angles[1] * 360
                z = angles[2] * 360

                # Here based on axis rot angle is calculated
                if y < -10:
                    text="Looking Left"
                    ser.write(b'5: Left\n')

                elif y > 10:
                    text="Looking Right"
                    ser.write(b'4: Right\n')

                elif x < -10:
                    text="Looking Down"
                    ser.write(b'3: Down\n')

                elif x > 10:
                    text="Looking Up"
                    ser.write(b'2: Up\n')
                else:
                    text="Forward"
                    ser.write(b'1: Forward\n')

                nose_3d_projection,jacobian = cv.projectPoints(nose_3d,rotation_vec,translation_vec,cam_matrix,distortion_matrix)

                p1 = (int(nose_2d[0]),int(nose_2d[1]))
                p2 = (int(nose_2d[0] + y*10), int(nose_2d[1] -x *10))

                cv.line(hand_debug_image,p1,p2,(255,0,0),3)

                cv.putText(hand_debug_image,text,(20,50),cv.FONT_HERSHEY_SIMPLEX,2,(0,255,0),2)
                cv.putText(hand_debug_image,"x: " + str(np.round(x,2)),(500,50),cv.FONT_HERSHEY_SIMPLEX,1,(0,0,255),2)
                cv.putText(hand_debug_image,"y: "+ str(np.round(y,2)),(500,100),cv.FONT_HERSHEY_SIMPLEX,1,(0,0,255),2)
                cv.putText(hand_debug_image,"z: "+ str(np.round(z, 2)), (500, 150),cv.FONT_HERSHEY_SIMPLEX, 1, (0, 0, 255), 2)

            mp_drawing.draw_landmarks(image=hand_debug_image,
                                      landmark_list=face_landmarks,
                                      connections=mp_face_mesh.FACEMESH_CONTOURS,
                                      landmark_drawing_spec=drawing_spec,
                                      connection_drawing_spec=drawing_spec)

        cv.imshow('Head Pose Detection', hand_debug_image)

    cap.release()
    cv.destroyAllWindows()




def select_mode(key, mode):
    number = -1
    if 48 <= key <= 57:  # 0 ~ 9
        number = key - 48
    if key == 110:  # n
        mode = 0
    if key == 107:  # k
        mode = 1
    if key == 104:  # h
        mode = 2
    return number, mode


def calc_bounding_rect(image, landmarks):
    image_width, image_height = image.shape[1], image.shape[0]

    landmark_array = np.empty((0, 2), int)

    for _, landmark in enumerate(landmarks.landmark):
        landmark_x = min(int(landmark.x * image_width), image_width - 1)
        landmark_y = min(int(landmark.y * image_height), image_height - 1)

        landmark_point = [np.array((landmark_x, landmark_y))]

        landmark_array = np.append(landmark_array, landmark_point, axis=0)

    x, y, w, h = cv.boundingRect(landmark_array)

    return [x, y, x + w, y + h]


def calc_landmark_list(image, landmarks):
    image_width, image_height = image.shape[1], image.shape[0]

    landmark_point = []

    # Keypoint
    for _, landmark in enumerate(landmarks.landmark):
        landmark_x = min(int(landmark.x * image_width), image_width - 1)
        landmark_y = min(int(landmark.y * image_height), image_height - 1)
        # landmark_z = landmark.z

        landmark_point.append([landmark_x, landmark_y])

    return landmark_point


def pre_process_landmark(landmark_list):
    temp_landmark_list = copy.deepcopy(landmark_list)

    # Convert to relative coordinates
    base_x, base_y = 0, 0
    for index, landmark_point in enumerate(temp_landmark_list):
        if index == 0:
            base_x, base_y = landmark_point[0], landmark_point[1]

        temp_landmark_list[index][0] = temp_landmark_list[index][0] - base_x
        temp_landmark_list[index][1] = temp_landmark_list[index][1] - base_y

    # Convert to a one-dimensional list
    temp_landmark_list = list(
            itertools.chain.from_iterable(temp_landmark_list))

    # Normalization
    max_value = max(list(map(abs, temp_landmark_list)))

    def normalize_(n):
        return n / max_value

    temp_landmark_list = list(map(normalize_, temp_landmark_list))

    return temp_landmark_list


def pre_process_point_history(image, point_history):
    image_width, image_height = image.shape[1], image.shape[0]

    temp_point_history = copy.deepcopy(point_history)

    # Convert to relative coordinates
    base_x, base_y = 0, 0
    for index, point in enumerate(temp_point_history):
        if index == 0:
            base_x, base_y = point[0], point[1]

        temp_point_history[index][0] = (temp_point_history[index][0] -
                                        base_x) / image_width
        temp_point_history[index][1] = (temp_point_history[index][1] -
                                        base_y) / image_height

    # Convert to a one-dimensional list
    temp_point_history = list(
            itertools.chain.from_iterable(temp_point_history))

    return temp_point_history


def logging_csv(number, mode, landmark_list, point_history_list):
    if mode == 0:
        pass
    if mode == 1 and (0 <= number <= 9):
        csv_path = 'model/keypoint_classifier/keypoint.csv'
        with open(csv_path, 'a', newline="") as f:
            writer = csv.writer(f)
            writer.writerow([number, *landmark_list])
    if mode == 2 and (0 <= number <= 9):
        csv_path = 'model/point_history_classifier/point_history.csv'
        with open(csv_path, 'a', newline="") as f:
            writer = csv.writer(f)
            writer.writerow([number, *point_history_list])
    return


def draw_landmarks(image, landmark_point):
    if len(landmark_point) > 0:
        # Thumb
        cv.line(image, tuple(landmark_point[2]), tuple(landmark_point[3]),
                (0, 0, 0), 6)
        cv.line(image, tuple(landmark_point[2]), tuple(landmark_point[3]),
                (255, 255, 255), 2)
        cv.line(image, tuple(landmark_point[3]), tuple(landmark_point[4]),
                (0, 0, 0), 6)
        cv.line(image, tuple(landmark_point[3]), tuple(landmark_point[4]),
                (255, 255, 255), 2)

        # Index finger
        cv.line(image, tuple(landmark_point[5]), tuple(landmark_point[6]),
                (0, 0, 0), 6)
        cv.line(image, tuple(landmark_point[5]), tuple(landmark_point[6]),
                (255, 255, 255), 2)
        cv.line(image, tuple(landmark_point[6]), tuple(landmark_point[7]),
                (0, 0, 0), 6)
        cv.line(image, tuple(landmark_point[6]), tuple(landmark_point[7]),
                (255, 255, 255), 2)
        cv.line(image, tuple(landmark_point[7]), tuple(landmark_point[8]),
                (0, 0, 0), 6)
        cv.line(image, tuple(landmark_point[7]), tuple(landmark_point[8]),
                (255, 255, 255), 2)

        # Middle finger
        cv.line(image, tuple(landmark_point[9]), tuple(landmark_point[10]),
                (0, 0, 0), 6)
        cv.line(image, tuple(landmark_point[9]), tuple(landmark_point[10]),
                (255, 255, 255), 2)
        cv.line(image, tuple(landmark_point[10]), tuple(landmark_point[11]),
                (0, 0, 0), 6)
        cv.line(image, tuple(landmark_point[10]), tuple(landmark_point[11]),
                (255, 255, 255), 2)
        cv.line(image, tuple(landmark_point[11]), tuple(landmark_point[12]),
                (0, 0, 0), 6)
        cv.line(image, tuple(landmark_point[11]), tuple(landmark_point[12]),
                (255, 255, 255), 2)

        # Ring finger
        cv.line(image, tuple(landmark_point[13]), tuple(landmark_point[14]),
                (0, 0, 0), 6)
        cv.line(image, tuple(landmark_point[13]), tuple(landmark_point[14]),
                (255, 255, 255), 2)
        cv.line(image, tuple(landmark_point[14]), tuple(landmark_point[15]),
                (0, 0, 0), 6)
        cv.line(image, tuple(landmark_point[14]), tuple(landmark_point[15]),
                (255, 255, 255), 2)
        cv.line(image, tuple(landmark_point[15]), tuple(landmark_point[16]),
                (0, 0, 0), 6)
        cv.line(image, tuple(landmark_point[15]), tuple(landmark_point[16]),
                (255, 255, 255), 2)

        # Little finger
        cv.line(image, tuple(landmark_point[17]), tuple(landmark_point[18]),
                (0, 0, 0), 6)
        cv.line(image, tuple(landmark_point[17]), tuple(landmark_point[18]),
                (255, 255, 255), 2)
        cv.line(image, tuple(landmark_point[18]), tuple(landmark_point[19]),
                (0, 0, 0), 6)
        cv.line(image, tuple(landmark_point[18]), tuple(landmark_point[19]),
                (255, 255, 255), 2)
        cv.line(image, tuple(landmark_point[19]), tuple(landmark_point[20]),
                (0, 0, 0), 6)
        cv.line(image, tuple(landmark_point[19]), tuple(landmark_point[20]),
                (255, 255, 255), 2)

        # Palm
        cv.line(image, tuple(landmark_point[0]), tuple(landmark_point[1]),
                (0, 0, 0), 6)
        cv.line(image, tuple(landmark_point[0]), tuple(landmark_point[1]),
                (255, 255, 255), 2)
        cv.line(image, tuple(landmark_point[1]), tuple(landmark_point[2]),
                (0, 0, 0), 6)
        cv.line(image, tuple(landmark_point[1]), tuple(landmark_point[2]),
                (255, 255, 255), 2)
        cv.line(image, tuple(landmark_point[2]), tuple(landmark_point[5]),
                (0, 0, 0), 6)
        cv.line(image, tuple(landmark_point[2]), tuple(landmark_point[5]),
                (255, 255, 255), 2)
        cv.line(image, tuple(landmark_point[5]), tuple(landmark_point[9]),
                (0, 0, 0), 6)
        cv.line(image, tuple(landmark_point[5]), tuple(landmark_point[9]),
                (255, 255, 255), 2)
        cv.line(image, tuple(landmark_point[9]), tuple(landmark_point[13]),
                (0, 0, 0), 6)
        cv.line(image, tuple(landmark_point[9]), tuple(landmark_point[13]),
                (255, 255, 255), 2)
        cv.line(image, tuple(landmark_point[13]), tuple(landmark_point[17]),
                (0, 0, 0), 6)
        cv.line(image, tuple(landmark_point[13]), tuple(landmark_point[17]),
                (255, 255, 255), 2)
        cv.line(image, tuple(landmark_point[17]), tuple(landmark_point[0]),
                (0, 0, 0), 6)
        cv.line(image, tuple(landmark_point[17]), tuple(landmark_point[0]),
                (255, 255, 255), 2)

    # Key Points
    for index, landmark in enumerate(landmark_point):
        if index == 0:  # 1
            cv.circle(image, (landmark[0], landmark[1]), 5, (255, 255, 255),
                      -1)
            cv.circle(image, (landmark[0], landmark[1]), 5, (0, 0, 0), 1)
        if index == 1:  # 2
            cv.circle(image, (landmark[0], landmark[1]), 5, (255, 255, 255),
                      -1)
            cv.circle(image, (landmark[0], landmark[1]), 5, (0, 0, 0), 1)
        if index == 2:  #
            cv.circle(image, (landmark[0], landmark[1]), 5, (255, 255, 255),
                      -1)
            cv.circle(image, (landmark[0], landmark[1]), 5, (0, 0, 0), 1)
        if index == 3:  # 1
            cv.circle(image, (landmark[0], landmark[1]), 5, (255, 255, 255),
                      -1)
            cv.circle(image, (landmark[0], landmark[1]), 5, (0, 0, 0), 1)
        if index == 4:  #
            cv.circle(image, (landmark[0], landmark[1]), 8, (255, 255, 255),
                      -1)
            cv.circle(image, (landmark[0], landmark[1]), 8, (0, 0, 0), 1)
        if index == 5:  #
            cv.circle(image, (landmark[0], landmark[1]), 5, (255, 255, 255),
                      -1)
            cv.circle(image, (landmark[0], landmark[1]), 5, (0, 0, 0), 1)
        if index == 6:  # 2
            cv.circle(image, (landmark[0], landmark[1]), 5, (255, 255, 255),
                      -1)
            cv.circle(image, (landmark[0], landmark[1]), 5, (0, 0, 0), 1)
        if index == 7:  # 1
            cv.circle(image, (landmark[0], landmark[1]), 5, (255, 255, 255),
                      -1)
            cv.circle(image, (landmark[0], landmark[1]), 5, (0, 0, 0), 1)
        if index == 8:  #
            cv.circle(image, (landmark[0], landmark[1]), 8, (255, 255, 255),
                      -1)
            cv.circle(image, (landmark[0], landmark[1]), 8, (0, 0, 0), 1)
        if index == 9:  #
            cv.circle(image, (landmark[0], landmark[1]), 5, (255, 255, 255),
                      -1)
            cv.circle(image, (landmark[0], landmark[1]), 5, (0, 0, 0), 1)
        if index == 10:  # 2
            cv.circle(image, (landmark[0], landmark[1]), 5, (255, 255, 255),
                      -1)
            cv.circle(image, (landmark[0], landmark[1]), 5, (0, 0, 0), 1)
        if index == 11:  # 1
            cv.circle(image, (landmark[0], landmark[1]), 5, (255, 255, 255),
                      -1)
            cv.circle(image, (landmark[0], landmark[1]), 5, (0, 0, 0), 1)
        if index == 12:  #
            cv.circle(image, (landmark[0], landmark[1]), 8, (255, 255, 255),
                      -1)
            cv.circle(image, (landmark[0], landmark[1]), 8, (0, 0, 0), 1)
        if index == 13:  #
            cv.circle(image, (landmark[0], landmark[1]), 5, (255, 255, 255),
                      -1)
            cv.circle(image, (landmark[0], landmark[1]), 5, (0, 0, 0), 1)
        if index == 14:  # 2
            cv.circle(image, (landmark[0], landmark[1]), 5, (255, 255, 255),
                      -1)
            cv.circle(image, (landmark[0], landmark[1]), 5, (0, 0, 0), 1)
        if index == 15:  # 1
            cv.circle(image, (landmark[0], landmark[1]), 5, (255, 255, 255),
                      -1)
            cv.circle(image, (landmark[0], landmark[1]), 5, (0, 0, 0), 1)
        if index == 16:  #
            cv.circle(image, (landmark[0], landmark[1]), 8, (255, 255, 255),
                      -1)
            cv.circle(image, (landmark[0], landmark[1]), 8, (0, 0, 0), 1)
        if index == 17:  #
            cv.circle(image, (landmark[0], landmark[1]), 5, (255, 255, 255),
                      -1)
            cv.circle(image, (landmark[0], landmark[1]), 5, (0, 0, 0), 1)
        if index == 18:  # 2
            cv.circle(image, (landmark[0], landmark[1]), 5, (255, 255, 255),
                      -1)
            cv.circle(image, (landmark[0], landmark[1]), 5, (0, 0, 0), 1)
        if index == 19:  # 1
            cv.circle(image, (landmark[0], landmark[1]), 5, (255, 255, 255),
                      -1)
            cv.circle(image, (landmark[0], landmark[1]), 5, (0, 0, 0), 1)
        if index == 20:  #
            cv.circle(image, (landmark[0], landmark[1]), 8, (255, 255, 255),
                      -1)
            cv.circle(image, (landmark[0], landmark[1]), 8, (0, 0, 0), 1)

    return image


def draw_bounding_rect(use_brect, image, brect):
    if use_brect:
        # Outer rectangle
        cv.rectangle(image, (brect[0], brect[1]), (brect[2], brect[3]),
                     (0, 0, 0), 1)

    return image


def draw_info_text(image, brect, handedness, hand_sign_text,
                   finger_gesture_text):
    cv.rectangle(image, (brect[0], brect[1]), (brect[2], brect[1] - 22),
                 (0, 0, 0), -1)

    info_text = handedness.classification[0].label[0:]
    if hand_sign_text != "":
        info_text = info_text + ':' + hand_sign_text
    cv.putText(image, info_text, (brect[0] + 5, brect[1] - 4),
               cv.FONT_HERSHEY_SIMPLEX, 0.6, (255, 255, 255), 1, cv.LINE_AA)

    if finger_gesture_text != "":
        cv.putText(image, "Finger Gesture:" + finger_gesture_text, (10, 60),
                   cv.FONT_HERSHEY_SIMPLEX, 1.0, (0, 0, 0), 4, cv.LINE_AA)
        cv.putText(image, "Finger Gesture:" + finger_gesture_text, (10, 60),
                   cv.FONT_HERSHEY_SIMPLEX, 1.0, (255, 255, 255), 2,
                   cv.LINE_AA)

    return image


def draw_point_history(image, point_history):
    for index, point in enumerate(point_history):
        if point[0] != 0 and point[1] != 0:
            cv.circle(image, (point[0], point[1]), 1 + int(index / 2),
                      (152, 251, 152), 2)

    return image


def draw_info(image, fps, mode, number):
    cv.putText(image, "FPS:" + str(fps), (10, 30), cv.FONT_HERSHEY_SIMPLEX,
               1.0, (0, 0, 0), 4, cv.LINE_AA)
    cv.putText(image, "FPS:" + str(fps), (10, 30), cv.FONT_HERSHEY_SIMPLEX,
               1.0, (255, 255, 255), 2, cv.LINE_AA)

    mode_string = ['Logging Key Point', 'Logging Point History']
    if 1 <= mode <= 2:
        cv.putText(image, "MODE:" + mode_string[mode - 1], (10, 90),
                   cv.FONT_HERSHEY_SIMPLEX, 0.6, (255, 255, 255), 1,
                   cv.LINE_AA)
        if 0 <= number <= 9:
            cv.putText(image, "NUM:" + str(number), (10, 110),
                       cv.FONT_HERSHEY_SIMPLEX, 0.6, (255, 255, 255), 1,
                       cv.LINE_AA)
    return image


if __name__ == '__main__':
    main()
