Pylepton Zero

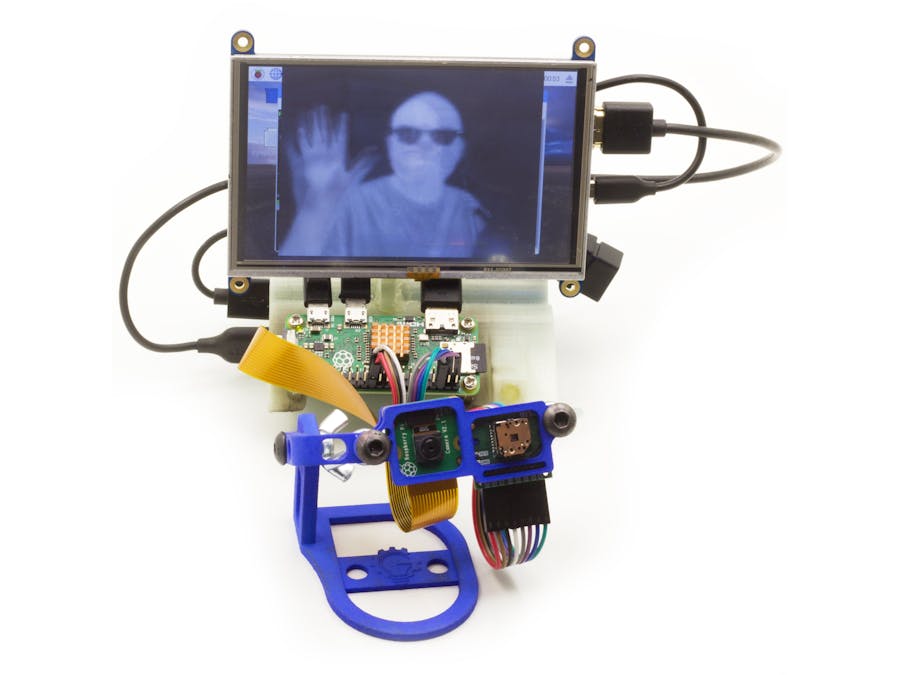

The Pylepton Zero is a portable demonstration platform for the FLIR Lepton thermal imager and our pylepton software library for the Raspberry Pi. Pylepton lets you quickly get images from Lepton on a Raspberry Pi.

Enclosure

First we designed an enclose/stand to hold all of the components together.

The parts were printed using a Flashforge Creator Pro and glued together. Standoffs were added for the Raspberry Pi Zero.

Build

Step 1

Solder the headers to the Zero, flash the MicroSD card and attach it to the Pylepton Zero.

Step 2

Route the wires and insert the rechargeable USB battery packs.

Step 3

Use some very strong Velcro to mount the monitor.

Step 4

Install the LCD screen and wire that up to the Zero.

Step 5

Hook up the Raspberry Pi Camera and FLIR Lepton Breakout Board to the Zero.

Step 6

Finally load up the Pylepton software...it works!
