Robot Arm - Computer vision assistant

This robot arm is an awesome project - you can do it too!!

AdvancedShowcase (no instructions)37

Things used in this project

Hardware components

Arduino Nano R3

Jumper wires (generic)

HC-05 Bluetooth Module

SG90 Micro-servo motor

MG996R

Breadboard (generic)

9V 1A Switching Wall Power Supply

Software apps and online services

MIT App Inventor

http://ai2.appinventor.mit.edu/#5788888774606848

Hand tools and fabrication machines

Multitool, Screwdriver

Digilent Mastech MS8217 Autorange Digital Multimeter

Story

Motivation

I have established a challenge: to build a robot able to play table tennis against a Human. I have found one attempt of a german tem and a lot people say this is fake, this is an animation. Of course there is various industrial robot that can plat table tennis. So this is technically feasible.

So, I want to investigate if this is or no possible to make with minimun resources and under the DIY & Open Source flag.

This robot arm is one Step to know if one robot can move as the human, really I have found is quite possible. Watch this link:

https://www.instagram.com/reel/Ci7tFBGjEPA/?igshid=MDJmNzVkMjY=

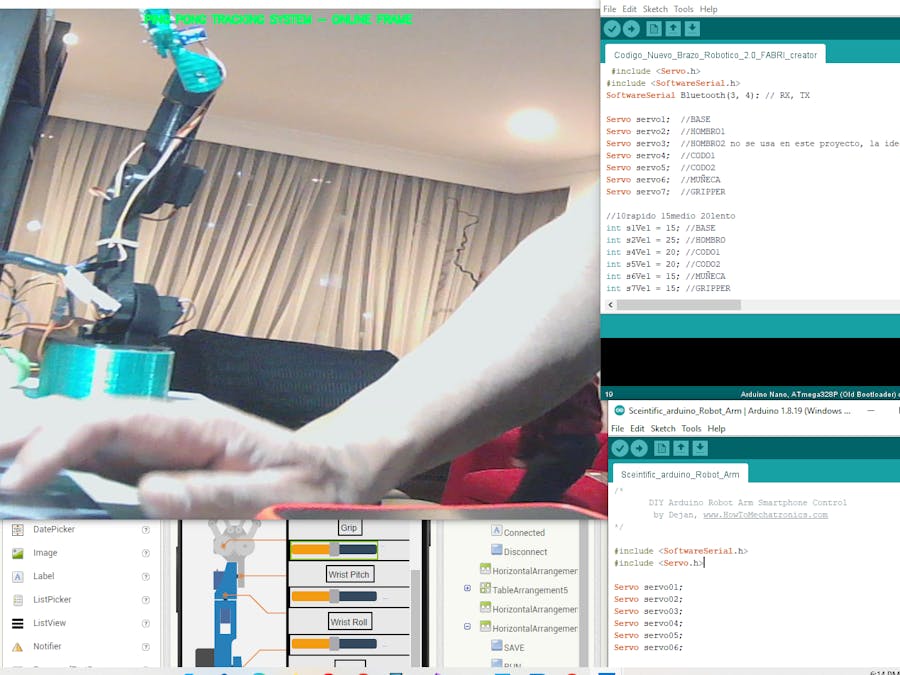

Also I have been checking trackball systems based on webcam. PLease Watch this:

Now focusing in the the robot arm

Story

Four years ago I was looking for a good robot arm to build, this year I have time and decided to replicate the Dejan's Project.

The STL files are perfect to 3D print locally, usin PLA and the default setting, the software need small adaptations, and the APP need some understanding to work and be modified properly.

The project has been full of fun and challenges.I recommend replicate it a lot.

I need to design a new robot arm for a CV project, and this Robot Arm is a perfect Path to move ahead in the right way with a fast pace.

Challenges

Servos calibration and grip operation were important steps with a lot of issues. Fortunatley I found a Fabri Creator , one youtube who adapted before this robot and share a learning curve very impressive and useful to move quickly.

About the grip I had damages in three(3) sg90 servos installed in the Grip position, before clear some fails I had.

Technical Issues

The open source information is aweome and work properly with minors changes, so you can move fast if you decided to replicate. The STL files are very good with zero problems or concerns.

Why to Replicate a project

I think a big amount of knowledge is built based in previous knowledge, engineers do not reinvent Maths to solve a Problem, we use all the theories and finally we try to create something new. also this has been a source of knowledge in robotics focusing about how and what I need to check in the availbale books and bibliography.

The ouputs of this process can be watched in this video:

Robot Arm Video

Code

Arduno code

 #include <Servo.h>
#include <SoftwareSerial.h>
SoftwareSerial Bluetooth(3, 4); // RX, TX

Servo servo1;  //BASE
Servo servo2;  //HOMBRO1
Servo servo3;  //HOMBRO2 no se usa en este proyecto, la idea principal era usar 2 servos para HOMBRO
Servo servo4;  //CODO1
Servo servo5;  //CODO2
Servo servo6;  //MUÑECA
Servo servo7;  //GRIPPER

//10rapido 15medio 20lento
int s1Vel = 15; //BASE
int s2Vel = 25; //HOMBRO
int s4Vel = 20; //CODO1
int s5Vel = 20; //CODO2
int s6Vel = 15; //MUÑECA
int s7Vel = 15; //GRIPPER

int index=0;

int velG=25;


int s1Act,s2Act,s3Act,s4Act,s5Act,s6Act,s7Act;         //posicion actual de los servos
int s1Ant,s2Ant,s3Ant,s4Ant,s5Ant,s6Ant,s7Ant;         //posicion anterior de los servos
int s1[50],s2[50],s3[50],s4[50],s5[50],s6[50],s7[50];  //matrices para almacenas las posiciones de cada servo

String bt,btS;


void setup(){
  Serial.begin(115200);
  Bluetooth.begin(9600);
  Bluetooth.setTimeout(10);
  servo1.attach(5,510,1200);  //ancho min y max exclusivo para  MG996R base
  servo2.attach(11,650,1400);  //ancho min y max exclusivo para  MG946R hombro1
  servo3.attach(6,650,1400);  //ancho min y max exclusivo para  MG946R hombro2
  servo4.attach(7,650,1400);  //ancho min y max exclusivo para  MG946R codo1
  servo5.attach(8,650,1400);  //ancho min y max exclusivo para  MG995 codo2
  servo6.attach(9,800,1290);  //ancho min y max exclusivo para  MG995  muneca
  servo7.attach(10,700,1290);  //ancho min y max exclusivo para  MG995  gripper

  s1Ant=90;  //BASE
  servo1.write(s1Ant);
  //Importante empezar s2 y s3 complementados a 180°;es decir; s2+s3=180;
  s2Ant=100; //HOMBRO1
  s3Ant=80;  //HOMBRO2
  servo2.write(s2Ant);
  servo3.write(s3Ant);

  s4Ant=115; //CODO1
  servo4.write(s4Ant);

  s5Ant=60;  //CODO2
  servo5.write(s5Ant);

  s6Ant=90;  //MUÑECA
  servo6.write(s6Ant);

  s7Ant=60; //GRIPPER
  servo7.write(s7Ant);

  delay(50);
}

void loop() {

     if(Bluetooth.available()>0){

        bt = Bluetooth.readString();               // leemos cadena
        //////////////////////////// SERVO 1 - BASE /////////////////////////////////////////////////////////////////////////////////
        if(bt.startsWith("s1")){                // comprueba si la cadena comienza con "s1"
           btS = bt.substring(2,bt.length());   // extraigo los caracteres desde la poisicion 2 en adelante ejem:"s1120" a "120"
           s1Act = btS.toInt();                 //convierto de string a entero
           //MUEVO EL SERVOMOTOR CON UN BARRIDO
           if(s1Ant > s1Act){
              for(int j=s1Ant; j>=s1Act; j--){
                  servo1.write(j);
                  delay(s1Vel);}}
           else{
              for(int j=s1Ant; j<=s1Act; j++){
                  servo1.write(j);
                  delay(s1Vel);}}

          s1Ant = s1Act;}                        //el angulo movido(s1Act) se convierte en la posicion anterior

        //////////////////////////// SERVO 2 y 3 - HOMBRO 1 y 2 /////////////////////////////////////////////////////////////////////////////////
        if(bt.startsWith("s2")){
           btS = bt.substring(2,bt.length());
           s2Act = btS.toInt();
           Serial.println(s2Act);
           if(s2Ant > s2Act){
              for(int j=s2Ant; j>=s2Act; j--){
                  servo2.write(j);
                  servo3.write(180-j);
                  delay(s2Vel);}}
           else{
              for(int j=s2Ant; j<=s2Act; j++){
                  servo2.write(j);
                  servo3.write(180-j);
                  delay(s2Vel);}}

          s2Ant = s2Act;}

        //////////////////////////// SERVO 4 - CODO1 /////////////////////////////////////////////////////////////////////////////////
        if(bt.startsWith("s3")){
           btS = bt.substring(2,bt.length());
           s4Act = btS.toInt();

           if(s4Ant > s4Act){
              for(int j=s4Ant; j>=s4Act; j--){
                  servo4.write(j);
                  delay(s4Vel);}}
           else{
              for(int j=s4Ant; j<=s4Act; j++){
                  servo4.write(j);
                  delay(s4Vel);}}

          s4Ant = s4Act;}

        //////////////////////////// SERVO 5 - CODO2 /////////////////////////////////////////////////////////////////////////////////
        if(bt.startsWith("s4")){
           btS = bt.substring(2,bt.length());
           s5Act = btS.toInt();

           if(s5Ant > s5Act){
              for(int j=s5Ant; j>=s5Act; j--){
                  servo5.write(j);
                  delay(s5Vel);}}
           else{
              for(int j=s5Ant; j<=s5Act; j++){
                  servo5.write(j);
                  delay(s5Vel);}}

          s5Ant = s5Act;}

        //////////////////////////// SERVO 6 - MUÑECA /////////////////////////////////////////////////////////////////////////////////
        if(bt.startsWith("s5")){
           btS = bt.substring(2,bt.length());
           s6Act = btS.toInt();
           Serial.println(s6Act);
           if(s6Ant > s6Act){
              for(int j=s6Ant; j>=s6Act; j--){
                  servo6.write(j);
                  delay(s6Vel);}}
           else{
              for(int j=s6Ant; j<=s6Act; j++){
                  servo6.write(j);
                  delay(s6Vel);}}

          s6Ant = s6Act;}

        //////////////////////////// SERVO 7 - GRIPPER /////////////////////////////////////////////////////////////////////////////////
        if(bt.startsWith("s6")){
           btS = bt.substring(2,bt.length());
           s7Act = btS.toInt();

           if(s7Ant > s7Act){
              for(int j=s7Ant; j>=s7Act; j--){
                  servo7.write(j);
                  delay(s7Vel);}}
           else{
              for(int j=s7Ant; j<=s7Act; j++){
                  servo7.write(j);
                  delay(s7Vel);}}

          s7Ant = s7Act;}

        //////////////////////////// SAVE //////////////////////////////////////////////////
        if(bt.startsWith("SAVE")){
           s1[index]= s1Ant;
           s2[index]= s2Ant;
           s4[index]= s4Ant;
           s5[index]= s5Ant;
           s6[index]= s6Ant;
           s7[index]= s7Ant;
           index++;}
        ///////////////////////// RESET ///////////////////////////////////////////////////
        if(bt.startsWith("RESET")){
          //memset se utiliza para rellenar un bloque de memoria con un valor determinado
          //memeset("matriz","dato a rellenar","tamaño de la matriz")
           memset(s1,0,sizeof(s1)); //rellena con el valor de "0" todas las posiciones de la matriz
           memset(s2,0,sizeof(s2));
           memset(s4,0,sizeof(s4));
           memset(s5,0,sizeof(s5));
           memset(s6,0,sizeof(s6));
           memset(s7,0,sizeof(s7));
           index=0;}
        //////////////////////////// RUN ////////////////////////////////////////////////////
        if(bt.startsWith("RUN")){
           //Ejecuta los pasos una y otra vez hasta que se pulse el botón "RESET" o espera hasta que se vuelva a pulsar "RESET"
           while(bt.startsWith("RESET") != true){//MIENTRAS NO SE PRESIONE 'RESET' SE MANTIENE EN EL BUCLE y SOLO FUNCIONA BOTON "PAUSE"
                 for(int i=0; i<= index-2;i++){
                     if(Bluetooth.available()>0){
                        bt = Bluetooth.readString();
                        if(bt.startsWith("PAUSE") == true){
                           //Ejecuta los pasos una y otra vez hasta que se pulse el botón "RUN" o espera hasta que se vuelva a pulsar "RUN"
                           while(bt.startsWith("RUN") != true){//MIENTRAS NO SE PRESIONE 'RUN' SE MANTIENE EN EL BUCLE Y SOLO FUNCIONA BOTON "RESET"
                                 if(Bluetooth.available()>0){
                                    bt = Bluetooth.readString();
                                    if(bt.startsWith("RESET") == true){
                                       break;}
                                 }
                           }
                        }//end if(PAUSE)
                        if(bt.startsWith("ss")){
                           btS  = bt.substring(2,bt.length());
                           velG = btS.toInt();}
                     }//end 1er Bluetooth.available
                     //////// SERVO 1 ////////////////////////
                     if(s1[i] == s1[i+1]){}

                     if(s1[i] > s1[i+1]){
                        for(int j = s1[i]; j >= s1[i+1];j--){
                            servo1.write(j);
                            delay(velG);}}

                     if(s1[i] < s1[i+1]){
                        for(int j = s1[i]; j <= s1[i+1];j++){
                            servo1.write(j);
                            delay(velG);}}
                     //////// SERVO 2 y 3 /////////////////////
                     if(s2[i] == s2[i+1]){}

                     if(s2[i] > s2[i+1]){
                        for(int j = s2[i]; j >= s2[i+1];j--){
                            servo2.write(j);
                            servo3.write(180-j);
                            delay(velG);}}

                     if(s2[i] < s2[i+1]){
                        for(int j = s2[i]; j <= s2[i+1];j++){
                            servo2.write(j);
                            servo3.write(180-j);
                            delay(velG);}}
                     //////// SERVO 4 ////////////////////////
                     if(s4[i] == s4[i+1]){}

                     if(s4[i] > s4[i+1]){
                        for(int j = s4[i]; j >= s4[i+1];j--){
                            servo4.write(j);
                            delay(velG);}}

                     if(s4[i] < s4[i+1]){
                        for(int j = s4[i]; j <= s4[i+1];j++){
                            servo4.write(j);
                            delay(velG);}}
                     //////// SERVO 5 ////////////////////////
                     if(s5[i] == s5[i+1]){}

                     if(s5[i] > s5[i+1]){
                        for(int j = s5[i]; j >= s5[i+1];j--){
                            servo5.write(j);
                            delay(velG);}}

                     if(s5[i] < s5[i+1]){
                        for(int j = s5[i]; j <= s5[i+1];j++){
                            servo5.write(j);
                            delay(velG);}}
                     //////// SERVO 6 ////////////////////////
                     if(s6[i] == s6[i+1]){}

                     if(s6[i] > s6[i+1]){
                        for(int j = s6[i]; j >= s6[i+1];j--){
                            servo6.write(j);
                            delay(velG);}}

                     if(s6[i] < s6[i+1]){
                        for(int j = s6[i]; j <= s6[i+1];j++){
                            servo6.write(j);
                            delay(velG);}}
                     //////// SERVO 7 ////////////////////////
                     if(s7[i] == s7[i+1]){}

                     if(s7[i] > s7[i+1]){
                        for(int j = s7[i]; j >= s7[i+1];j--){
                            servo7.write(j);
                            delay(velG);}}

                     if(s7[i] < s7[i+1]){
                        for(int j = s7[i]; j <= s7[i+1];j++){
                            servo7.write(j);
                            delay(velG);}}
              }// end FOR INDEX
           }//end 1er WHILE "RESET"
        }

     }//if(Bluetooth.available()>0){
}//end void loop
