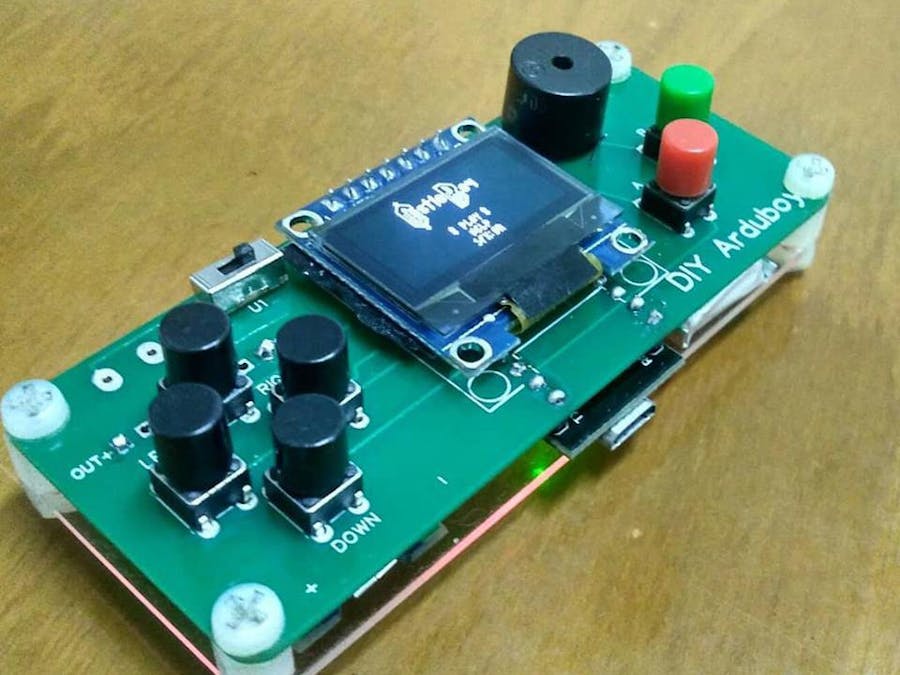

Arduboy is an open source credit card size gaming console that has an active community not only on its software where alot of people develop their own game for the platform but also on its hardware where there are also alot of people came up with their own custom arduboy hardware.

I personally cannot afford to buy the Arduboy console but fortunately I have the Components to build one. so I came up with two prototype on a perf board and then stepping it up with my Custom PCB that I got from here. This project also a stepping stone for me because this is my first time making a PCB.

Now I want to share the fun and excitement on making this project and to give other people hope that you too can make your own console with minimum components. This project few hours to build with some basic soldering skill because all the components are trough hole components.

And also you can print your own using Ardubuino using the github link provided

Details

More details About The PCB::

Test run the PCB and with all the components

More details about the PCB in High Res, you can check tha PDF file attached below

Faceplate and ardubuino PCB plan

PCB Gerber file

Arduboy awesome community

Arduboy main site

Build instructions

Step 1

Step 2

Step 3

Step 4

Files

PCB_arduboy-rev3_20180409161210.pdf: PDF for pcb in high res

Gerber_arduboy rev1.zip: Version 1 with no lipo charging module

Gerber_arduboy _faceplate rev2.zip: Better version with face plate
