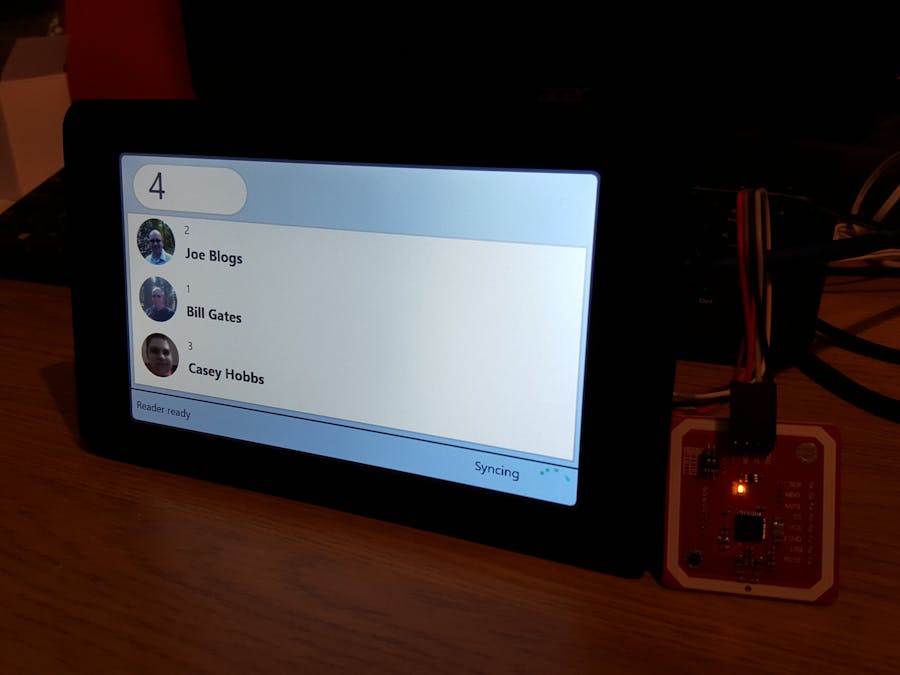

I wanted to build a connected device that had the ability to identify and record the movements of people on and off locations. Using an RFID card reader and a Raspberry Pi running Win 10 IoT as the movement capture device. Recording movements through a Web API hosted in the cloud to a SQL DB, with an ASP.NET 5 MVC 6 admin web site with the ability to add people profiles and images and issue RFID cards.
MVC Admin Site
Person List
Profile edit

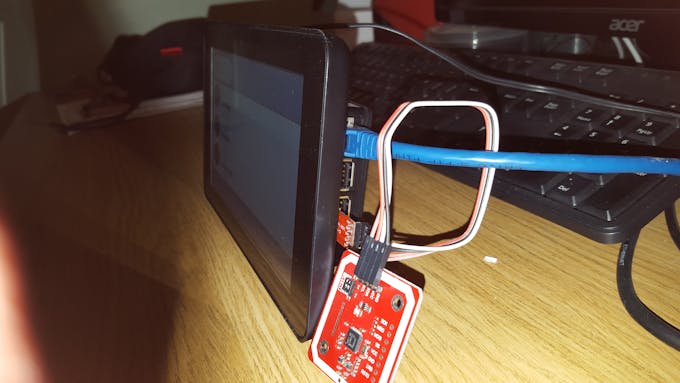

Hardware
- Raspberry Pi 2
- CP2102 USB 2.0 to TTL Module Serial Converter
- XCSOURCE® NXP PN532 NFC RFID Module V3
- Powered USB hub for ease of plugging in USB touch screen etc.
USB to NFC RFID module TTL Connection

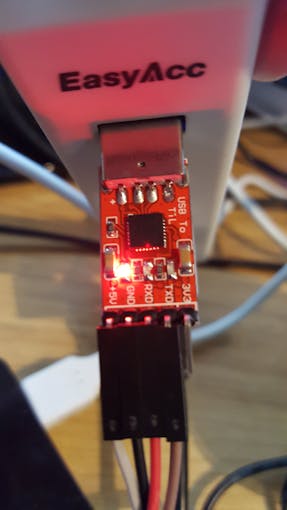

USB 2.0 to TTL

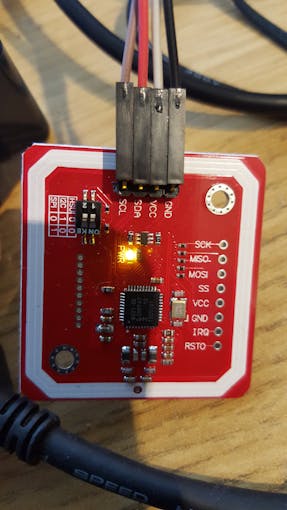

RFID serial TTL connection
