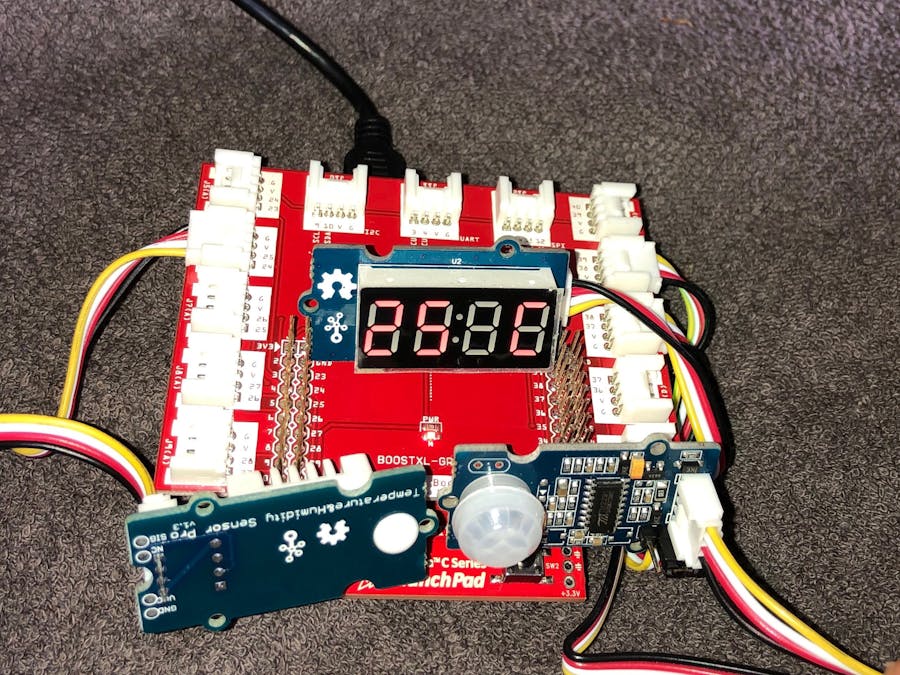

HumidTemp 1.0

#include "TM1637.h"
#include "DHT.h"

/* Macro Define */
#define CLK               38          /* 4-Digit Display clock pin */
#define DIO               37          /* 4-Digit Display data pin */
#define BLINK_LED         RED_LED            /* blink LED */
#define TEMP_HUMI_PIN     24                 /* pin of temperature&humidity sensor */
#define PIR_MOTION_SENSOR        39            /* sig pin of the PIR sensor */

/* Global Variables */
TM1637 tm1637(CLK, DIO);                  /* 4-Digit Display object */
DHT dht(TEMP_HUMI_PIN, DHT22);            /* temperature&humidity sensor object */

int8_t t_bits[2] = {0};                   /* array to store the single bits of the temperature */
int8_t h_bits[2] = {0};                   /* array to store the single bits of the humidity */

void setup() {
    tm1637.init();                       /* initialize 4-Digit Display */
    tm1637.set(BRIGHT_TYPICAL);          /* set the brightness */
    tm1637.point(POINT_OFF);              /* light the clock point ":" */

    dht.begin();                         /* initialize temperature humidity sensor */

    pinMode(PIR_MOTION_SENSOR, INPUT);    /* Define the input/output pins */
    pinMode(DIO, OUTPUT);
}

void loop() {
    // Display the readings when motion is detected.
    if(isMotionDetected()) {
      /**
       * Read the temperature value from the sensor in Celsius.
       */
      int _temperature = dht.readTemperature();
      /**
       * Calculate the temperature in Fahrenheit and assign it to a new variable.
       */
      int temp = _temperature*9/5+32;
      /**
       * Read the humidity from teh sensor.
       */
      int _humidity = dht.readHumidity();
      /**
       * Calculate the dew point and assign it to a variable.
       */
      int dewPoint = temp - 9*(100-_humidity)/25;

      //Reset the temperature and humidity arrays to 0s.
      memset(t_bits, 0, 2);
      memset(h_bits, 0, 2);

      // Calculate the digits to show temperature in Celsius on the 4-Digit Display
      t_bits[0] = _temperature % 10;
      _temperature /= 10;
      t_bits[1] = _temperature % 10;

      // Calculate the digits to show humidity on the 4-Digit Display
      h_bits[0] = dewPoint % 10;
      dewPoint /= 10;
      h_bits[1] = dewPoint % 10;

      // Show the temperature in Celsius for 3000 ms
      tm1637.clearDisplay();
      tm1637.display(1, t_bits[0]);
      tm1637.display(0, t_bits[1]);
      tm1637.display(3, 12);

      delay(3000);
      tm1637.clearDisplay();

      // Calculate the digits to show temperature in Fahrenheit on the 4-Digit Display
      t_bits[0] = temp % 10;
      temp /= 10;
      t_bits[1] = temp % 10;

      // Show the temperature in Fahrenheit for 3000 ms
      tm1637.display(1, t_bits[0]);
      tm1637.display(0, t_bits[1]);
      tm1637.display(3, 15);

      delay(3000);
      tm1637.clearDisplay();

      // Show the dew point for 3000 ms
      tm1637.display(1, h_bits[0]);
      tm1637.display(0, h_bits[1]);
      tm1637.display(3, 13);

      delay(3000);
    }
    // Clear the display when no motion is detected
    else {
      tm1637.clearDisplay();
    }
}

boolean isMotionDetected() {
    int sensor_val = digitalRead(PIR_MOTION_SENSOR);        /* read sig pin */
    if(sensor_val == HIGH) {
        return true;                                        /* motion detected */
    }
    else {
        return false;                                       /* no motion detected */
    }
}
