HMI for Indoor Hydroponic Machine

With gesture recognition, we want to configure shortcuts for actions adopted in indoor hydroponic culture.

Work in progress29

Things used in this project

Hardware components

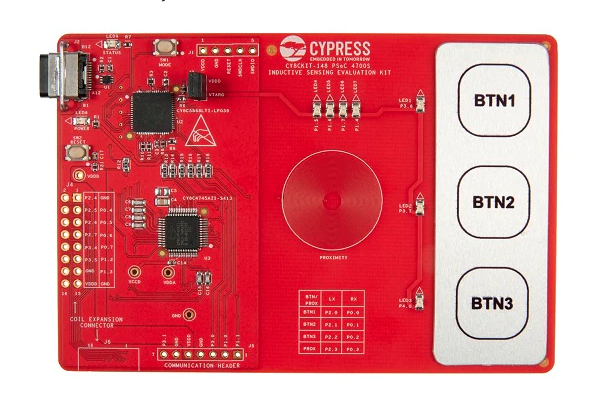

Cypress CY8CKIT-148 PSoC 4700S Inductive Sensing Evaluation Kit

pvc tube 160mm x 800mm

PVC 90° 50mm

PVC Reduction 160mm/50mm

PVC 160mm close

PVC 50mm X 420mm

PVC 50mmX200mm

Cypress CY8CKIT-148 Coil

Software apps and online services

Cypress PSoC Creator

Story

Due to a lack of space, hydroponic cultivation is attractive for novice and experienced home gardens. This project aims to build an adapted interface HMI to control electronic hydroponic machine devices. The HMI aims to help keep the desired culture microclimate for indoor cultivation. The HMI is also used to keep track of the farmer's intelligence and experience.

Good references regarding hydroponic cultures can link

The machine

Our machine is built to ensure plant feeding through water circulation. The first prototype is shown below :

The Hydroponique machine structure

The HMI

Hydroponic machines are water-based, Because of this, we have chosen an inductive sensing solution to build the HMI. The main implemented functionalities are:

starting or stopping the water pump,
flow control,
Water level,

We are using gloves on which we have glued aluminum foil.

Code

Program

/* ========================================
 *
 * Copyright Belkacem BENADDA, 2023
 * All Rights Reserved
 * UNPUBLISHED, LICENSED SOFTWARE.
 *
 * CONFIDENTIAL AND PROPRIETARY INFORMATION
 * WHICH IS THE PROPERTY OF your company.
 * :o{)
 * ========================================
*/
#include <project.h>

uint8 MachineStatus; //is sent throught I2C

int main(void)
{
    MachineStatus = 0x00;

    CyGlobalIntEnable; /* I've to figure out why, do componnents need this?   */

    PWMTank_Start();
    CTRLHydroponic_Start();
    CTRLHydroponic_ScanAllWidgets();

    for(;;)
    {
        if(CTRLHydroponic_NOT_BUSY == CTRLHydroponic_IsBusy())
        {
            CTRLHydroponic_ProcessAllWidgets();
            CTRLHydroponic_RunTuner();
            if(CTRLHydroponic_IsAnyWidgetActive())
            {
              // set the machine On/OFF
                if(CTRLHydroponic_IsWidgetActive(CTRLHydroponic_BTNONOFF_WDGT_ID))
                {
                    MachineStatus^=0x01;
                    LEDONOFF_Write(MachineStatus);
                }
              //Controle the pump
                if((MachineStatus == 0xFF)&&(CTRLHydroponic_IsWidgetActive(CTRLHydroponic_BTNPUMP_WDGT_ID)))
                {
                    MachineStatus^=0x02;
                    LEDPUMP_Write(MachineStatus);
                }
            }

            CTRLHydroponic_ScanAllWidgets();
        }
    }
}
