Product has been kindly sponsored by taydaelectronics.com
Product SpecificationsGeneral
Type: Electrical Wire
Architecture: For all electronics
Wire Type: Hook-up Wire (Appliance Wiring Material)
Wire Size: 22AWG
Wire Rating: 80°C, 300 volts
Wire Colours: 10 (Red, Orange, Yellow, Green, Blue, Purple, Grey, White, Black, and Brown)
Wire Conductor Material: Tinned Copper Strands
Wire Insulation Material: Lead-free PVC
Operating Temperature (Maximum until deformation and cracking): -10 ±2°C - 121 ±2°C
Flame Certification (Passing): VW-1
Power
Maximum Operating Voltage: 300 volts
Maximum Operating Voltage: 7 amps
Conductor Resistance at 20°C (Maximum): 56.20 ohm/km
Insulation Resistance (Minimum): 5 megaohm/km
Dielectric Withstand Voltage (AC voltage with no breakage): 2 kilovolt/minute
Spark Test Voltage: 5 kilovolts
Weight and Size Dimensions
Product Weight (Full pack): 40g
Wire Conductor Diameter: 0.160 ±0.005 mm
Average Wire Insulation Thickness / Average Wire Insulation Thickness at any point of the wire: > 0.38mm / > 0.33mm
Overall Wire Diameter: 1.60 ±0.10 mm
Header Size (L x W x H): 13.7 x 2.3 x 2.3 mm
Exposed Core Size (L x W x H): 6 x 0.5 x 0.5 mm
Total Insulation Size (L x W x H): 187.4 x 1.2 x 1.2 mm
Total Wire Size with all parts above (L x W x H): 220.3 x 2.3 x 2.3 mm

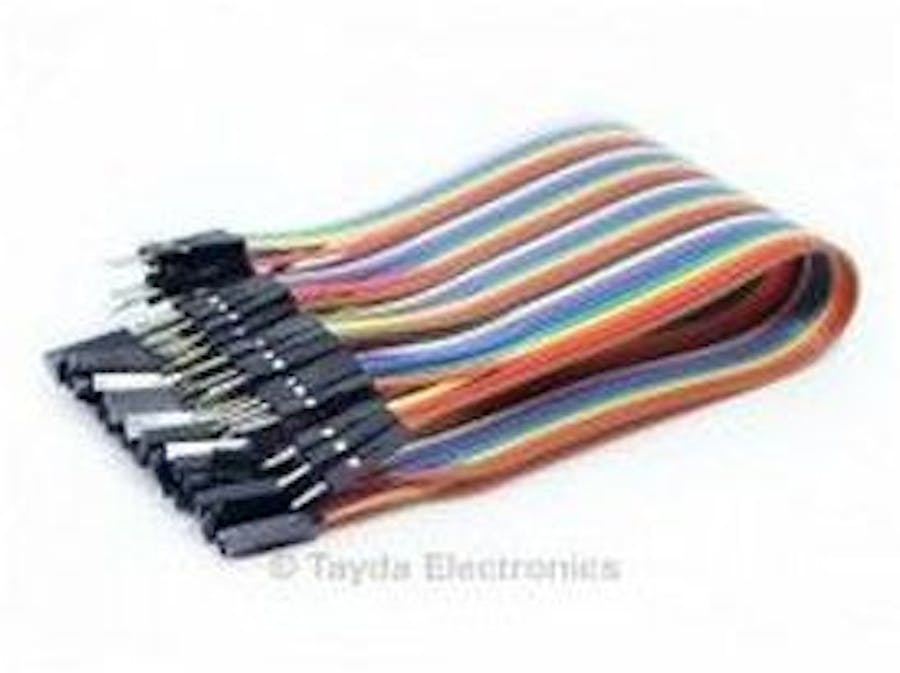

These kind of jumper wires could be extremely useful in many electronic projects and circuits due to the many features it possesses which includes:
1. The different, identifiable wire colours (10 colours) for markings and labels for different purposes throughout electronic circuits, projects, prototypes, etc. It can be very helpful when you want to give a specific tag or label for a function to that wire.
2. Its power and mechanical ratings (voltage, temperature, resistance ratings) which can be used for most electrical/electronic appliances. Plus, the wires are suitable for lots of hobby electronic projects.
3. The controlled quality and constant consistency of the wires in the whole pack. They are made similarly and, from the production process, Tayda Electronics has kept their quality control on these wires as I have observed in my tests.
4. The pack's pricing. Honestly, from a maker's point of view, the price on this pack of 40 wires is quite affordable with a price of $3.99. We need to keep in mind that it has pretty good quality and consistency of all of the pack's content.
Check our the product here: goo.gl/5XeB9h
