Home Security System

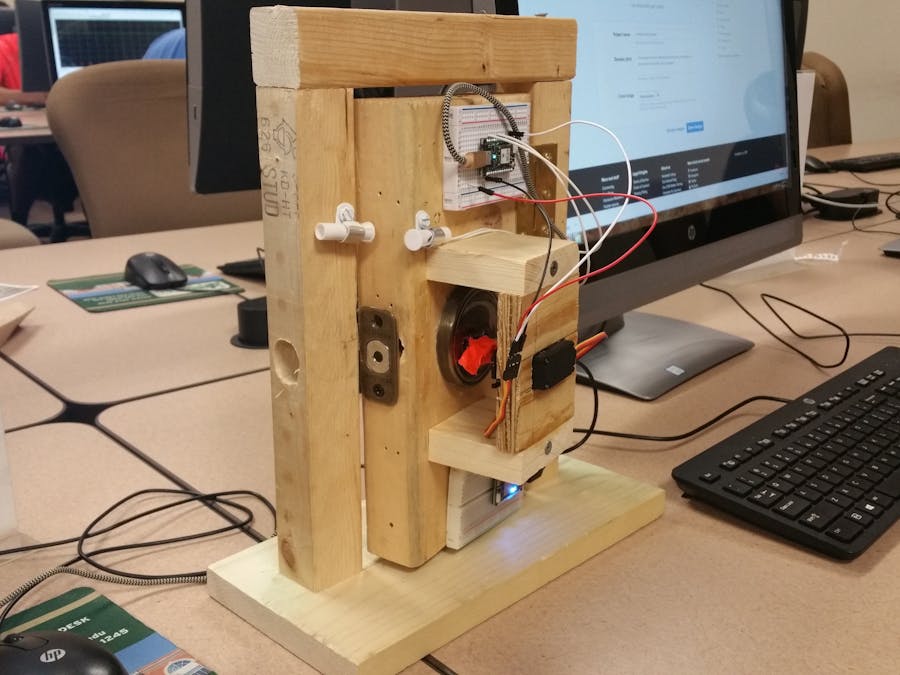

This project lets users remotely lock and unlock a deadbolt to a door and record an intruder if the door is opened.

IntermediateShowcase (no instructions)2 hours1,115

Things used in this project

Hardware components

Particle Photon

Standard Servo

reed switch

Apple iPhone

The camera on the Iphone is utilized via manything app

Software apps and online services

ThingSpeak API

manything

IFTTT Maker service

ControlEverything.com Mobicle

Story

The story was to take a normally expensive necessity and make it accessible to anyone. With two photons, a servo motor, a reed switch and an old IOS/Android device with a camera, anyone can have the comfort of home security in their household. With the touch of a command on the phone, you can easily lock and unlock your house. If a door is opened, a signal is sent to your camera to record any activity!

Code

int led = D7;


void setup() {
    pinMode(led,OUTPUT);
    digitalWrite(led,LOW);

    Particle.subscribe("OpenDoor", cameraon , "2e0021001951353337343731");    //subsribes from security camera photon when camera is on
    Particle.subscribe("ClosedDoor", cameraoff , "2e0021001951353337343731");
}

void cameraon(const char *event, const char *data)
{
    digitalWrite (led,HIGH);
    Particle.publish("Camera" , "CameraIsRecording" , PUBLIC);
}

void cameraoff(const char *event, const char *data)
{
    digitalWrite (led,LOW);
}

void loop() {

}

Servo myservo;
int pos = 0;


void setup()
{
    Particle.function("lock", gong);
    myservo.attach(D0);
    myservo.write(0);
    pinMode(D4, INPUT);


}



int gong(String command)
{
    if(command == "close")
    {
     myservo.write(0);
    }
    else if(command == "open")
    {
     myservo.write(90);
     delay(1000);
    }

}

void loop()
{
    if (digitalRead(D4) == HIGH)
    {
    String DoorOpen = String(1);
    Particle.publish("DoorOpen", DoorOpen , PRIVATE);
     Particle.publish("OpenDoor" , "Door is open" ,  PUBLIC);
     delay(5000);
    }


    if (digitalRead(D4) == LOW)
    {
        String DoorOpen = String(-1);
    Particle.publish("DoorOpen", DoorOpen , PRIVATE);
     Particle.publish("ClosedDoor" , "Door is closed" ,  PUBLIC);
    delay(5000);
    }
}
