SQLite with C/C++ and Eclipse on Simatic IOT2020

Steps to build and run a C program that uses SQLite database calls.

Create the project in Eclipse

This isn't different than any other IOT2000 SDK project. In Eclipse, select File -> New -> Other -> SIMATIC IOT2000 -> SIMATIC IOT2000 Project.

Give your project a name (I used iot2020_sqlite) and select the location of the SIEMENS SDK.

Configure the project for SQLite3

The SDK contains all you need to compile SQLite C/C++ programs. There's nothing to do for the includes. Just adding the include is enough:

#include <sqlite3.h>

To link in the SQLite objects, you need to make a change. You have to tell the linker to add the library. To do this, right-click on your project and select Properties -> C/C++ Build -> Settings -> IOT2000 Linker -> General.

Then add the sqlite lib (use -lsqlite3) to the Flags:

-lmraa -lsqlite3 -fno-use-linker-plugin

Write code

I've used the first example of SQLite C/C++ Tutorial. It stands out in simplicity. Can I create a database in my home folder with the SQLite API:

// ...
#include <sqlite3.h>
int main(void) {
	// ...
	sqlite3 *db;
	int rc;
	rc = sqlite3_open("test.db", &db);
	if( rc ){
		sqlite3_errmsg(db);
	// ...
		return 0;
	}else{
	// ...
	}
	sqlite3_close(db);
	return 0;
}

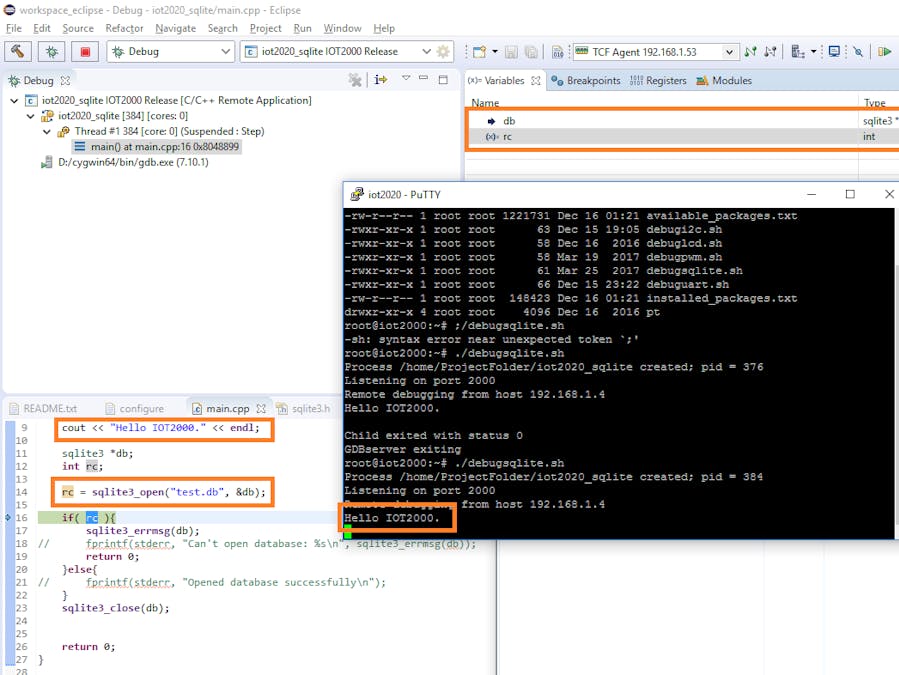

Set up the debugger (I've written a how-to that explains how you can do that with the current IOT2000 example image and Eclipse NEON). Step through the code. After the line sqlite3_open(), there should be a file test.db with a size of 0 bytes created in your home directory.

Step in the debugger if RC is 0 after that function call. If this is OK, you have a successful test. You can now add SQL statements to your program.

Additional info: the header and library files are located in the SDK in these folders:

• Lib: SDK/iot2000-sdk-windows-2.1.2/sysroots/i586-nlp-32-poky-linux/usr/lib

• Header: SDK/iot2000-sdk-windows-2.1.2/sysroots/i586-nlp-32-poky-linux/usr/include
