Published January 25, 2022

Title TEMPE ROOM TEMPERATURE MONITORING EQUIPMENT BASED ON A

This tool is to detect the room temperature, because at this time the temperature becomes unstable due to global warming

BeginnerWork in progress1 hour227

Title TEMPE ROOM TEMPERATURE MONITORING EQUIPMENT BASED ON A

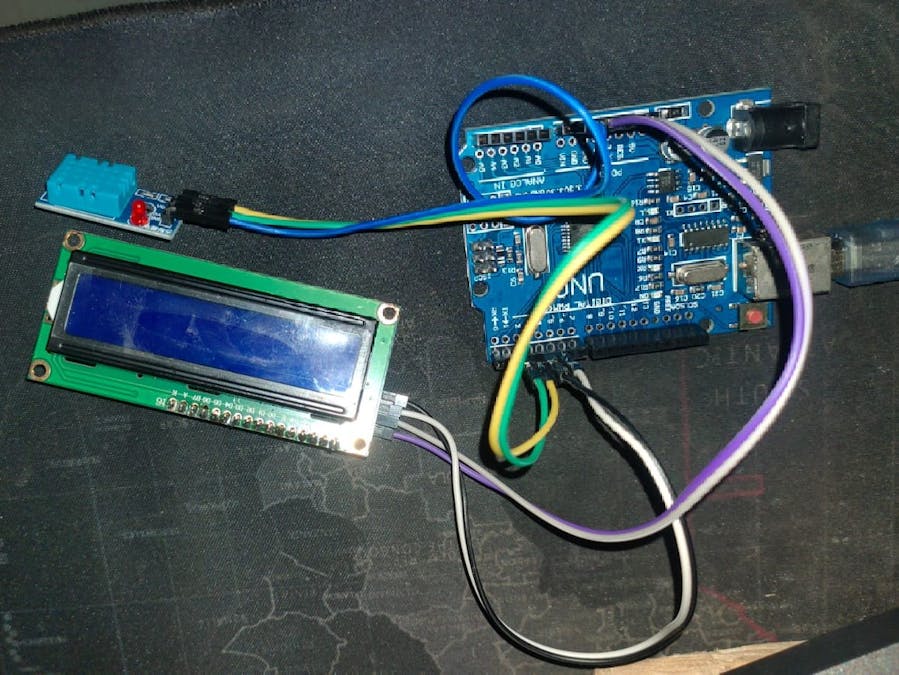

Things used in this project

Hardware components

Adafruit RGB Backlight LCD - 16x2

Arduino UNO

Male/Female Jumper Wires

ControlEverything.com 1-Channel Signal Relay 1A SPDT I²C Mini Module

DHT11 Temperature & Humidity Sensor (4 pins)

Software apps and online services

Arduino IDE

Story

In general, in making tempeh, tempe producers still use the manual method. In cold weather, tempeh is usually covered with cloth or other coverings so that the tempeh fermentation temperature remains stable so that the tempeh fermentation process can take place normally. But in this way, tempe producers do not know what the temperature and humidity are. So we need a tool that can detect the temperature and humidity in the tempe production room. Observation Methods Interview Method Literature Study uses the SDLC (System Development Life Cycle) analysis method to obtain good research results and is safe to use. The SDLC analysis method, namely planning, analysis, design, implementation and maintenance, makes monitoring the temperature and humidity of the tempeh production room better and maximizes production yields and better quality. reading temperature data, temperature and humidity levels in the tempeh room using the DHT11 sensor. With the temperature and humidity monitoring system in the tempe production room, it is hoped that tempe production will have a better and better product than the previous production. With the monitoring that I designed, it is hoped that the tempe production will be more and of good quality than the previous tempe production.

TEMPE ROOM TEMPERATURE MONITORING

#include <LiquidCrystal_I2C.h>
LiquidCrystal_I2C lcd(0x3F,16,2);  // GANTI 0x3F Ke 0x27 kalau LCD ga muncul
#include <DHT.h>
DHT dht(2, DHT11); //Pin, Jenis DHT

int powerPin = 3;    // untuk pengganti VCC/5vOLT

void setup(){
  lcd.init();
  // Print a message to the LCD.
  lcd.backlight();
  // jadikan pin power sebagai output
  pinMode(powerPin, OUTPUT);
  // default bernilai LOW
  digitalWrite(powerPin, LOW);
 Serial.begin(9600);
 dht.begin();
}

void loop(){
 digitalWrite(powerPin, HIGH);

 float kelembaban = dht.readHumidity();
 float suhu = dht.readTemperature();

 Serial.print("kelembaban: ");
 Serial.print(kelembaban);
 Serial.print(" ");
 Serial.print("suhu: ");
 Serial.println(suhu);

  lcd.clear();
  lcd.setCursor(0,0);
  lcd.print("Kelembaban: ");
  lcd.setCursor(11,0);
  lcd.print(kelembaban);

  lcd.setCursor(0,1);
  lcd.print("Suhu: ");
  lcd.setCursor(5,1);
  lcd.print(suhu);
  delay(1000);
}
