Published November 11, 2016

Full Animatronic Sorting Hat With Custom Software -$22

I plan for something cheap and wonderful animatronic. Then I plan it for sorting hat with the resources around me.

AdvancedFull instructions providedOver 3 days19,544

Things used in this project

Hardware components

Arduino UNO

servo motor

regulater power supply board

12v dc adaptor

Software apps and online services

Arduino IDE

visual basic 6

Hand tools and fabrication machines

Soldering iron (generic)

Story

1 / 4

All my dream is to done a full animatronic object in working condition. But it need lot of mechanism and costly too. So i plan for some thing cheap and wonderful. Then I plan it for sorting hat with the resources around me.

I use 5 servo motors and an Arduino to control this hat. I develop a custom software to record the positions in to Arduino EEPROM step by step from pc and when play it act as real. It take me a long days to plan and long times (full nights for 1 week) to finish.

Let we see how a art board, old cardboard, Waste cloth and few electronics combined with Pc to make a talking, eye blinking and bow and standing hat......

Total Amount is only 22$

Step 1: Materials and Tools Required

1 / 6

Materials Required

Thick board Chat 2 Nos - 0.5$

Old Daily Calendar Card board. - from Trash

Old Sketche pen 5 Nos - From Trash

Long screws and nuts. - 0.5$

Arduino uno board. - 5$

Servo Motors 5 Nos - 10$

Regulated Power supply board.

Self soldered Arduino shield board to control 6 servos.-2$

Long Cloth ( I have only white waste Cloth if dark brown color available then no coloring problem).-Trash

Poster Color (Dark Brown Color).- 1$

Fevical (Paste to bind all parts)

12V dc power Supply- 3$

Small Straws for Links

Tools Required

Scale

Scissors

Soldering tools

Painting brush

PC (Computer)

Thread and Pen (To put correct circle)

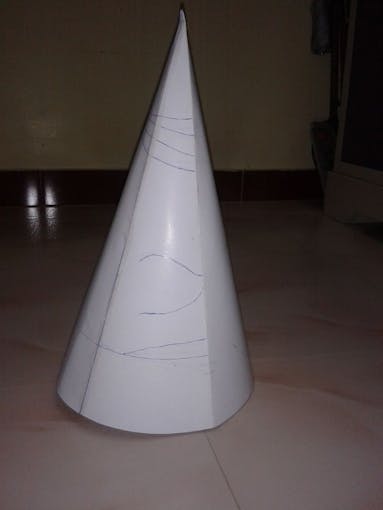

Step 2: Make the basic Hat

1 / 9

1) Before Starting calculate the dimension. I first measure the dimension of the hat in the phone with the space of the head in front view. Then measure my head and with the proportion calculate the other dimension of the cone.

2) From the calculated cone find the radius and the angle to cut for the cone.

3) Take a Thick Chart and Draw a circle for the cone using thread and a pen with the measurement taken.

4) Draw the angle required and left some space for paste the cone.

5) Cut the required portion using scissors.

6) Paste the excess portion we already left and after dry you found the cone fit right for your head.

7) To cut the Brim of the hat.

8) Take another chart and draw the circle in required size of the Brim.

9) Cut the Circle using Scissors.

10) Paste the cone over the Brim in the center using paper tape.

11) Now the Hat basic is ready.

Step 3: Draw and Cut the Hat

1 / 2

1) Draw the Eyes, Top horn and Mouth to the Hat.

2) Cut the mouth and eye piece separately.

3) Cut the bottom of the horn as shown in the figure.

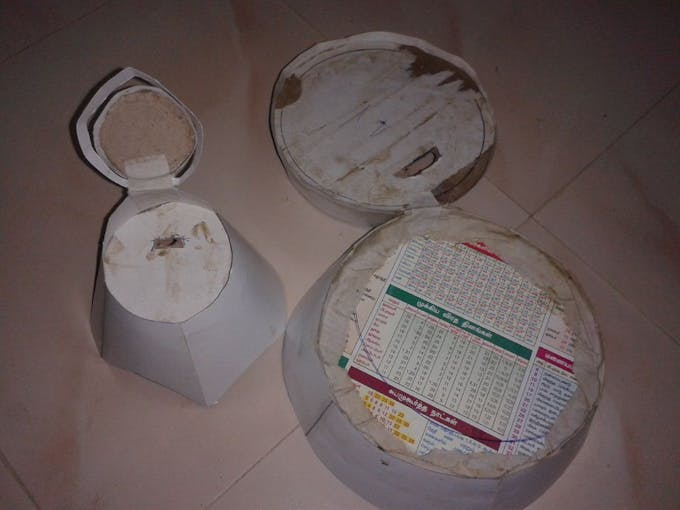

Step 4: Add Cardboard to Make Portions strip

1 / 5

1) Take a waste daily calendar card board (its very thick and strong)

2) Draw circles as per each piece size.

3) Cut the circle.

4) Paste it in each portion with gap from the top and bottom as shown in the figure.

5) Apply Paste on the circumference of the circle and hold it.

Step 5: Join all parts with a help of cloth

1 / 2

1) Join all the parts together using cloth, by paste a ling strip of cloth on the back side of the hat.

2) This allow each parts move separately and move up and down.

Step 6: Make Mechanical Link

1 / 10

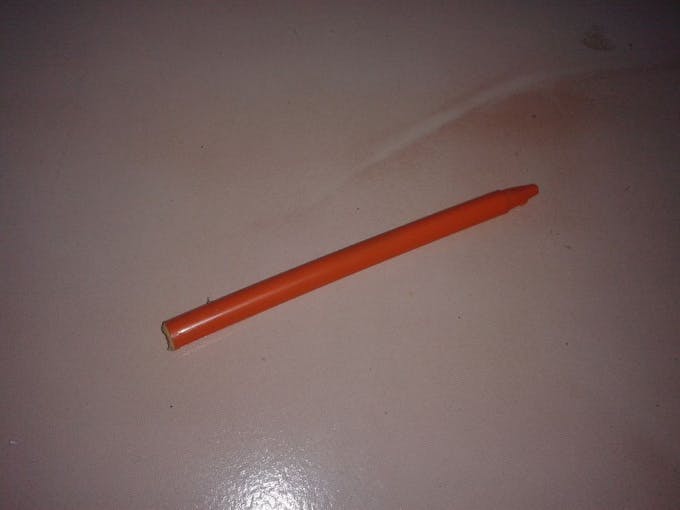

1) Take 5 old full size color sketch pen.

2) Cut the front cone of the sketch pen and remove the sponge inside the sketch pen.

3) Mark the center of the sketch and cut in to two pieces.

4) Drill one hole in one side of the piece where opposite side of the blind cap for 5 pieces.

5) Put two holes in both sides of the other 5 pieces.

6) Take two pieces and insert the straw in to the hole of the pieces as shown in the figure.

7) Test it rotate freely.

8) Cut the straw by left some more straw on both side of the sketch.

9) Insert a screw in to the straw and put a nut and tighted.

10) check the link for free movement.

Step 7: Prepare Arduino

1 / 2

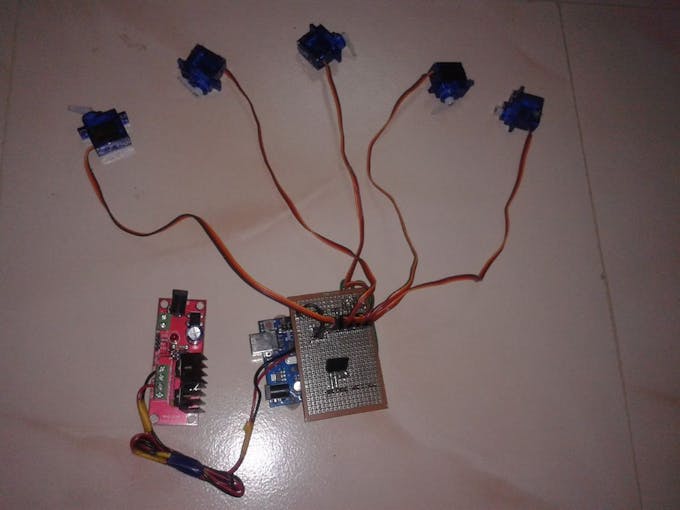

1) I make a shield for Arduino to control 6 servo motors.

2) I already done it for my previous project (Flexible robotic arm)

3) Power supply for the Servo is from external source, So a voltage regulator is set to get the correct output.

4) In this project i need 5 servos.

5) I fix five servos and tested for full run all are found ok.

Step 8: Fix link to the servo

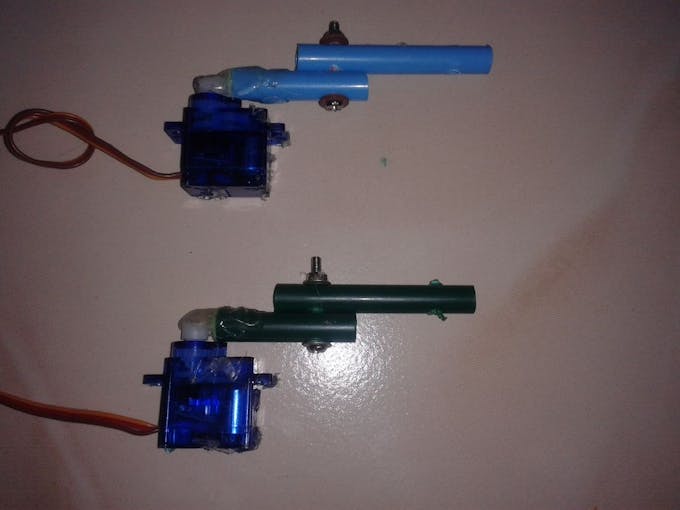

1) Using hot glue gun fix one side of link to the arm of the servo where no hole is drilled.

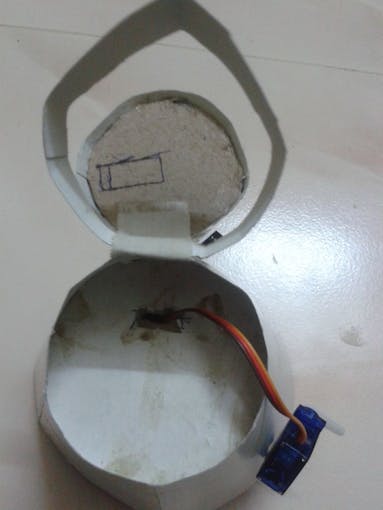

Step 9: Fix servo to the Hat horn

1 / 4

1) Put a rectangular hole in the base of the horn of the hat.

2) Put two small holes in the sides of the retangular cut.

3) Take a tin rod and insert the rod into one free hole of the link.

4) Make servo at 90 degree and fix it to the other side of the hat.

5) Check it using servo sweep program but limit the position from 20 to 90 degree only.

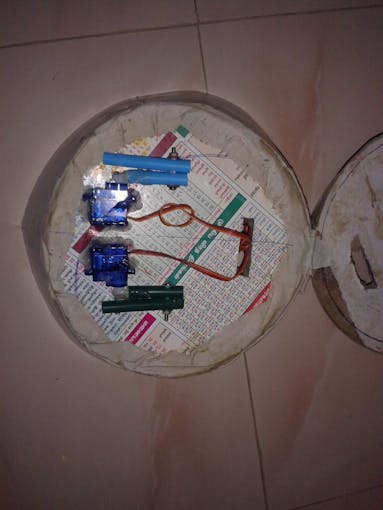

Step 10: Fix servo for Mouth

1 / 3

1) For horn we only use one servo.

2) For mouth use two servos to make mouth movement in various style.

3) Fix the servo on the bottom side of the mouth in two opposite sides as show in the figure.

4) Put a hole like horn on both sides of the upper side of the mouth.

5) Use thin rod connect the servo with link in the lower mouth to upper mouth.

6) At each stage check its running with microcontroller.

Step 11: Mouth full open test

Step 12: Fix the eyes piece and complete

1 / 7

1) In the top and bottom side of the eye piece cut some more chart and let the eye come close to the base.

2) As like mouth piece we fix the eye piece.

3) Check all the Servos using Arduino sweep program. Make Sweep between 20 to 90 only.

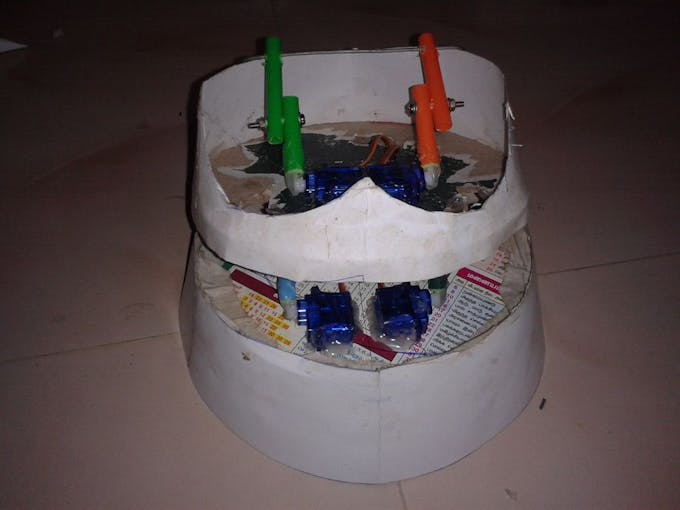

Now the main frame work is completed. But Want to act like our command. So i develop a program to control each servo motor from PC.

Step 13: All Parts Full opening

Step 14: Create Program

1 / 3

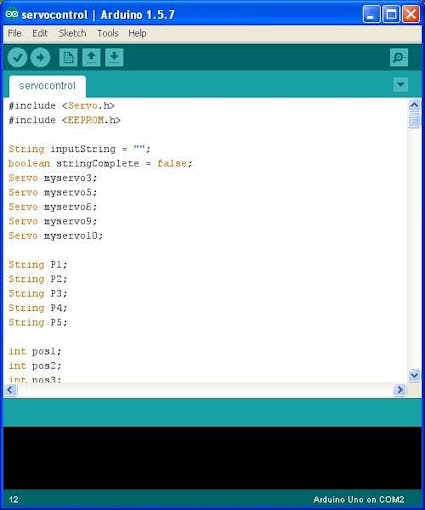

1) I use Arduino IDE to progem in Arduino and Visual basic 6 to program the application.

2) In arduino coding i use EEPROM to store the sequence got from the application and run as per the sequence.

3) In the Application Coding i use 5 scroll bars to set the position and a save button to save the position in the EEP ROM of the Arduino.

Step 15: Run the Program

1 / 5

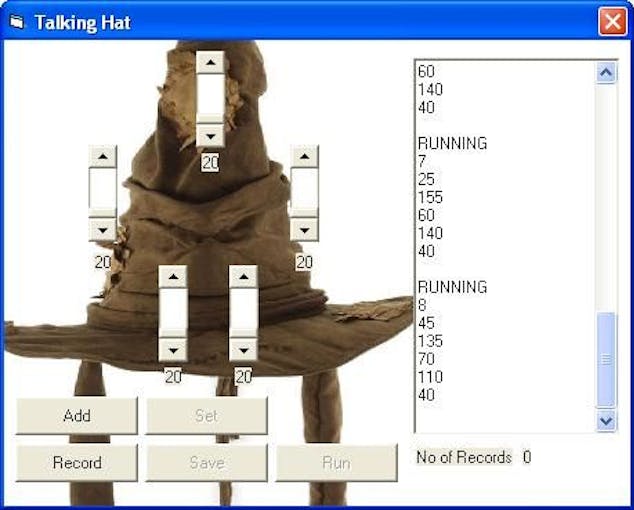

1) The Program has 5 buttons, 5 Scroll bars and a text box.

2) The Use the Serial communication to send and receive data between pc and arduino.

3) 5 Scroll bars are for 5 servos. At start Add and record buttons only enable.

Use Add button to add the sequence next to current last sequence. When press last sequence with servo position listed in the box and No of records have that count.

Use Record button to start a fresh sequence.

When click Add or record both button disable and set button only enable.

Adjust the Scroll bars as required and click set then the servos move and show how it look in the hat. Then the button save is enable.,

If you satisfy click Save. This command save the current position in the EEPROM and move to next sequence.

If you never satisfy then change the scroll bars again and click set.

On Click Save to save in EEPROM the Save button disable

When all the action is complete click Run. The hat start acting.

After click save Run, Set and save button disable and Record and add button enable.

Step 16: Testing after program

Step 17: Make a Skin

1 / 5

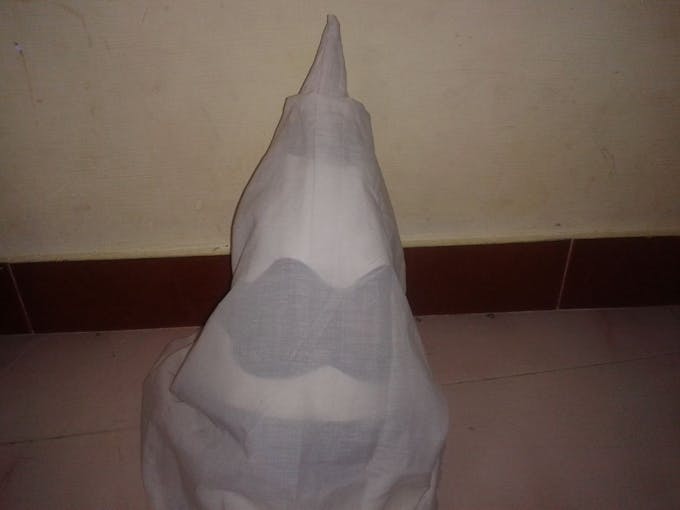

Now the Sorting hat skeleton is ready.

For skin I use waste dhoti. The color i have is only white, So i purchase Dark brown poster color to color the sorting hat.

Spread the Cloth on the floor and draw a circle using thread and pen in the cloth. Draw a circle bigger than the one draw for the hot.

Cut the cloth and saw on the open side to make the cone.

After stretch reverse the cloth to make the stitch go inside.

Like wise draw circle for Brim of the hat.

Cut two clothes and stretch on the edges. Reverse the cloth to make stretch go in side.

Insert the Brim cut in the chart board in to the cloth.

Step 18: Paste skin to the Hat

1 / 6

It is the most complected and artistic work.

Make all the links full Open apply Paste step by step to each portions and paste the cloth with the skeleton.

While paste have the image on the mobile or pc and make flips in some places like horn bottom, eye lines like wise and paste up to bottom.

Cut the center portion of the Brim for hat size.

Paste the opening of the Brim to the Hat.

Make paste liquid and apply all over the cloth to hold it tight and make it hard. Note that don't allow any other cloth now free is stick with other cloth of surface, because it cause the cloth hold together and not allow the servo to move.

Step 19: Checking again

Due to hardness of paste mouth got stuck up

Free the mouth.

Change the flow using program to wide open the mouth.

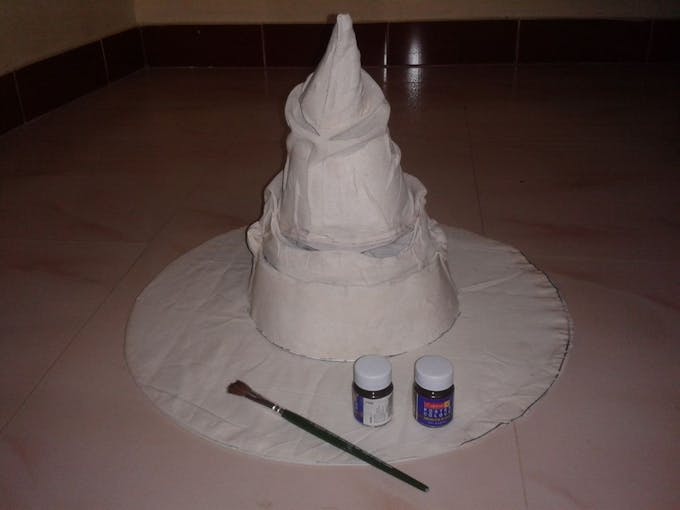

Step 20: Coloring

1 / 5

If u use Dark brown color cloth then there is no need to color. But be care full when select the cloth, if the cloth is very thick and weight then the servo need more power.

Color the Hat with the dark brown color.

Tie ribbon between the hat top and the brim then allow it to hang on the back side.

Paste two cloths on the sides of the hat to make it realistic.

Let the fun begin.

Step 21: Programming the hat Video

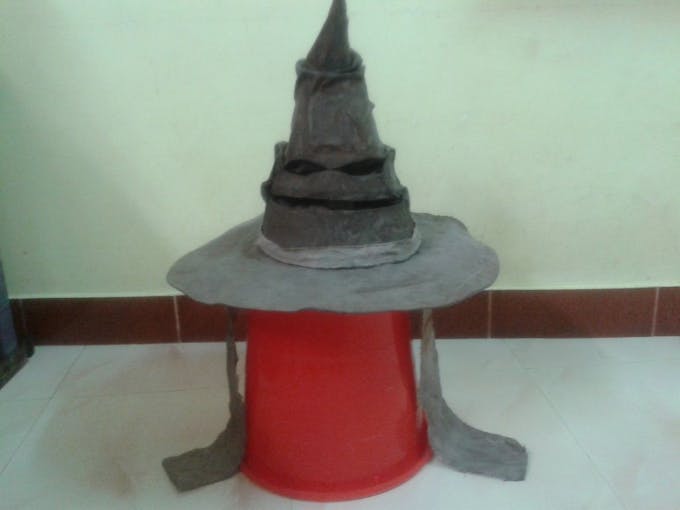

Step 22: All side view of hat

1 / 4

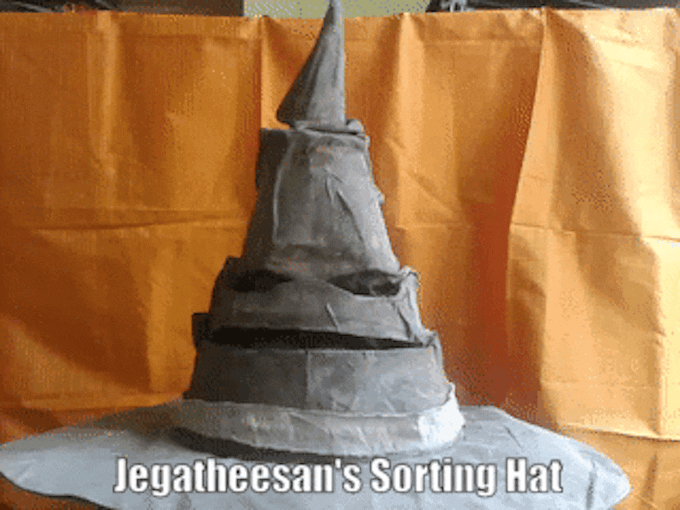

Step 23: Enjoy the result

Load a sound track in the PC. Give command one time from the software in the pc. Now allow the mp3 and the arduino to play. Then u found u sorting hat speak ur language also. Due to servo moments are stored in EEPROM even restart also the hat talks what u program.

Step 24: Some more actions

Lot of movement want to set and compile but time is very short so I posted.

Step 25: Selfie with Hat

1 / 2

Like to wear it on my head. But i want a power full battery to do it. So just sit next to my hat.

Step 26: Hat to my Computer

This computer let me study lot of things so i happy to put the hat to my computer.

Step 27: Play with hat

1 / 4

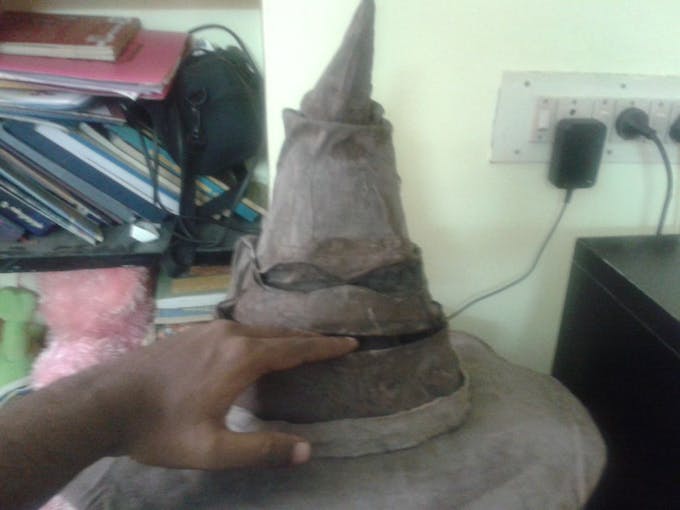

Have some play I punch its eyes it bite my fingers.

Lot more to enjoy! Don't forget to comment and encourage me friends.

#include <Servo.h>
#include <EEPROM.h>

String inputString = "";
boolean stringComplete = false;
Servo myservo3;
Servo myservo5;
Servo myservo6;
Servo myservo9;
Servo myservo10;

String P1;
String P2;
String P3;
String P4;
String P5;

int pos1;
int pos2;
int pos3;
int pos4;
int pos5;

int rpos1[100];
int rpos2[100];
int rpos3[100];
int rpos4[100];
int rpos5[100];

int opos1;
int opos2;
int opos3;
int opos4;
int opos5;

int seperator1=0;
int seperator2=0;

int noofrecords=0;
int runstatus=0;
int recpos=0;
int currec=0;

int pos = 0;

void setup() {
  myservo3.attach(3);
  myservo5.attach(5);
  myservo6.attach(6);
  myservo9.attach(9);
  myservo10.attach(10);
  Serial.begin(9600);

  noofrecords=EEPROM.read(0);

  for(int i=0;i<noofrecords;i++)
  {
    pos=pos+1;
    recpos=(i*5)+1;
    rpos1[pos]=EEPROM.read(recpos);
    recpos=recpos+1;
    rpos2[pos]=EEPROM.read(recpos);
    recpos=recpos+1;
    rpos3[pos]=EEPROM.read(recpos);
    recpos=recpos+1;
    rpos4[pos]=EEPROM.read(recpos);
    recpos=recpos+1;
    rpos5[pos]=EEPROM.read(recpos);
  }
  runstatus=1;
}

void loop() {
  if (stringComplete) {
    stringComplete = false;
//    Serial.println(inputString);
    if(inputString.substring(0,6)=="Record")
    {
      EEPROM.write(0, 0);
      noofrecords=0;
      runstatus=0;
      Serial.println("Record");
    }
    else if(inputString.substring(0,4)=="Save")
    {
      noofrecords=noofrecords+1;
      EEPROM.write(0, noofrecords);
      recpos=noofrecords-1;

      recpos=(recpos*5)+1;
      EEPROM.write(recpos, opos1);
      rpos1[noofrecords]=opos1;

      recpos=recpos+1;
      EEPROM.write(recpos, opos2);
      rpos2[noofrecords]=opos2;

      recpos=recpos+1;
      EEPROM.write(recpos, opos3);
      rpos3[noofrecords]=opos3;

      recpos=recpos+1;
      EEPROM.write(recpos, opos4);
      rpos4[noofrecords]=opos4;

      recpos=recpos+1;
      EEPROM.write(recpos, opos5);
      rpos5[noofrecords]=opos5;

      Serial.print("Saved");
      Serial.println(noofrecords);
    }
    else if(inputString.substring(0,3)=="Add")
    {
      runstatus=0;
      Serial.println(noofrecords);
      delay(100);
      Serial.println("LAST");
      Serial.println(rpos1[noofrecords]);
      Serial.println(rpos2[noofrecords]);
      Serial.println(rpos3[noofrecords]);
      Serial.println(rpos4[noofrecords]);
      Serial.println(rpos5[noofrecords]);
    }
    else if(inputString.substring(0,3)=="Run")
    {
      currec=0;
      runstatus=1;
      Serial.print("Run");
    }
    else
    {
//      Serial.println(inputString);
      seperator1 = inputString.indexOf(',');
      P1=inputString.substring(0,seperator1);
//      Serial.println(P1);

      seperator1=seperator1+1;
      seperator2 = inputString.indexOf(',',seperator1);
      P2=inputString.substring(seperator1,seperator2);
//      Serial.println(P2);

      seperator1=seperator2+1;
      seperator2 = inputString.indexOf(',',seperator1);
      P3=inputString.substring(seperator1,seperator2);
//      Serial.println(P3);

      seperator1=seperator2+1;
      seperator2 = inputString.indexOf(',',seperator1);
      P4=inputString.substring(seperator1,seperator2);
//      Serial.println(P4);

      seperator1=seperator2+1;
      seperator2 = inputString.indexOf(',',seperator1);
      P5=inputString.substring(seperator1,seperator2);
//      Serial.println(P5);

      pos1=P1.toInt();
      pos2=P2.toInt();
      pos3=P3.toInt();
      pos4=P4.toInt();
      pos5=P5.toInt();

      if (pos1<20)
      {
        pos1=20;
      }else if(pos1>90)
      {
        pos1=90;
      }

      if (pos2<20)
      {
        pos2=20;
      }
      else if (pos2>90)
      {
        pos2=90;
      }
      pos2=180-pos2;

      if (pos3<20)
      {
        pos3=20;
      }
      else if (pos3>90)
      {
        pos3=90;
      }

      if (pos4<20)
      {
        pos4=20;
      }
      else if (pos4>90)
      {
        pos4=90;
      }
      pos4=180-pos4;

      if (pos5<20)
      {
        pos5=20;
      }
      else if (pos5>90)
      {
        pos5=90;
      }

      if (pos1!=opos1)
      {
        myservo3.write(pos1);
        opos1=pos1;
      }
      if (pos2!=opos2)
      {
        myservo5.write(pos2);
        opos2=pos2;
      }
      if (pos3!=opos3)
      {
        myservo6.write(pos3);
        opos3=pos3;
      }
      if (pos4!=opos4)
      {
        myservo9.write(pos4);
        opos4=pos4;
      }
      if (pos5!=opos5)
      {
        myservo10.write(pos5);
        opos5=pos5;
      }
    }
    inputString = "";
  }

  if(runstatus==1)
  {
    currec=currec+1;
    if (currec>noofrecords)
    {
      currec=1;
      delay(2000);
    }
    pos1=rpos1[currec];
    pos2=rpos2[currec];
    pos3=rpos3[currec];
    pos4=rpos4[currec];
    pos5=rpos5[currec];
    Serial.println("RUNNING");
    Serial.println(currec);
    Serial.println(pos1);
    Serial.println(pos2);
    Serial.println(pos3);
    Serial.println(pos4);
    Serial.println(pos5);
    if (pos1!=opos1)
    {
      myservo3.write(pos1);
      opos1=pos1;
    }
    if (pos2!=opos2)
    {
      myservo5.write(pos2);
      opos2=pos2;
    }
    if (pos3!=opos3)
    {
      myservo6.write(pos3);
      opos3=pos3;
    }
    if (pos4!=opos4)
    {
      myservo9.write(pos4);
      opos4=pos4;
    }
    if (pos5!=opos5)
    {
      myservo10.write(pos5);
      opos5=pos5;
    }
    delay(1000);
  }
}

void serialEvent() {
  while (Serial.available()) {
     char inChar = (char)Serial.read();
     inputString += inChar;
     if (inChar == '\n') {
      stringComplete = true;
    }
  }
}

VERSION 5.00
Object = "{648A5603-2C6E-101B-82B6-000000000014}#1.1#0"; "MSCOMM32.OCX"
Begin VB.Form Label2
   BackColor       =   &H00FFFFFF&
   BorderStyle     =   1  'Fixed Single
   Caption         =   "Talking Hat"
   ClientHeight    =   5055
   ClientLeft      =   45
   ClientTop       =   435
   ClientWidth     =   6795
   LinkTopic       =   "Form1"
   MaxButton       =   0   'False
   MinButton       =   0   'False
   ScaleHeight     =   5055
   ScaleWidth      =   6795
   StartUpPosition =   3  'Windows Default
   Begin VB.CommandButton cmd_add
      Caption         =   "Add"
      Height          =   420
      Left            =   120
      TabIndex        =   17
      Top             =   3870
      Width           =   1335
   End
   Begin VB.CommandButton cmd_set
      Caption         =   "Set"
      Height          =   420
      Left            =   1530
      TabIndex        =   16
      Top             =   3870
      Width           =   1335
   End
   Begin VB.VScrollBar VScroll4
      Height          =   1050
      Left            =   915
      Max             =   20
      Min             =   90
      TabIndex        =   13
      Top             =   1140
      Value           =   20
      Width           =   315
   End
   Begin VB.VScrollBar VScroll3
      Height          =   1050
      Left            =   3105
      Max             =   20
      Min             =   90
      TabIndex        =   12
      Top             =   1140
      Value           =   20
      Width           =   315
   End
   Begin VB.VScrollBar VScroll2
      Height          =   1050
      Left            =   1680
      Max             =   20
      Min             =   90
      TabIndex        =   10
      Top             =   2445
      Value           =   20
      Width           =   315
   End
   Begin VB.VScrollBar VScroll1
      Height          =   1050
      Left            =   2445
      Max             =   20
      Min             =   90
      TabIndex        =   8
      Top             =   2445
      Value           =   20
      Width           =   315
   End
   Begin VB.TextBox txt_rectext
      Height          =   4095
      Left            =   4440
      Locked          =   -1  'True
      MultiLine       =   -1  'True
      ScrollBars      =   2  'Vertical
      TabIndex        =   4
      Top             =   195
      Width           =   2250
   End
   Begin VB.CommandButton cmd_run
      Caption         =   "Run"
      Height          =   420
      Left            =   2940
      TabIndex        =   3
      Top             =   4380
      Width           =   1335
   End
   Begin VB.CommandButton cmd_save
      Caption         =   "Save"
      Height          =   420
      Left            =   1530
      TabIndex        =   2
      Top             =   4380
      Width           =   1335
   End
   Begin VB.CommandButton cmd_record
      Caption         =   "Record"
      Height          =   420
      Left            =   120
      TabIndex        =   1
      Top             =   4380
      Width           =   1335
   End
   Begin VB.VScrollBar VScroll5
      Height          =   1050
      Left            =   2085
      Max             =   20
      Min             =   90
      TabIndex        =   0
      Top             =   120
      Value           =   20
      Width           =   315
   End
   Begin VB.Timer Timer1
      Interval        =   100
      Left            =   270
      Top             =   2970
   End
   Begin MSCommLib.MSComm MSComm1
      Left            =   120
      Top             =   2910
      _ExtentX        =   1005
      _ExtentY        =   1005
      _Version        =   393216
      CommPort        =   2
      DTREnable       =   -1  'True
   End
   Begin VB.Label Label7
      Alignment       =   2  'Center
      AutoSize        =   -1  'True
      Caption         =   "No of Records"
      Height          =   195
      Left            =   4470
      TabIndex        =   15
      Top             =   4425
      Width           =   1050
   End
   Begin VB.Label lbl_records
      AutoSize        =   -1  'True
      Caption         =   "0"
      Height          =   195
      Left            =   5625
      TabIndex        =   14
      Top             =   4425
      Width           =   90
   End
   Begin VB.Label Label2
      Alignment       =   2  'Center
      AutoSize        =   -1  'True
      Caption         =   "20"
      Height          =   195
      Left            =   1740
      TabIndex        =   11
      Top             =   3555
      Width           =   180
   End
   Begin VB.Label Label1
      Alignment       =   2  'Center
      AutoSize        =   -1  'True
      Caption         =   "20"
      Height          =   195
      Left            =   2505
      TabIndex        =   9
      Top             =   3555
      Width           =   180
   End
   Begin VB.Label Label5
      AutoSize        =   -1  'True
      Caption         =   "20"
      Height          =   195
      Left            =   2152
      TabIndex        =   7
      Top             =   1230
      Width           =   180
   End
   Begin VB.Label Label4
      AutoSize        =   -1  'True
      Caption         =   "20"
      Height          =   195
      Left            =   982
      TabIndex        =   6
      Top             =   2310
      Width           =   180
   End
   Begin VB.Label Label3
      AutoSize        =   -1  'True
      Caption         =   "20"
      Height          =   195
      Left            =   3172
      TabIndex        =   5
      Top             =   2310
      Width           =   180
   End
   Begin VB.Image Image1
      Height          =   7485
      Left            =   -2355
      Picture         =   "Form1.frx":0000
      Stretch         =   -1  'True
      Top             =   -900
      Visible         =   0   'False
      Width           =   9060
   End
End
Attribute VB_Name = "Label2"
Attribute VB_GlobalNameSpace = False
Attribute VB_Creatable = False
Attribute VB_PredeclaredId = True
Attribute VB_Exposed = False
Dim recrec As Boolean
Dim s As String

Private Sub cmd_add_Click()
    cmd_save.Enabled = False
    cmd_set.Enabled = True
    cmd_record.Enabled = False
    cmd_add.Enabled = False
    recrec = False
    MSComm1.Output = "Add" & vbCrLf
    For i = 1 To 2000
    Next
    MSComm1.Output = "Add" & vbCrLf
    lbl_records.Caption = 0
End Sub
Private Sub cmd_record_Click()
    cmd_save.Enabled = False
    cmd_set.Enabled = True
    cmd_record.Enabled = False
    cmd_add.Enabled = False
    MSComm1.Output = "Record" & vbCrLf
    For i = 1 To 2000
    Next
    MSComm1.Output = "Record" & vbCrLf
    lbl_records.Caption = 0
End Sub
Private Sub cmd_run_Click()
    cmd_set.Enabled = False
    cmd_save.Enabled = False
    cmd_run.Enabled = False
    cmd_record.Enabled = True
    cmd_add.Enabled = True
    MSComm1.Output = "Run" & vbCrLf
End Sub
Private Sub cmd_save_Click()
    cmd_save.Enabled = False
    cmd_run.Enabled = True
    MSComm1.Output = "Save" & vbCrLf
    lbl_records.Caption = Val(lbl_records.Caption) + 1
End Sub
Private Sub cmd_set_Click()
    If Val(lbl_records.Caption) >= 75 Then
        MsgBox "Exit the Save limit", vbInformation, head
        Exit Sub
    End If
    MSComm1.Output = VScroll1.Value & "," & VScroll2.Value & "," & VScroll3.Value & "," & VScroll4.Value & "," & VScroll5.Value & "," & vbCrLf
    cmd_save.Enabled = True
End Sub

Private Sub Form_Load()
    MSComm1.PortOpen = True
    cmd_add.Enabled = True
    cmd_set.Enabled = False
    cmd_save.Enabled = False
    cmd_run.Enabled = False
    recrec = True
End Sub

'Private Sub Timer1_Timer()
'    s = MSComm1.Input
'    If s <> "" Then
'        Text1.Text = Text1.Text & s
'    End If
'End Sub
Private Sub Timer1_Timer()
    s = MSComm1.Input
    If s <> "" Then
        txt_rectext.Text = txt_rectext.Text & vbCrLf & s
        If recrec = False Then
            recrec = True
            lbl_records.Caption = Val(s)
        End If
        txt_rectext.SelStart = Val(Len(txt_rectext.Text))
    End If
End Sub
Private Sub VScroll1_Change()
    Label1.Caption = VScroll1.Value
End Sub
Private Sub VScroll2_Change()
    Label2.Caption = VScroll2.Value
End Sub
Private Sub VScroll3_Change()
    Label3.Caption = VScroll3.Value
End Sub
Private Sub VScroll4_Change()
    Label4.Caption = VScroll4.Value
End Sub
Private Sub VScroll5_Change()
    Label5.Caption = VScroll5.Value
End Sub

Credits

jegatheesan

18 projects • 67 followers

Simply A Mechatronics Lover.

Full Animatronic Sorting Hat With Custom Software -$22

Things used in this project

Hardware components

Software apps and online services

Hand tools and fabrication machines

Story

Step 1: Materials and Tools Required

Step 2: Make the basic Hat

Step 3: Draw and Cut the Hat

Step 4: Add Cardboard to Make Portions strip

Step 5: Join all parts with a help of cloth

Step 6: Make Mechanical Link

Step 7: Prepare Arduino

Step 8: Fix link to the servo

Step 9: Fix servo to the Hat horn

Step 10: Fix servo for Mouth

Step 11: Mouth full open test

Step 12: Fix the eyes piece and complete

Step 13: All Parts Full opening

Step 14: Create Program

Step 15: Run the Program

Step 16: Testing after program

Step 17: Make a Skin

Step 18: Paste skin to the Hat

Step 19: Checking again

Step 20: Coloring

Step 21: Programming the hat Video

Step 22: All side view of hat

Step 23: Enjoy the result

Step 24: Some more actions

Step 25: Selfie with Hat

Step 26: Hat to my Computer

Step 27: Play with hat

Code

servocontrol.ino

Visual basic program

Credits

jegatheesan

Comments

Embed the widget on your own site

Full Animatronic Sorting Hat With Custom Software -$22

Full Animatronic Sorting Hat With Custom Software -$22

Things used in this project

Hardware components

Software apps and online services

Hand tools and fabrication machines

Story

Step 1: Materials and Tools Required

Step 2: Make the basic Hat

Step 3: Draw and Cut the Hat

Step 4: Add Cardboard to Make Portions strip

Step 5: Join all parts with a help of cloth

Step 6: Make Mechanical Link

Step 7: Prepare Arduino

Step 8: Fix link to the servo

Step 9: Fix servo to the Hat horn

Step 10: Fix servo for Mouth

Step 11: Mouth full open test

Step 12: Fix the eyes piece and complete

Step 13: All Parts Full opening

Step 14: Create Program

Step 15: Run the Program

Step 16: Testing after program

Step 17: Make a Skin

Step 18: Paste skin to the Hat

Step 19: Checking again

Step 20: Coloring

Step 21: Programming the hat Video

Step 22: All side view of hat

Step 23: Enjoy the result

Step 24: Some more actions

Step 25: Selfie with Hat

Step 26: Hat to my Computer

Step 27: Play with hat

Code

servocontrol.ino

Visual basic program

Credits

jegatheesan

Comments

Related channels and tags
